What is the solution for shadow plane after rendering an object ? (SolidWorks 2011)

I am currently facing a problem that whenever I render my design, some part goes under the floor plane and cut the edges. Is there any solutions ? (Problem picture is attached)

Answer

Comments 0

3 Answers

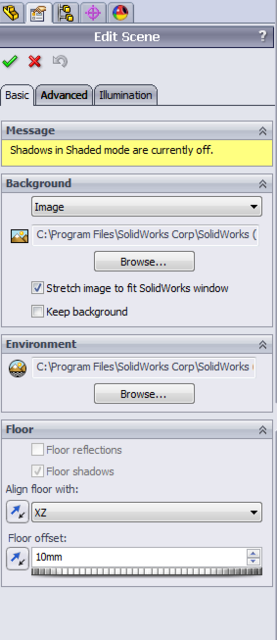

You need to change the floor offset.

-Rohit<a href="http://solidwize.com" onclick="window.open(this.href); return false;">
100's of SolidWorks Tutorials >>>>> Solidwize</a>
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

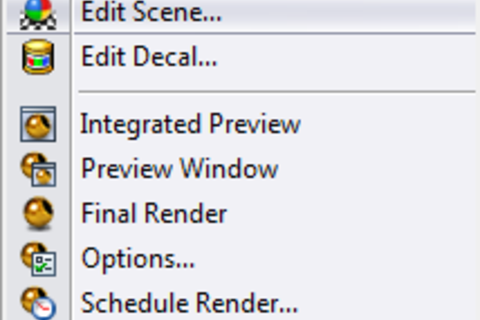

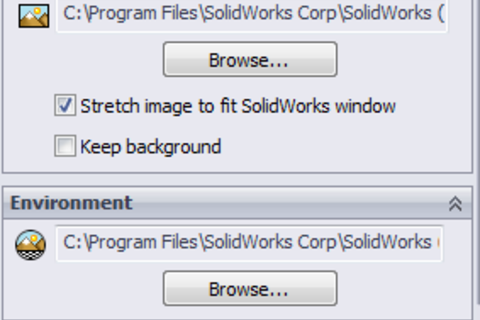

Answered with a tutorial: https://grabcad.com/tutorials/what-is-the-solution-for-shadow-plane-after-rendering-an-object-solidworks-2011


Comments 2

Thanks a lot. It worked perfectly :)


Comments 0

I have noticed that in order to change the floor offset it is necessary to set a perspective visualization of the model ( View, Display, Perspective).
Has anyone noticed the same problem?


Comments 0
