Electrical Motor
In this tutorial, I am going to explain step by step how to design an Electrical Motor design in AutoCAD. The measurements are as you want. I won't talk about that, I am going to show here how to create a motor step by step.
-
Step 1: Create circle
i) Create two Circle:
-
Step 2: Create lines and angle lines

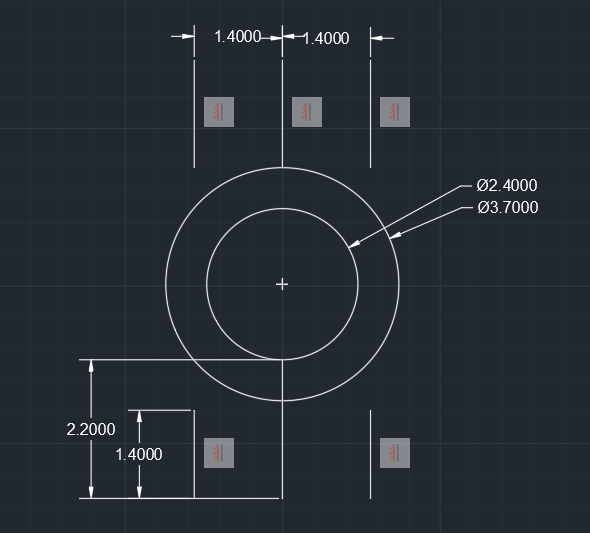

i) Create three Lines above the circle:
ii) Create three Lines below the circle:

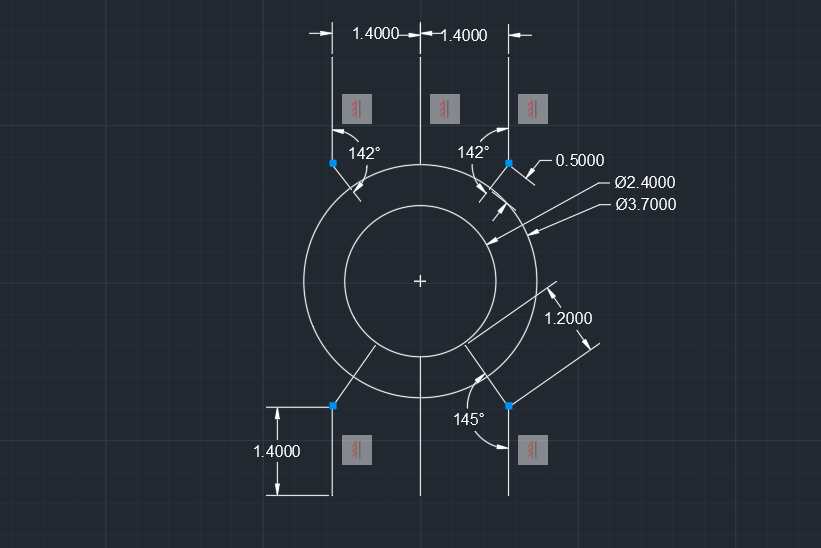

iii) Create two angle line:
-

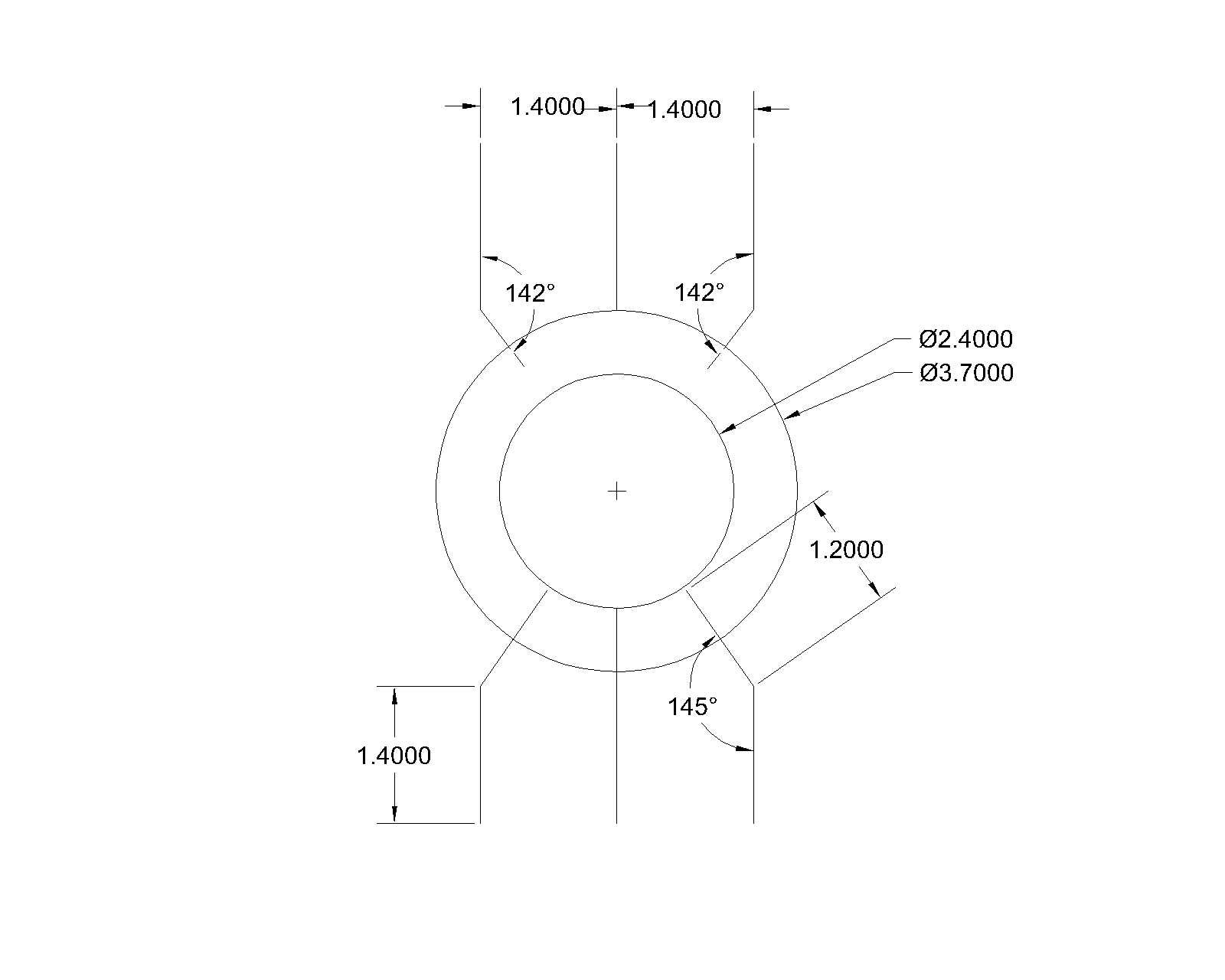

Step 3: Final output
