How to model a diffuser in solidwork?

Xiaochen Zhou
31 Jul, 2016 03:38 PM

Check "Circular Sketch Pattern" under "Sketch tool". With this function, this problem should be easy.
Here's a very simple demo using the data you provided.

  1. Step 1:

    Use your data to create the first one and use "Circular Sketch Pattern". Set the numbers of copies to 11.

  2. Step 2:

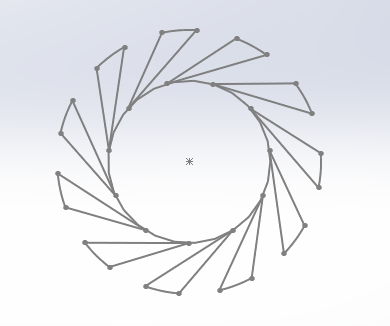

    Trim to get the sketch below. Then it should be nice and easy
