How to model Letter Balance in Solidwoks - Part 2

Tutorial by Dragan Beljan
Small

Left Scale - finish

  1. Step 1:

    Draw a sketch on front plane, link for first image is on Dropbox - large file 20 MB
    https://www.dropbox.com/s/g36rcgmmol5y48d/01.JPG

  2. Step 2:

    Boss extrude it 2,5mm

  3. Step 3:

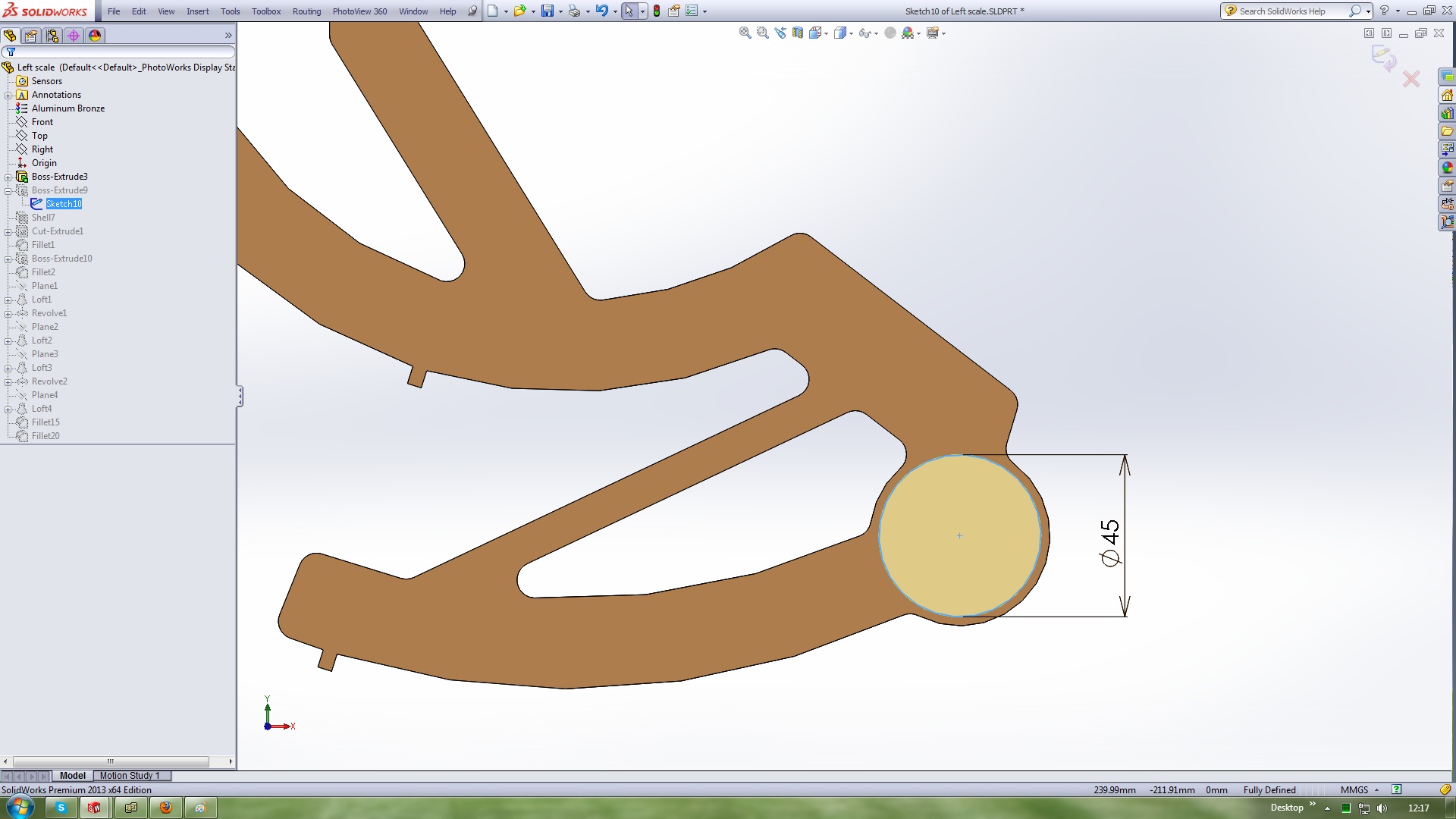

    Draw a sketch like this on picture

  4. Step 4:

    Boss extrude it 10mm

  5. Step 5:

    Make a shell 4mm

  6. Step 6:

    Draw a new sketch

  7. Step 7:

    Cut extrude it 6mm

  8. Step 8:

    Make a fillet 1mm

  9. Step 9:

    Draw a new sketch

  10. Step 10:

    Boss extrude it 5.5mm and 12mm

  11. Step 11:

    Make a fillet 1mm

  12. Step 12:

    Create a Plane1 with this references

  13. Step 13:

    Draw a sketch

  14. Step 14:

    Draw a sketch on Plane1

  15. Step 15:

    Use loft

  16. Step 16:

    Draw a new sketch

  17. Step 17:

    Use revolve

  18. Step 18:

    Create a Plane2 with this references

  19. Step 19:

    Draw a sketch on Plane2

  20. Step 20:

    Use loft

  21. Step 21:

    Use fillet 0,25mm

  22. Step 22:

    Use fillet 0,5mm

  23. Step 23:

    Left Scale - finish
