Tutorial: How to make a mug in Catia V5?

Tutorial by Abhijeet
Small

Tutorial to make a mug in Catia V5

  1. Step 1:

    Make a part as shown in the image using revolve feature in surfacing or in part modeling.

  2. Step 2:

    Invoke a sketch on yz or xz plane

  3. Step 3:

    Sketch a spline as per your required handle.

  4. Step 4:

    Insert a plane at the tip of the spline and click ok.

  5. Step 5:

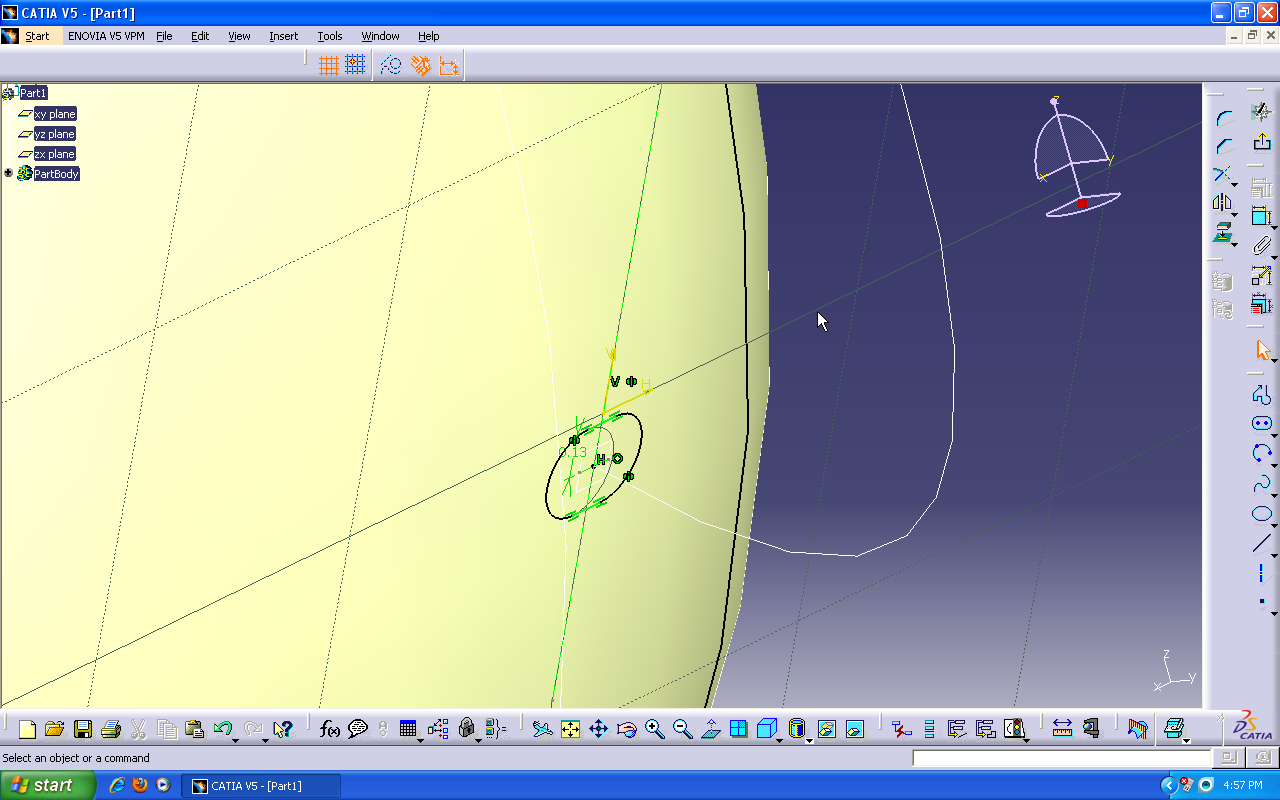

    Draw your handle's profile and make it coincident with the spline in the center.

  6. Step 6:

    If you were in GSD then go to part design workbench

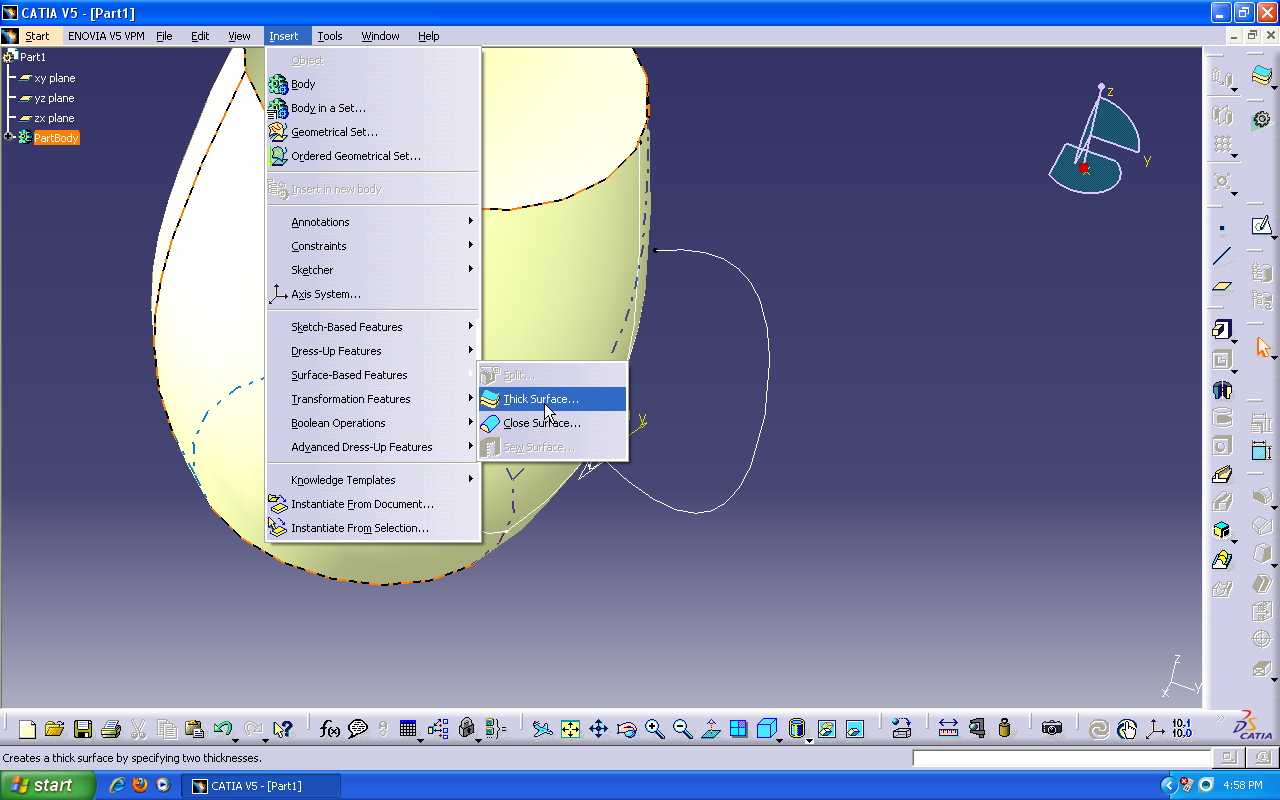

    insert->surface based feature->thick surface.

  7. Step 7:

    hide all the surfaces

  8. Step 8:

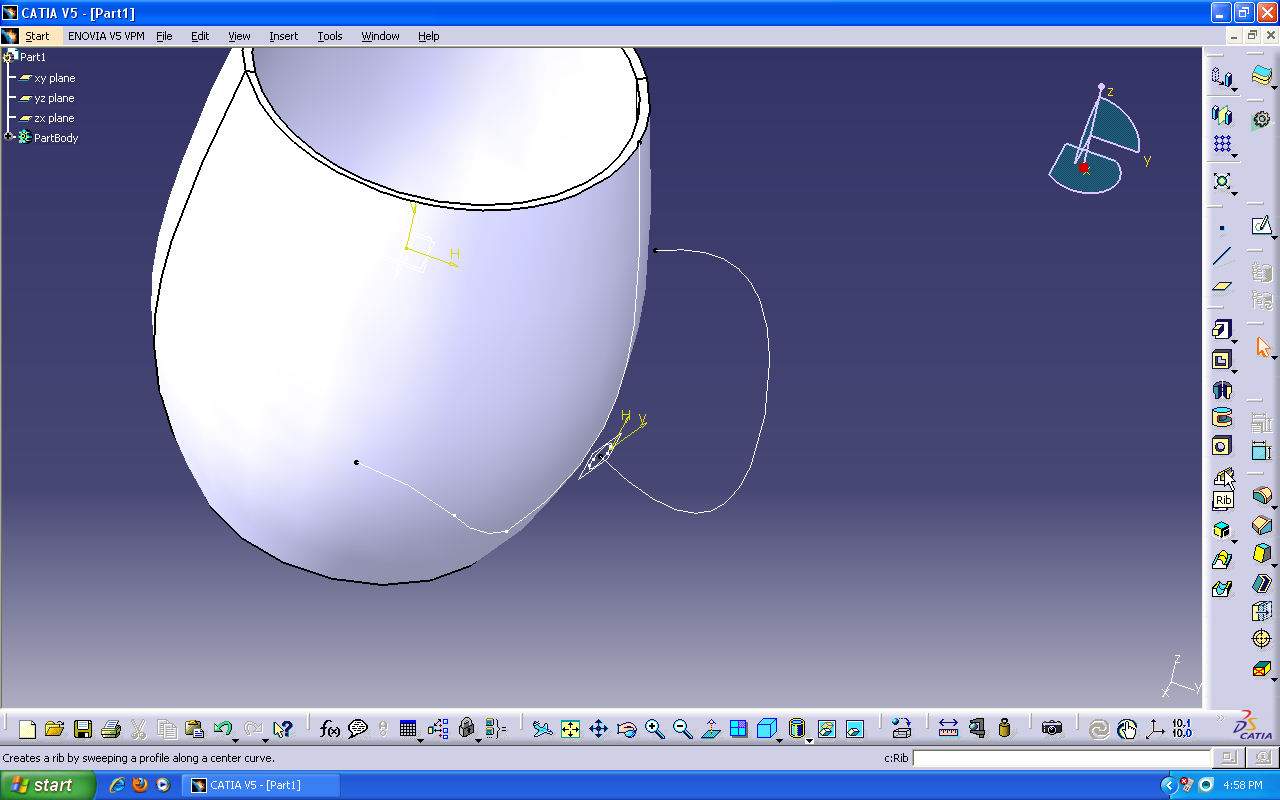

    after hiding the surface your model will look like this

  9. Step 9:

    Now use "rib" feature. Invoke it from the main menu by using insert->features->rib definition or find it in the tool bar.

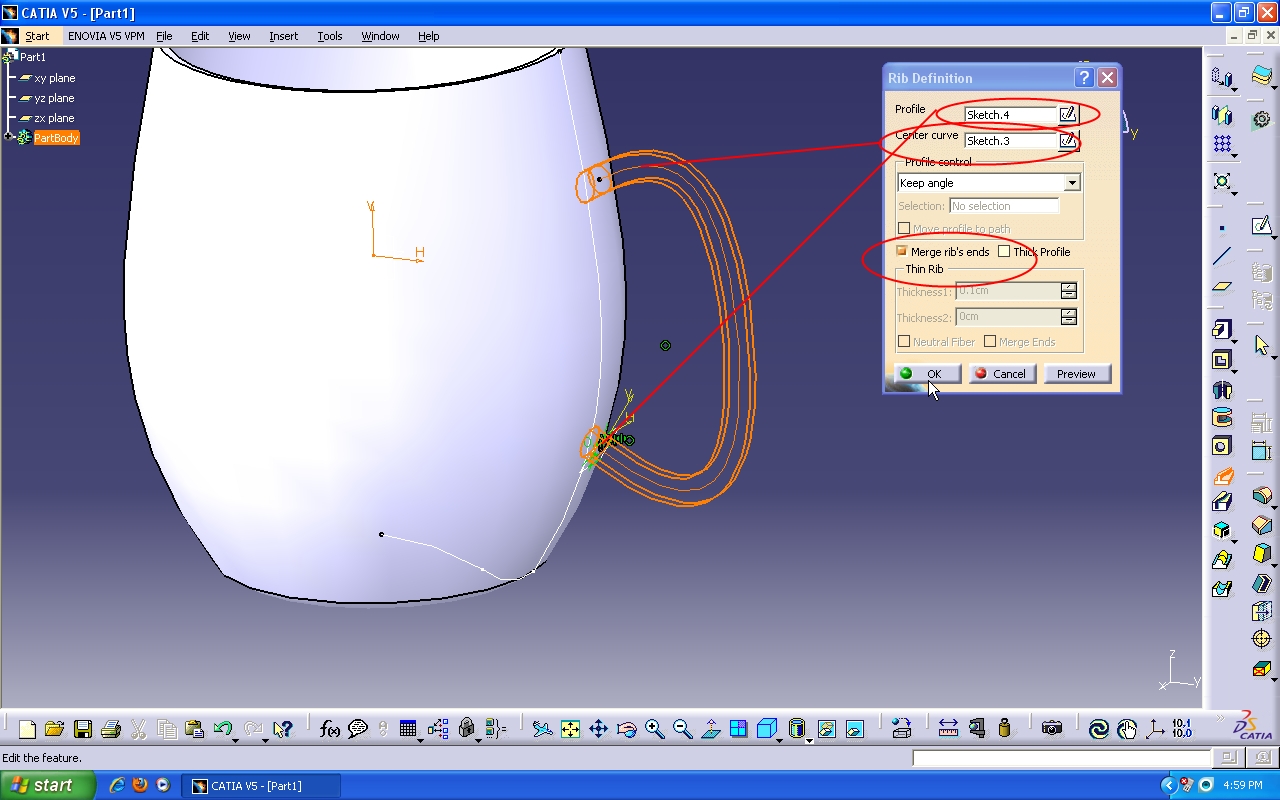

    Select the profile as made in step 5, center curve as the spline and check "merge rib" option.

  10. Step 10:

    Here's you mug ready to use.
