Tutorial how to model a propelling pencil (15)

Tutorial by Aykut Dana
Small

part 10

  1. Step 1:

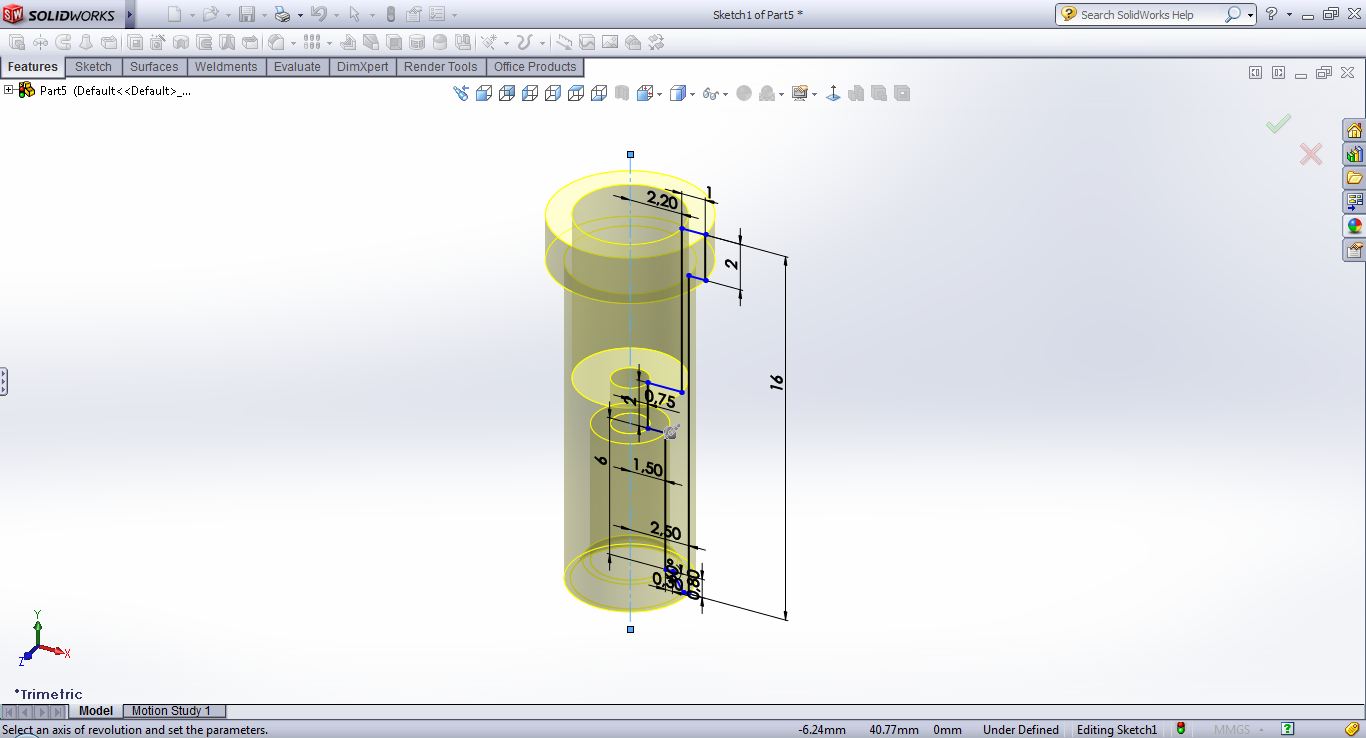

    open a sketch on the front plane and draw a centerline

  2. Step 2:

    start the drawing

  3. Step 3:

    continue

  4. Step 4:

    make your sketch finally like this

  5. Step 5:

    use revolve command

  6. Step 6:

    use fillet command

  7. Step 7:

    referance geometry-- plane . select the front plane and enter the distance

  8. Step 8:

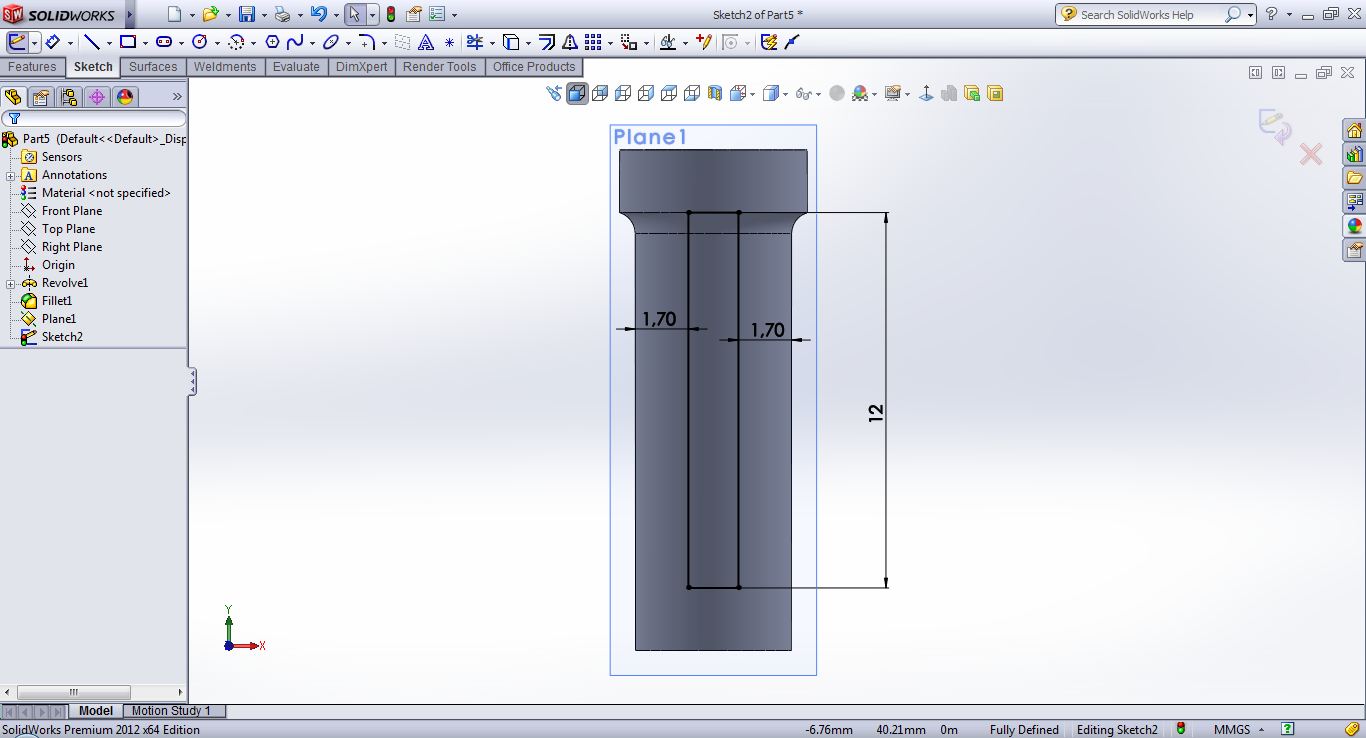

    open a sketch on the new plane

  9. Step 9:

    draw a rectangle

  10. Step 10:

    continue..

  11. Step 11:

    use trim command

  12. Step 12:

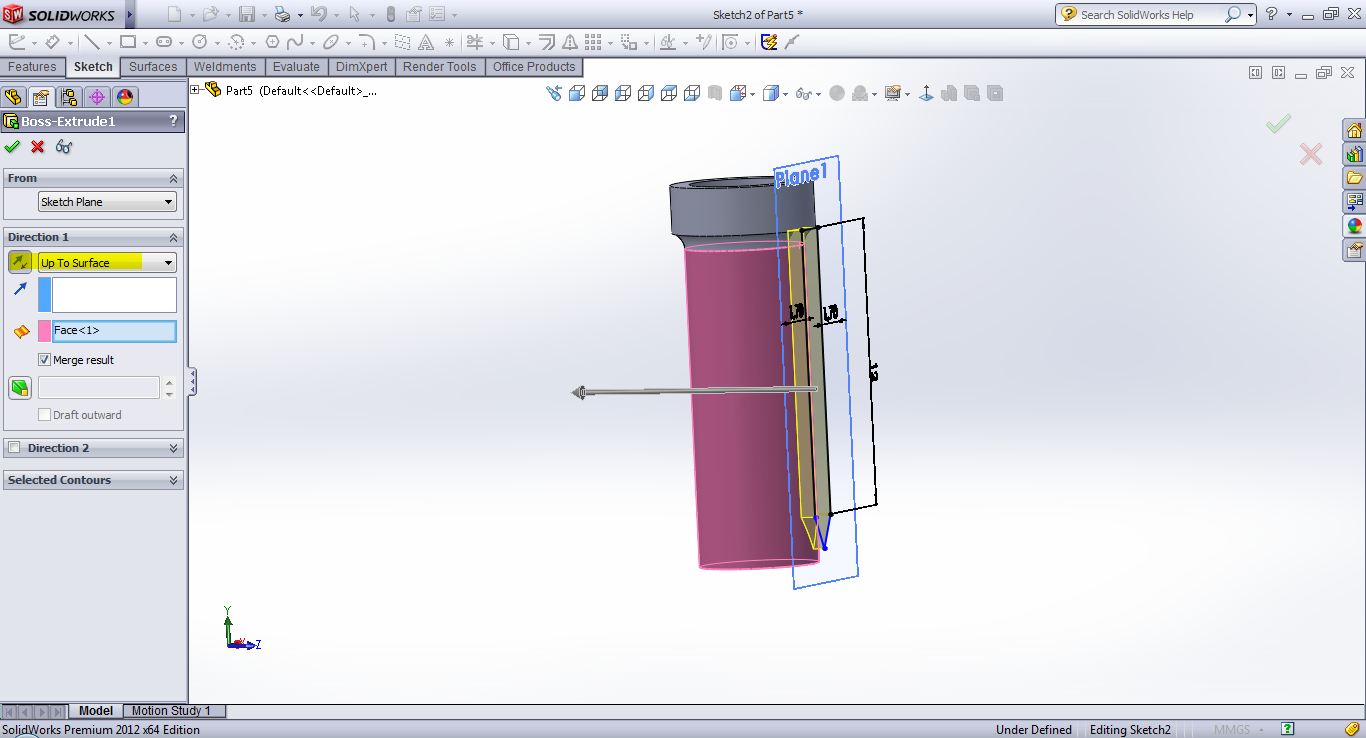

    use extrude command. select up to surface option and select the pink surface. confirm that

  13. Step 13:

    use mirror command. select mirror plane (front plane) and features to mirror( boss extrude 1)

  14. Step 14:

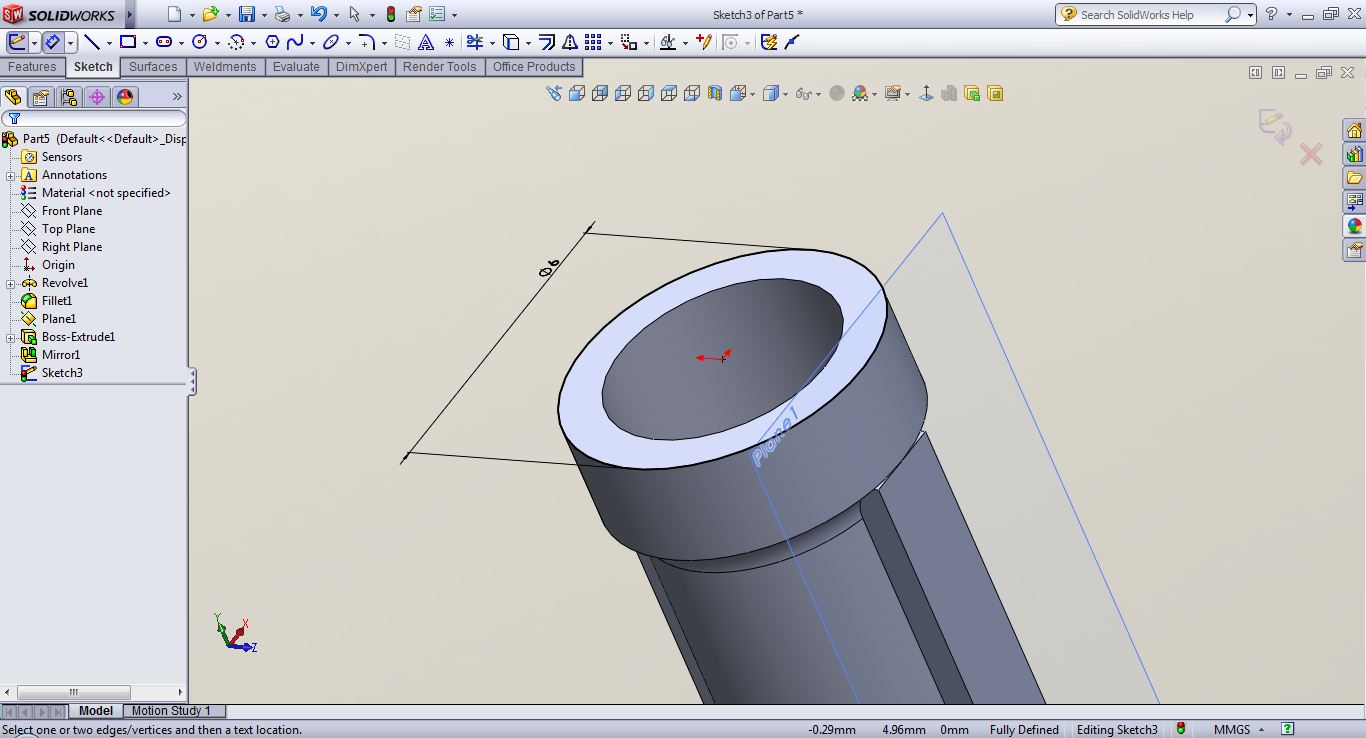

    open a sketch on this surface

  15. Step 15:

    draw a circle

  16. Step 16:

    use cut-extrude command. tick the ''flip side to cut'' box

  17. Step 17:

    save the part 10

  18. Step 18:

    please don't try to make a assembly file at the moment. I will show how to make it soon
