Tutorial how to model a propelling pencil (18)

Tutorial by Aykut Dana
Small

18th part

  1. Step 1:

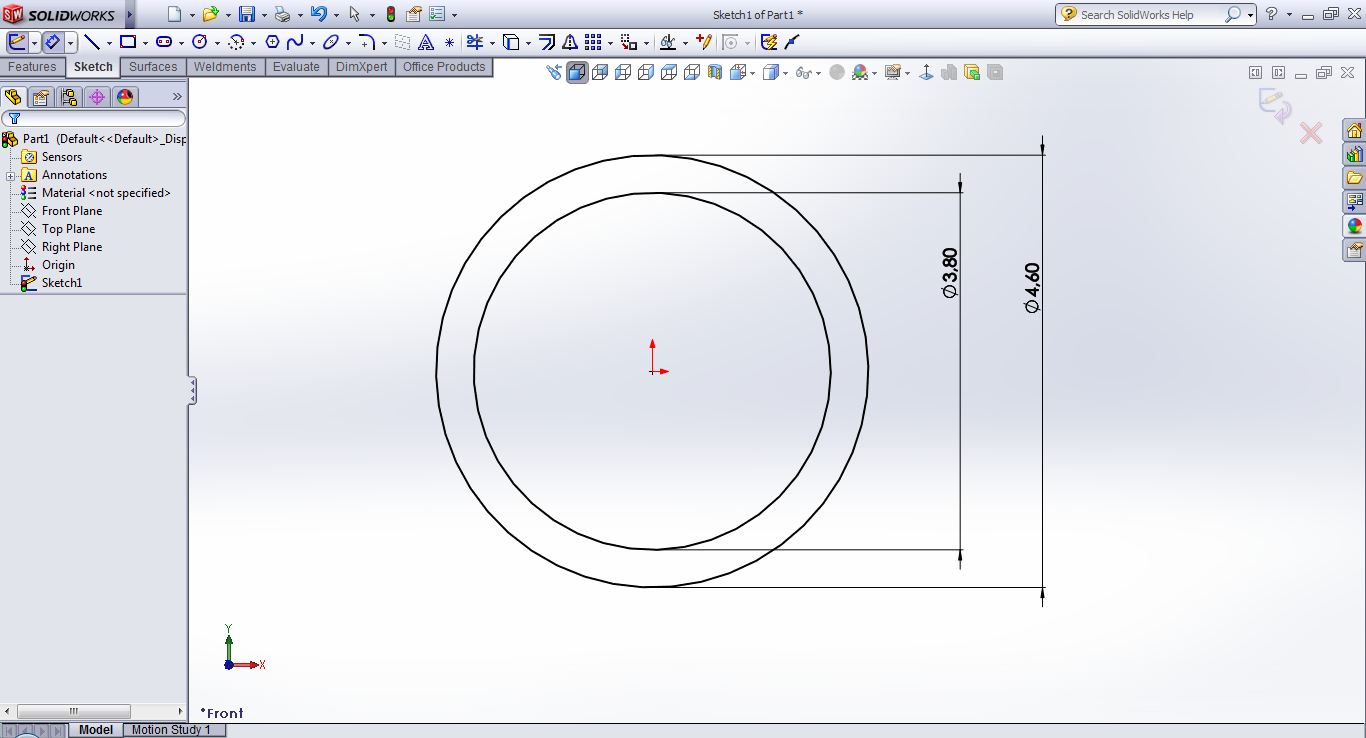

    open a sketch on the front plane and draw shown sketch

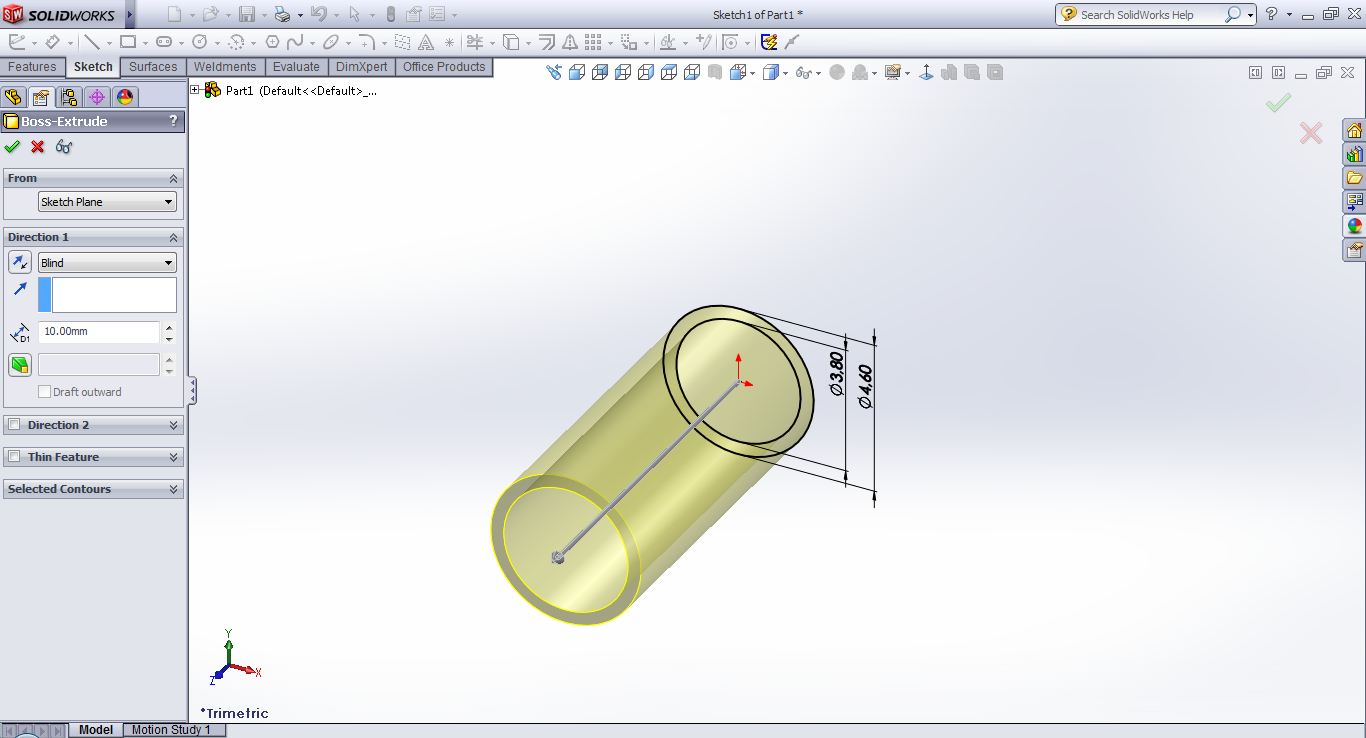

  2. Step 2:

    extrude it by 10mm

  3. Step 3:

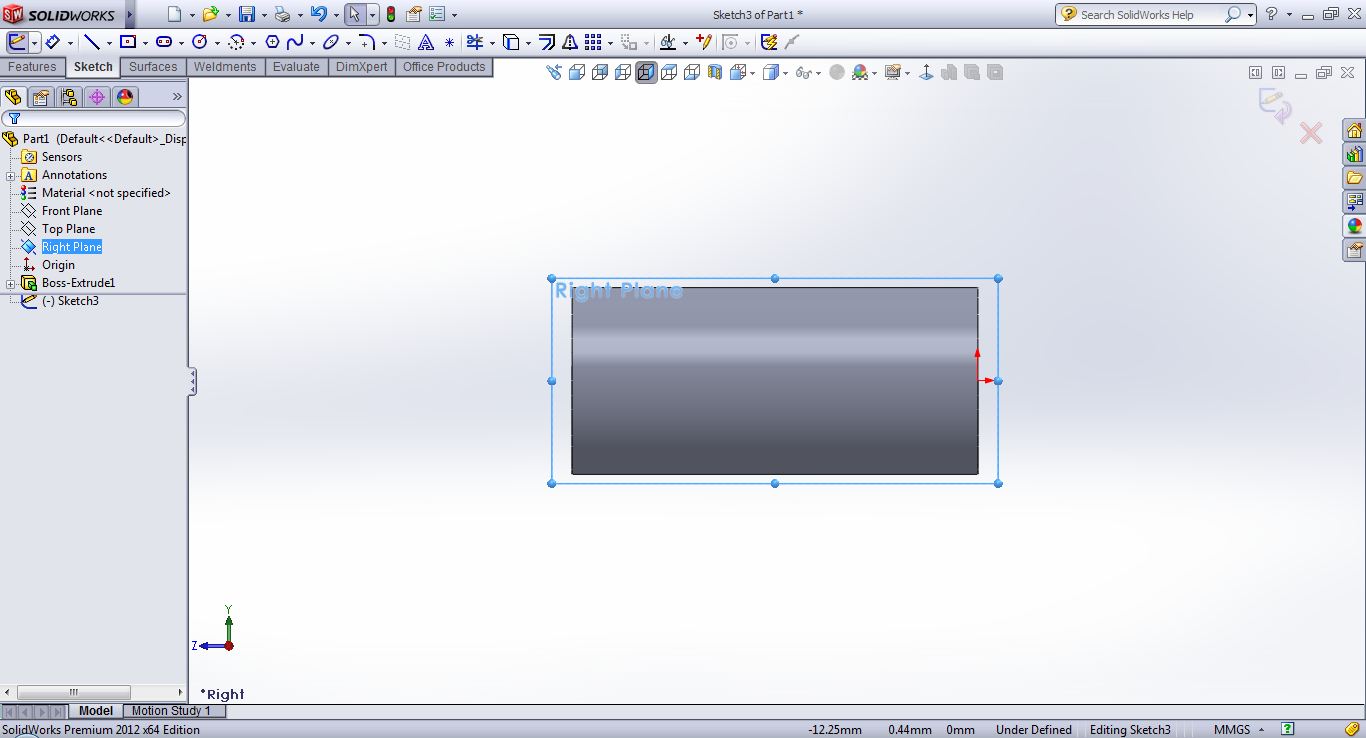

    open a sketch on the right plane

  4. Step 4:

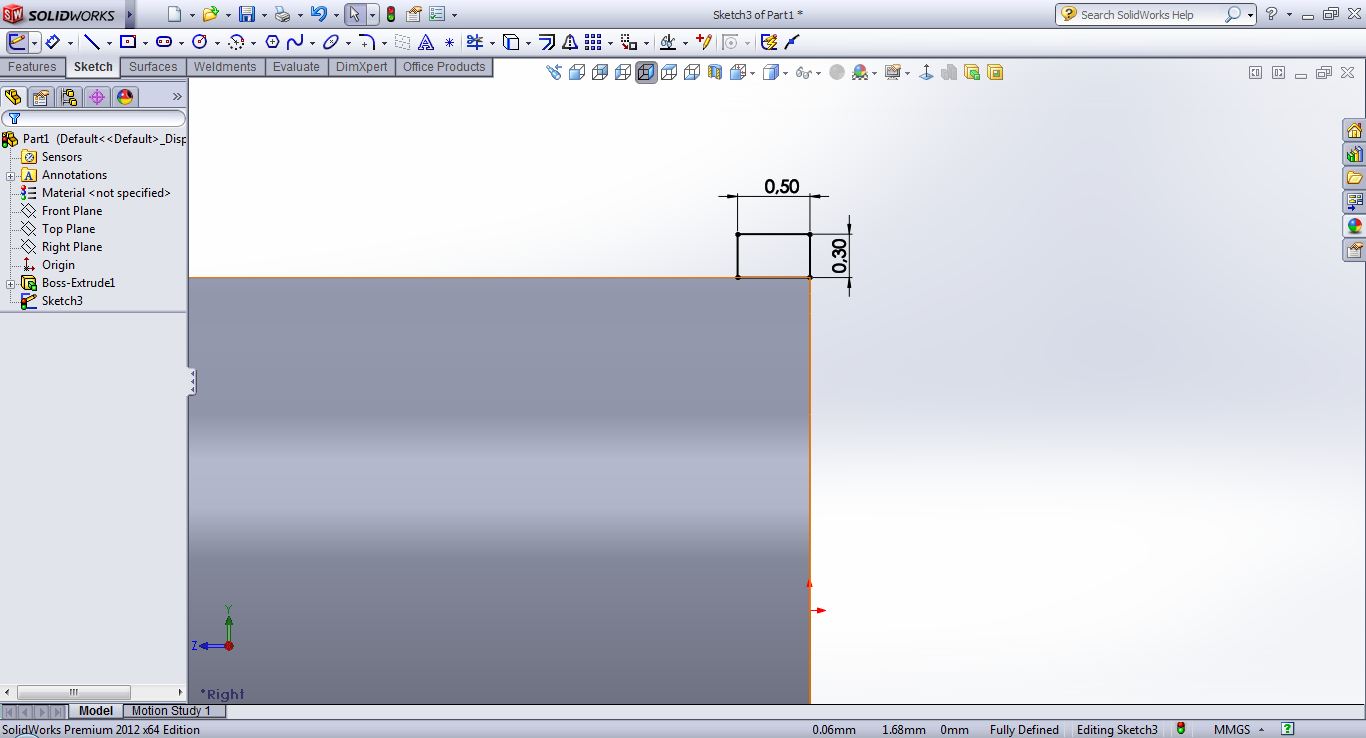

    draw shown sketch

  5. Step 5:

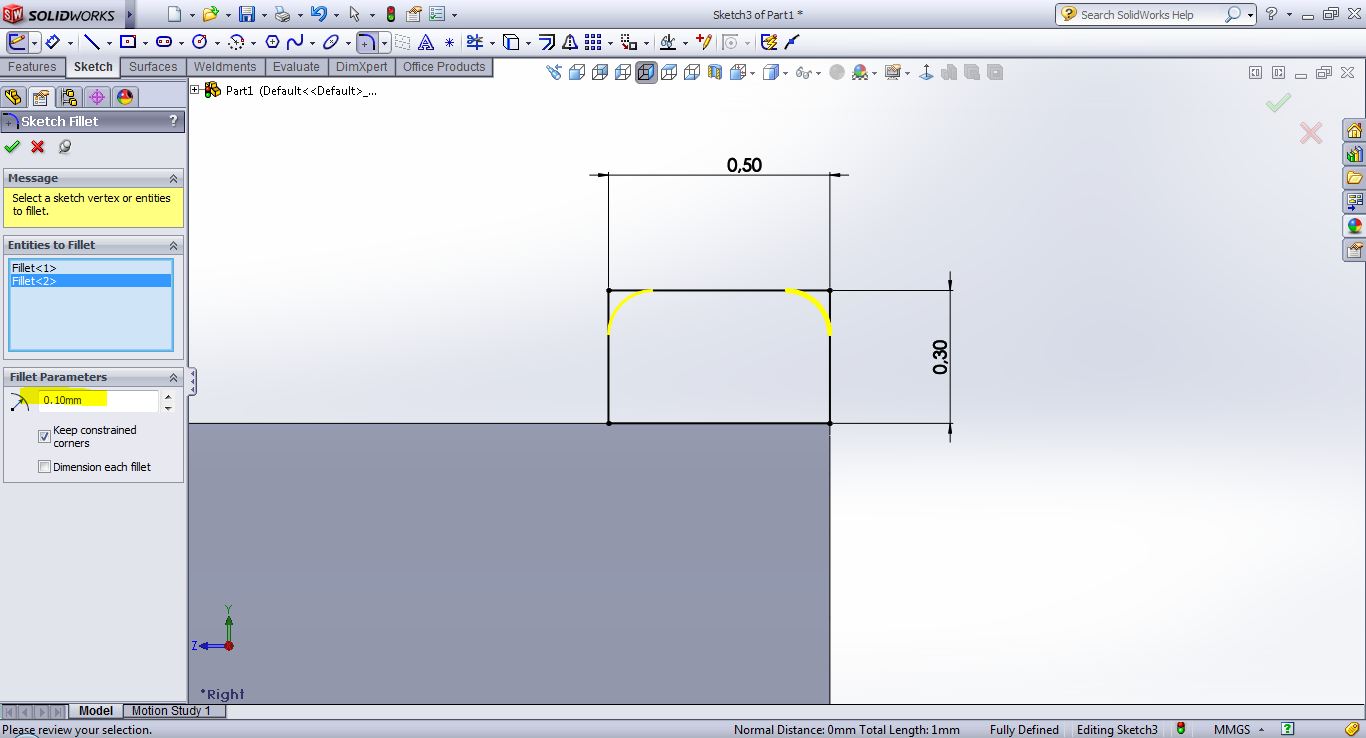

    use sketch fillet command

  6. Step 6:

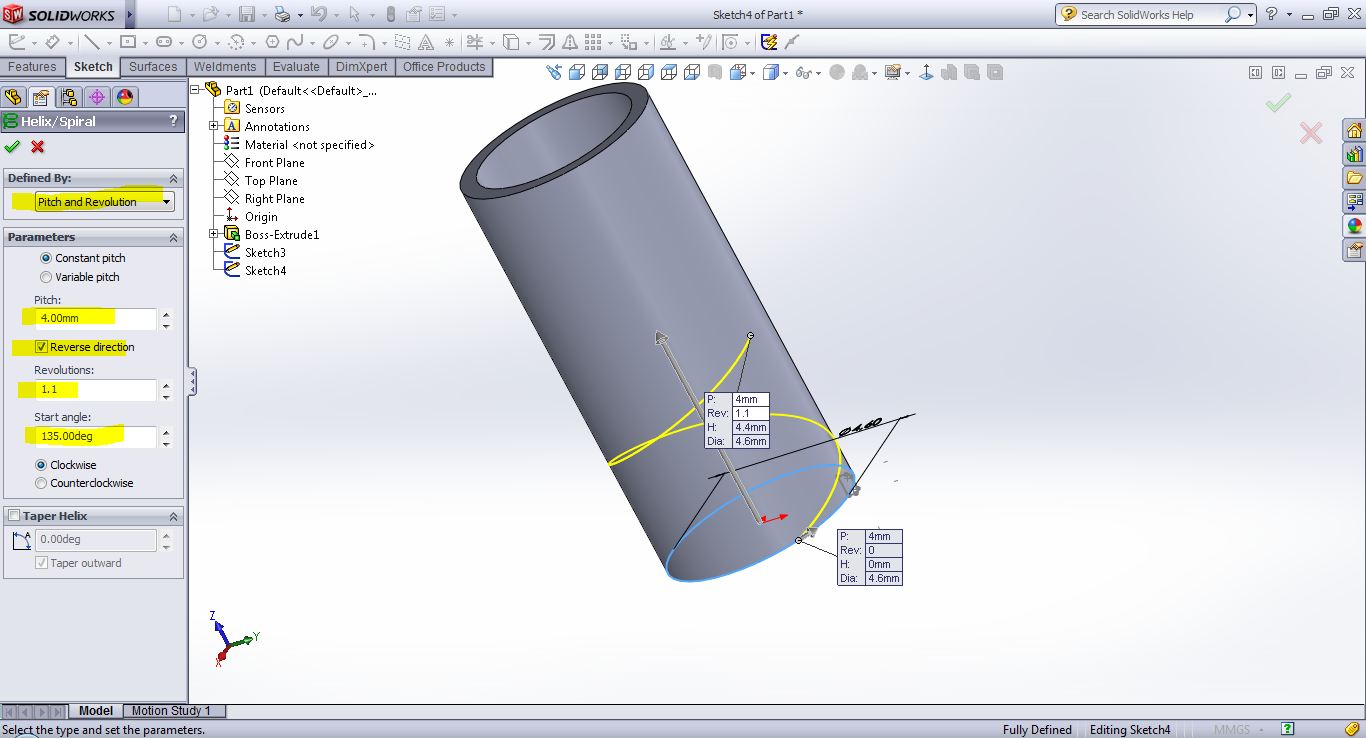

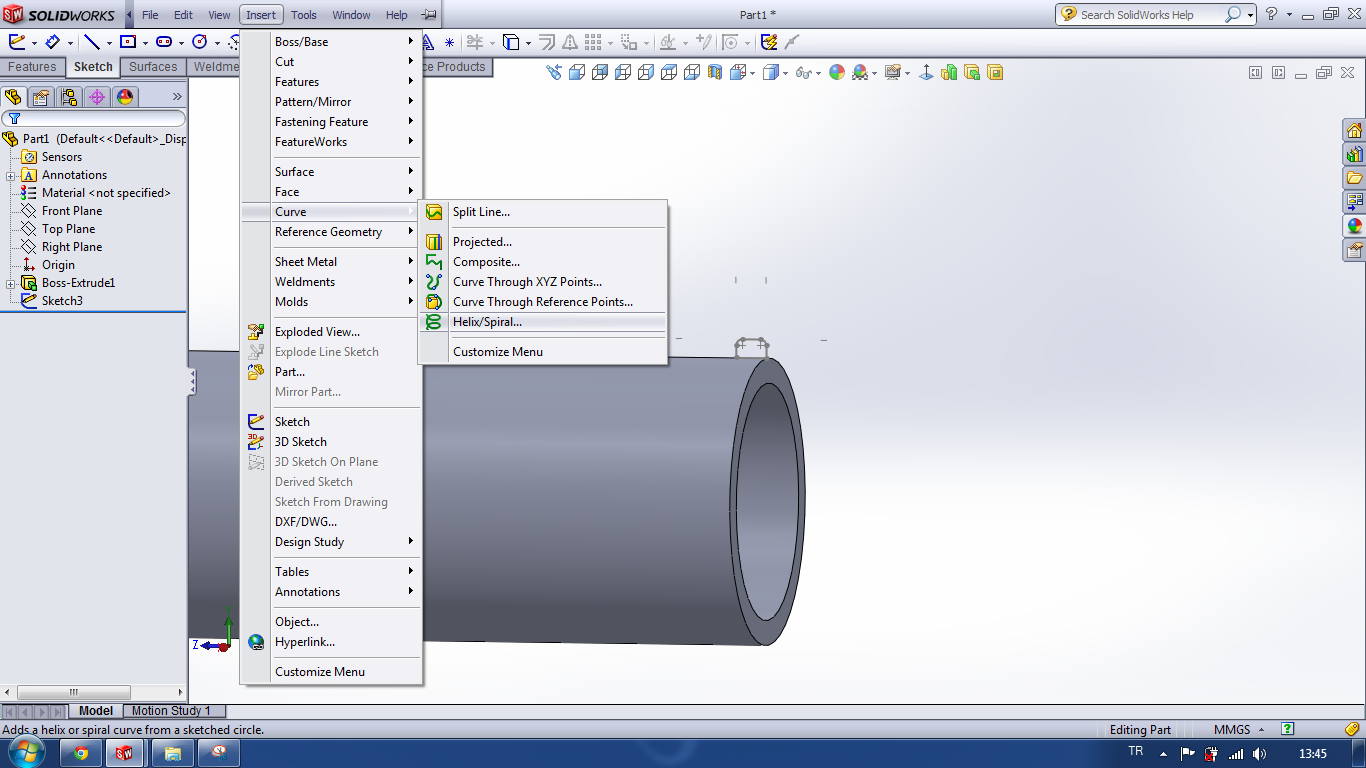

    exit from sketch and go to insert--curve--helix spiral

  7. Step 7:

    select this surface

  8. Step 8:

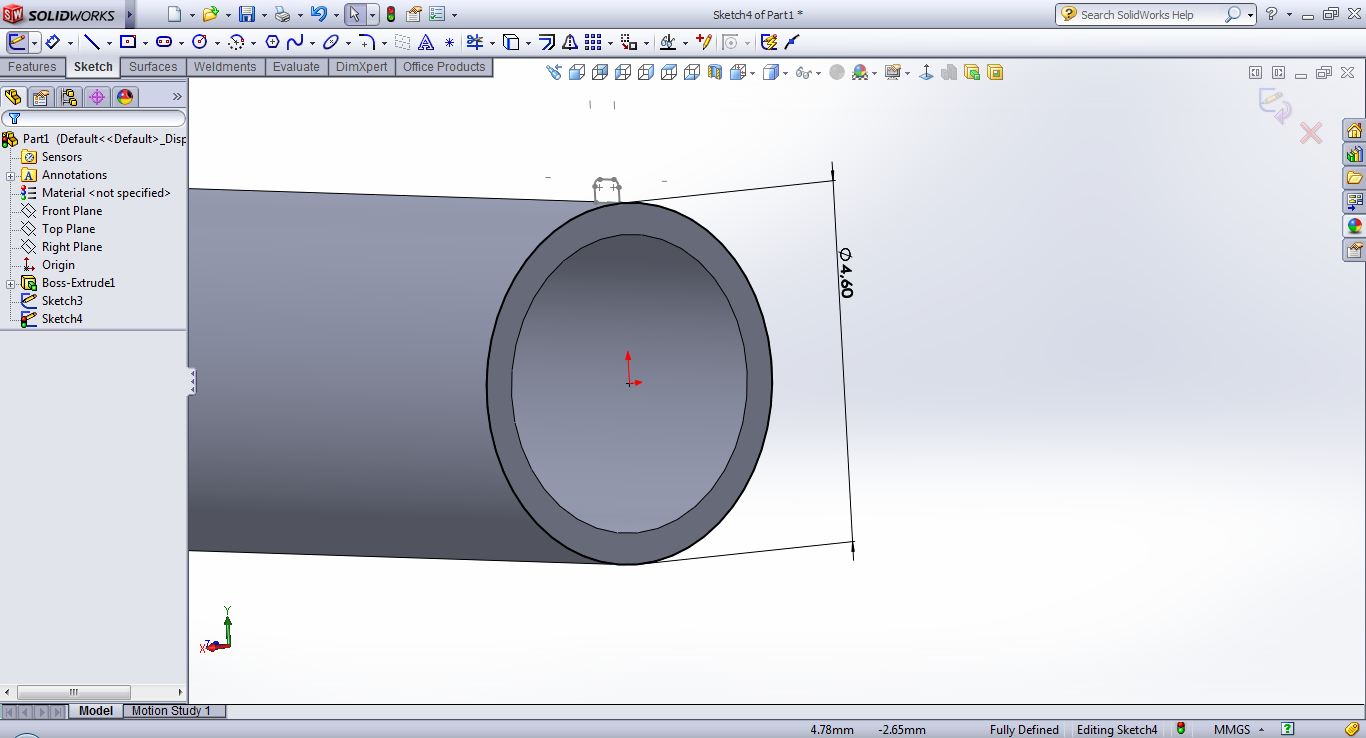

    draw a circle

  9. Step 9:

    enter shown values then confirm that

  10. Step 10:

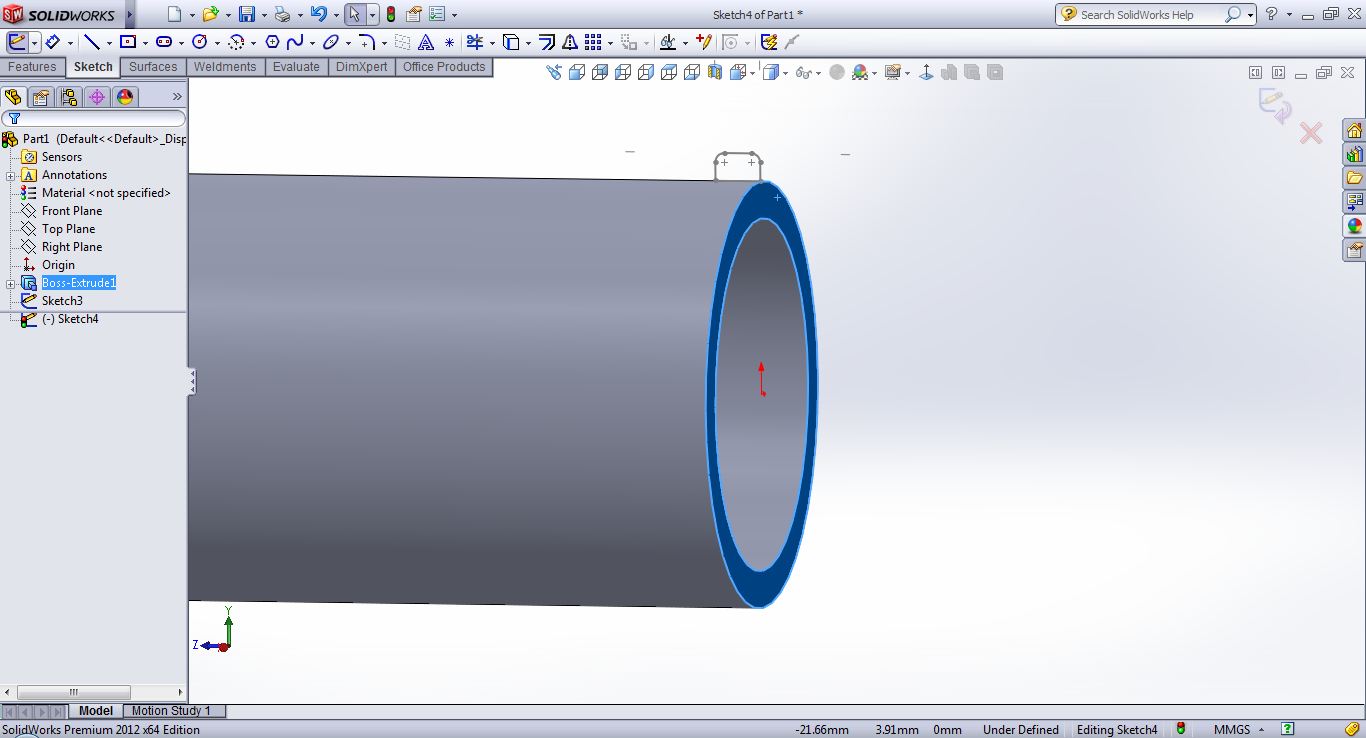

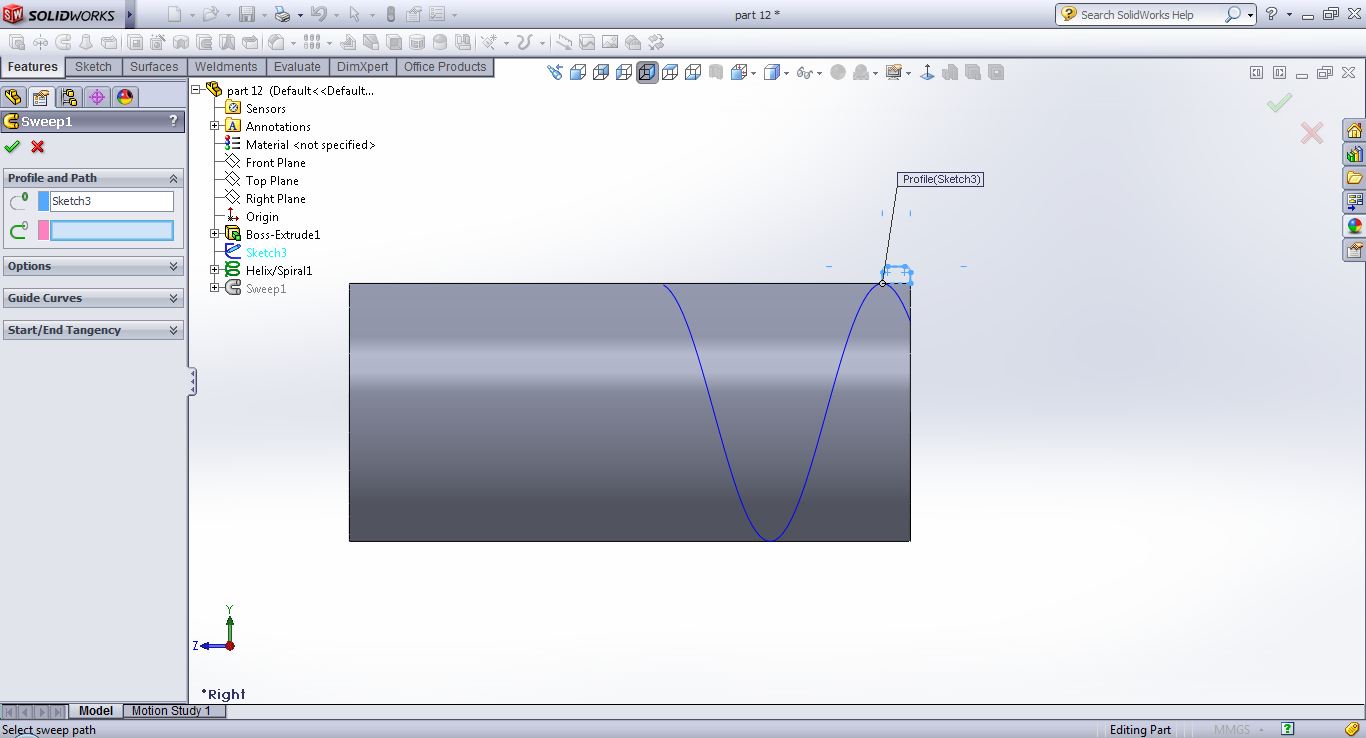

    now use sweept command. select the profile before

  11. Step 11:

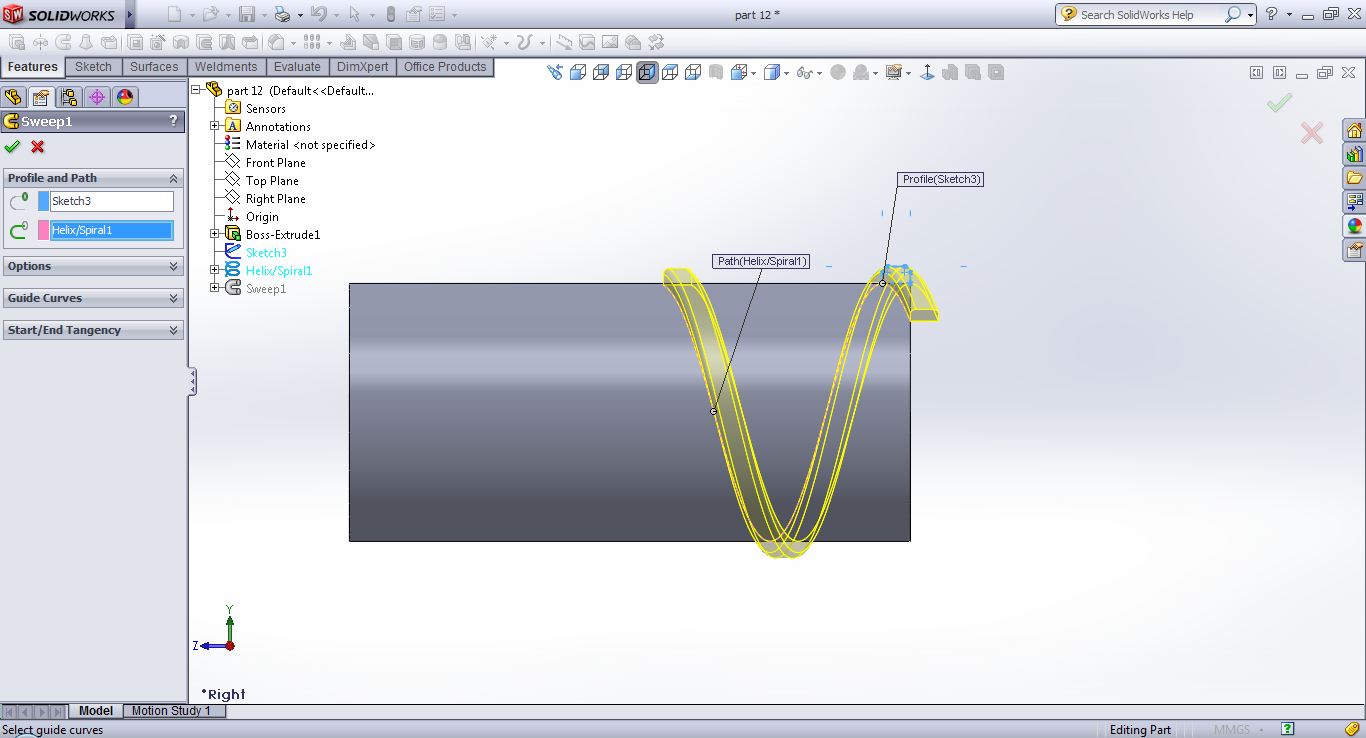

    secondly select the helix and tick ok

    next: http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-19
