Tutorial how to model a propelling pencil (19)

Tutorial by Aykut Dana
Small

19th part

  1. Step 1:

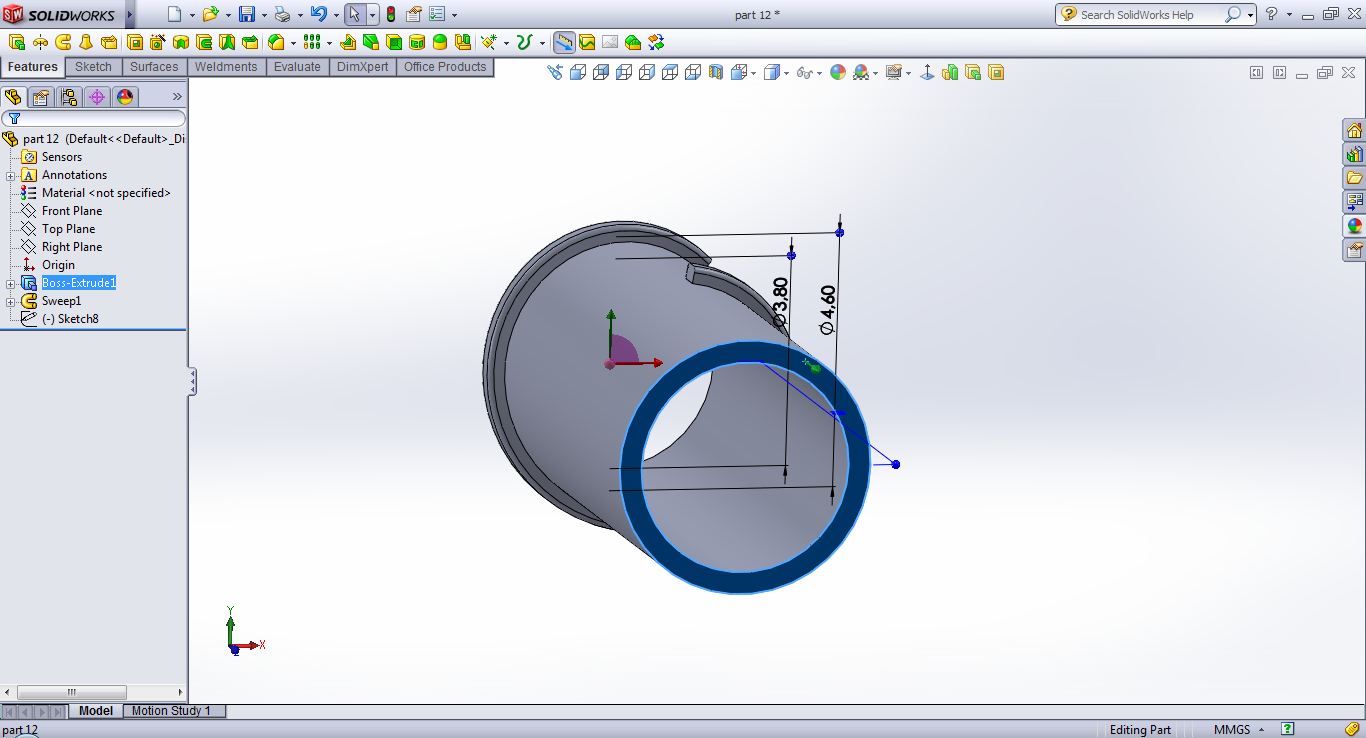

    open a sketch on this surface

  2. Step 2:

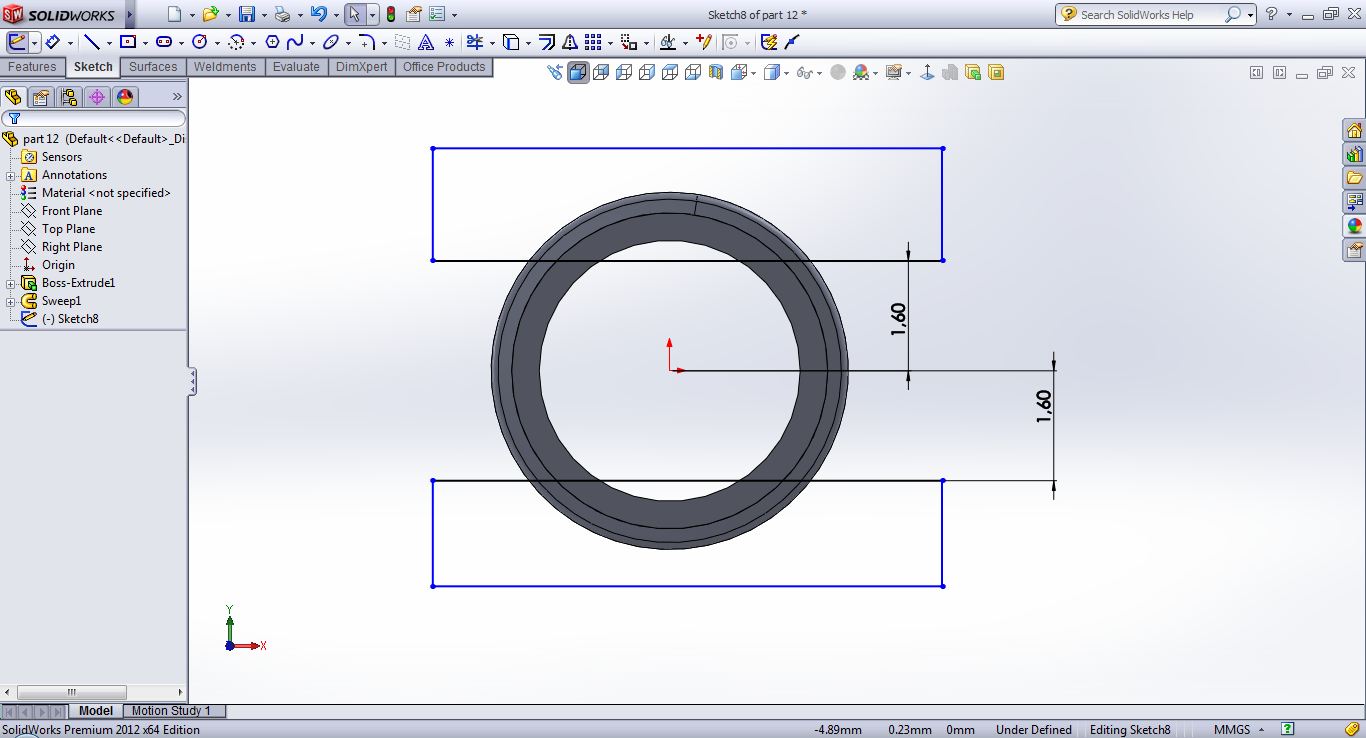

    draw shown sketch..

  3. Step 3:

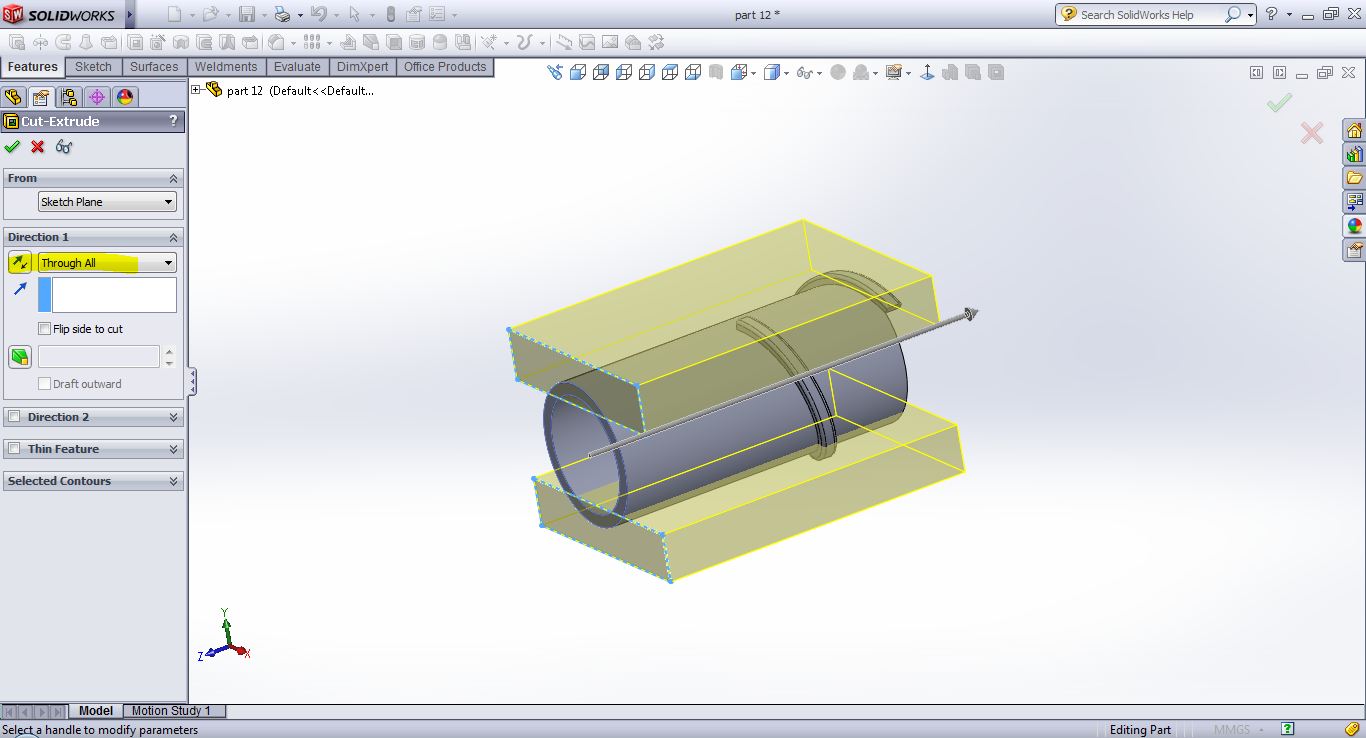

    cut the body

  4. Step 4:

    check all bodies and click on ok

  5. Step 5:

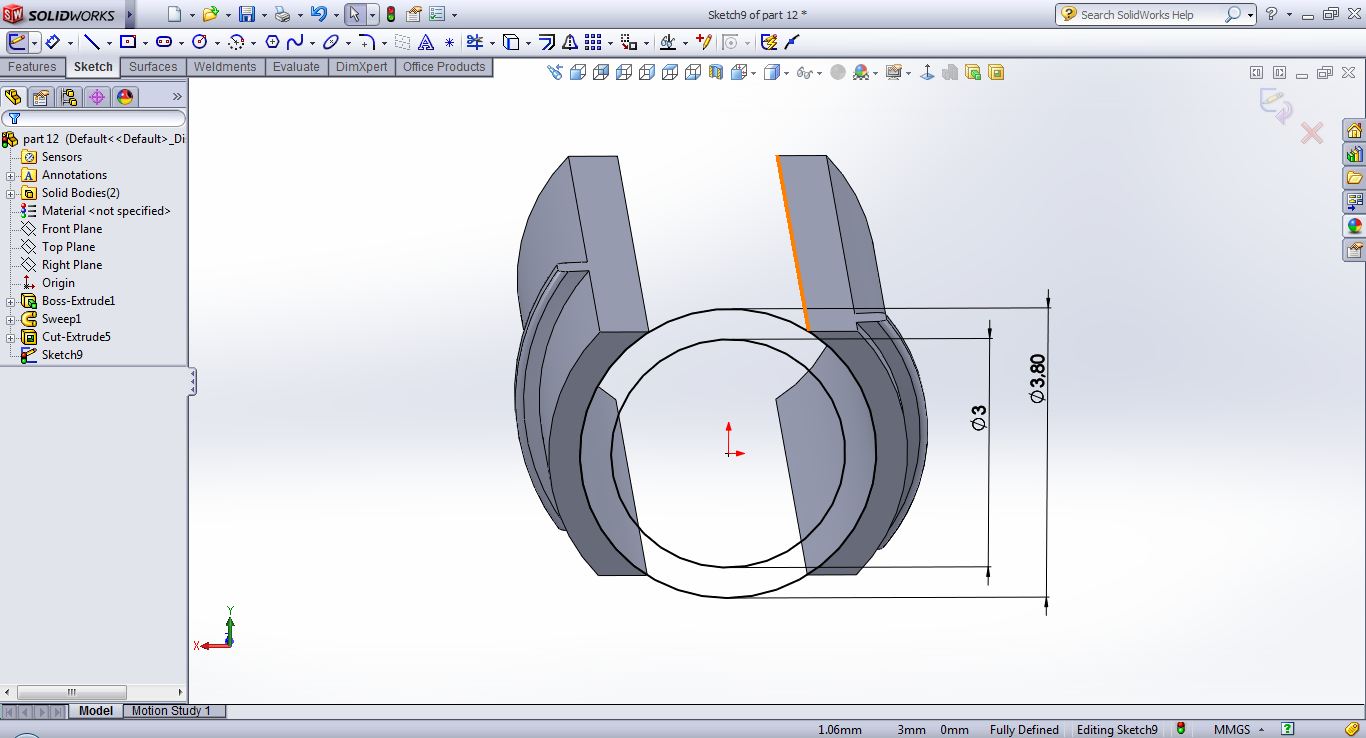

    open a sketch on this surface..

  6. Step 6:

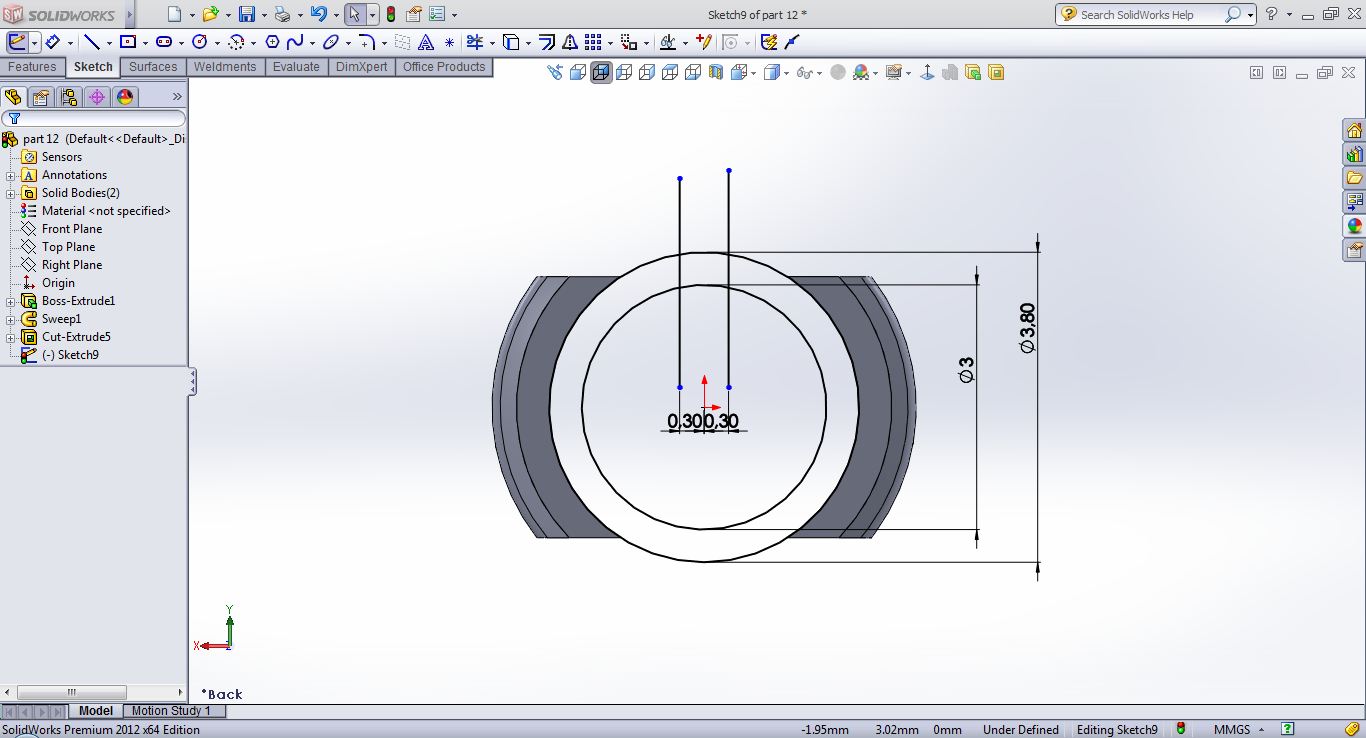

    draw two circles

  7. Step 7:

    add these lines

  8. Step 8:

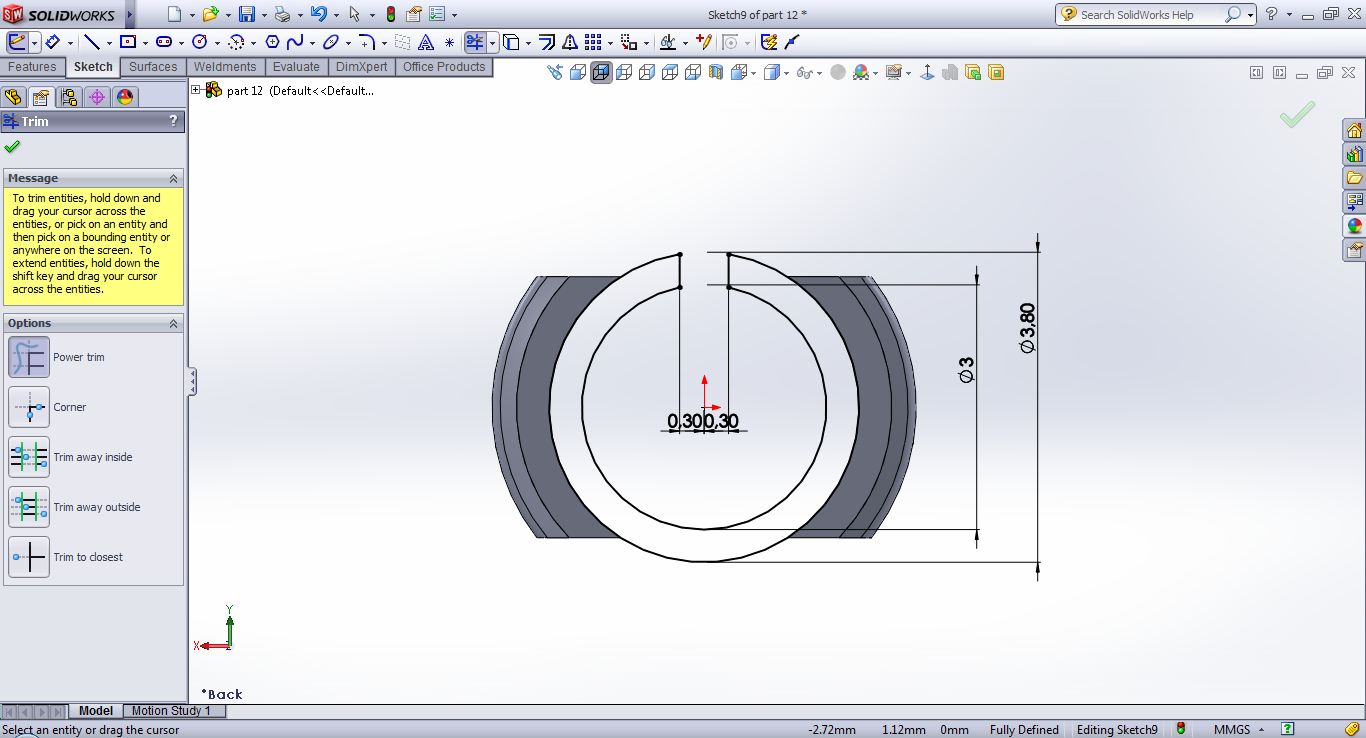

    use trim command

  9. Step 9:

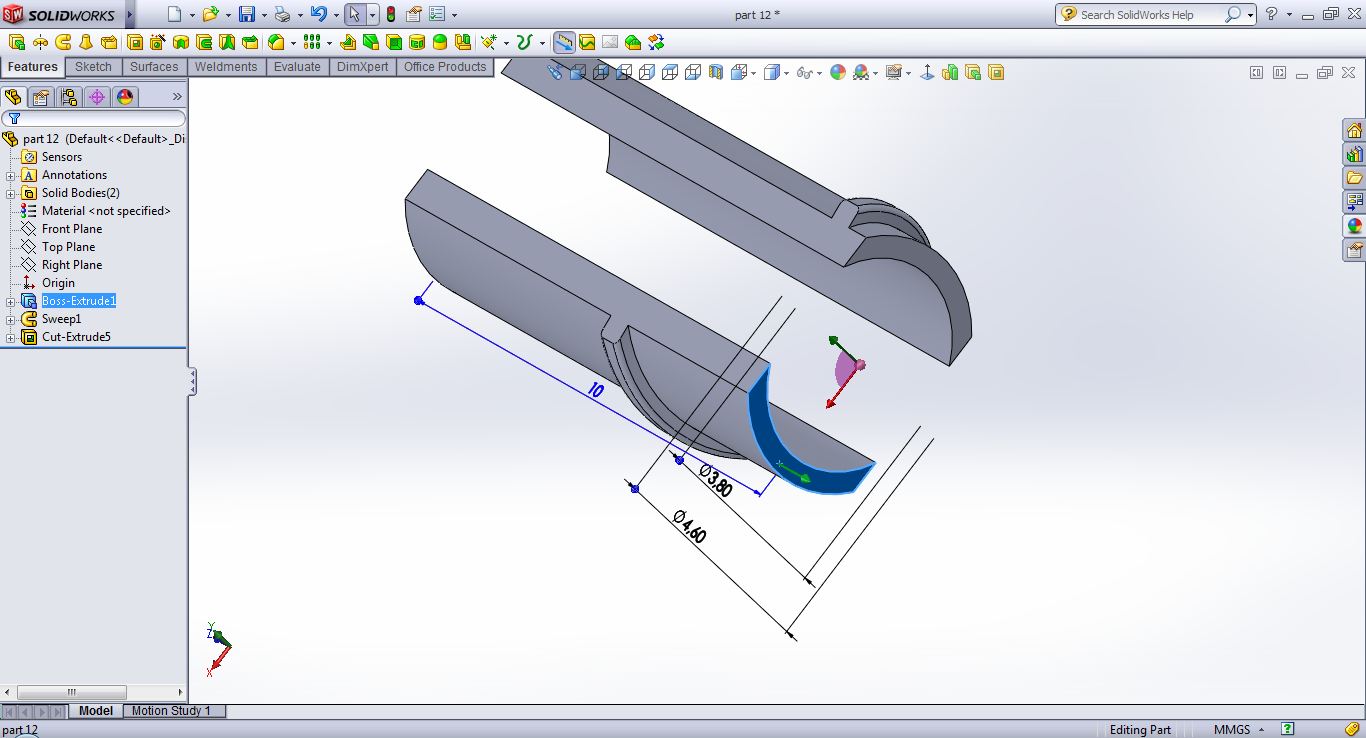

    extrude it like shown

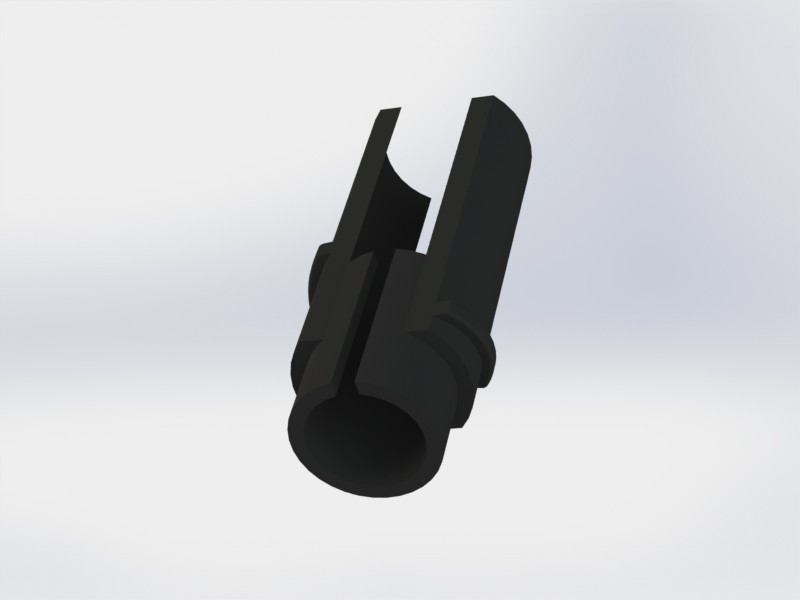

  10. Step 10:

    save part 12

    next: http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-20
