Tutorial how to model a propelling pencil (20)

Tutorial by Aykut Dana
Small

20th part

  1. Step 1:

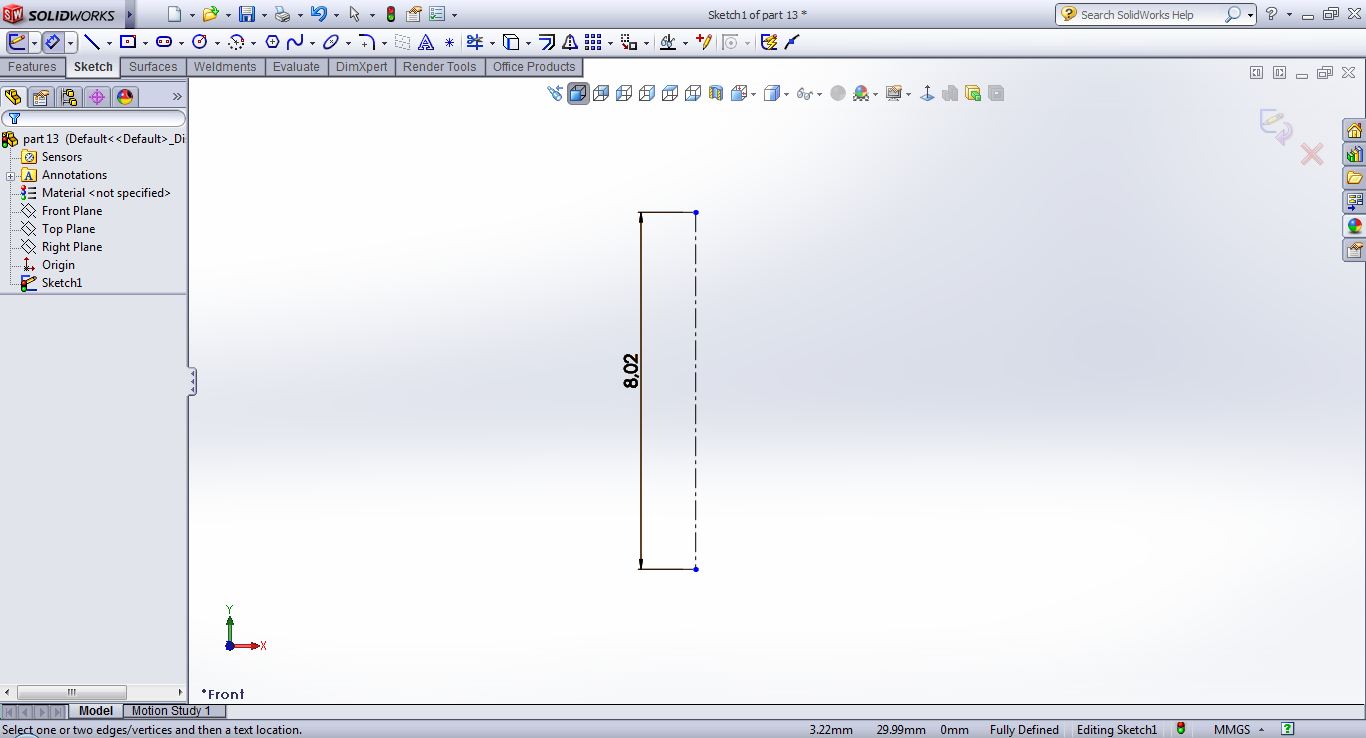

    open a sketch on the front plane and draw a centerline

  2. Step 2:

    start the drawing

  3. Step 3:

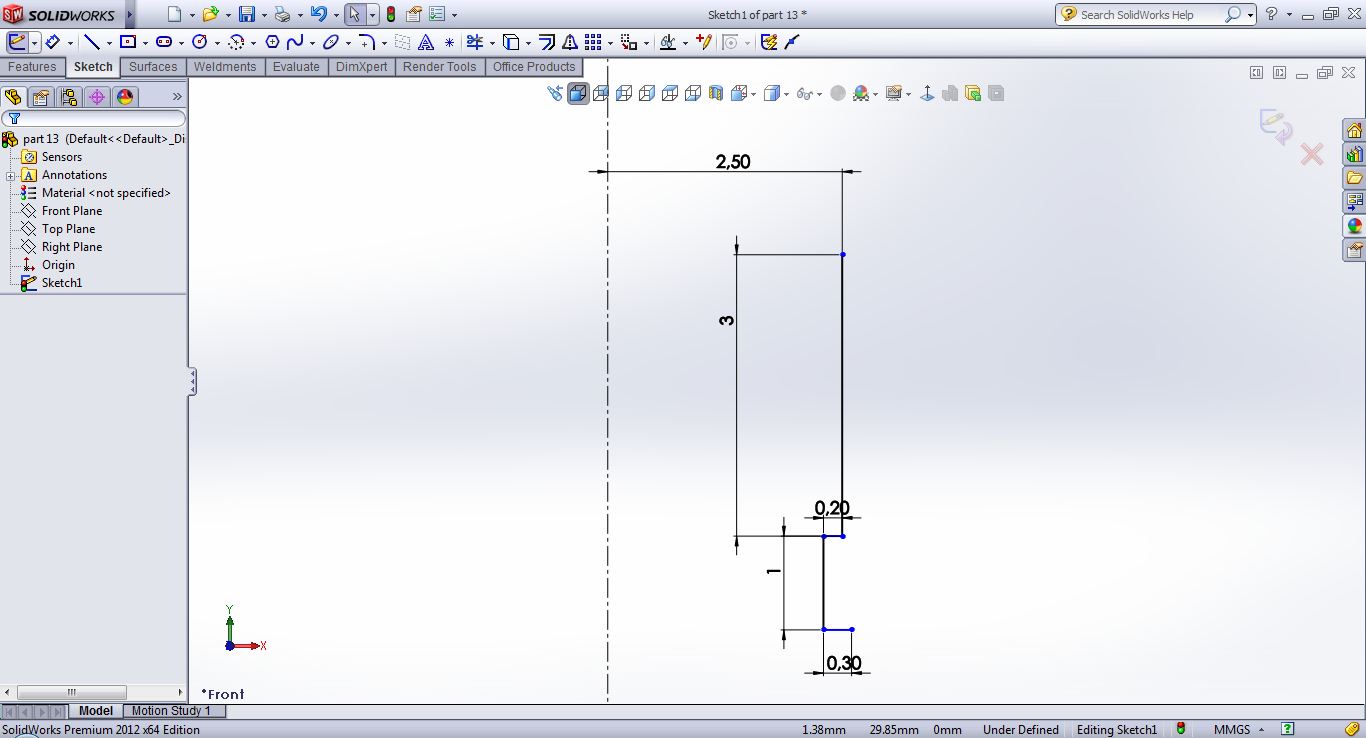

    continue

  4. Step 4:

    draw a spline between shown points

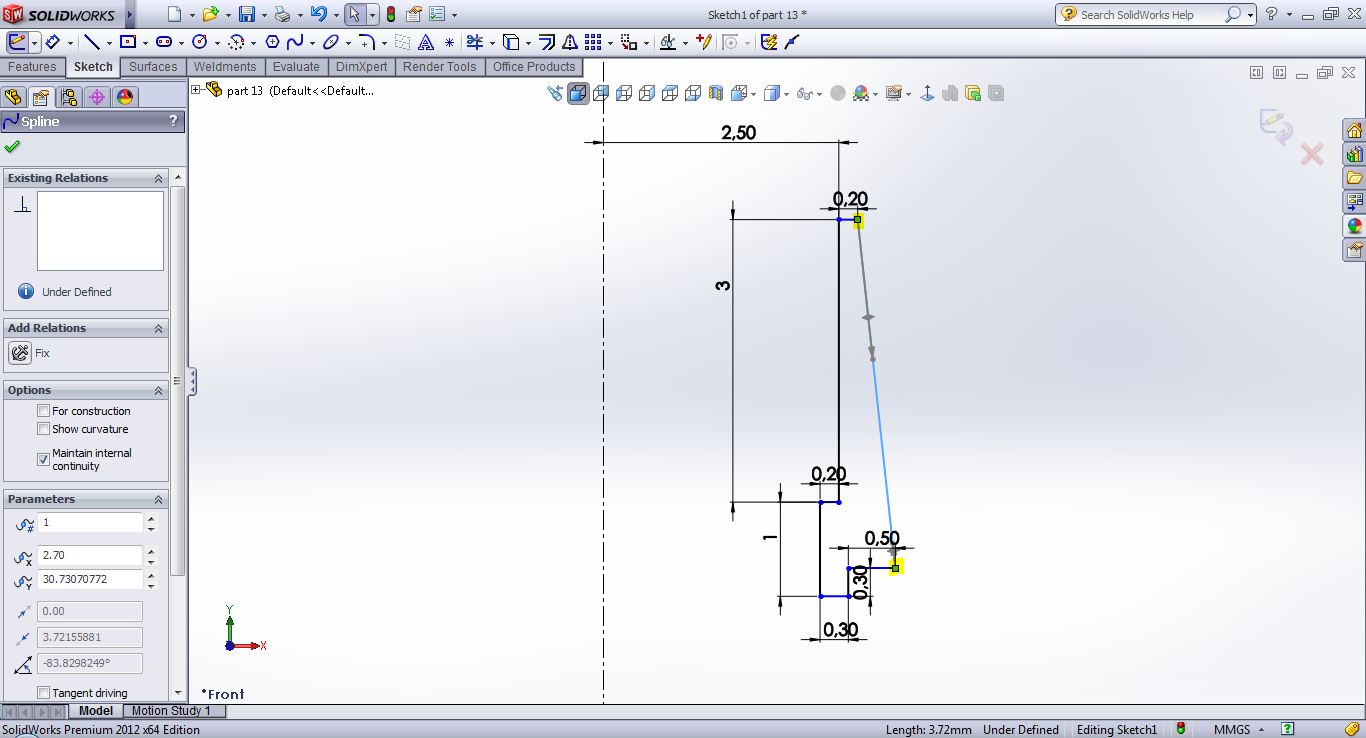

  5. Step 5:

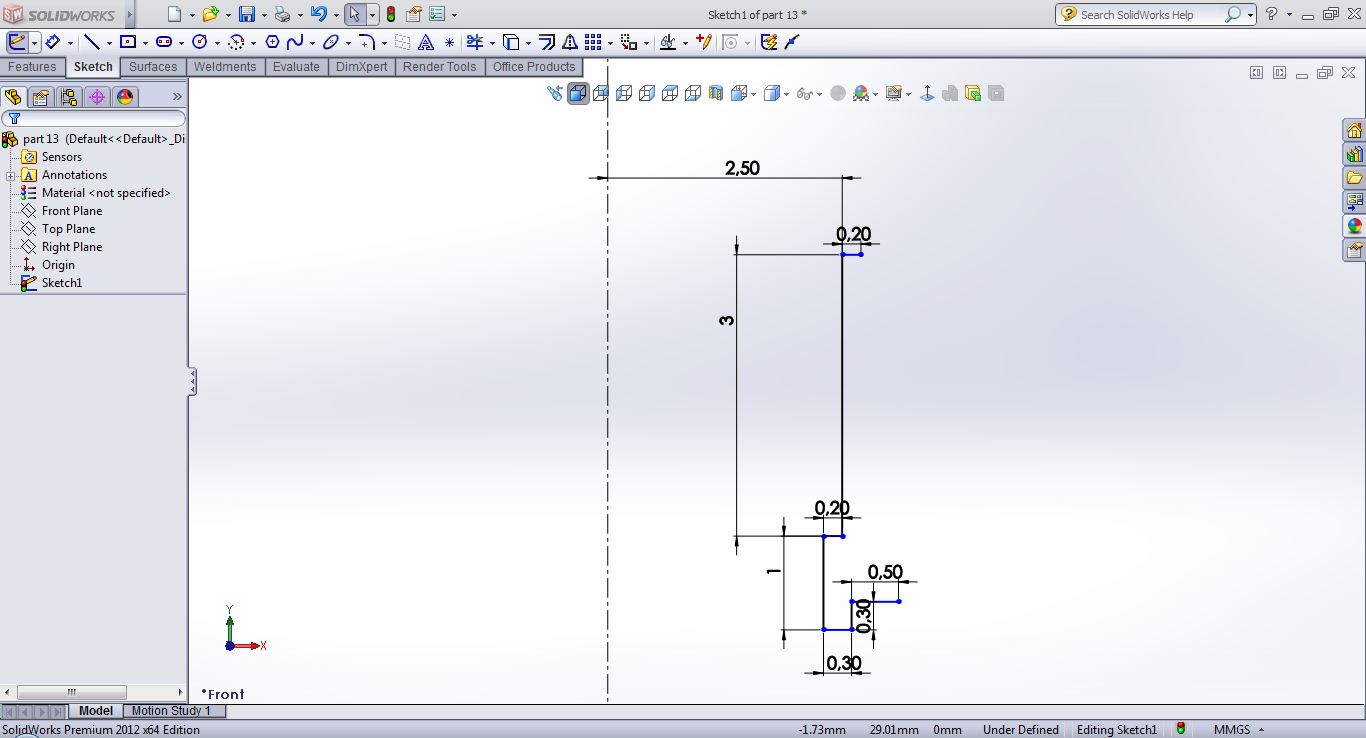

    hold and drag from shown place and enter the angle parameter

  6. Step 6:

    finally make your sketch like this

  7. Step 7:

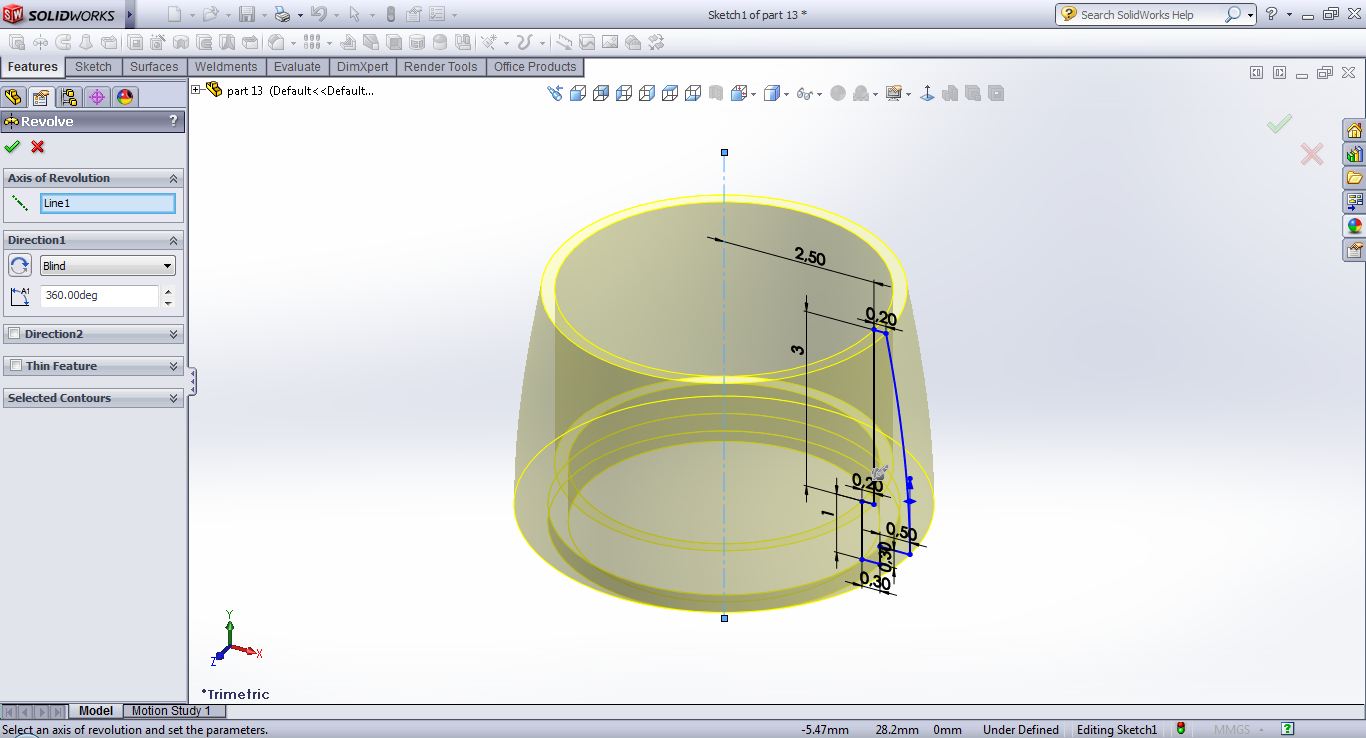

    use revolve command

  8. Step 8:

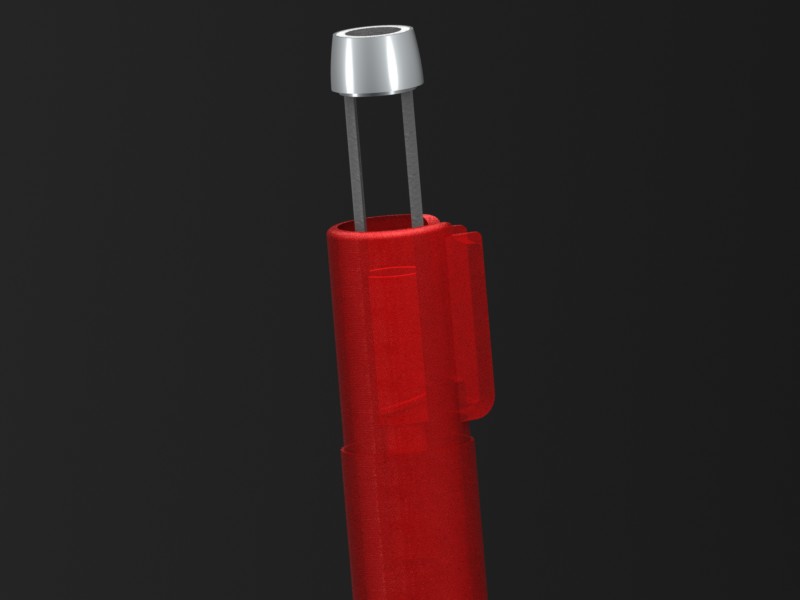

    save part 13

  9. Step 9:

    part 13 will be at there.

    after about 7 tutorial we will start the assebly.
