Tutorial how to model a propelling pencil (21)

Tutorial by Aykut Dana
Small

21

  1. Step 1:

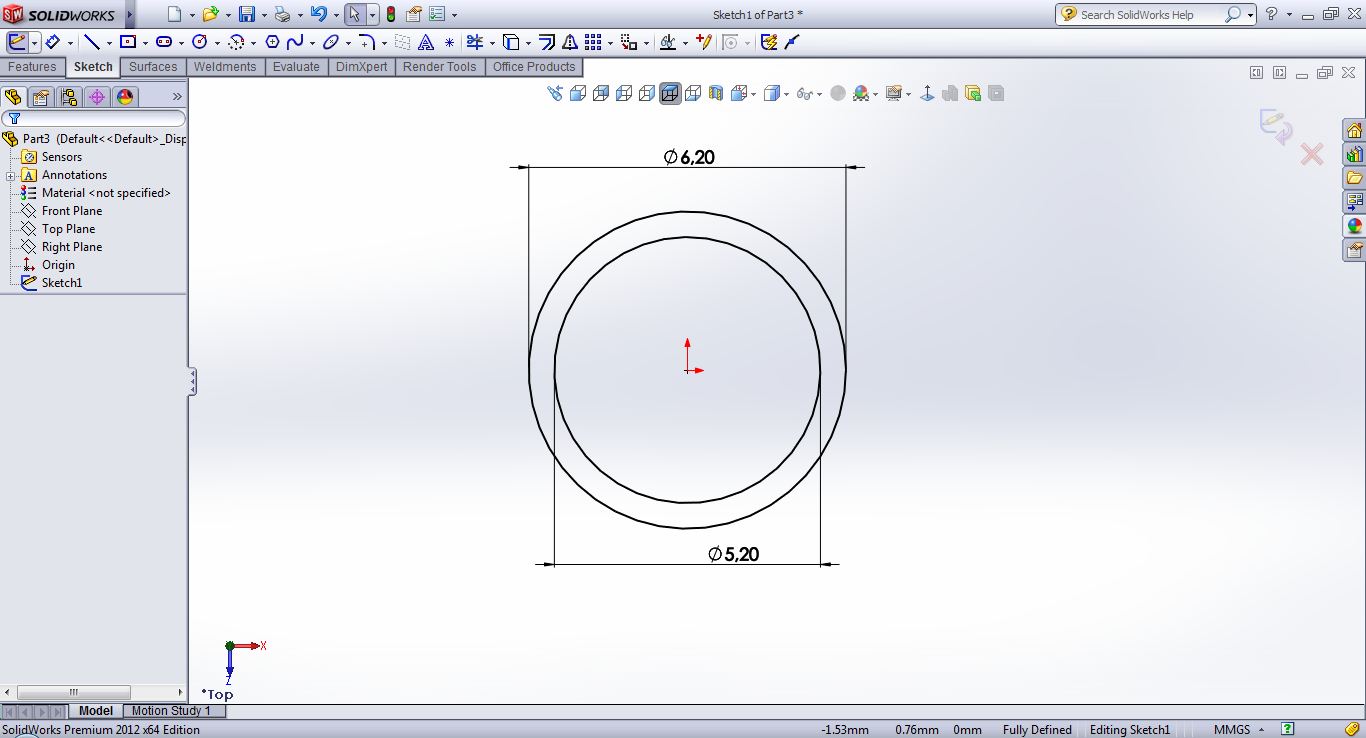

    open a sketch on the top plane

  2. Step 2:

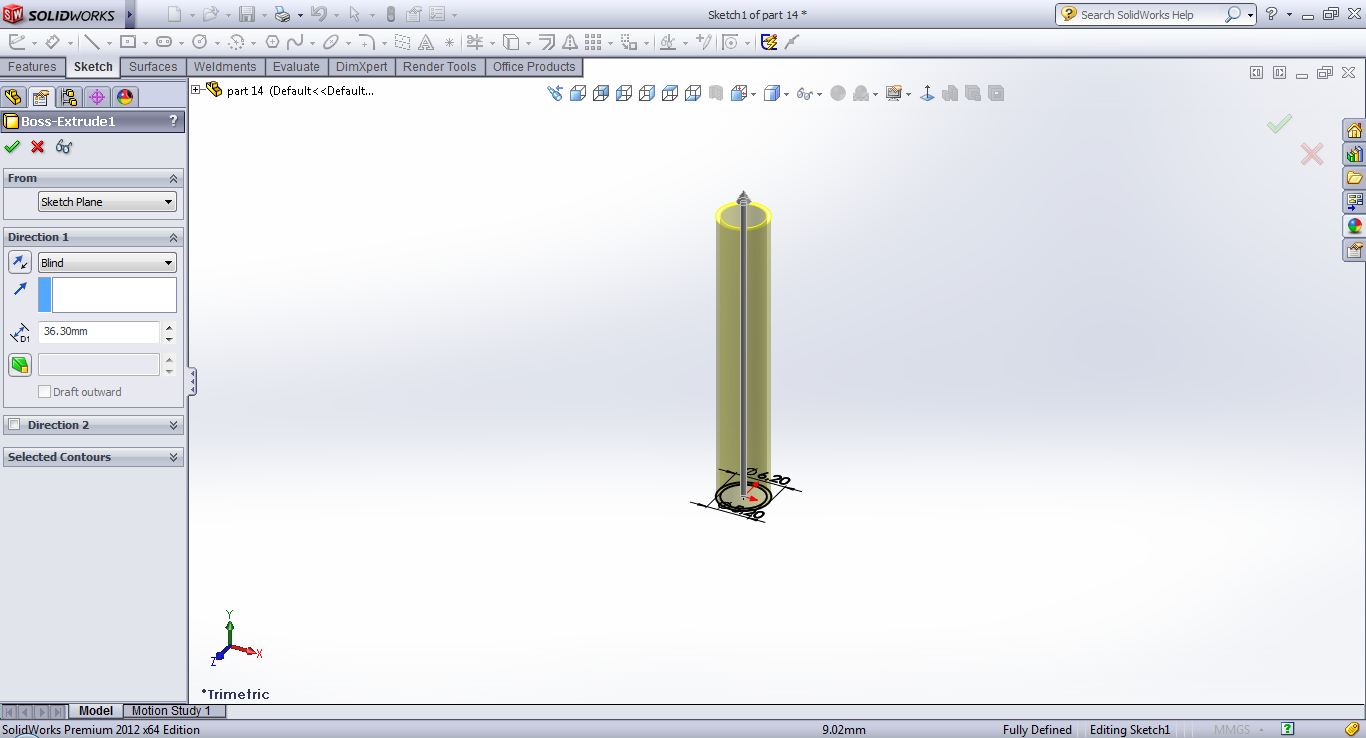

    extrude it by 36,3mm

  3. Step 3:

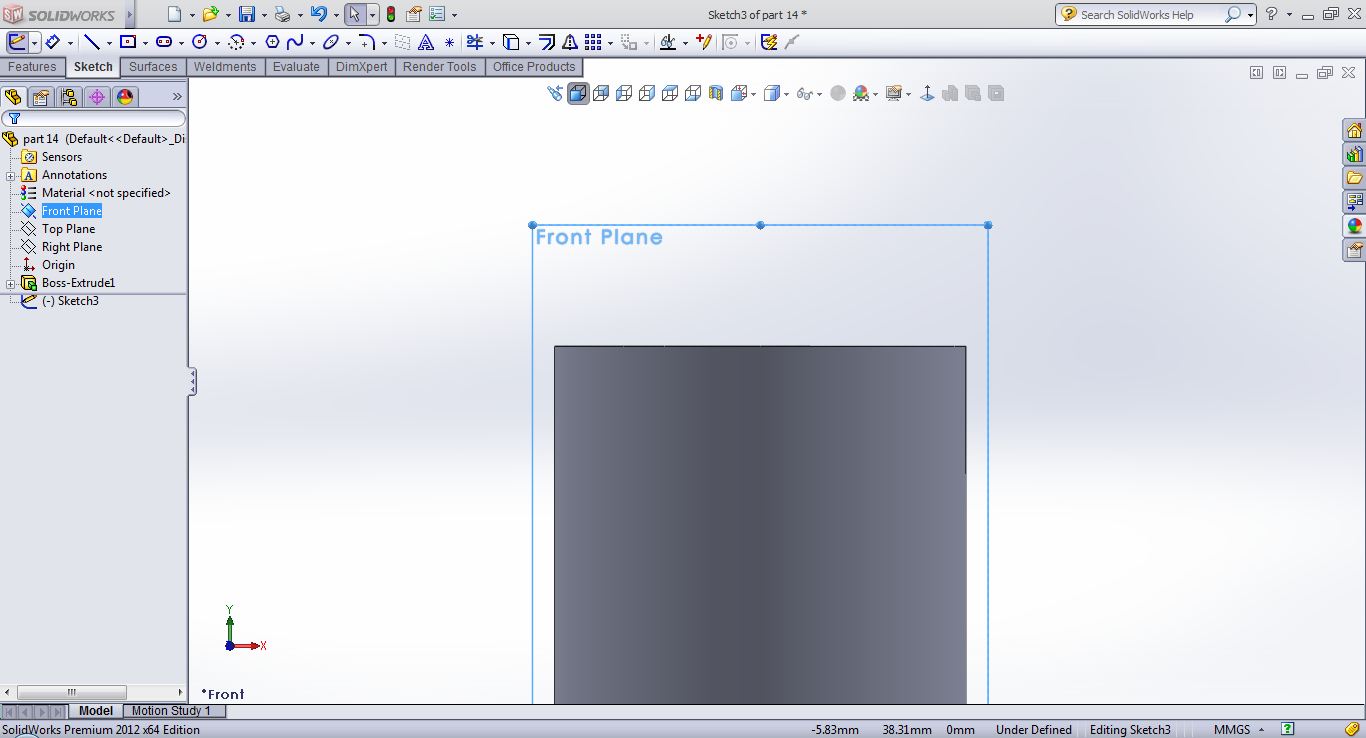

    open a sketch on the front plane

  4. Step 4:

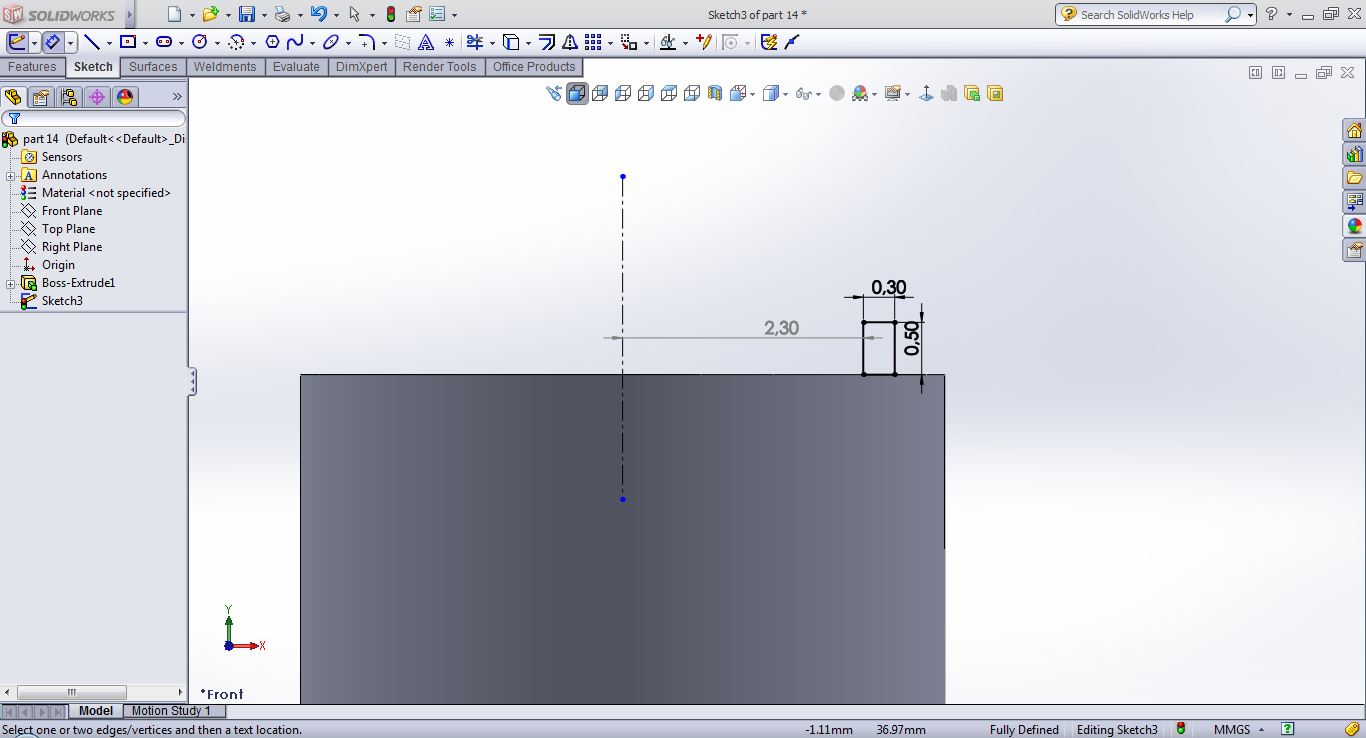

    draw a rectangle

  5. Step 5:

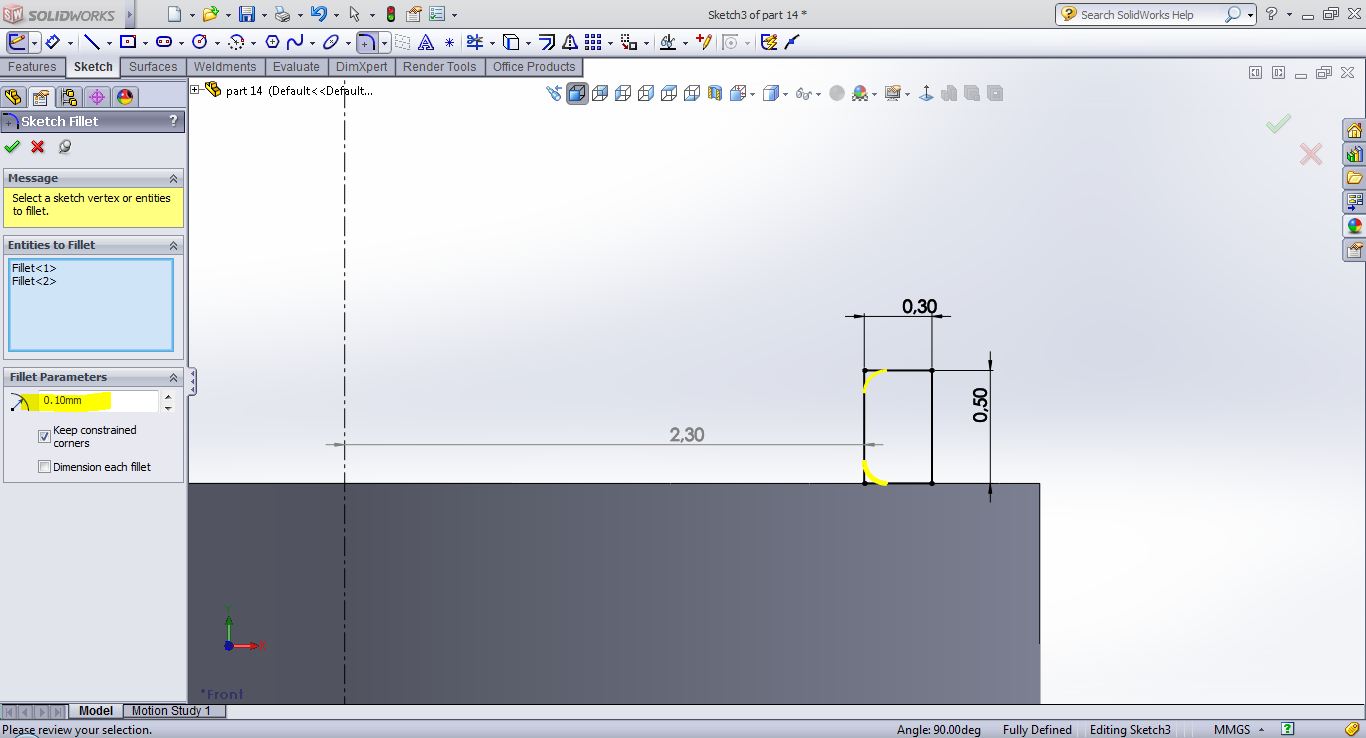

    use fillet command

  6. Step 6:

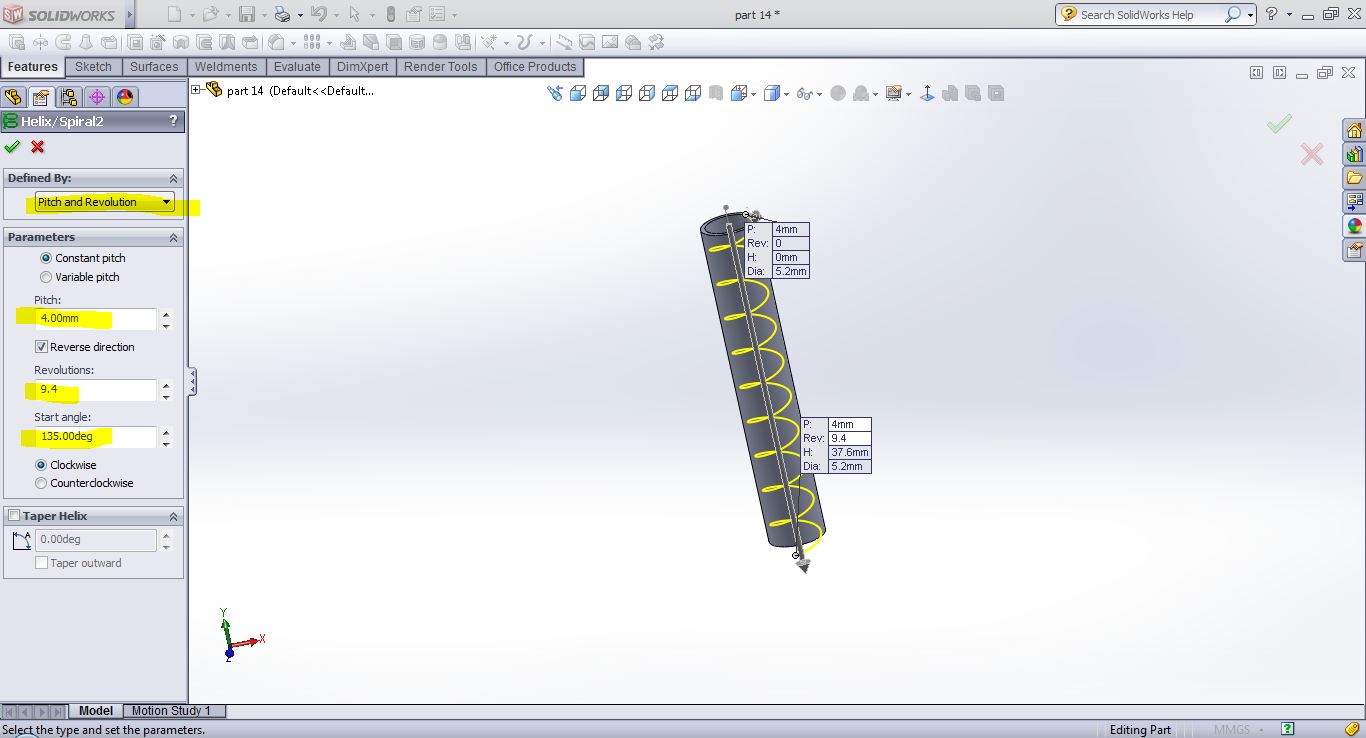

    exit from sketch and insert--curve--helix

  7. Step 7:

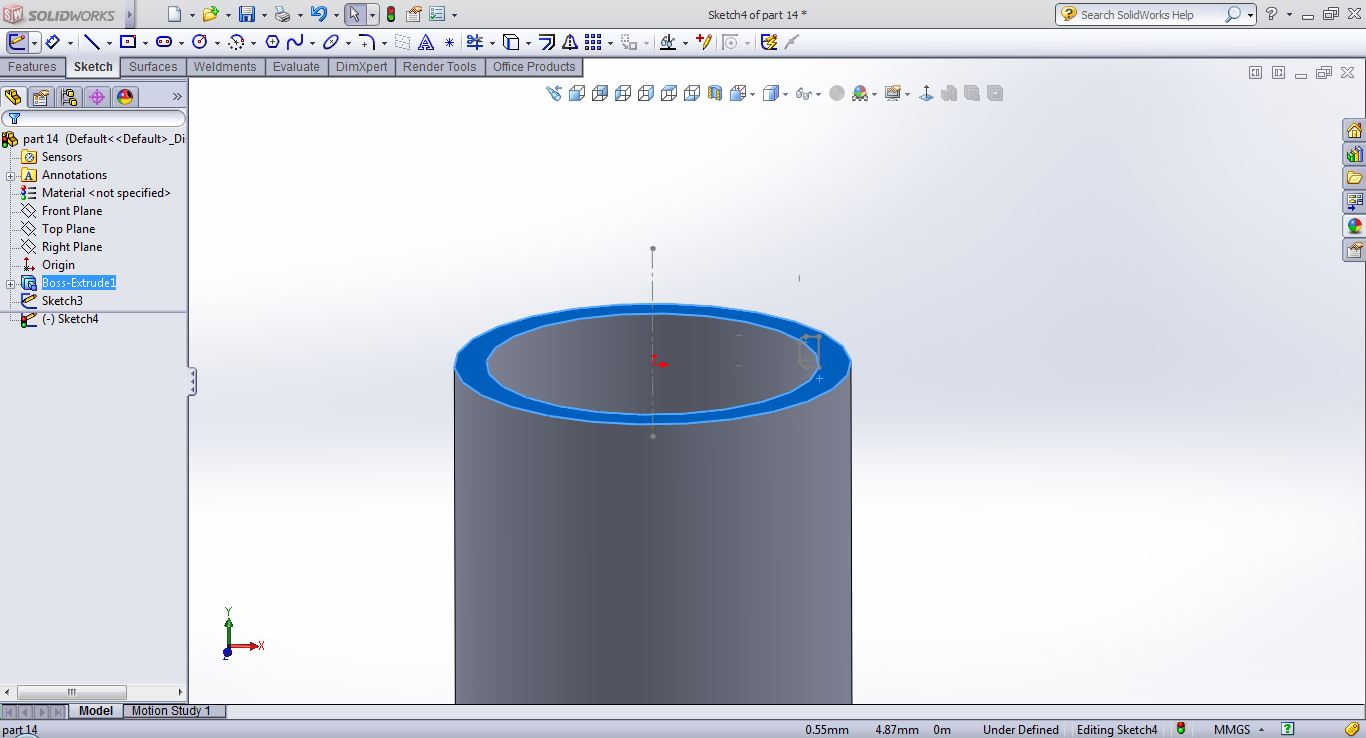

    click on shown surface

  8. Step 8:

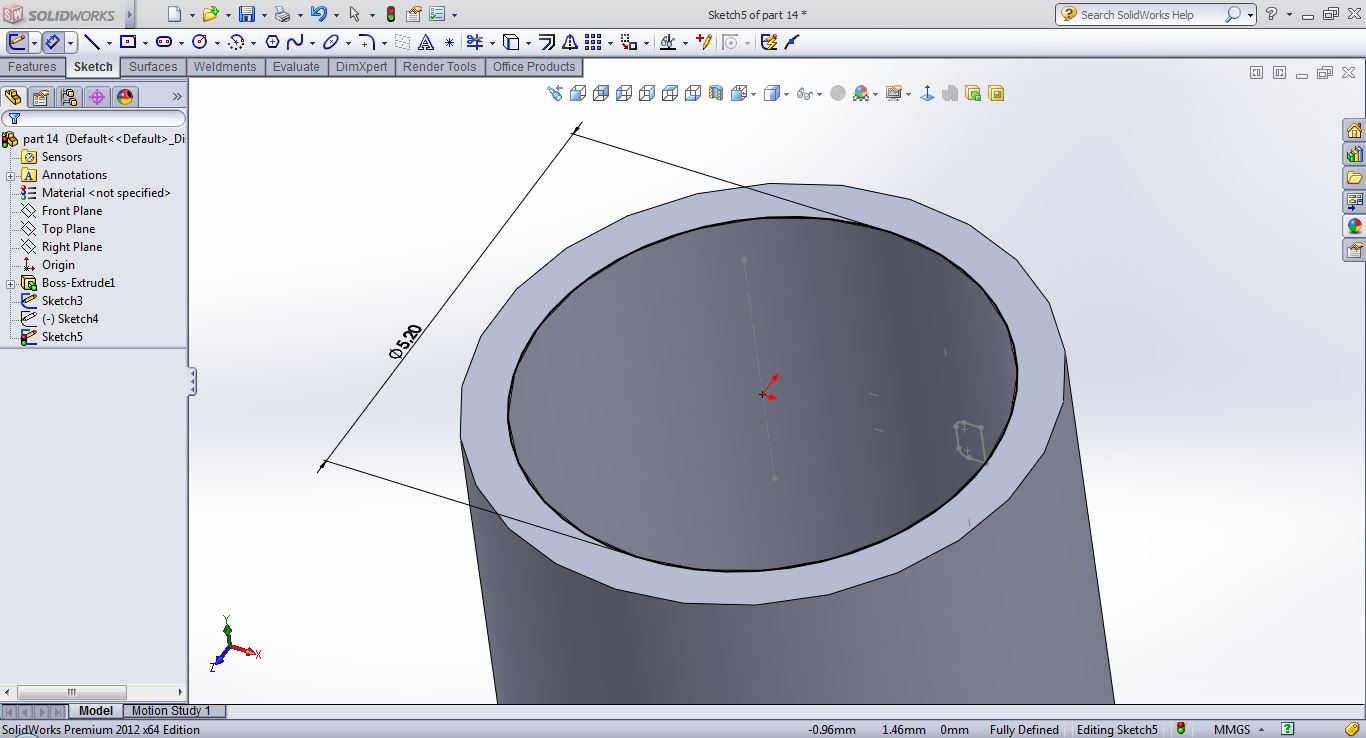

    draw a circle

  9. Step 9:

    exit from sketch and enter shown values. then confirm that

  10. Step 10:

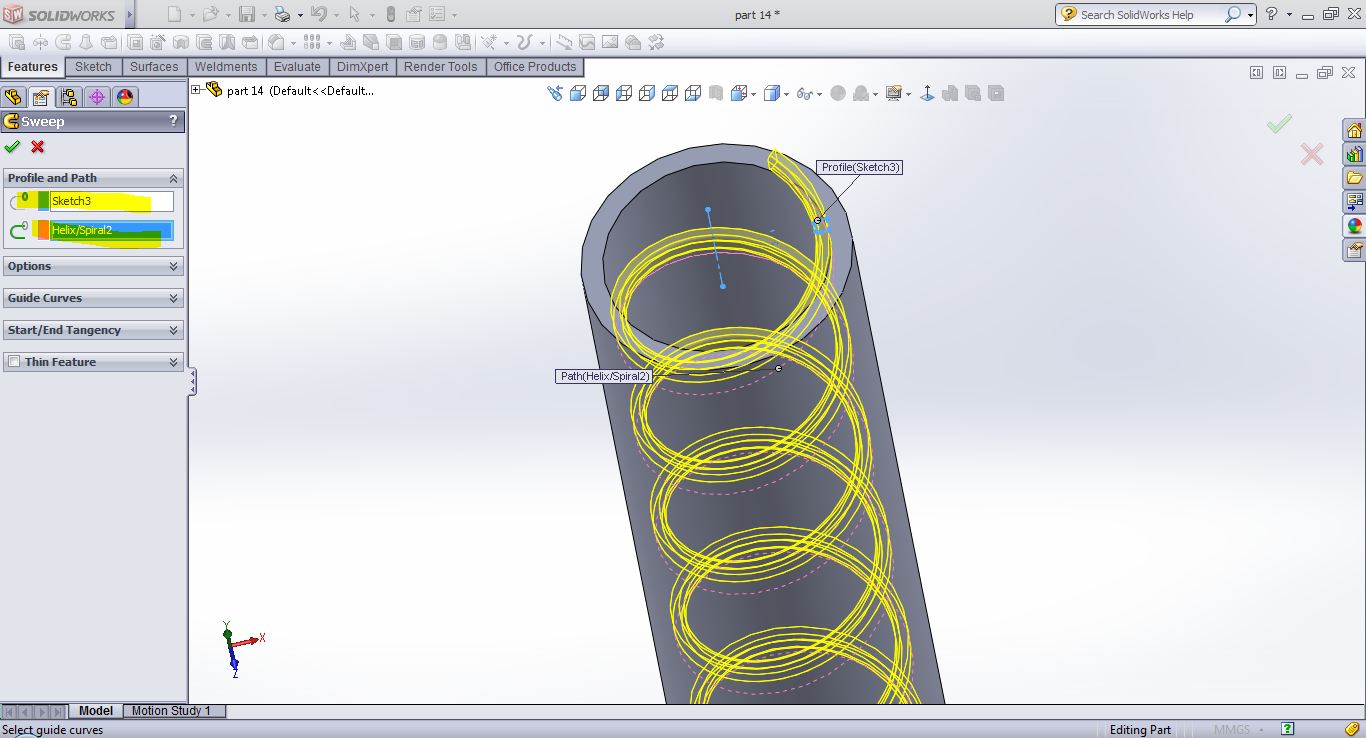

    use sweept command. select the profile before

  11. Step 11:

    then select the path
