Tutorial how to model a propelling pencil (23)

Tutorial by Aykut Dana
Small

continue

  1. Step 1:

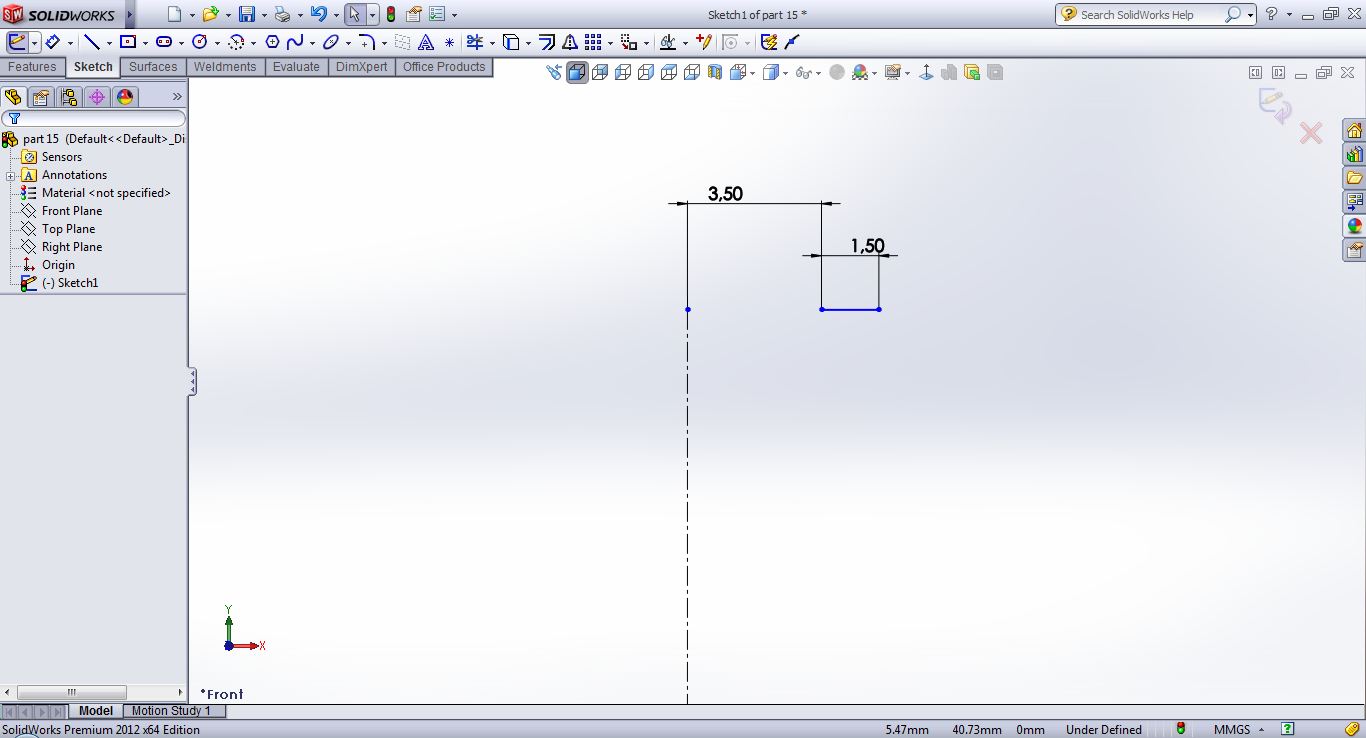

    open a sketch on the front plane

  2. Step 2:

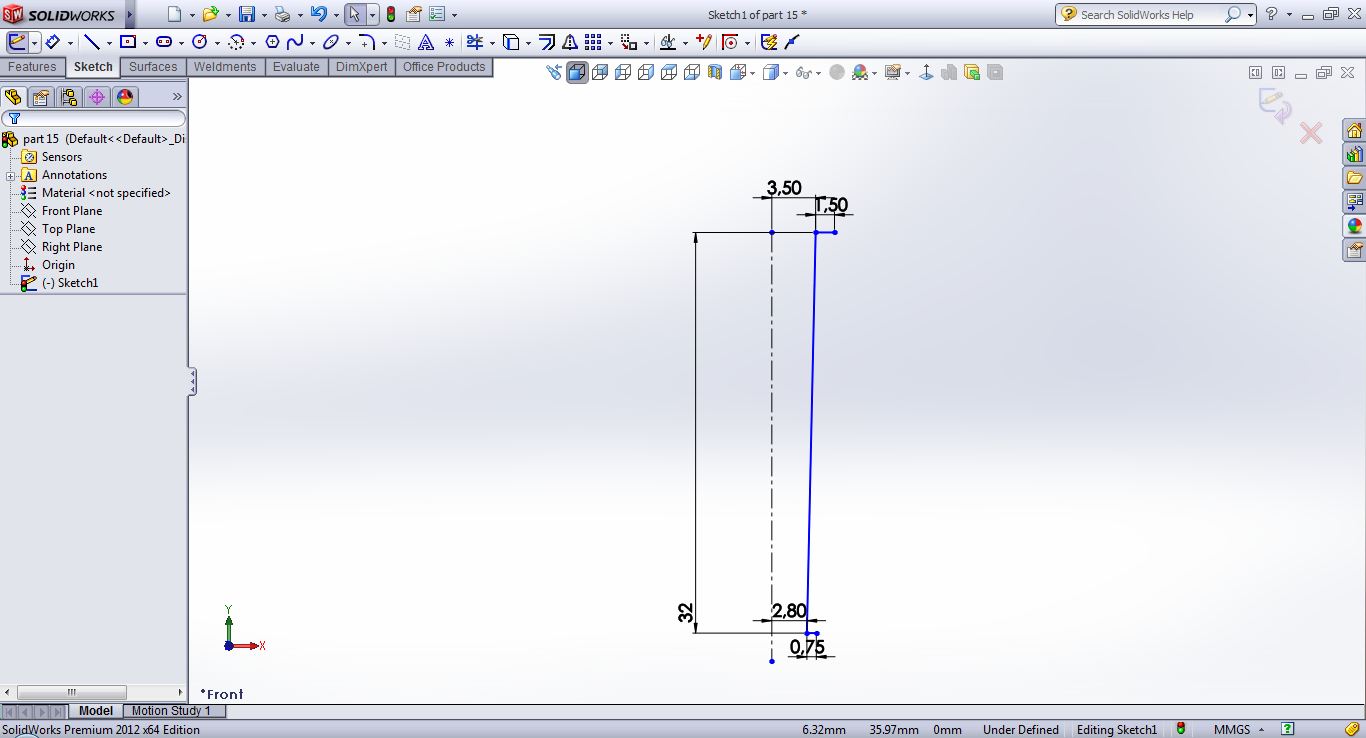

    draw a line

  3. Step 3:

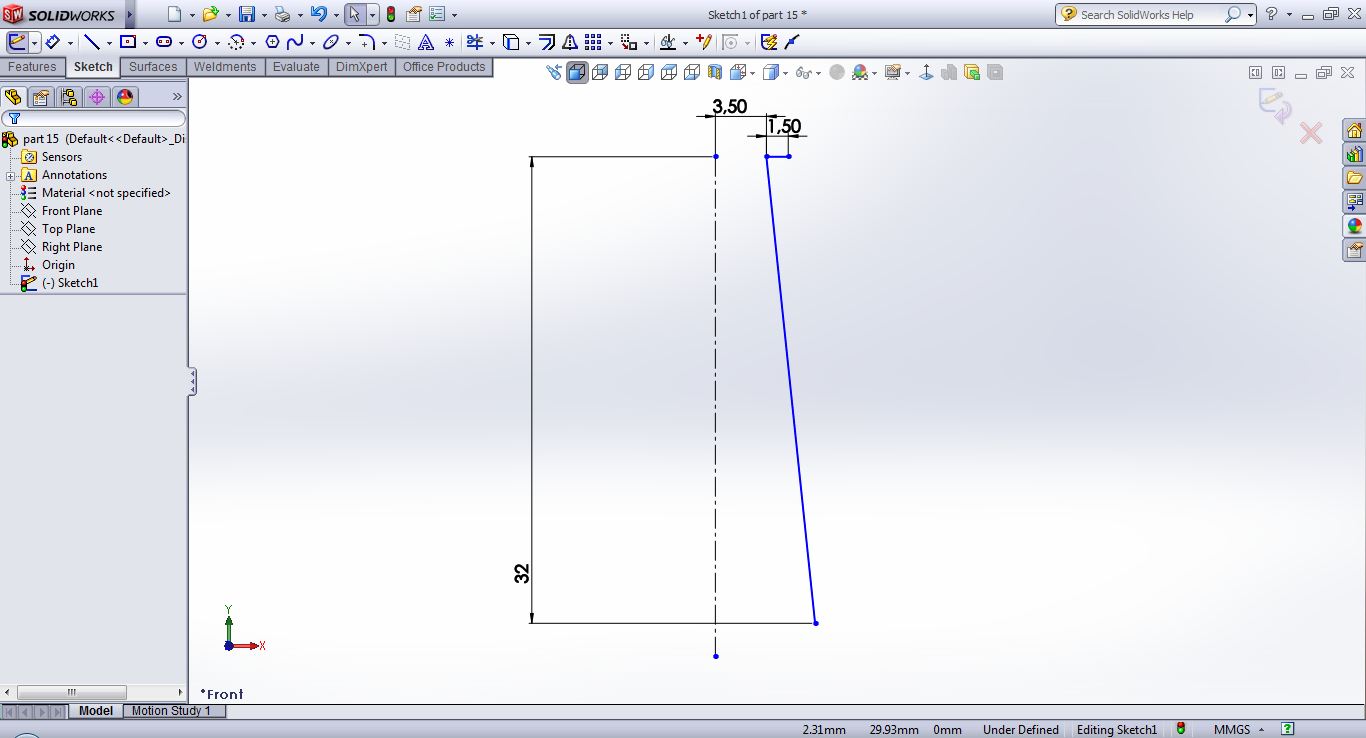

    continue

  4. Step 4:

    add a spline like this

  5. Step 5:

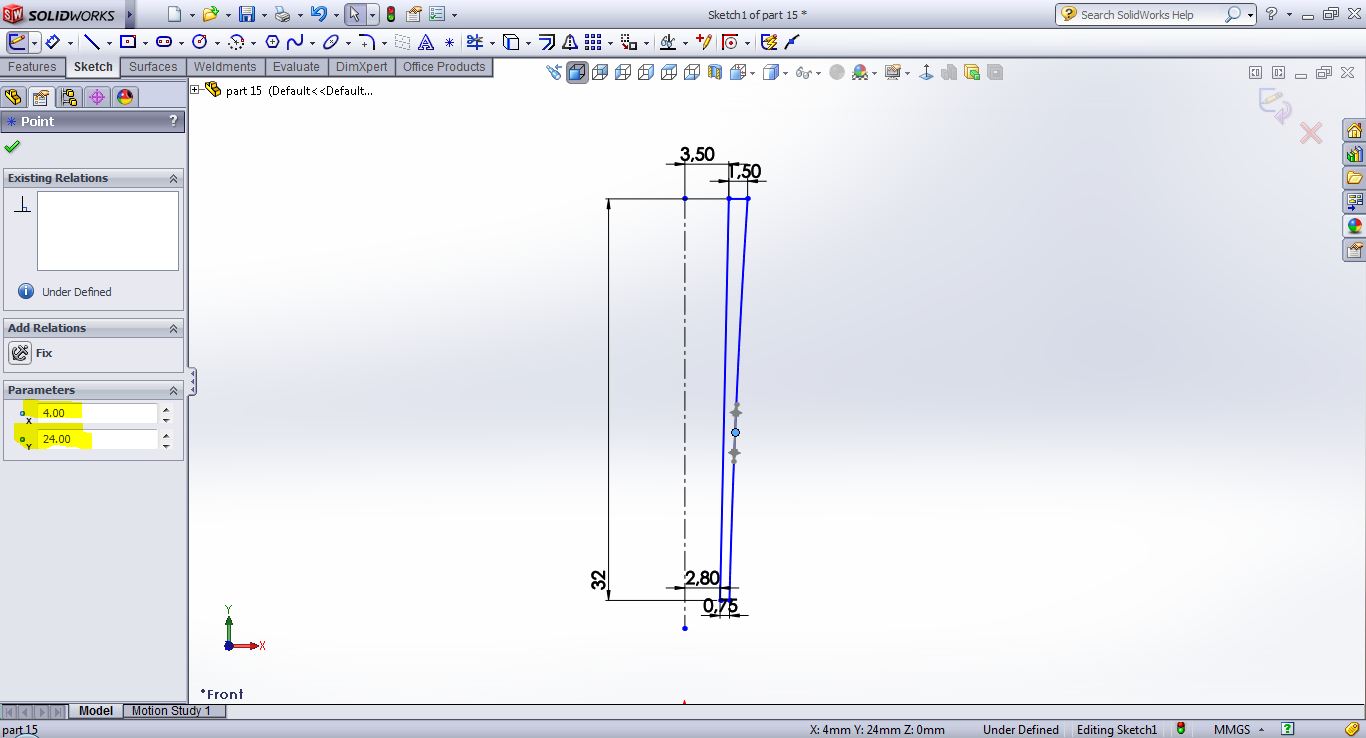

    enter the dimensions for spline point

  6. Step 6:

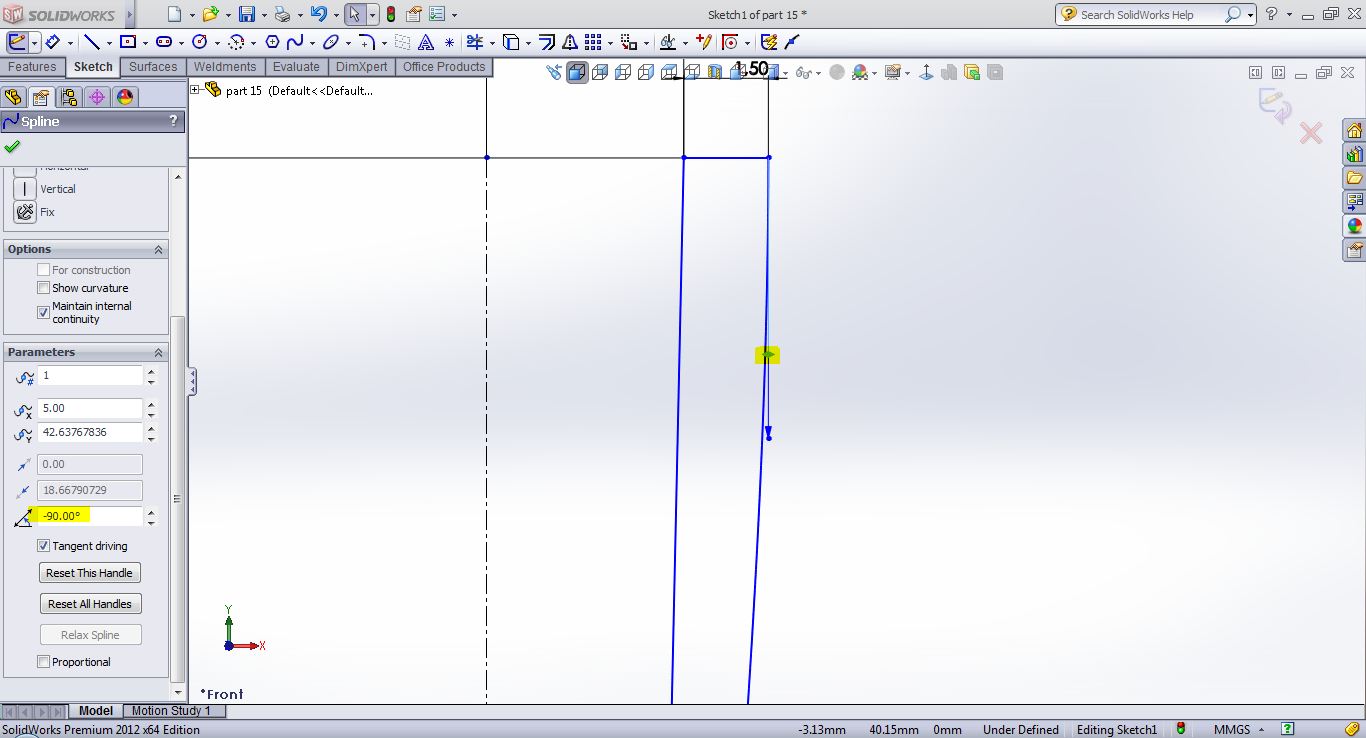

    enter the angle degree -90

  7. Step 7:

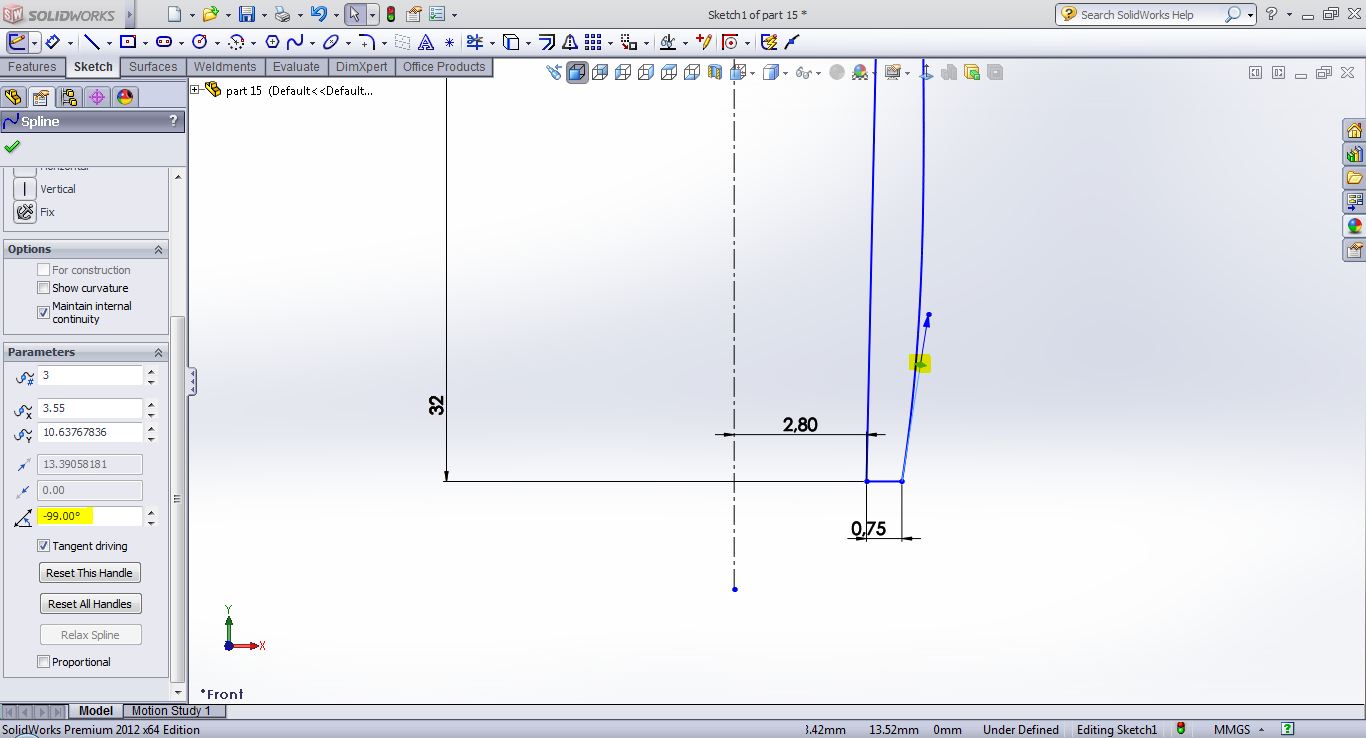

    enter the angle value for this handle

  8. Step 8:

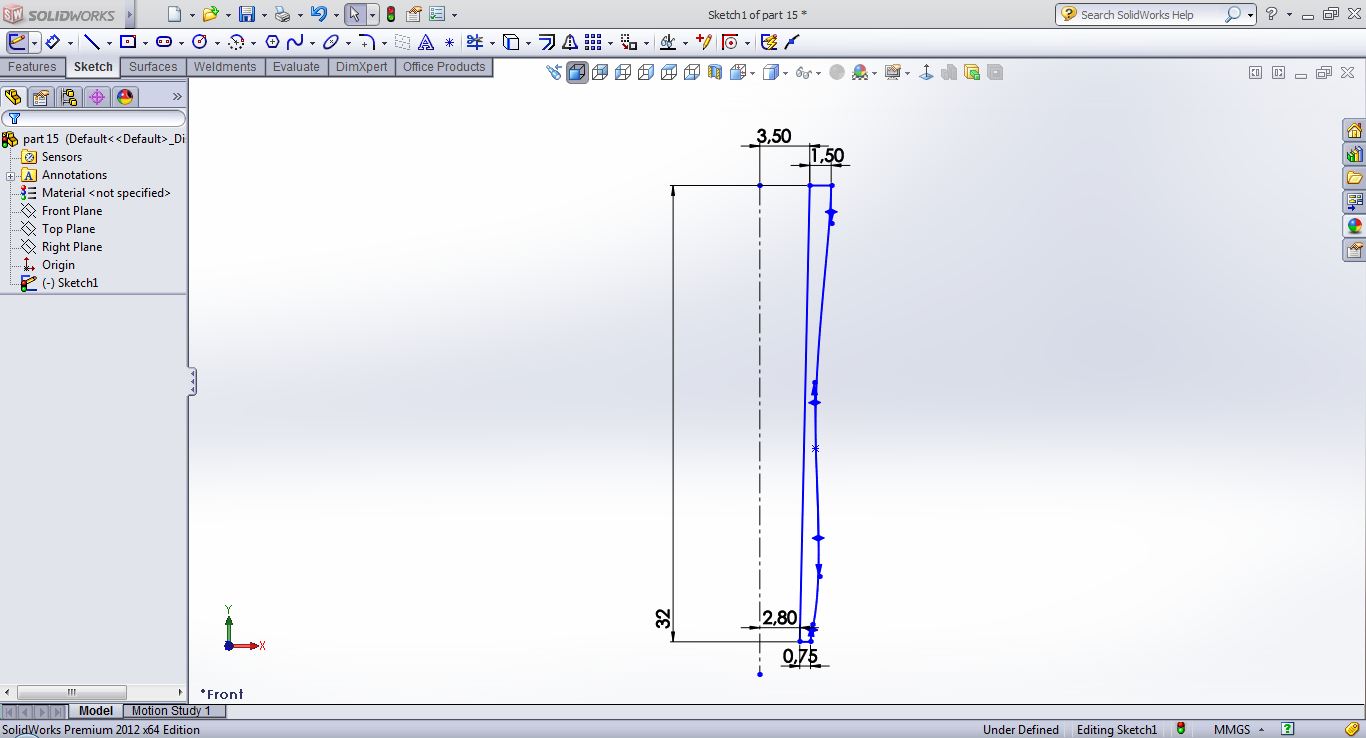

    try to make a skecth like this. don't need to be identical

  9. Step 9:

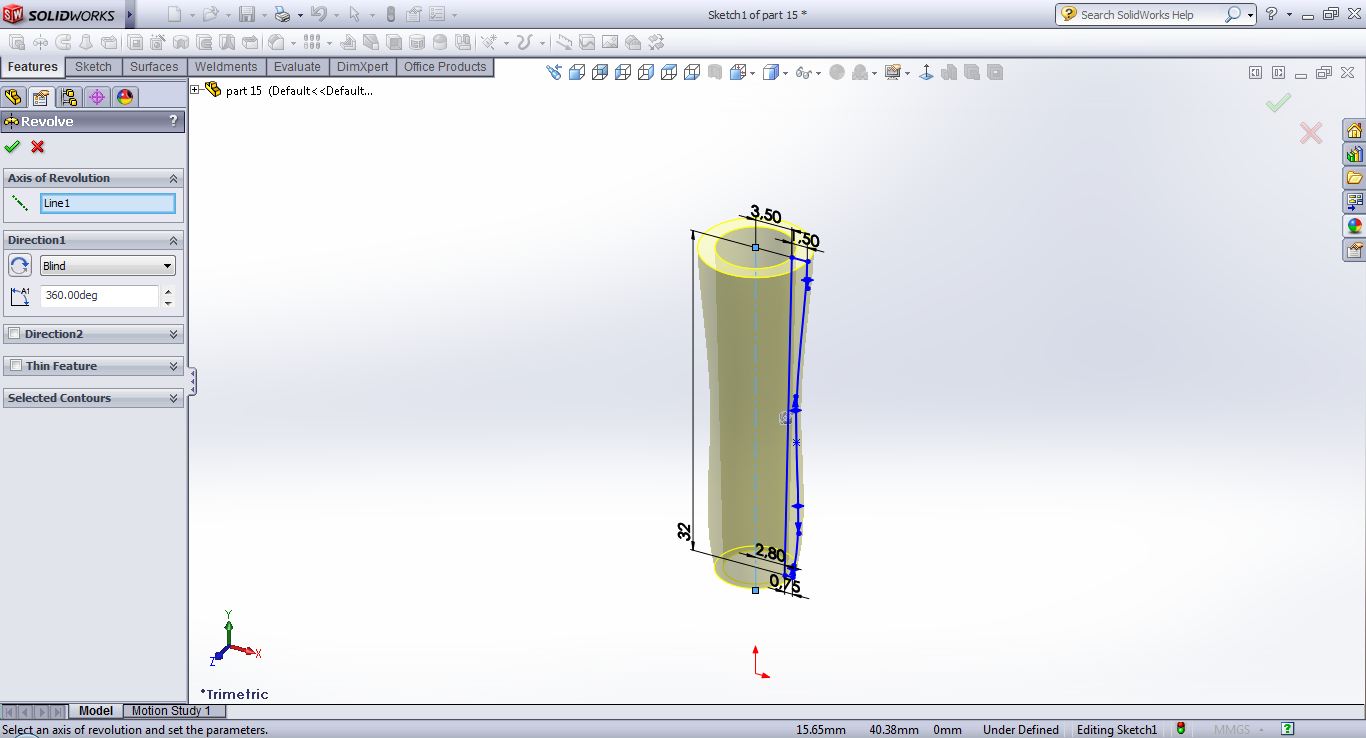

    use revolve command

  10. Step 10:

    use chamfer command on the shown edge

    next: http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-24
