Tutorial how to model a propelling pencil (31)

Tutorial by Aykut Dana
Small

continue

  1. Step 1:

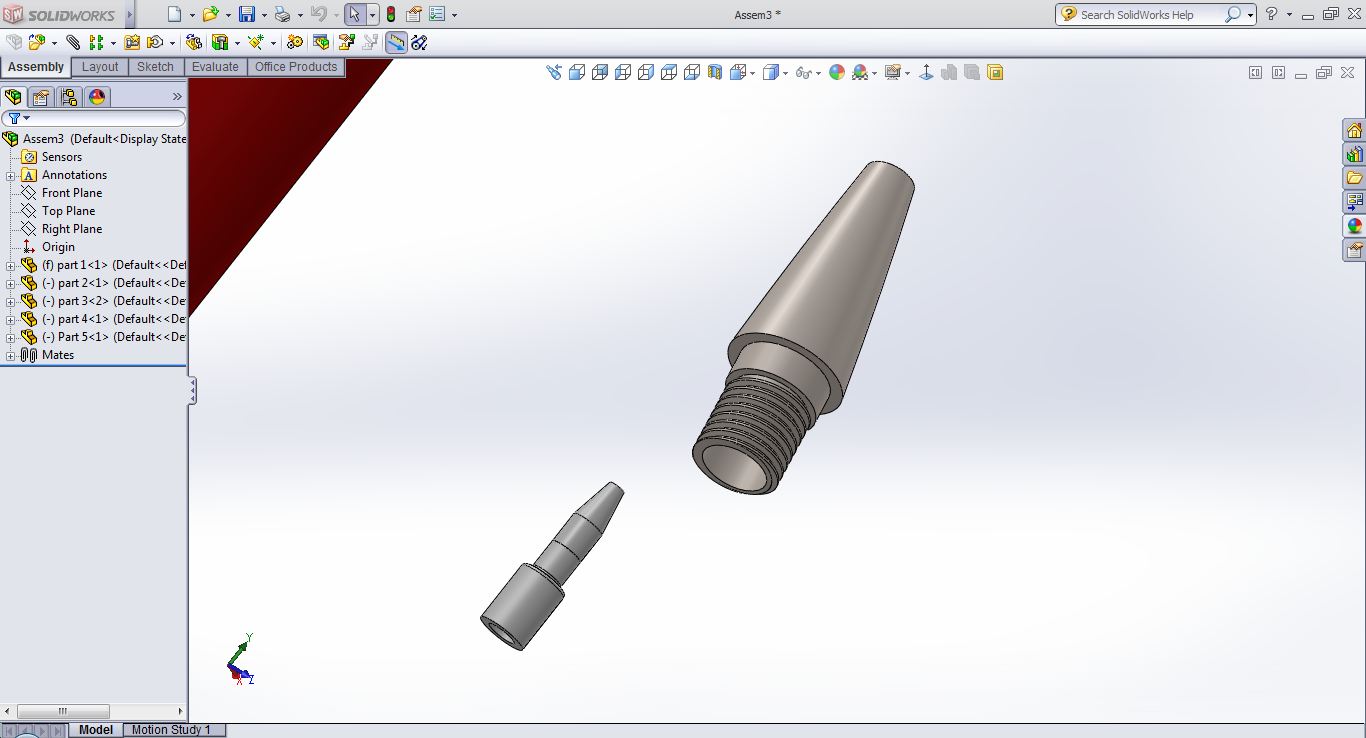

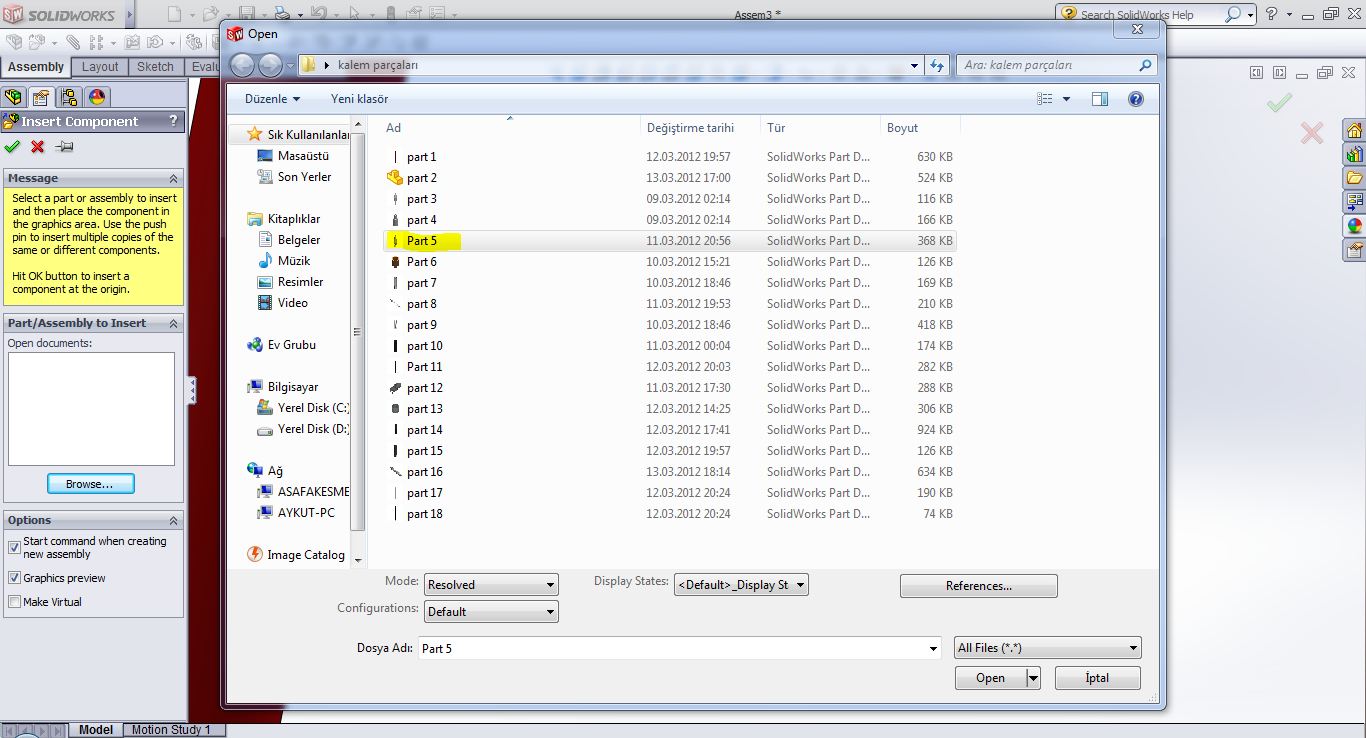

    insert part 5

  2. Step 2:

    we will inset part 3 and part 4 into the part 5

  3. Step 3:

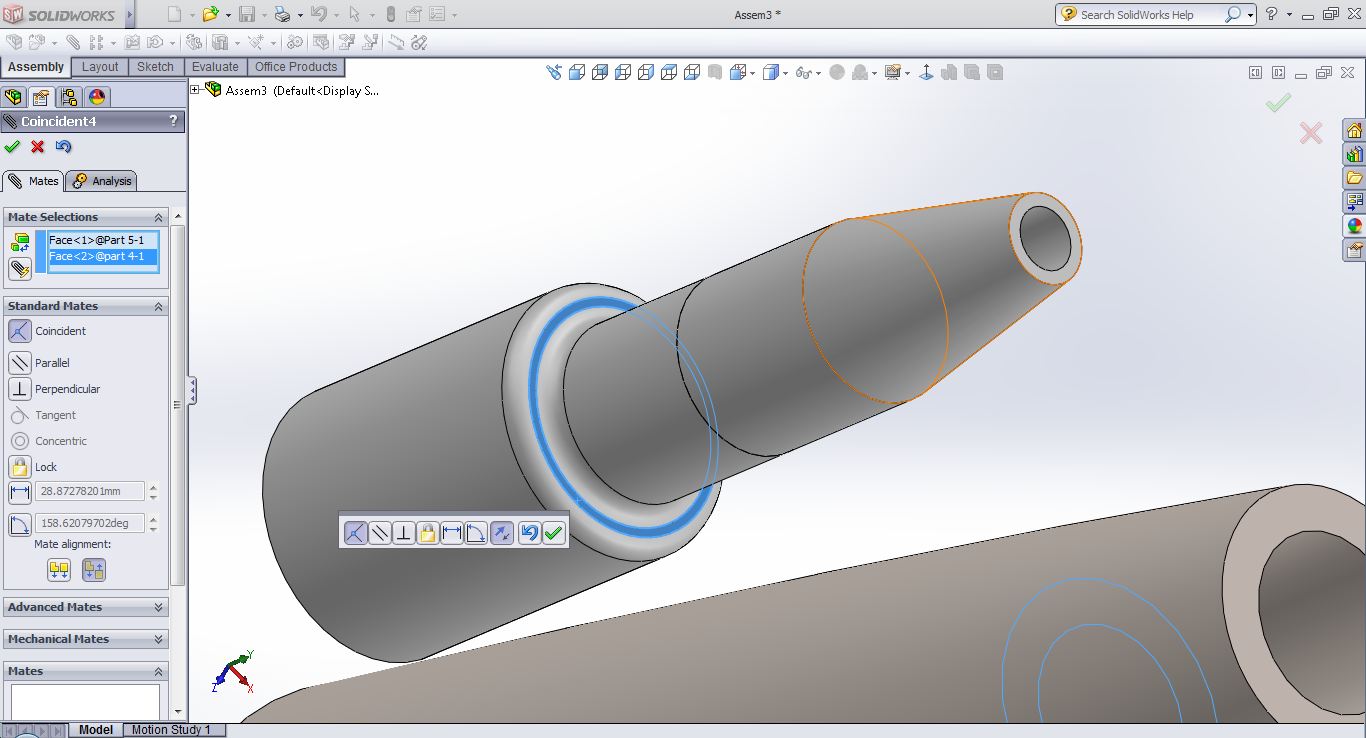

    use mat command and select this surface

  4. Step 4:

    select that surface and confirm that

  5. Step 5:

    now select this cylindrical surface

  6. Step 6:

    then select this surface. ok

  7. Step 7:

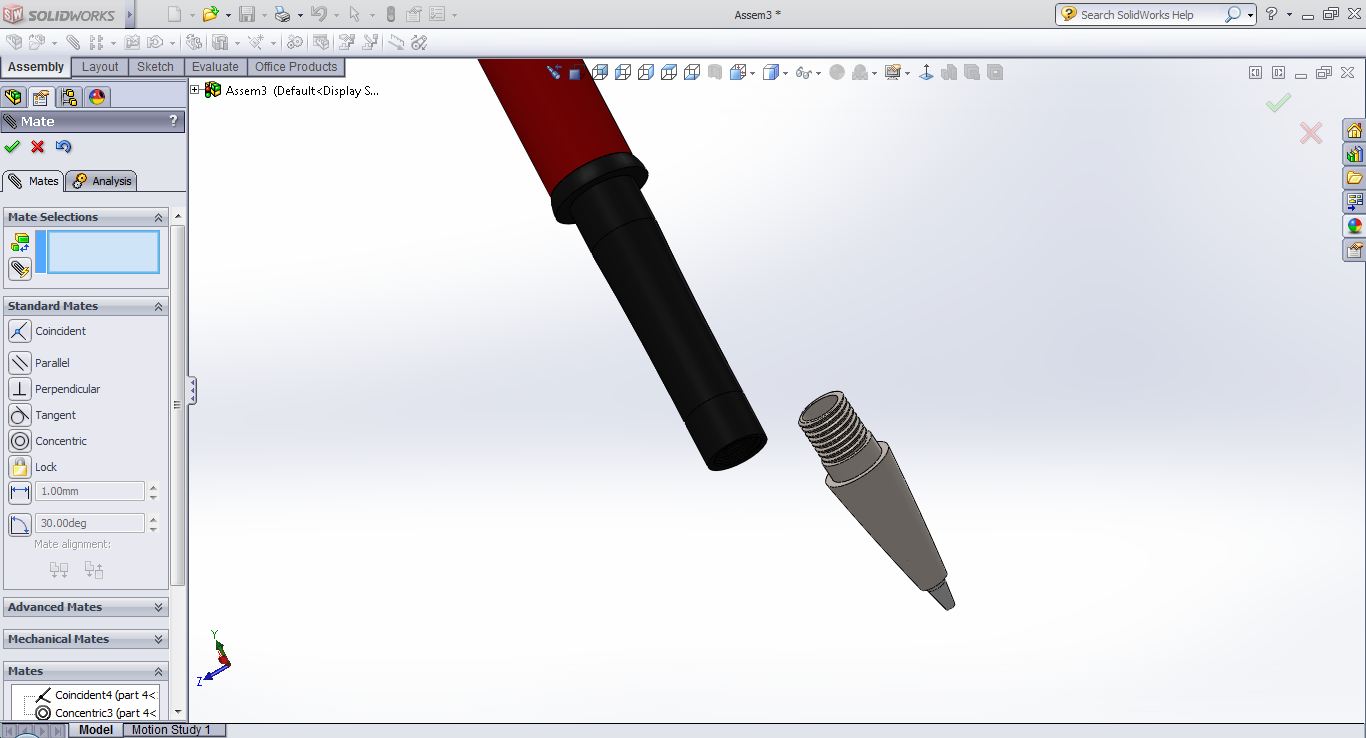

    Bring components to this location by dragging

  8. Step 8:

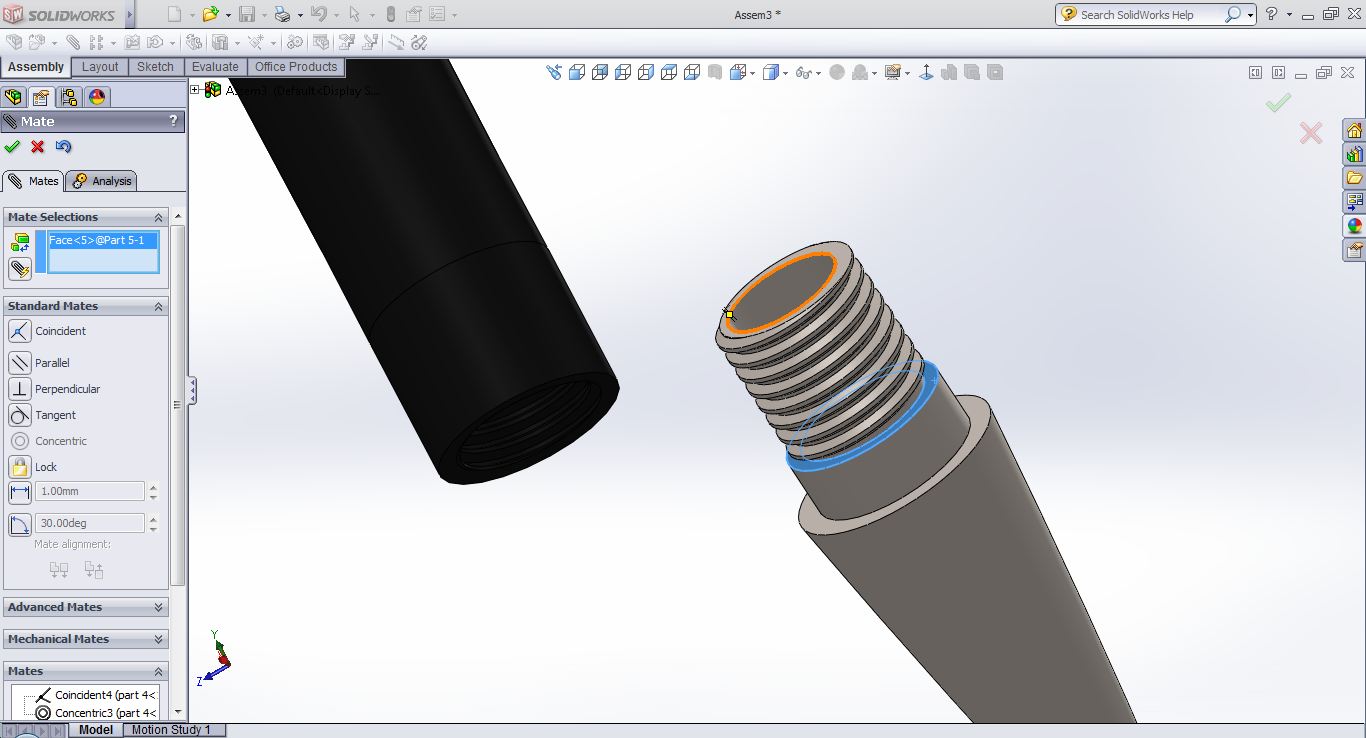

    select shown surface

  9. Step 9:

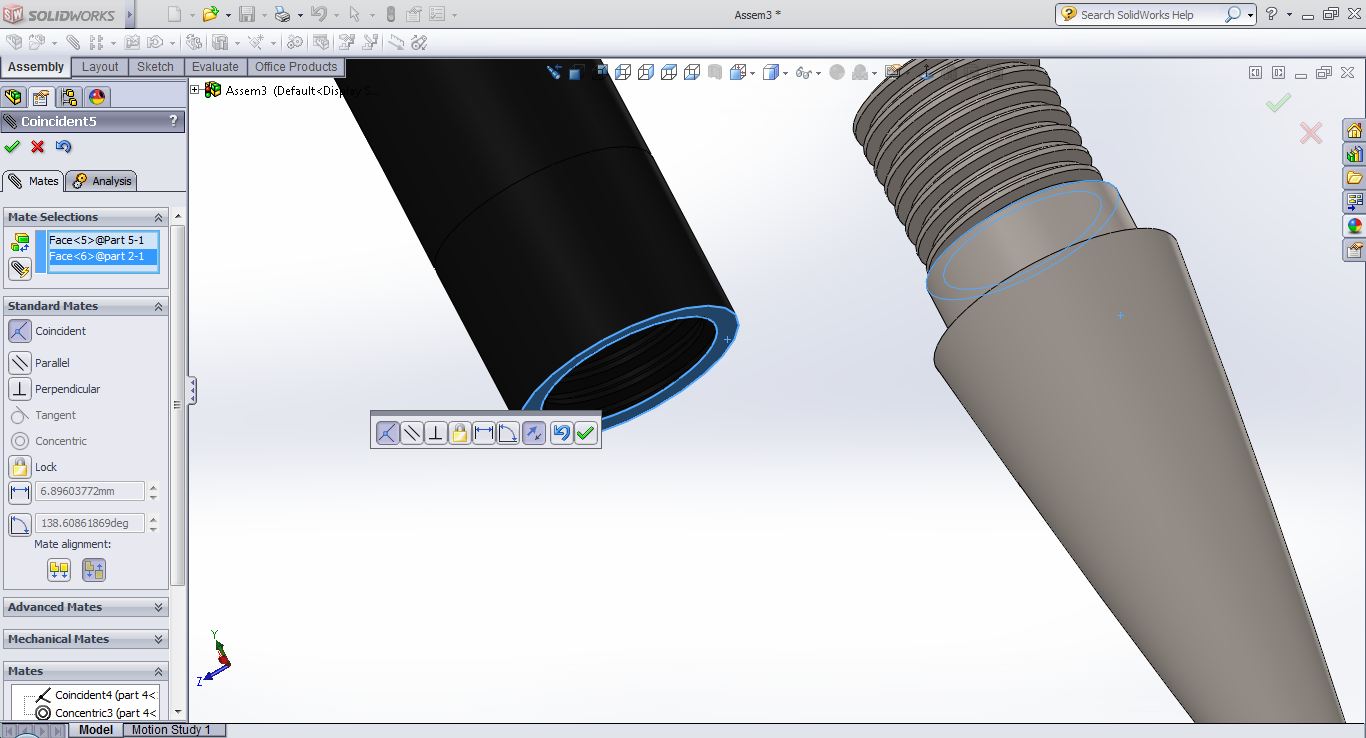

    select other surface and ok

  10. Step 10:

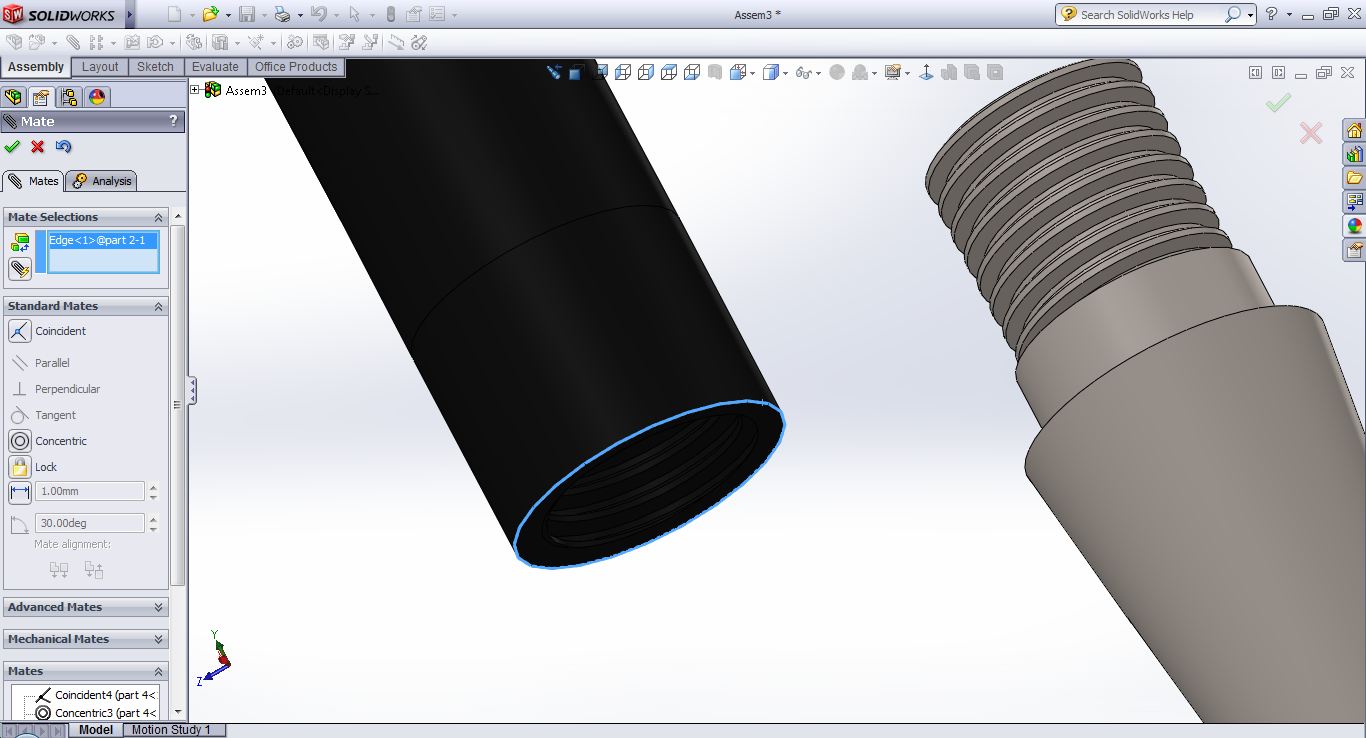

    now select this circle

  11. Step 11:

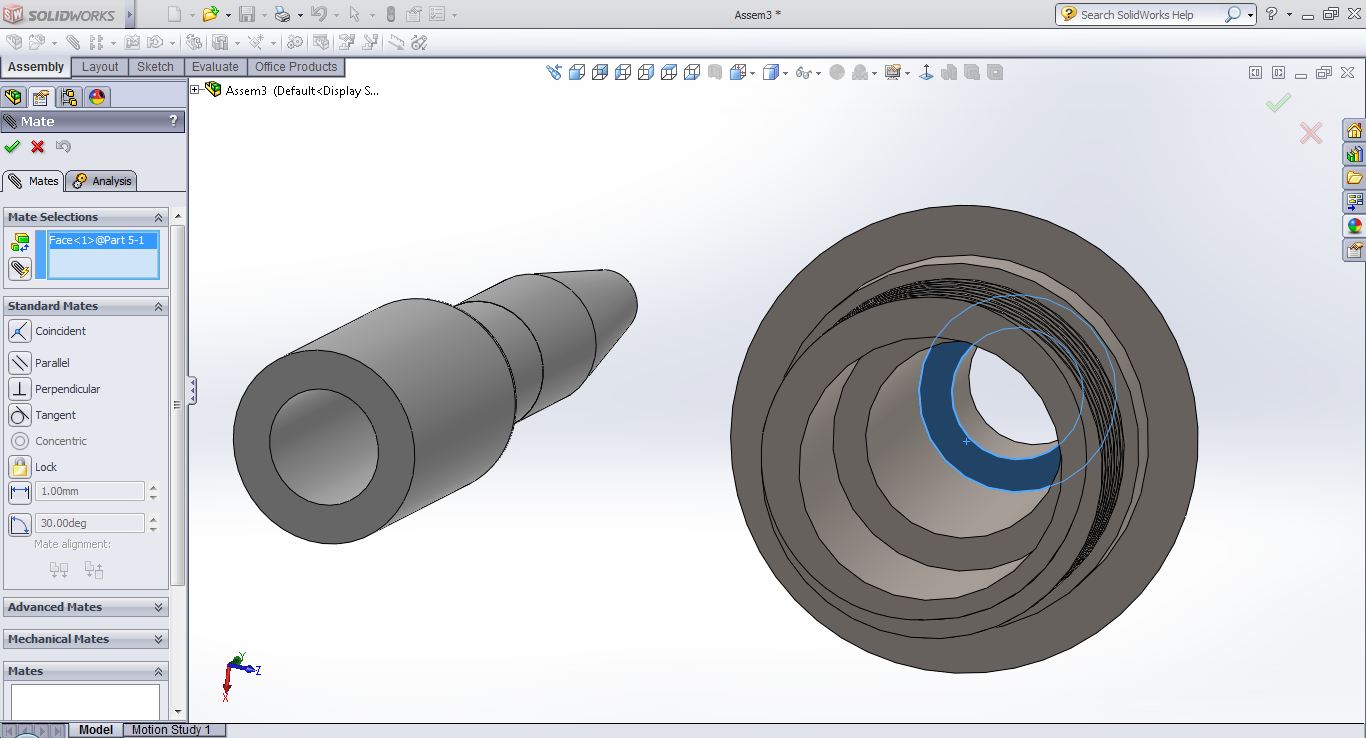

    then click on shown surface and click on ok

    Next: http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-32
