Tutorial how to model a propelling pencil 37

Tutorial by Aykut Dana
Small

The final touches

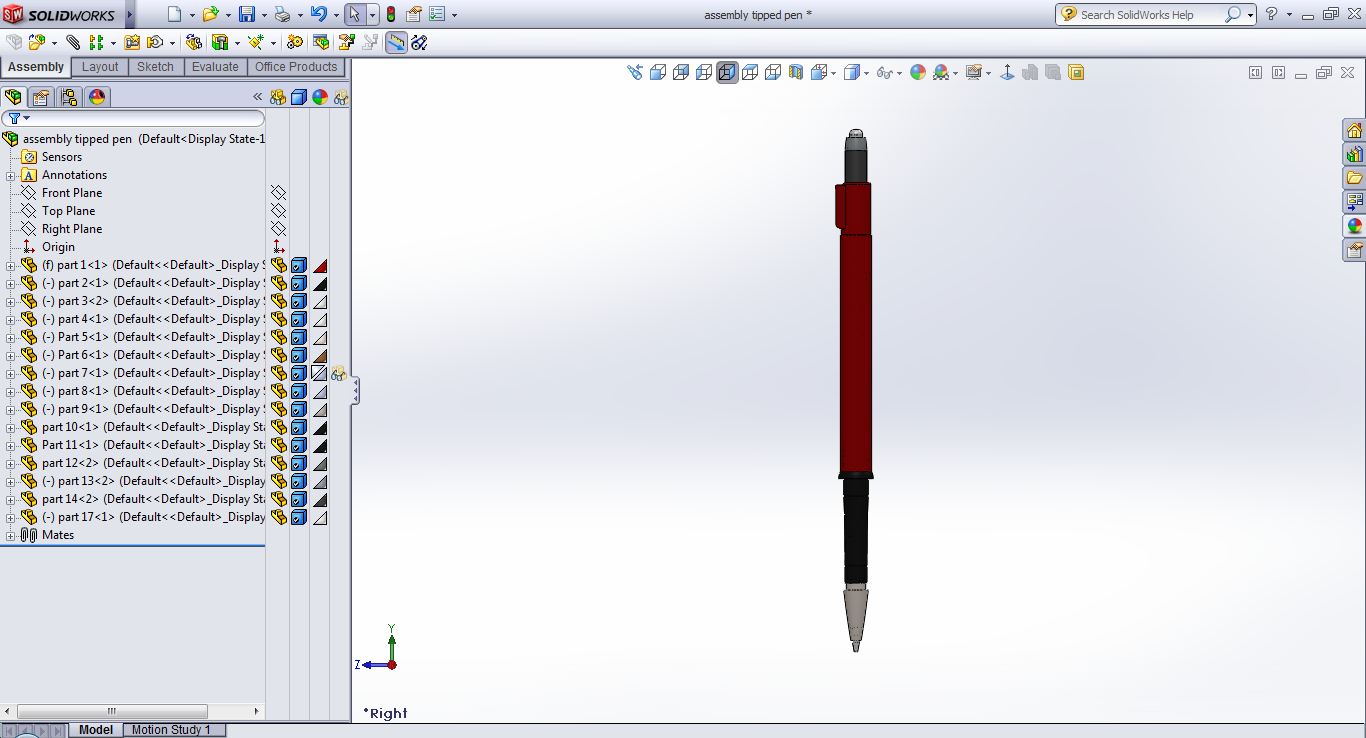

  1. Step 1:

    show all parts

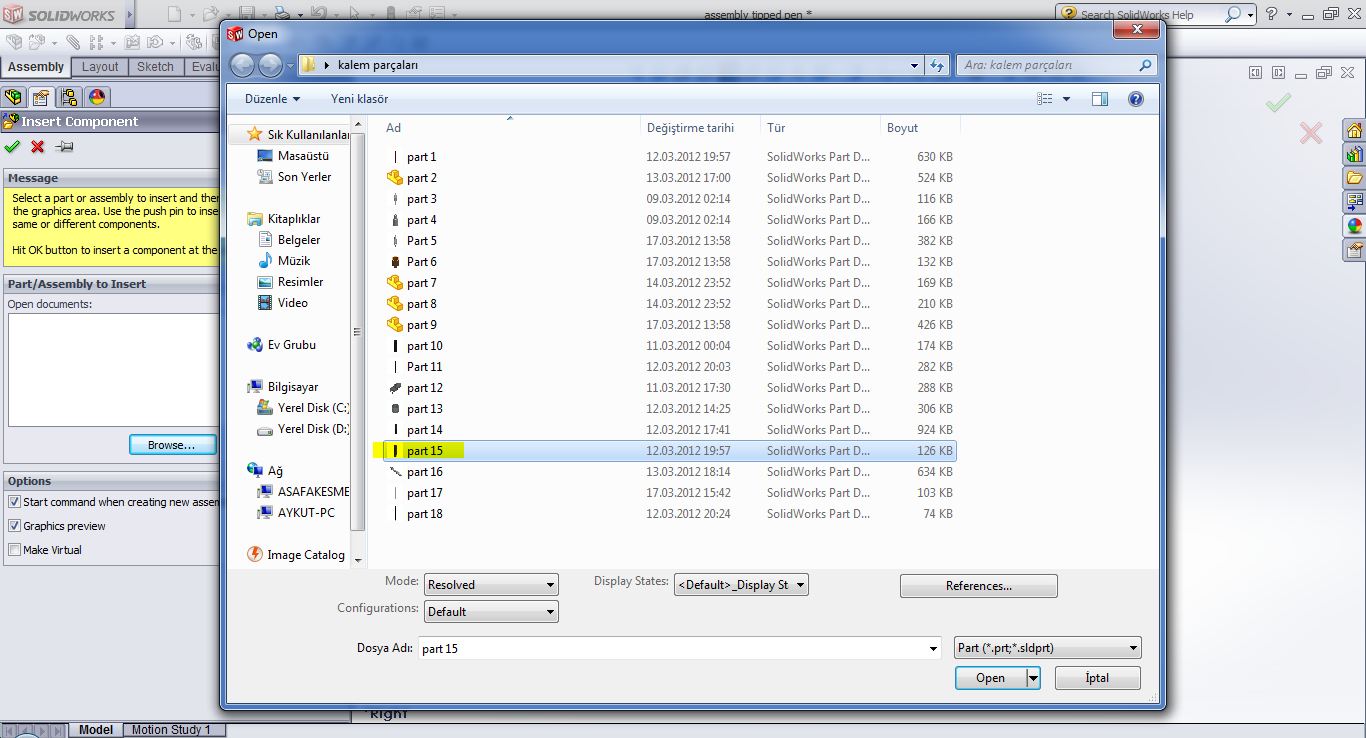

  2. Step 2:

    insert part 15

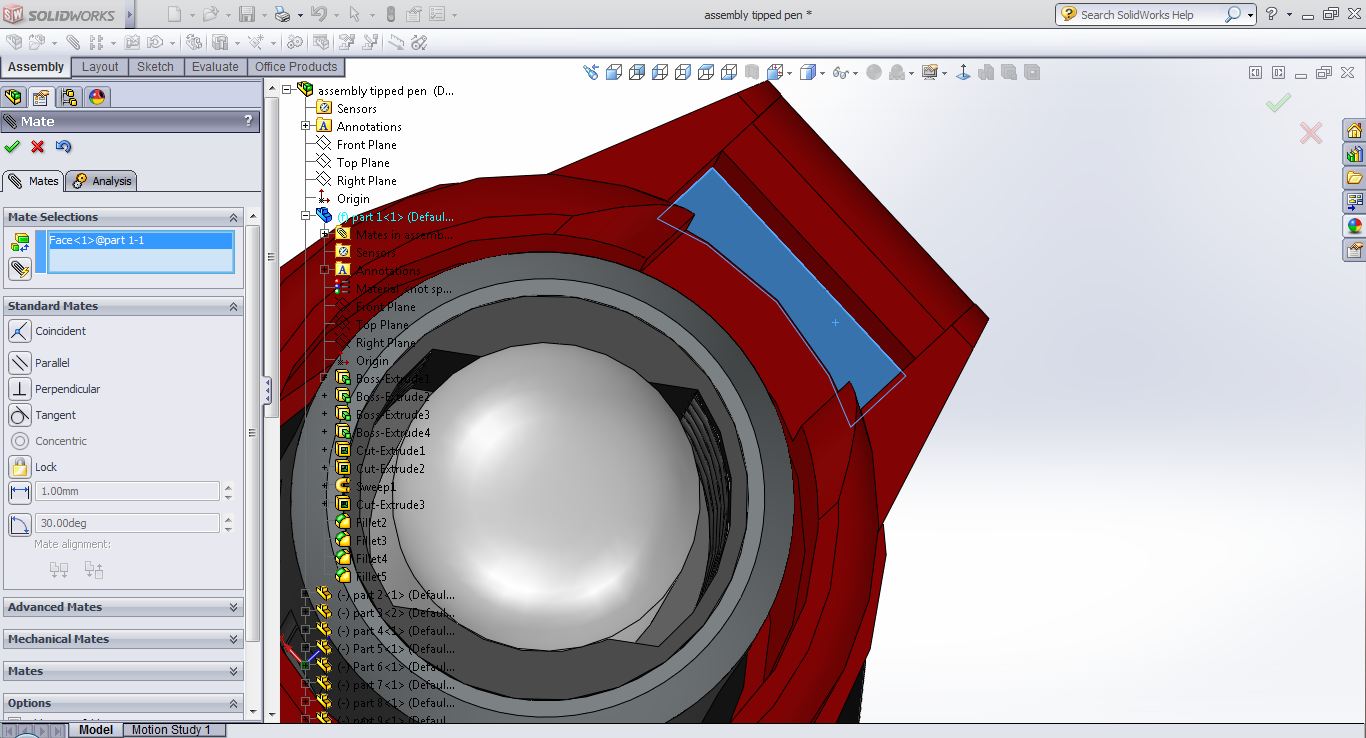

  3. Step 3:

    use mate command. select shown face firstly

  4. Step 4:

    select shown face secondly and click on ok

  5. Step 5:

    now select face 1

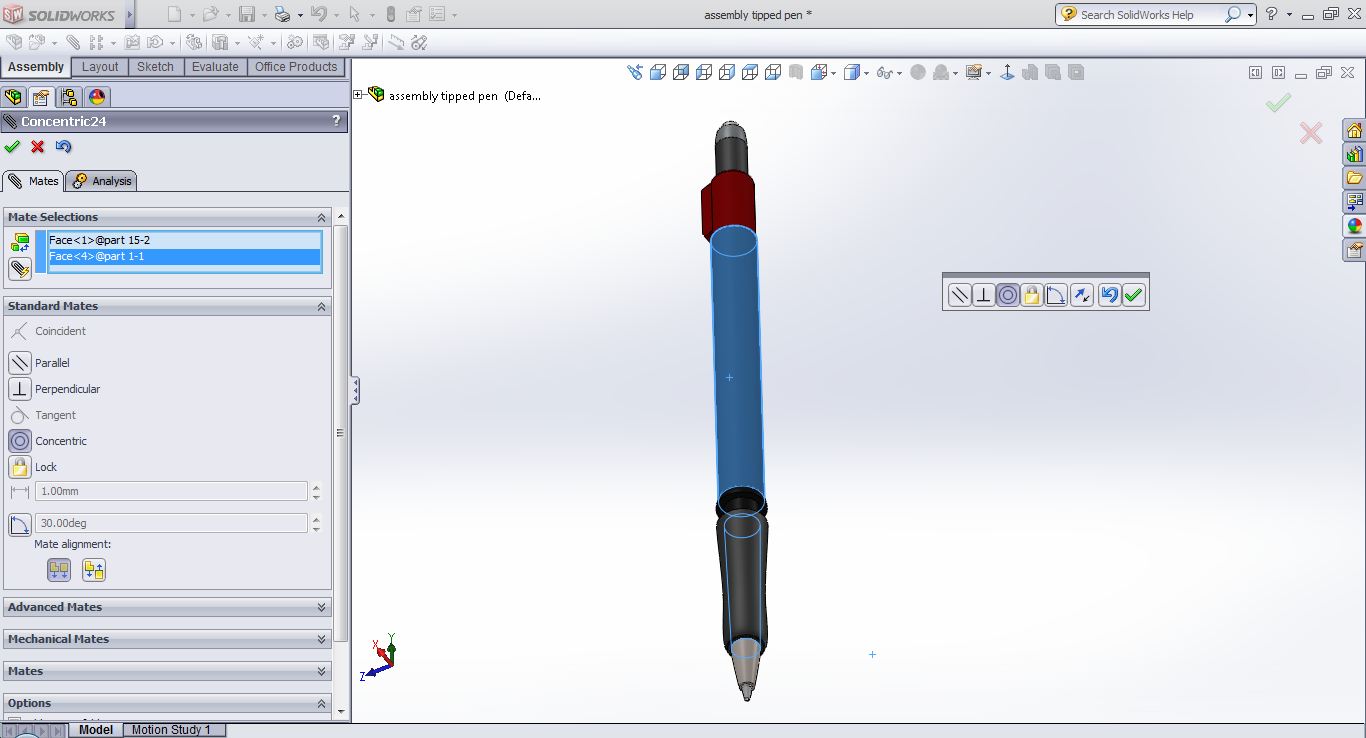

  6. Step 6:

    select shown face secondly and confirm that

  7. Step 7:

    insert part 16

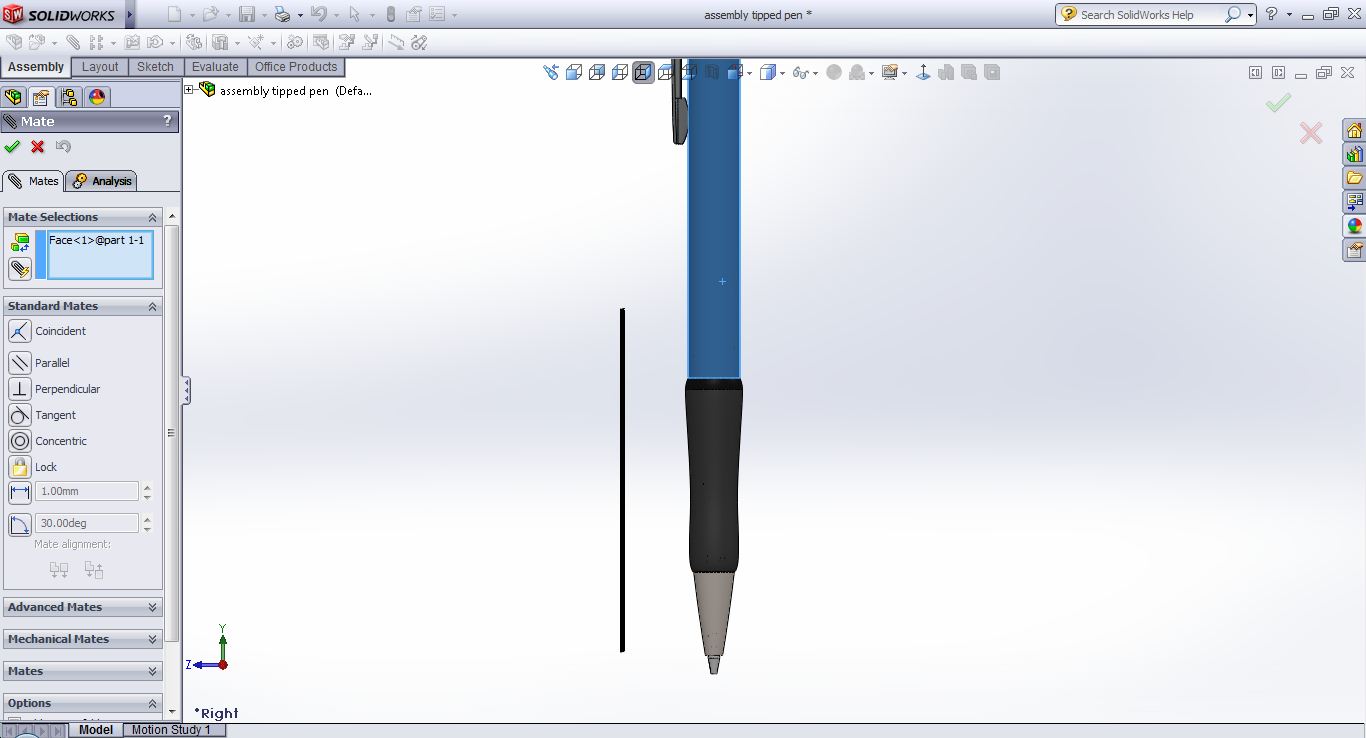

  8. Step 8:

    right click on front plane of part 16 and use mate command

  9. Step 9:

    then click on right plane of part 1. click on ok

  10. Step 10:

    now select this face

  11. Step 11:

    then select shown edge. ok

  12. Step 12:

    face 1

  13. Step 13:

    then click on this face. confirm that

  14. Step 14:

    left one more importand step

  15. Step 15:

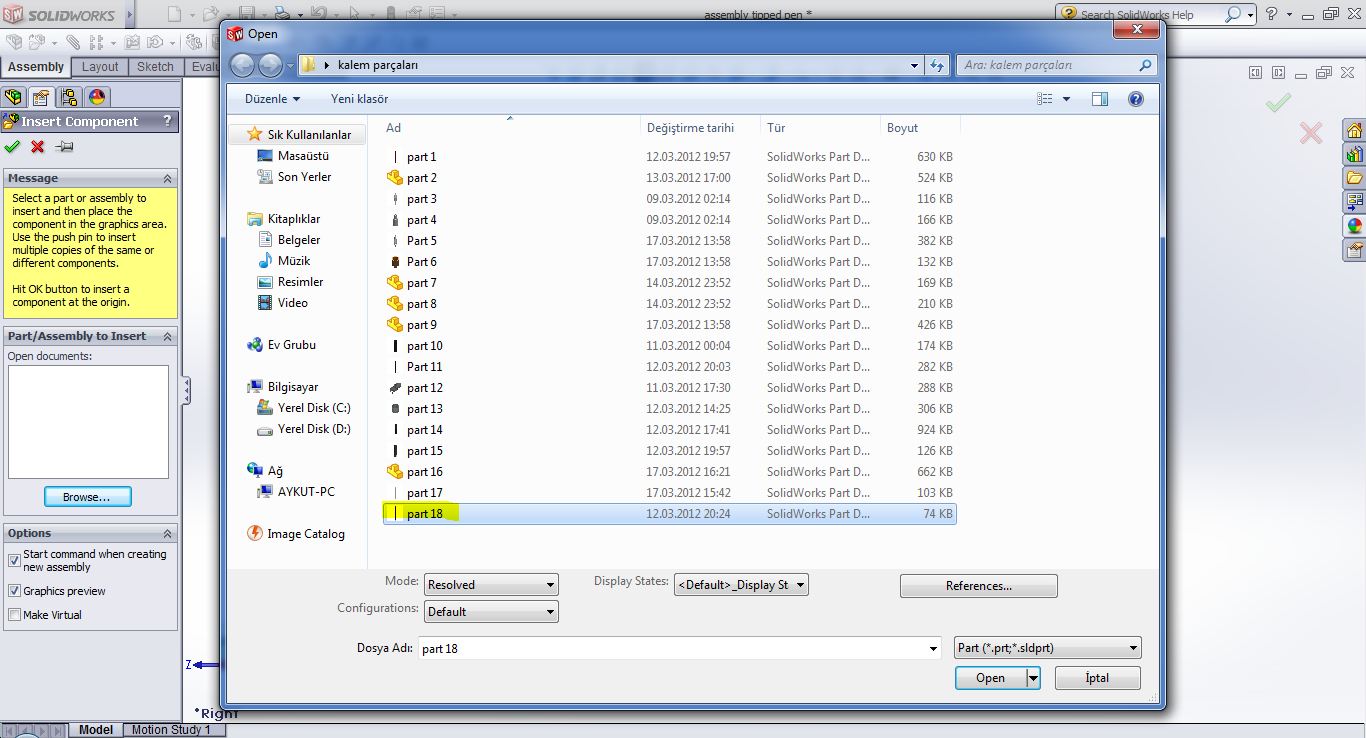

    insert the last part:)

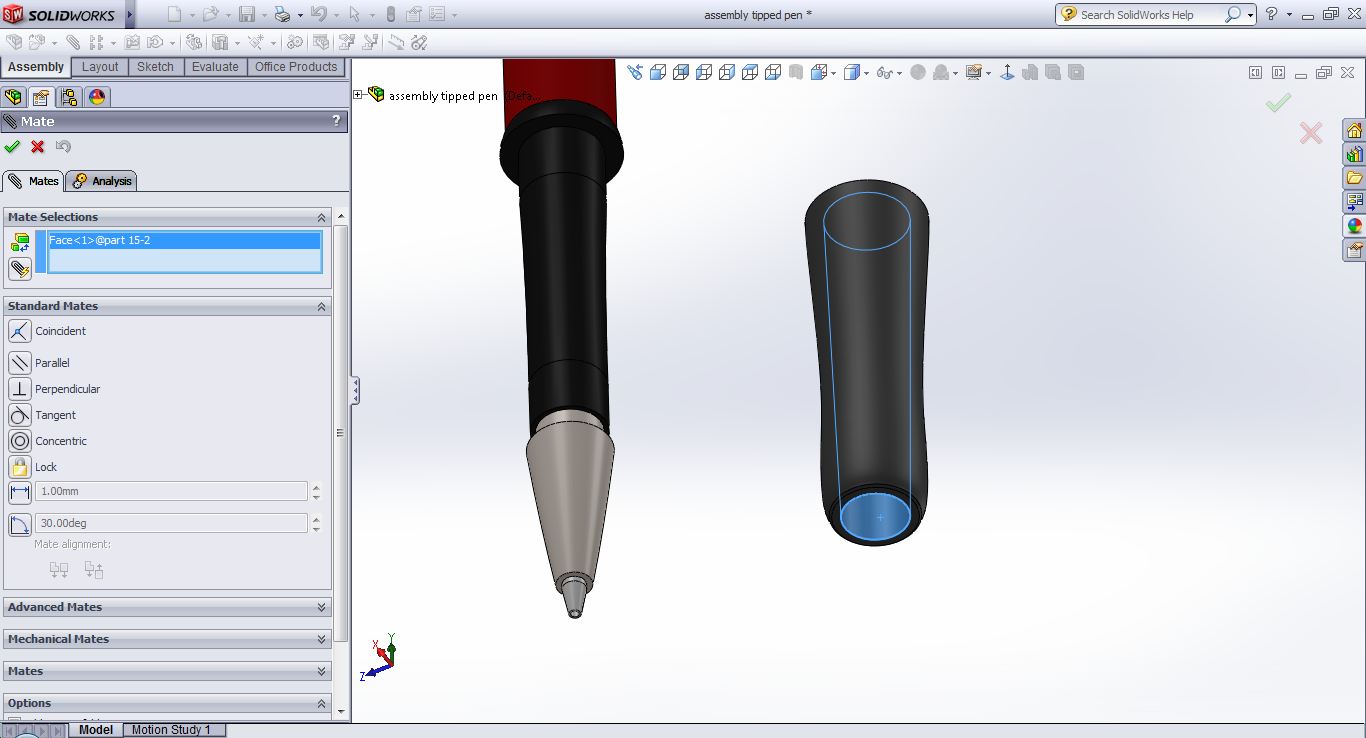

  16. Step 16:

    use mate command. select shown face firstly..

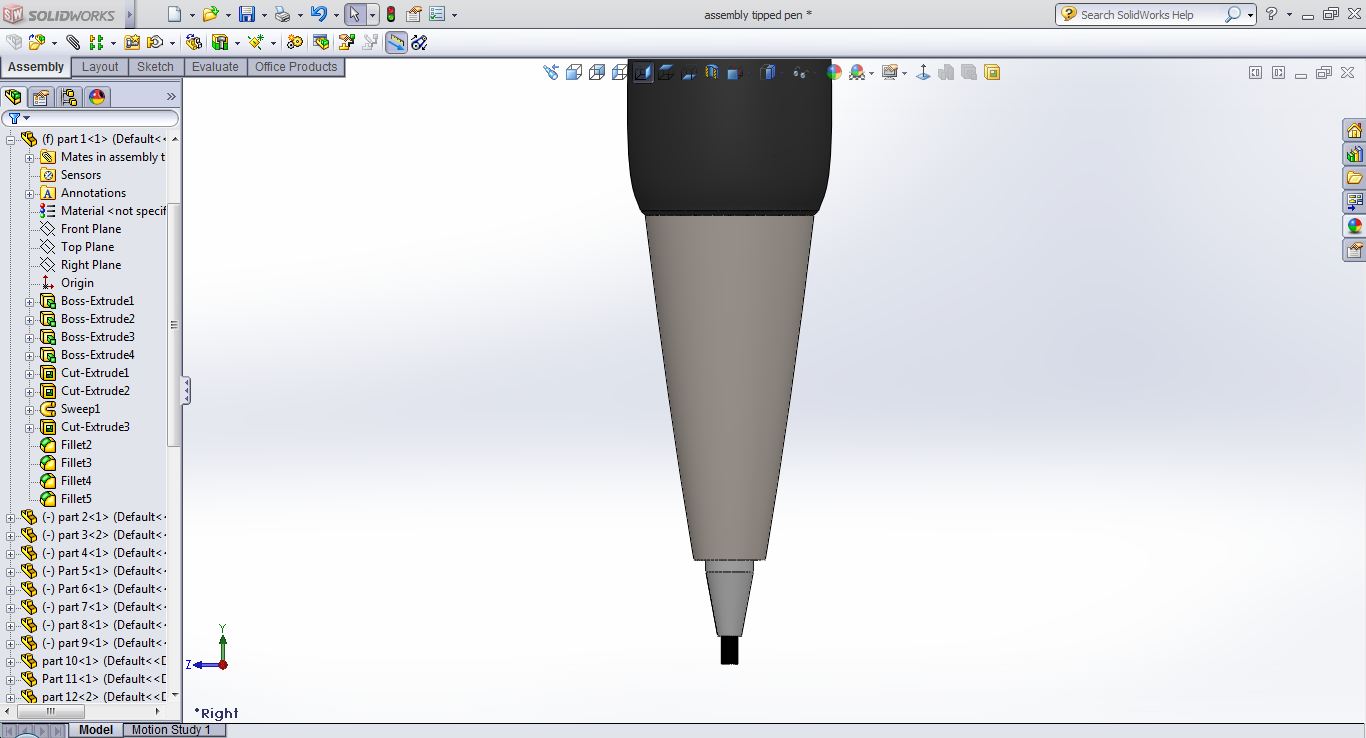

  17. Step 17:

    then click on the tip and confirm that

  18. Step 18:

    hold and drag the tip to up

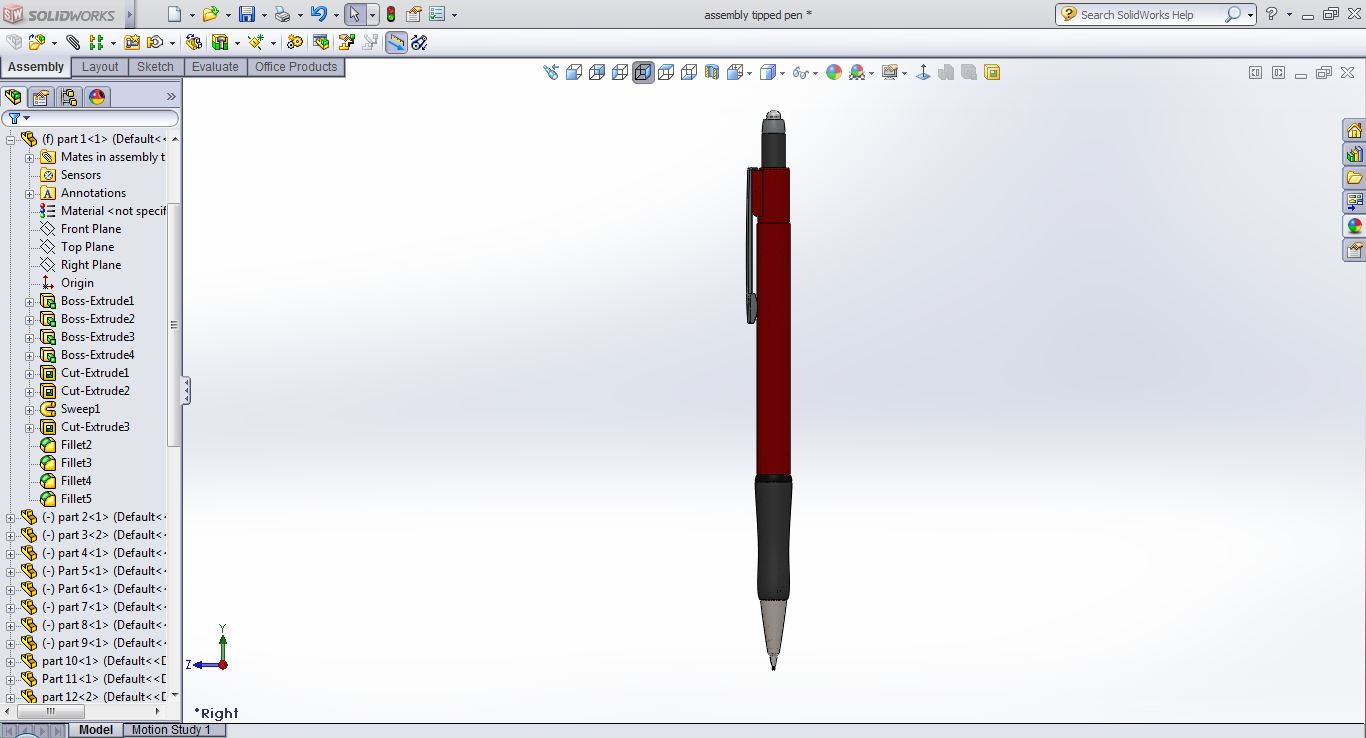

  19. Step 19:

    All done, tipped pen is ready!

    Congratulation!
