Koenigsegg hood release handle

Medium

Swedish super sportscar manufacturer Koenigsegg is redesigning their front and rear hood release handles and they have a challenge for you. Come up with something light, strong and beautiful and your solution might end up on one of the fastest cars on the planet.

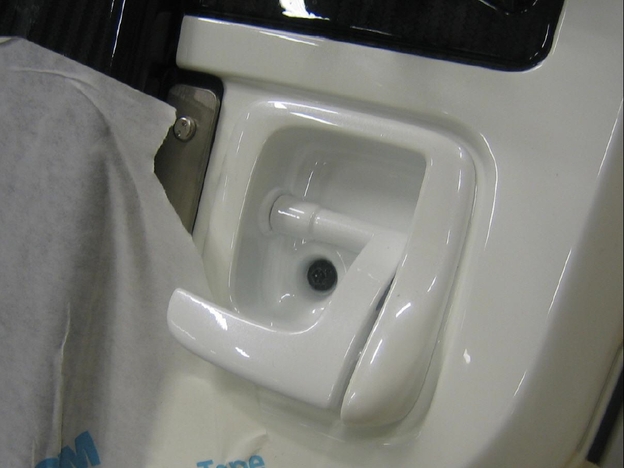

They need a new, bespoke and lightweight solution to replace the standard one used at the moment. Current solution (front & rear) consists of a release handle and a back plate held together with one bolt and a plastic snap-fit. The back plate legs are fitted with rubber profiles to increase friction to rocker B-surface. New handle should be interchangeable with the current carry over component and should improve ergonomics and clearance to the door hinge. The new version can be a release handle assembly of any kind as long as the boundaries remain the same (rocker, door, dashboard carcass etc.).

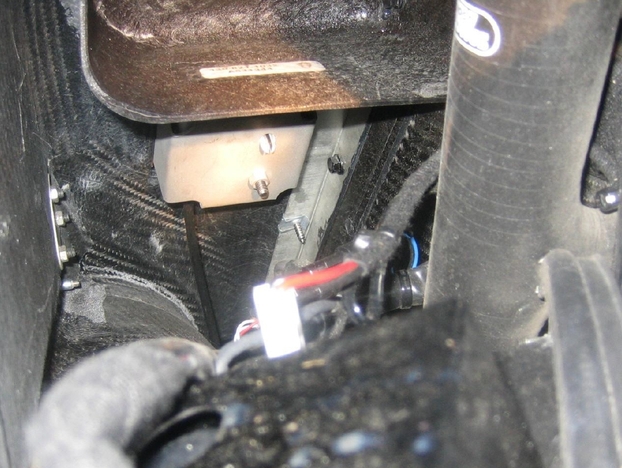

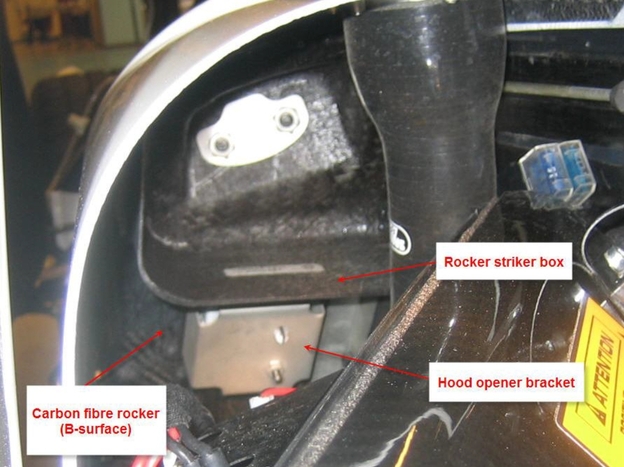

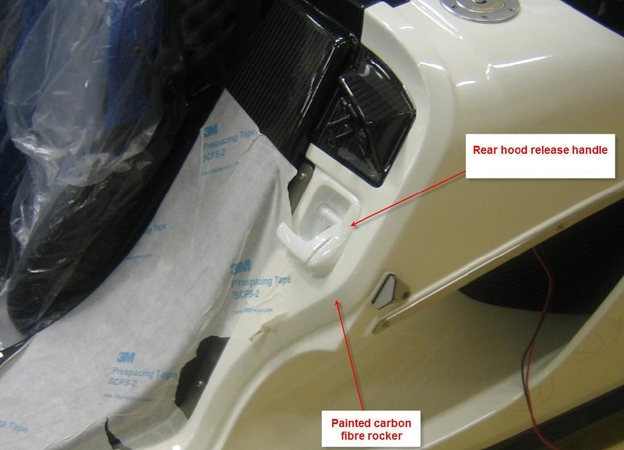

Both front and rear handles mount to carbon fibre panels which can vary in thickness. You have to take this into account when designing new handles! The carbon fiber panel including paint and clearcoat have a final thickness of 3,5+/- 0.5mm. Also have in mind that carbon fiber B-sides are not tooled surfaces.

Requirements

Light weight design
Materials - aluminum or carbon fiber or both.
Ergonomic - lever should be easy to grab
Interchangeable with the current carry over lever (It doesn't have to look anything like the current part - it just cannot be bigger)
Improved clearance to the door hinge
Simple enough to manufacture
Simple enough to assemble
Current standard handle is spring loaded
Lever has to be able to pull the cable at least 20 mm
Lever should look like it belongs to a super car not a family saloon

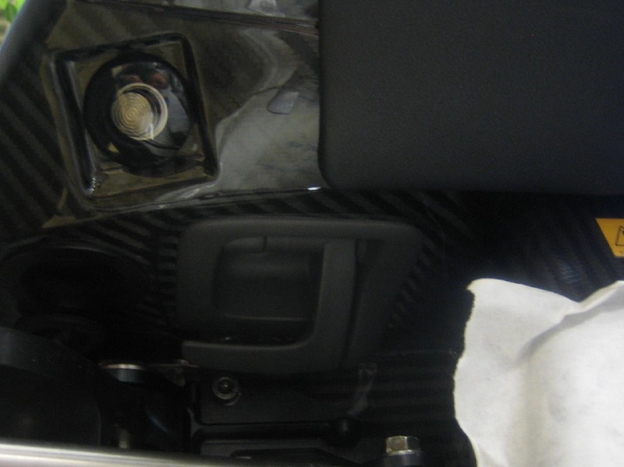

Do not stare blind at that currently used standard release handle assembly and the back bracket (you might not even need a bracket > saves weight). Only use them for critical references
Please keep in mind the finger loads - the lever gearing should be similar or better (lighter) than the current handle solution.

Download specification

Rules

Winning design will be chosen based on the function, style and weight.
The competition is open to everyone
Team entries are welcome. In case of team win, prize money will be transferred to team leader who is solely responsible for splitting it among team members
You can submit several designs
Only models uploaded to GrabCAD library will participate in the competition
Only models uploaded through this challenge page here will participate in the competition
Tag your model with “koenigsegg” to make it easier to find.
You may upload a private model but you need to share access to indrek@grabcad.com
Privately uploaded models will be made public after the competition deadline
Models can be done in any CAD software as long as a STEP or IGES files are also uploaded
Competition starts: 21st of September, 2011
Competition ends: 5th of October, 2011
Competition winner will be announced in GrabCAD’s blog no later than 10th of October

About Koenigsegg Automotive AB

Koenigsegg is a Swedish manufacturer of high-performance sports cars based in Ängelholm. The company was founded in 1994 in Sweden by Christian von Koenigsegg, with the intention of producing a world-class supercar. Many years of development and prototyping led to the company's first street-legal production car delivery in 2002.

In 2006, Koenigsegg began production of the CCX, which uses an engine created especially for that vehicle. The CCX is street-legal in most countries, including the United States.
Apart from developing manufacturing and selling the Koenigsegg line of supercars, Koenigsegg is also involved in "green technology" development programs, including the CCXR ("Flower Power") flexfuel supercar. Koenigsegg is also active in development programs when it comes to plug-in electric cars' systems and next-generation combustion engine technologies.

In March 2009 the Koenigsegg CCXR was chosen by Forbes to be one of the ten most beautiful cars in history.

In December 2010 the Koenigsegg Agera won the prestigious BBC Top Gear Hypercar of the Year Award.
