  CYLINDER HEADS

  1. Step 1

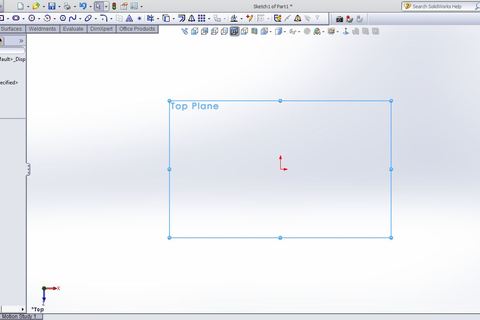

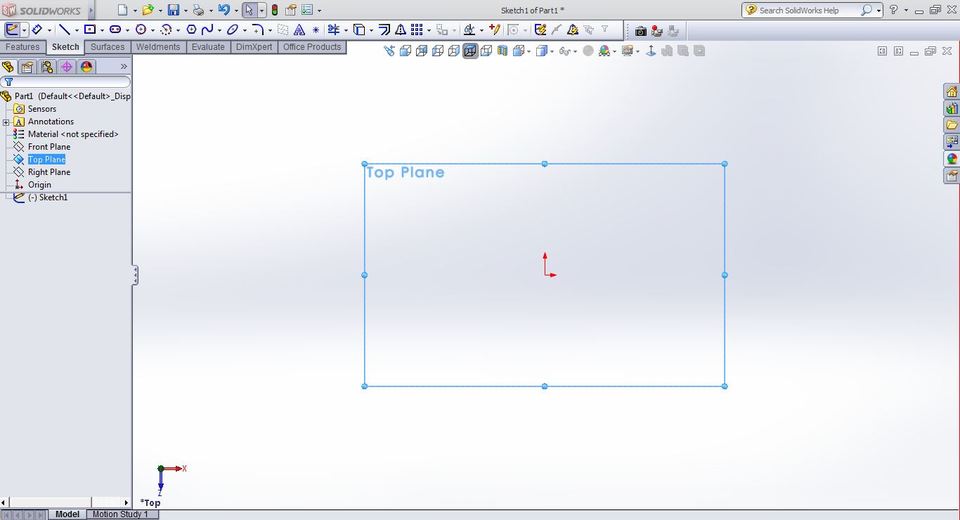

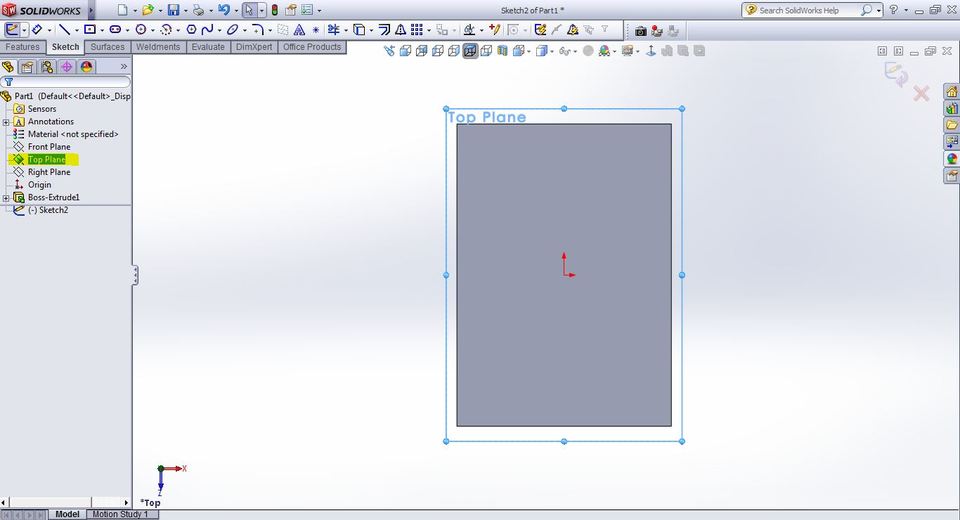

     Prepare yourself a cup of coffee, sit back in your chair and open a sketch on the top plane



  2. Step 2

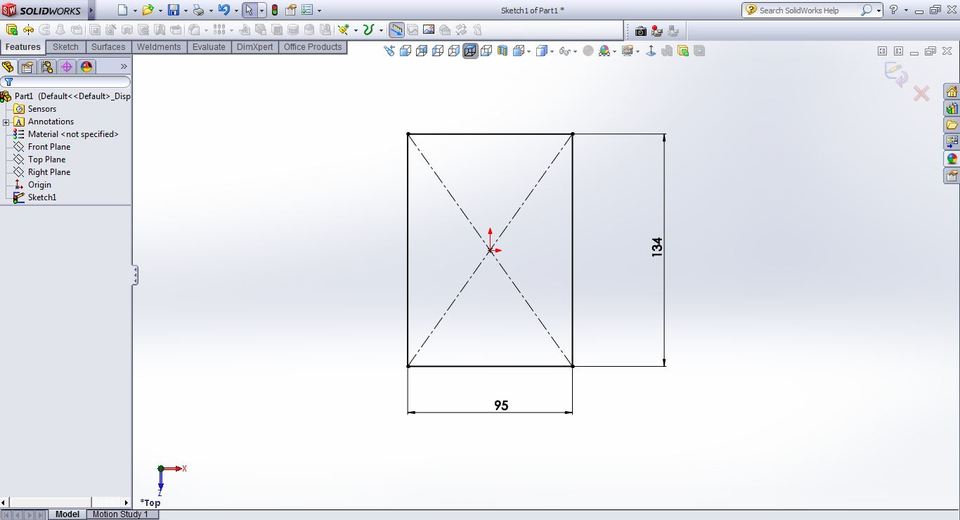

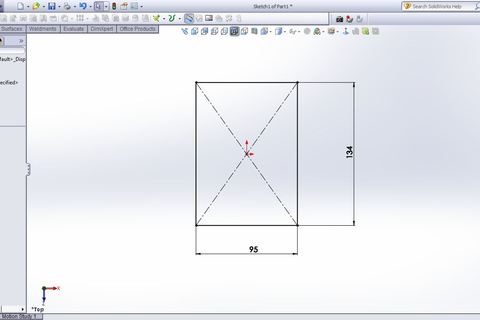

     draw a rectangle



  3. Step 3

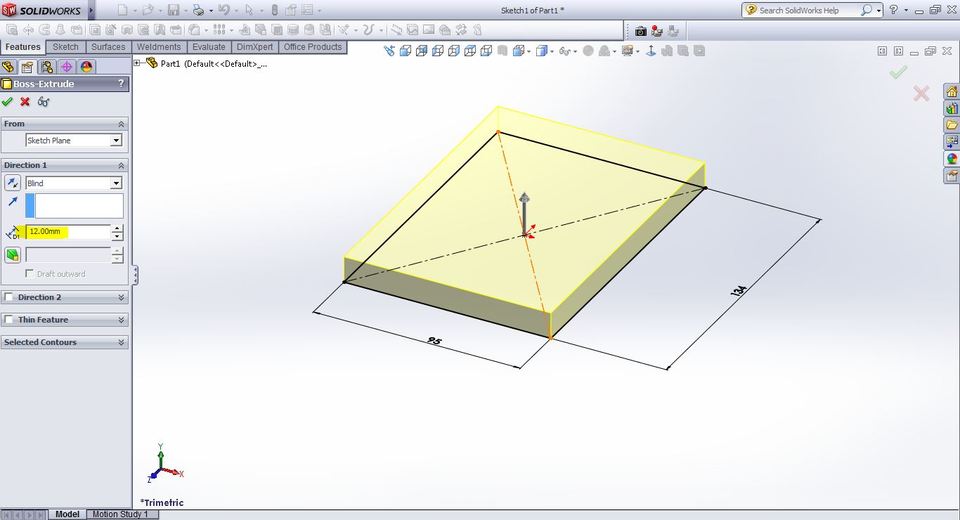

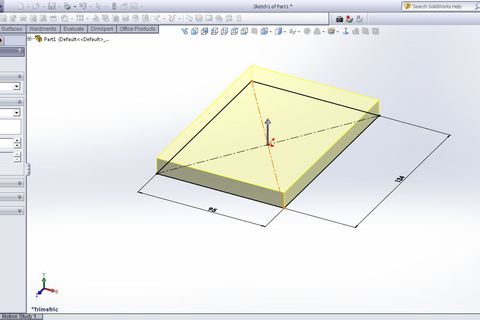

     extrude it by 12 mm



  4. Step 4

     open a sketch on the top plane again



  5. Step 5

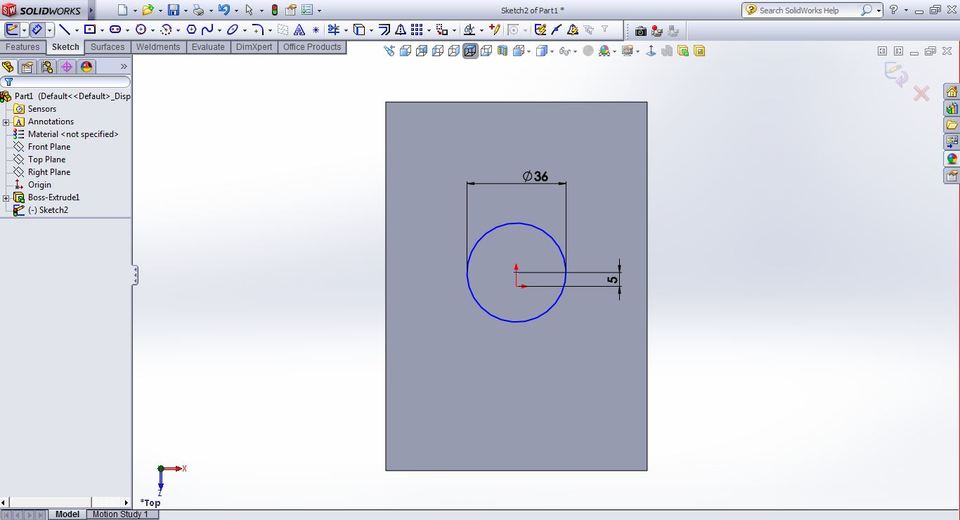

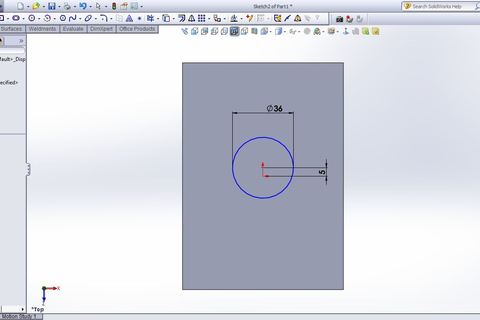

     draw a circle



  6. Step 6

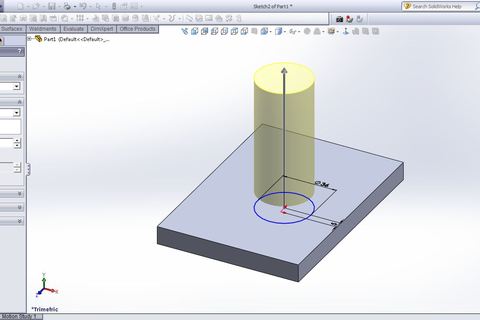

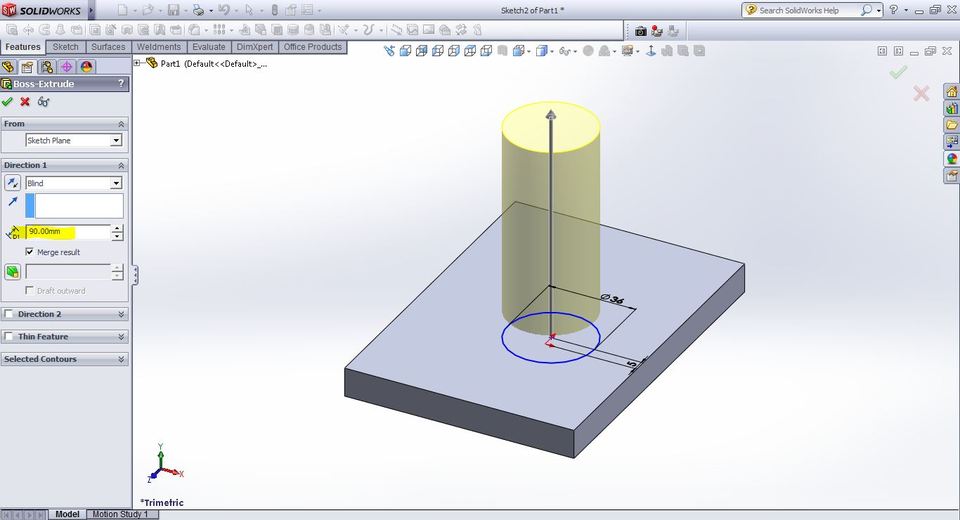

     extrude it by 90mm



  7. Step 7

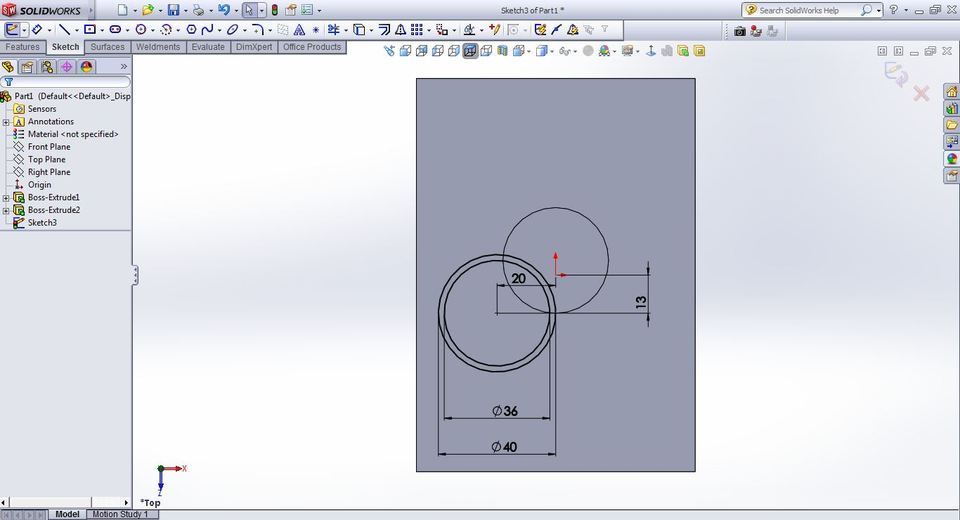

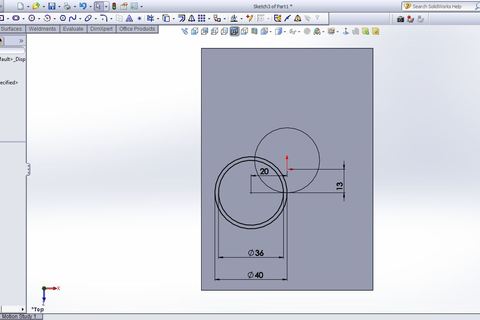

     open a sketch on the top plane and draw shown circles



  8. Step 8

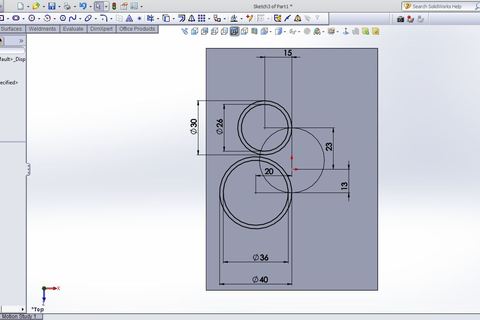

     add these two circles to your sketch



  9. Step 9

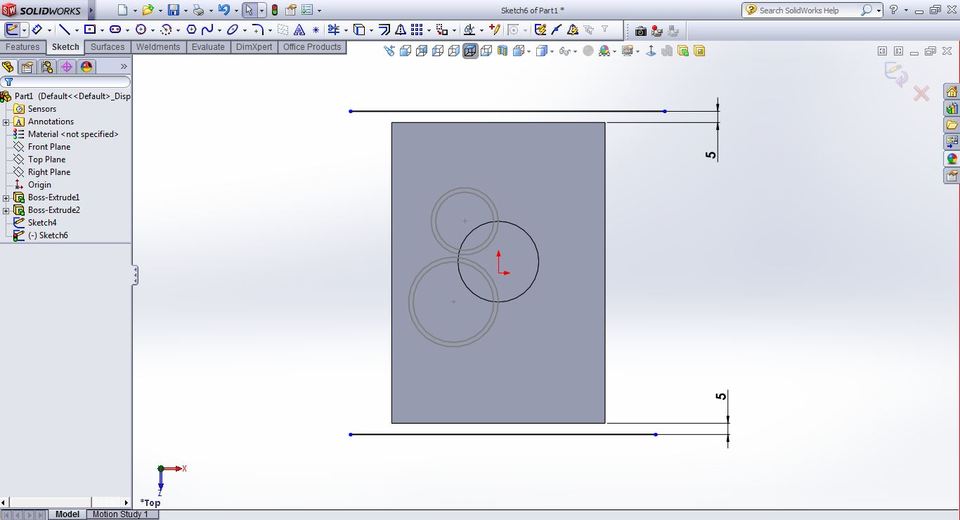

     open a sketch on the top plane and draw these two lines. they are for to create planes



  10. Step 10

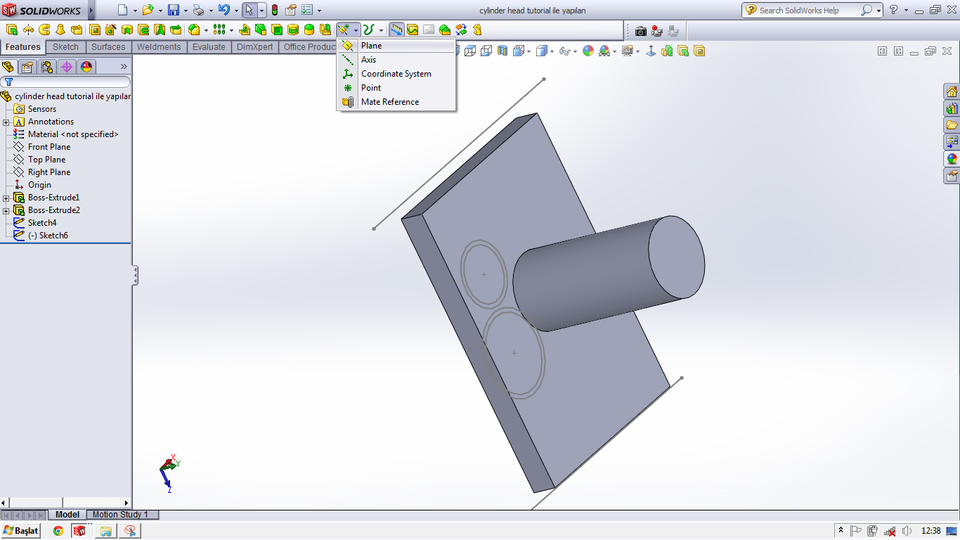

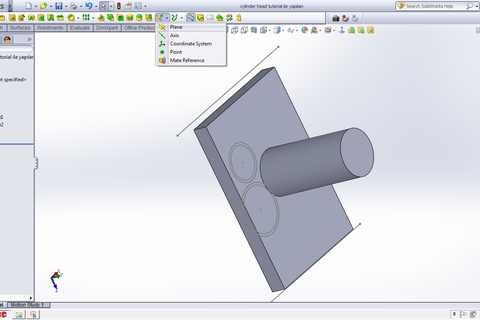

      use referance geometry--plane command



  11. Step 11

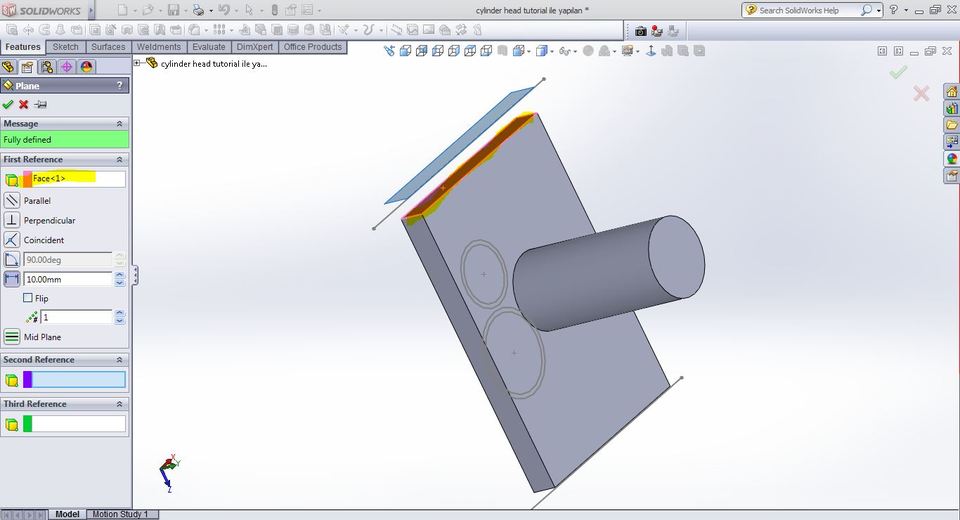

      firstly click on the shown surface



  12. Step 12

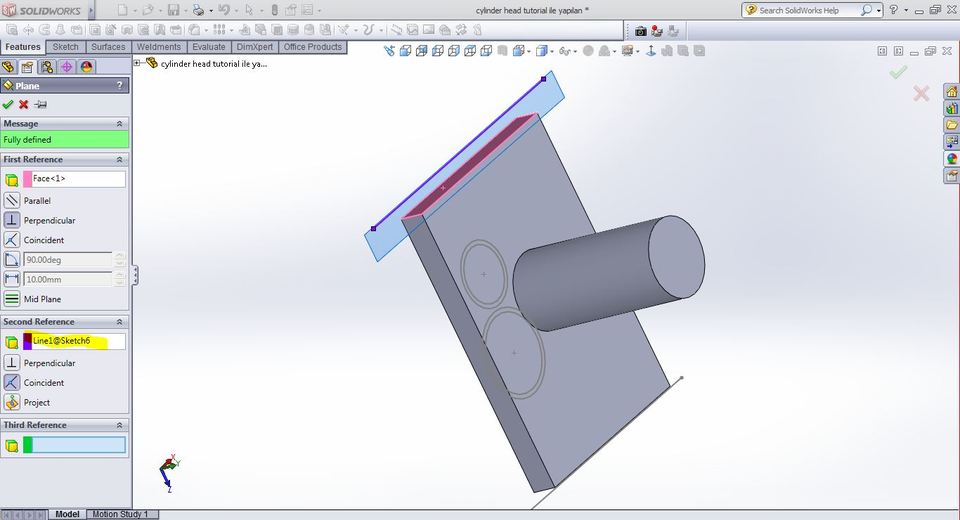

      then click on the line



  13. Step 13

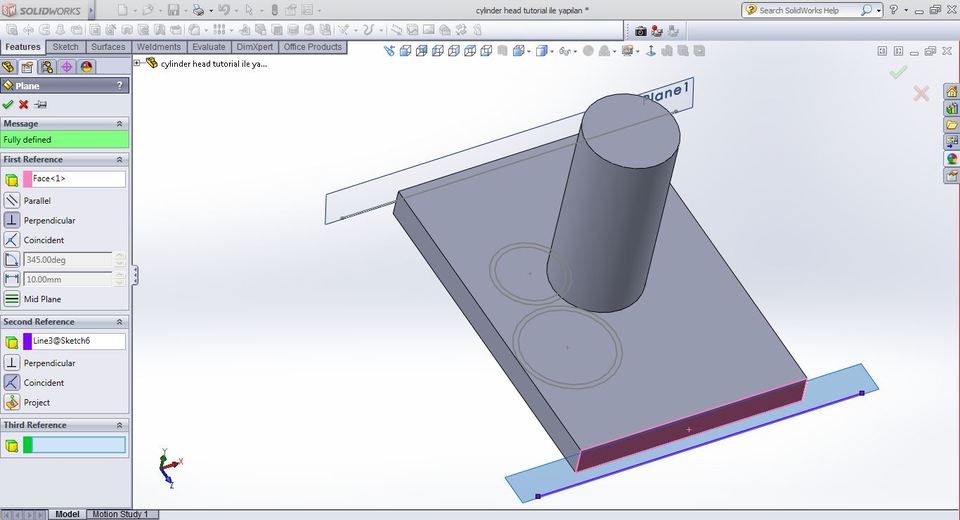

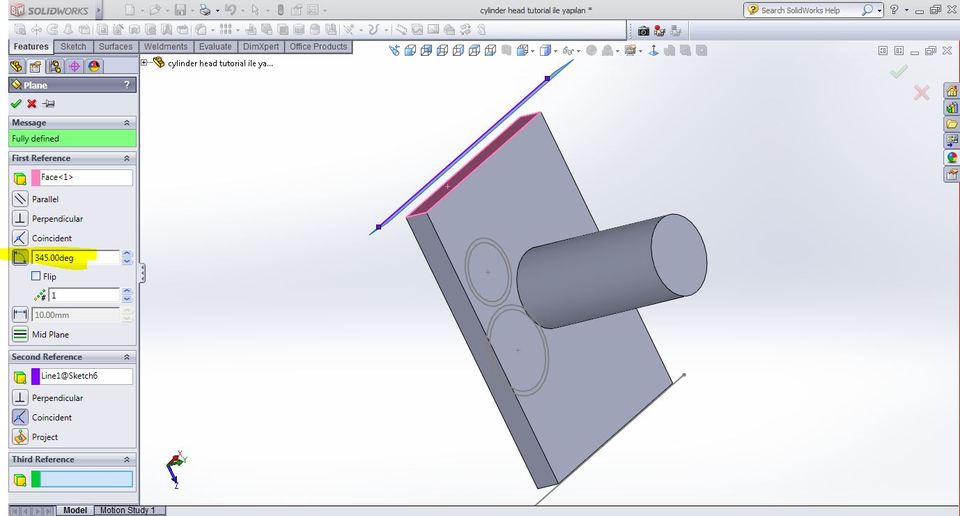

      enter 345 degrees



  14. Step 14

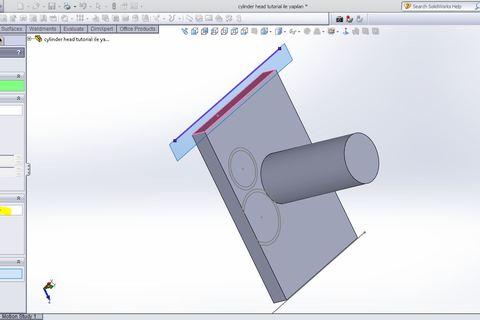

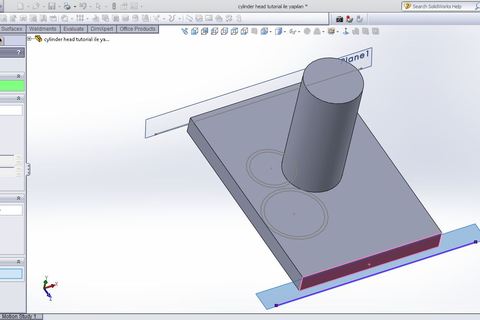

      now go to other side and make same things for the new plane



  15. Step 15

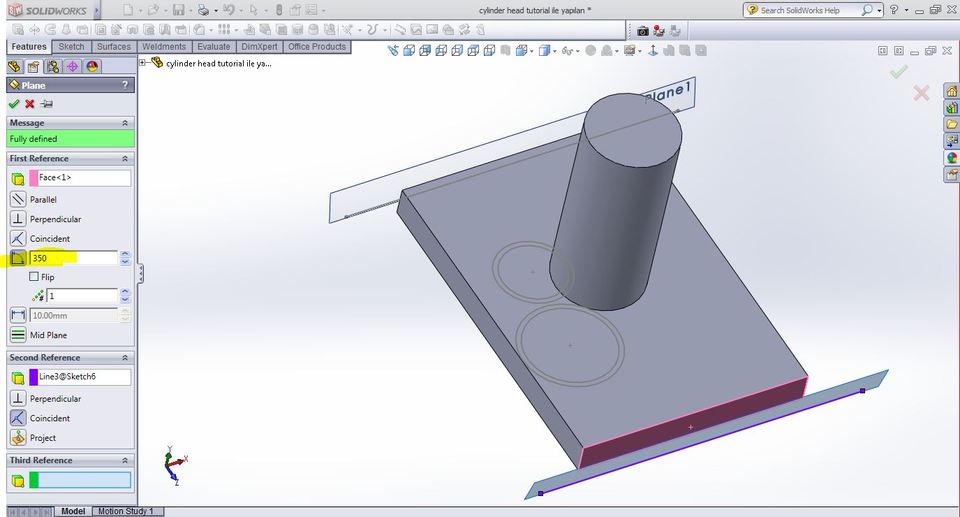

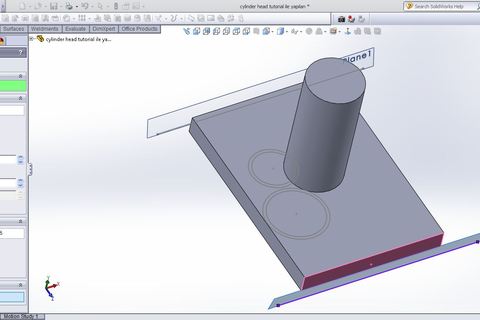

      enter 350 degrees at this time



  16. Step 16

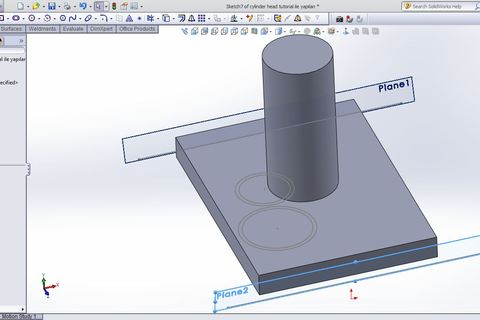

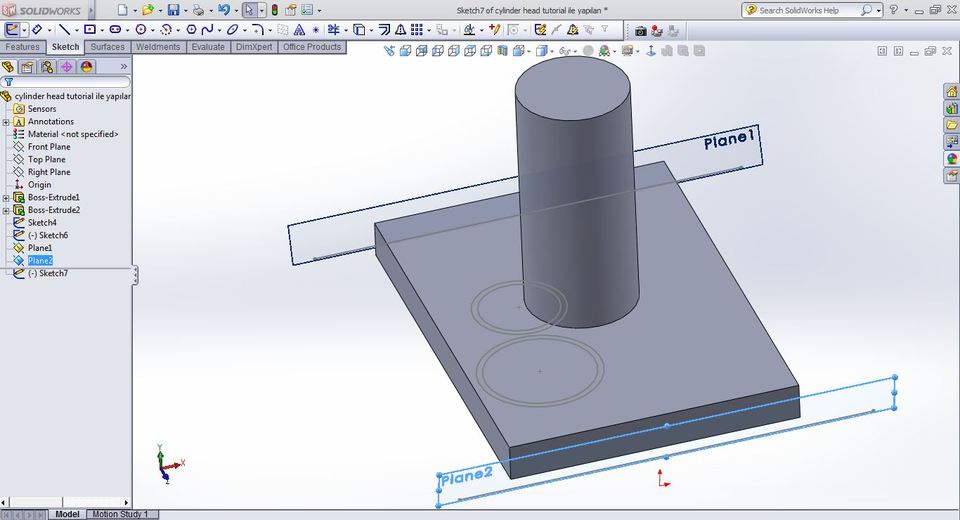

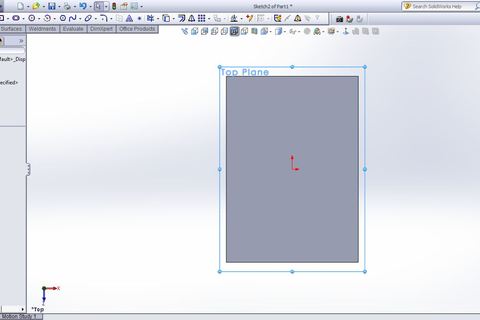

      open a sketch on the plane 2



  17. Step 17

      draw shown sketch



  18. Step 18

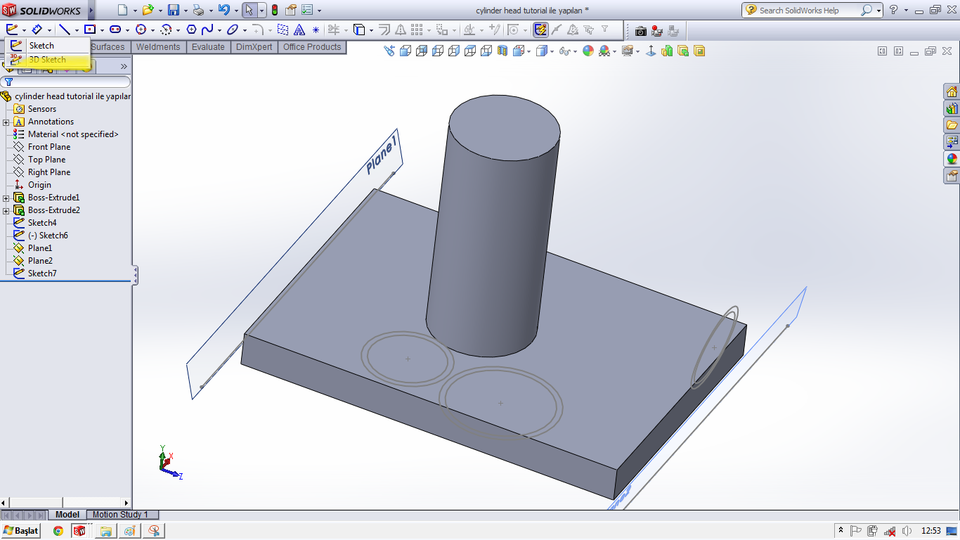

      use 3D sketch command

      next: http://grabcad.com/questions/tutorial-how-to-make-engine-part-29



  1.
     José Guilherme Ribeiro Yung about 1 month ago

     Only advising that in step 15 it's 10 degrees, not 350. It can be seen at the next part of this tutorial.

•
  Dino Salkanovic 9 months ago

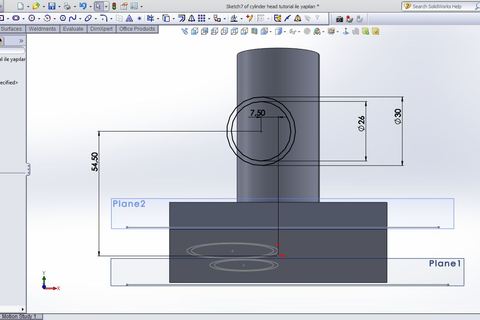

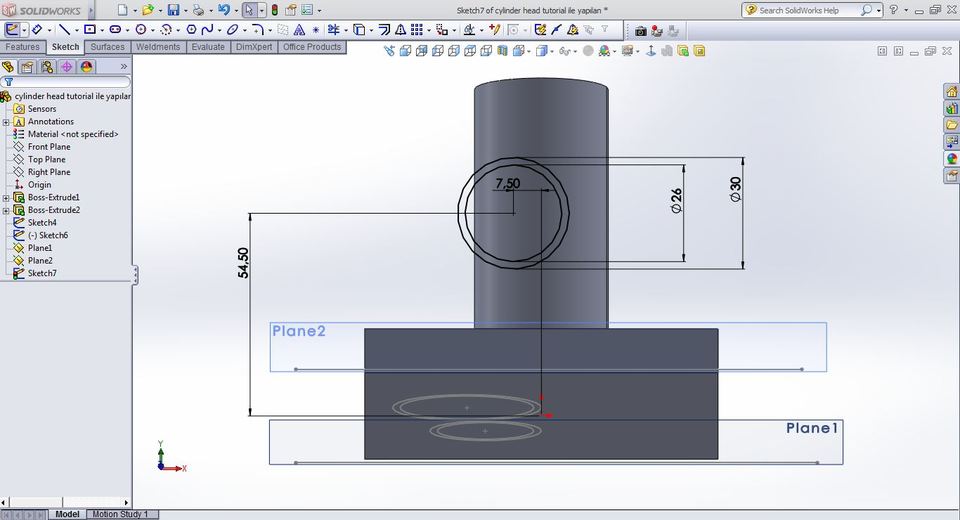

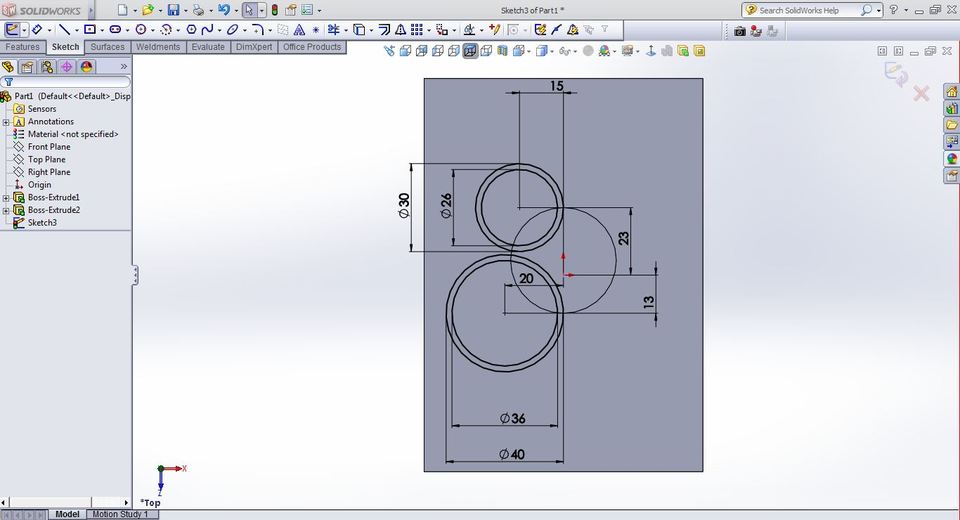

  dimensions for step 8

  1.
     pollomoolokki 9 months ago

     It seems that the parameters are: x is 15 and z is 23. taken from part 29, step 7 spline configuration.
     Don't know the circles dimensions tho, but I'd guess they are 30 and 26.

  2.
     Blake 9 months ago

     seams like its correct.

  3.
     Aykut Dana 8 months ago

     I fixed it friends

•
  Alain Di Zeo 3 months ago

  Hello Aykut Dana
  I need to model a pushrod overhead valve cylinder head with one intake and one exhaust valve per cylinder. I saw that your cylinder head has 4 valves per cylinder. Will the steps you have for making your cylinder head also work for my cylinder head? Thank you for the help.

•
  derzlh about 1 month ago

  may i ask what the cylinder head exactly is?which part it is in the engine?what is the location relationship between it and the former parts? thanks

  1.
     Mark Shiels about 1 month ago

     The cylinder head is exactly what it says on the tin. It is what closes the top of the cylinders. It houses the intake and exhaust ports and the spark plug.
