  CYLINDER HEADS

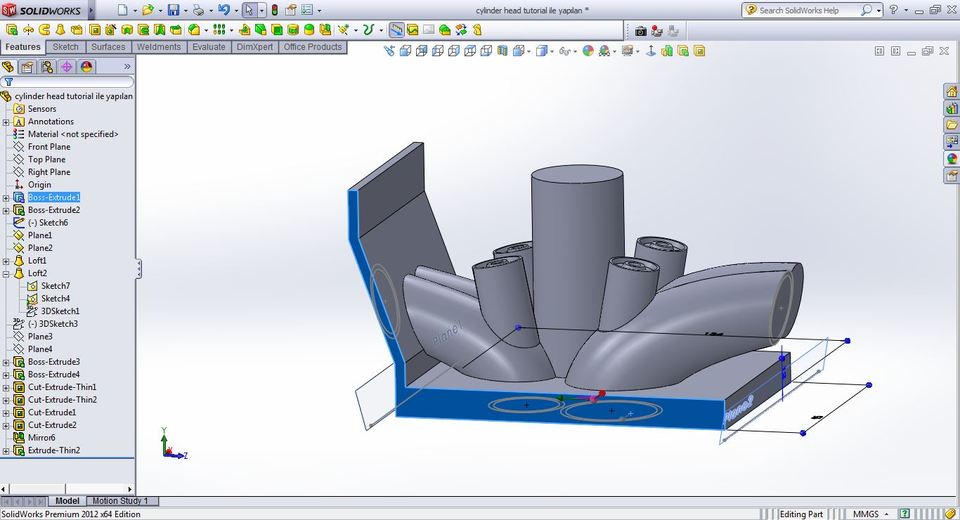

  1. Step 1

     open a sketch on this surface



  2. Step 2

     draw a circle (2,5mm radiused)



  3. Step 3

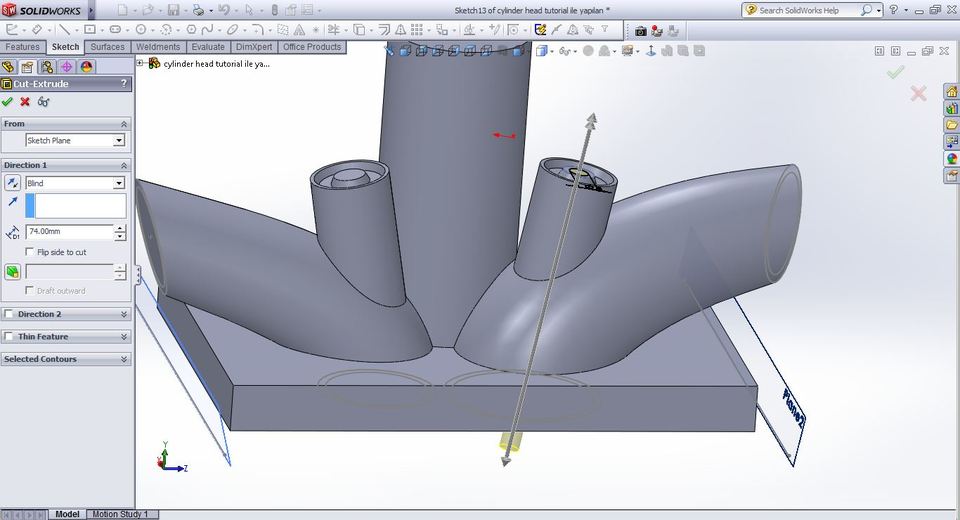

     use cut extrude command



  4. Step 4

     make same things for the other side

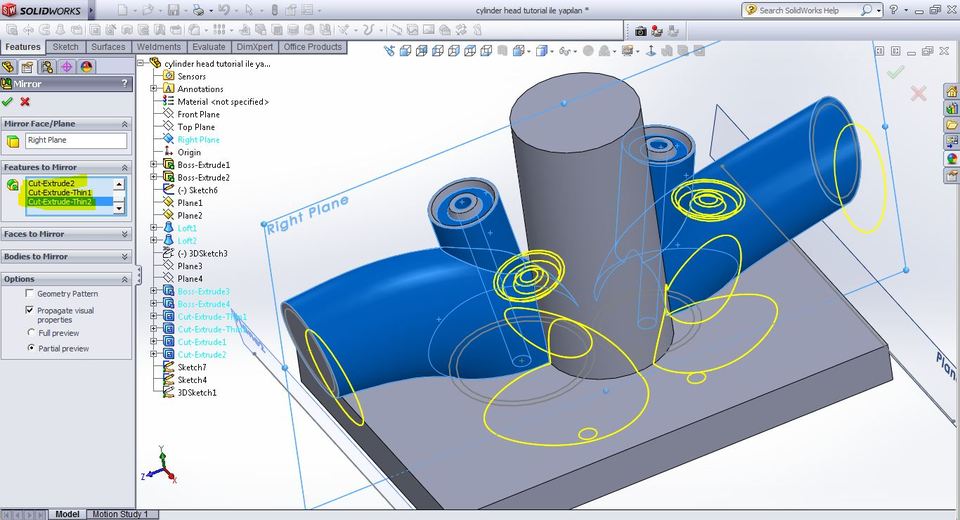

  5. Step 5

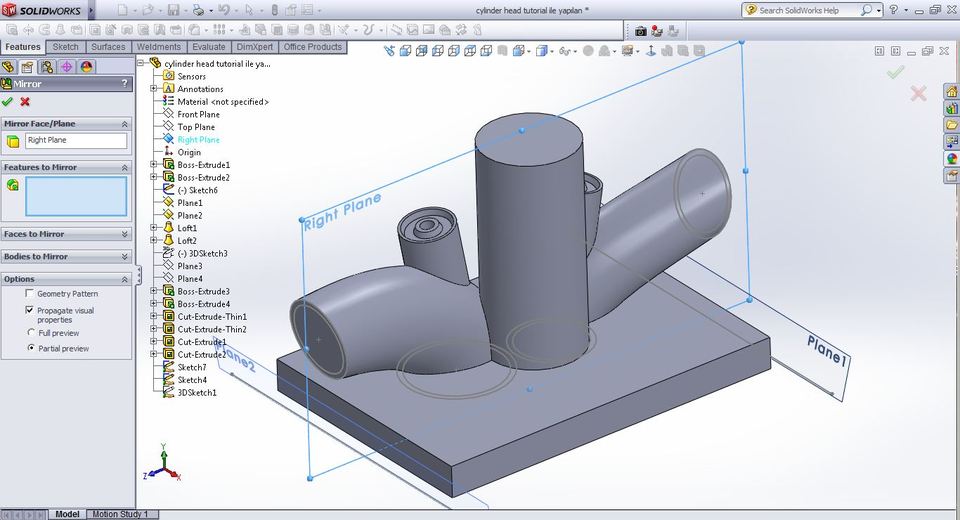

     use mirror command and select the right plane for mirror face



  6. Step 6

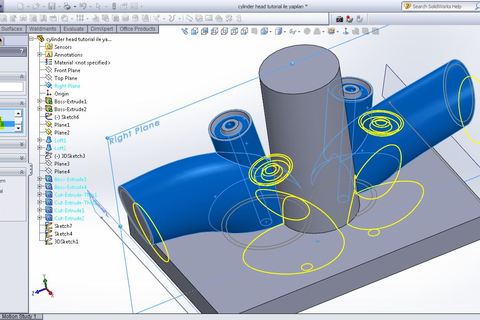

     click on the shown surfaces



  7. Step 7

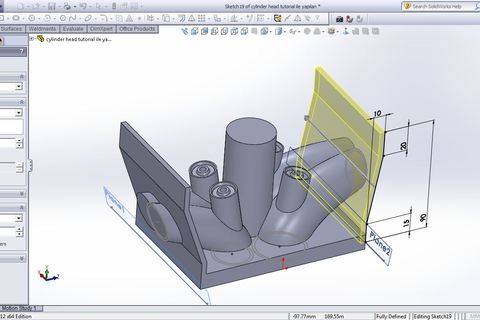

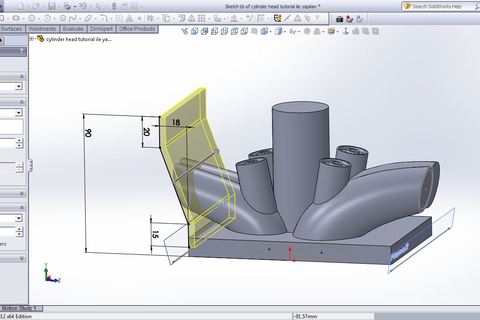

     open a sketch on the shown surface



  8. Step 8

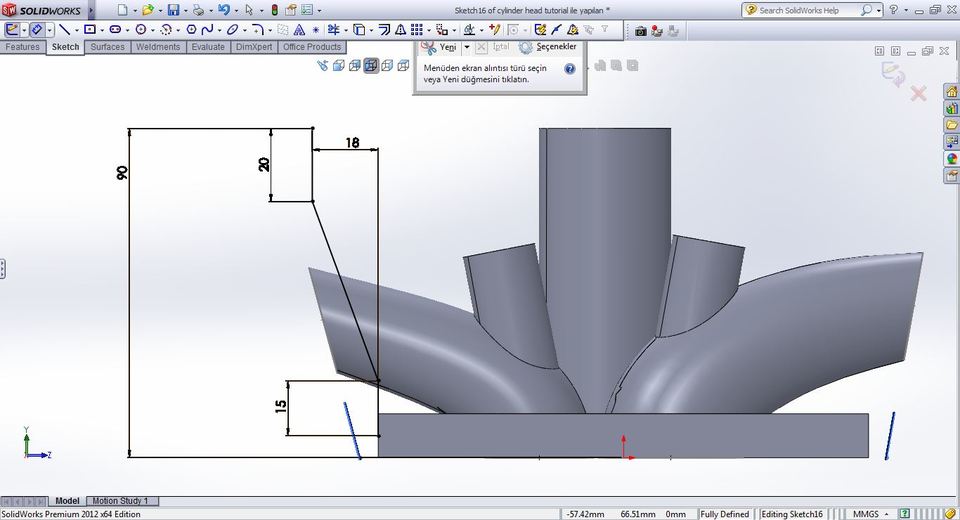

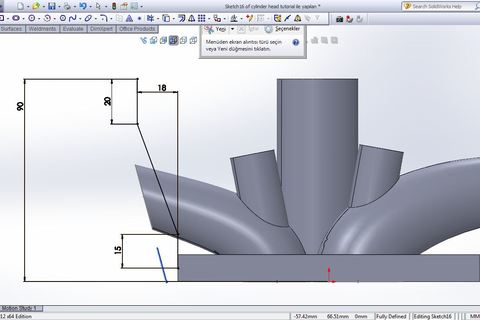

     draw shown sketch



  9. Step 9

     use extrude command like shown



  10. Step 10

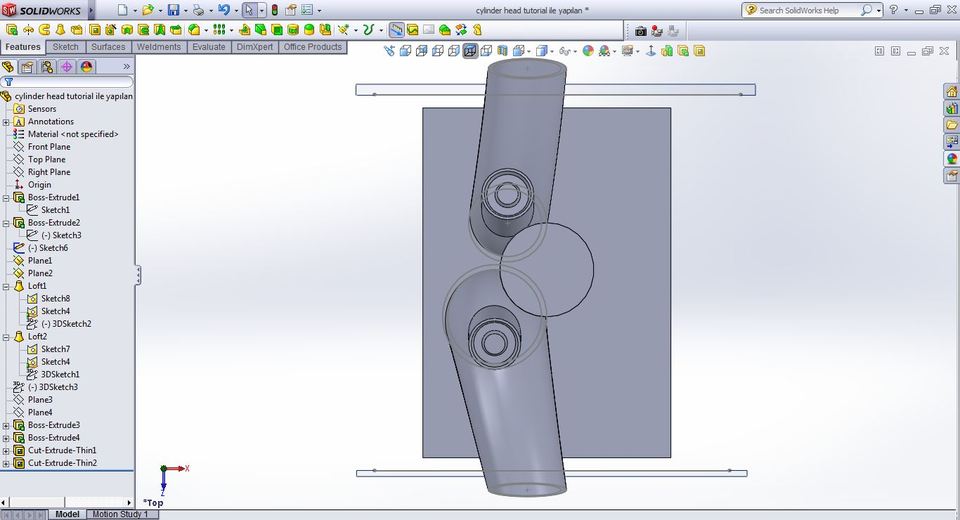

      open a sketch on the same surface



  11. Step 11

      draw shown sketch

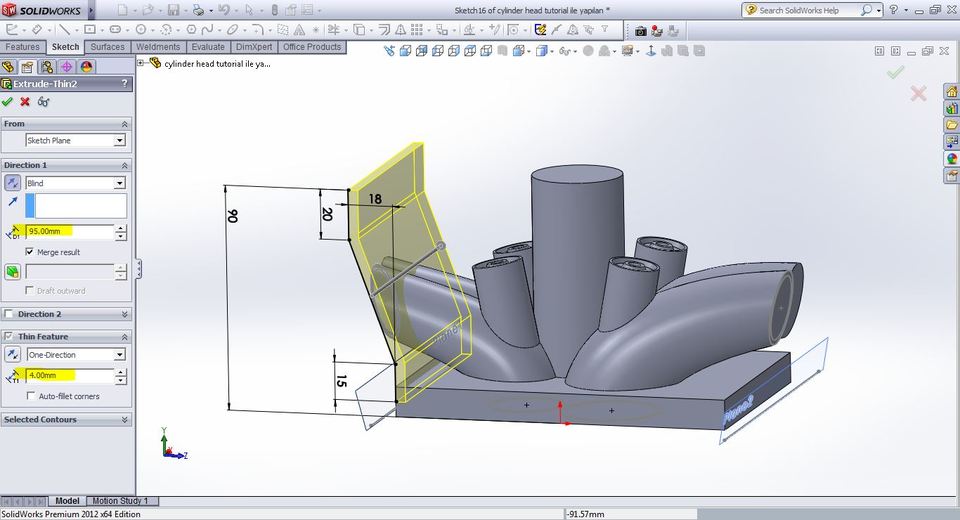

  12. Step 12

      use extrude command again

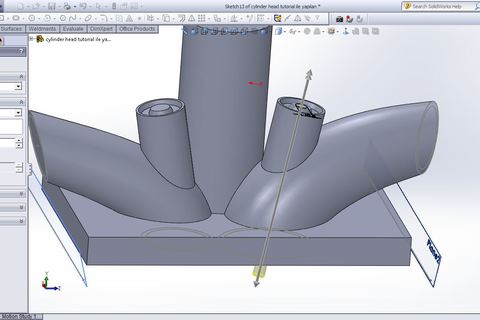

  13. Step 13

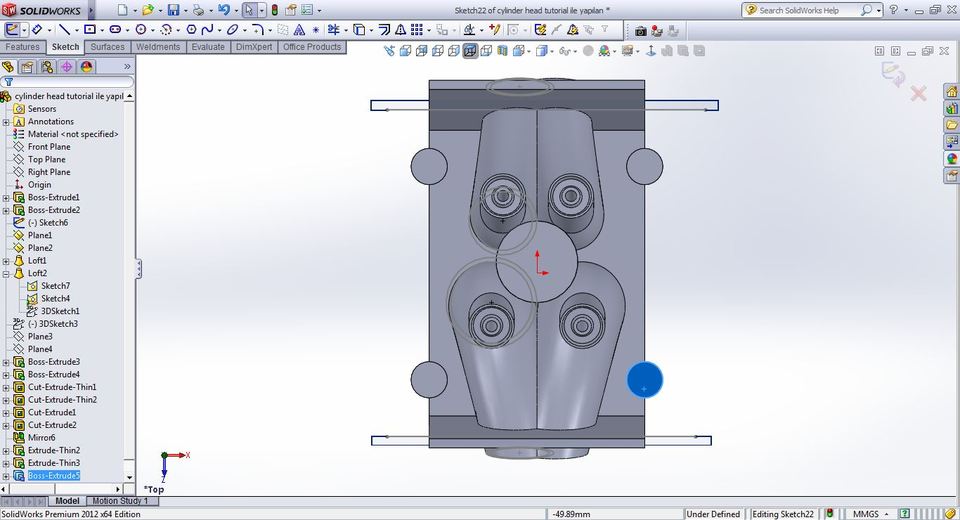

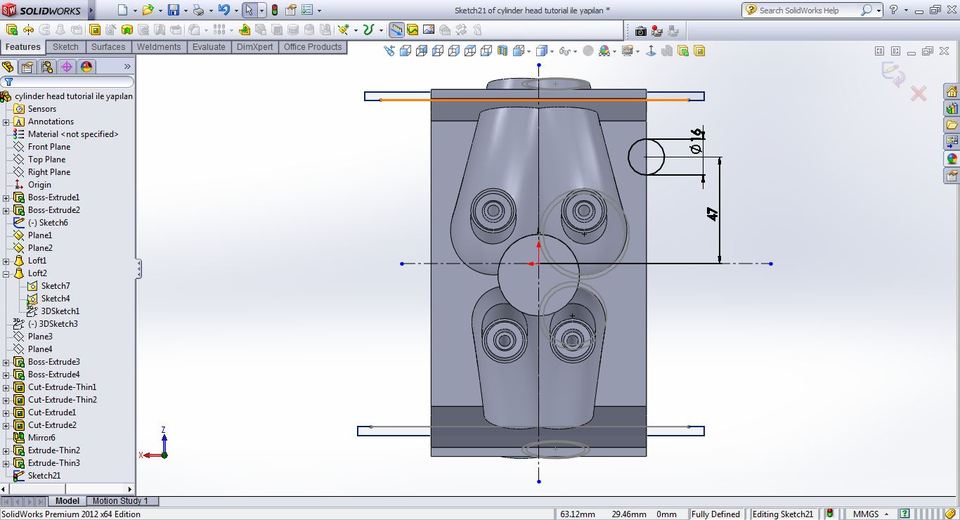

      open a sketch on this surface

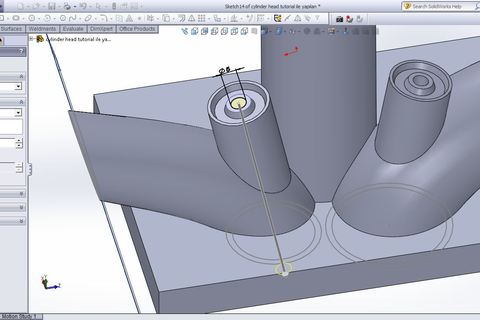

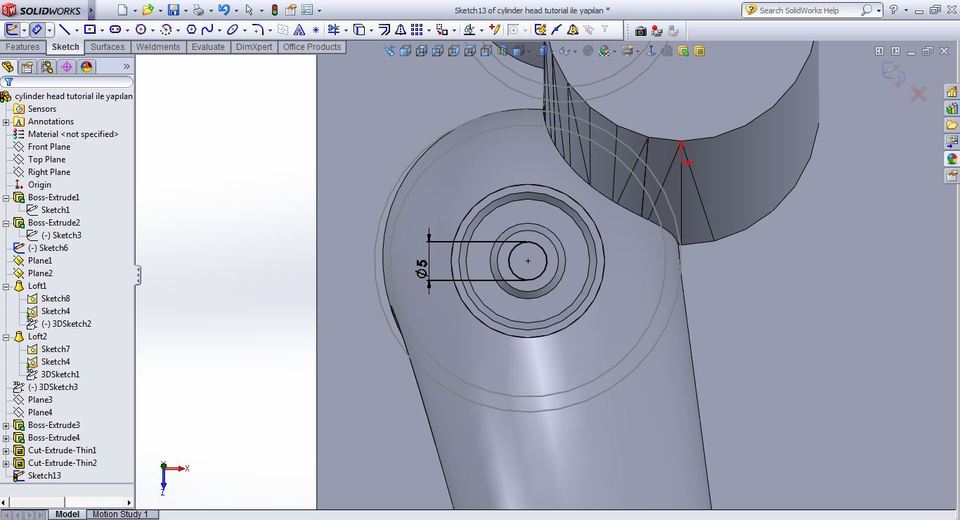

  14. Step 14

      draw a circle



  15. Step 15

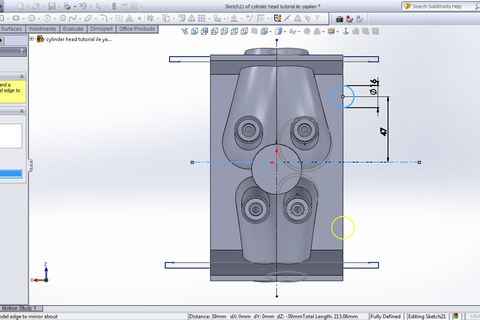

      draw two centerline for mirroring

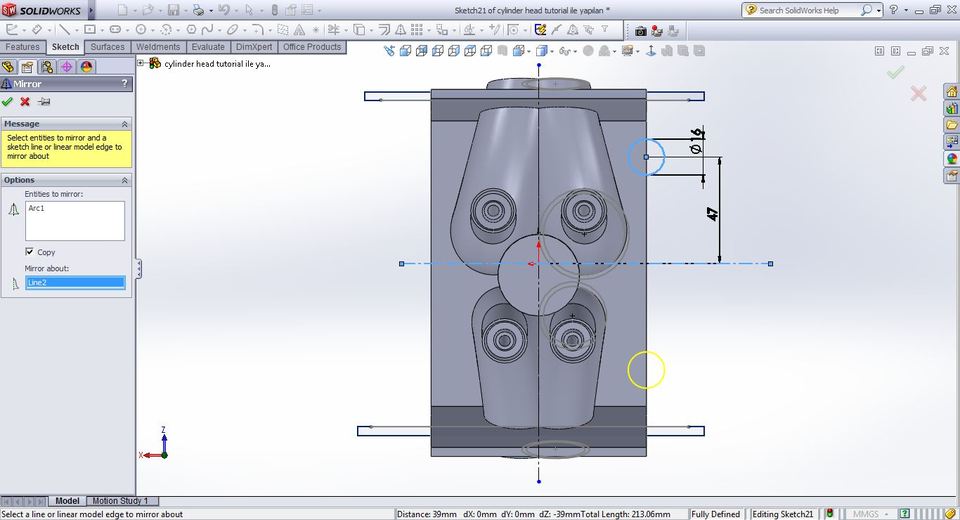

  16. Step 16

      use mirror command



  17. Step 17

      use mirror command again

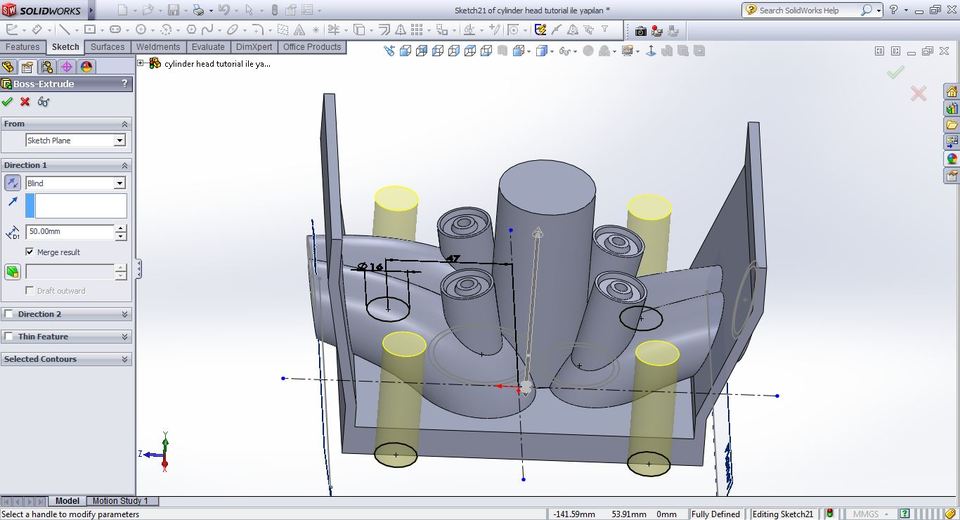

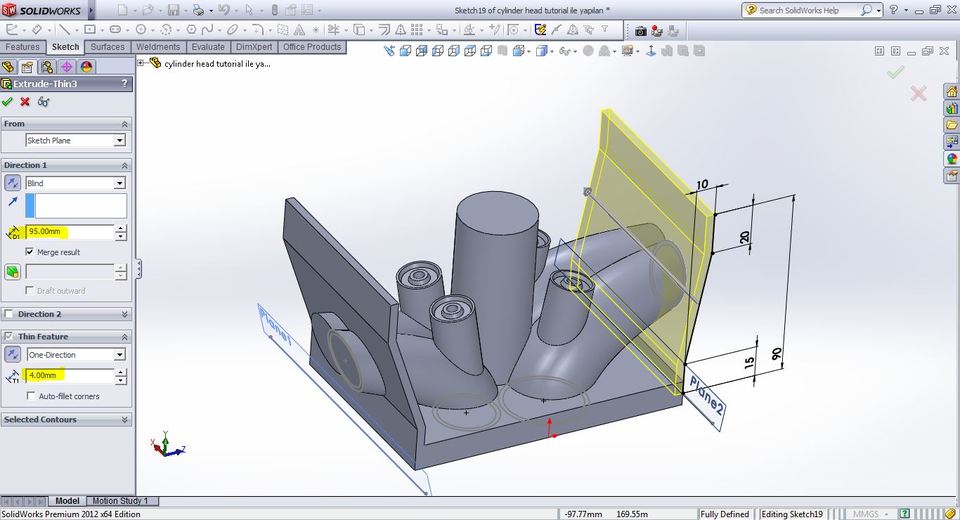

  18. Step 18

      extrude it by 50mm

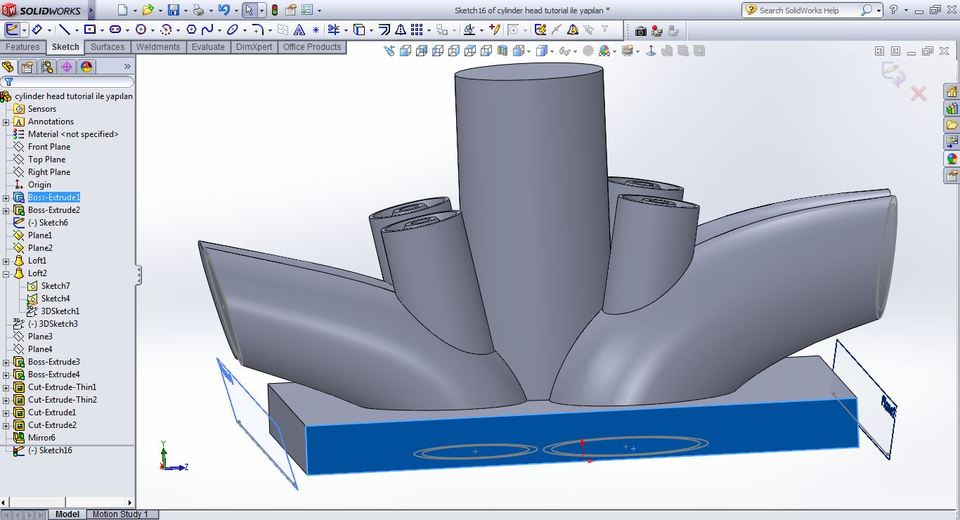

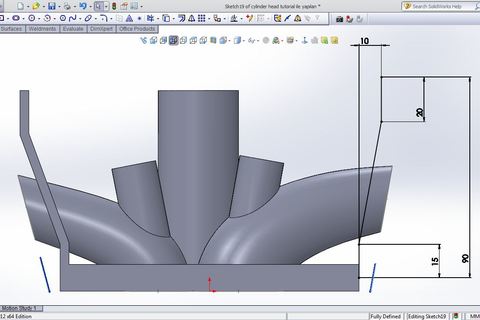

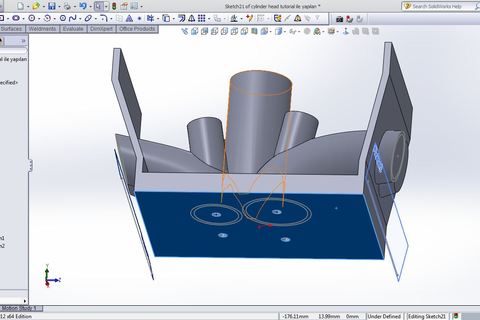

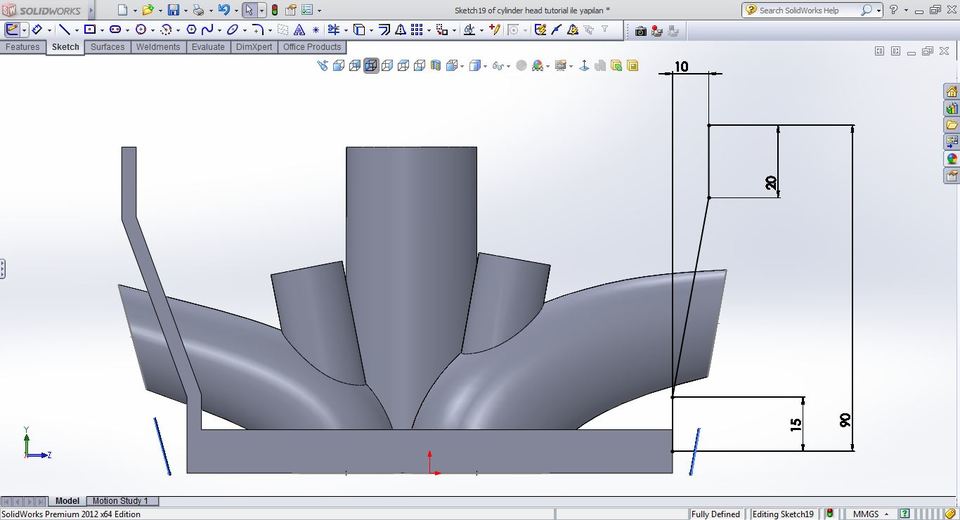

  19. Step 19

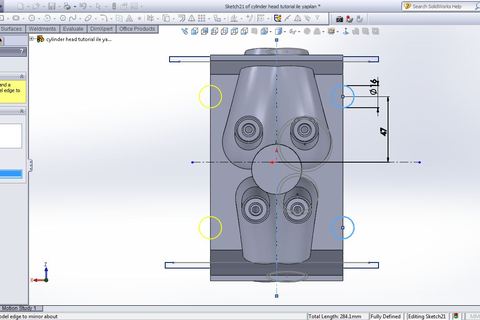

      open a sketch on the shown surface

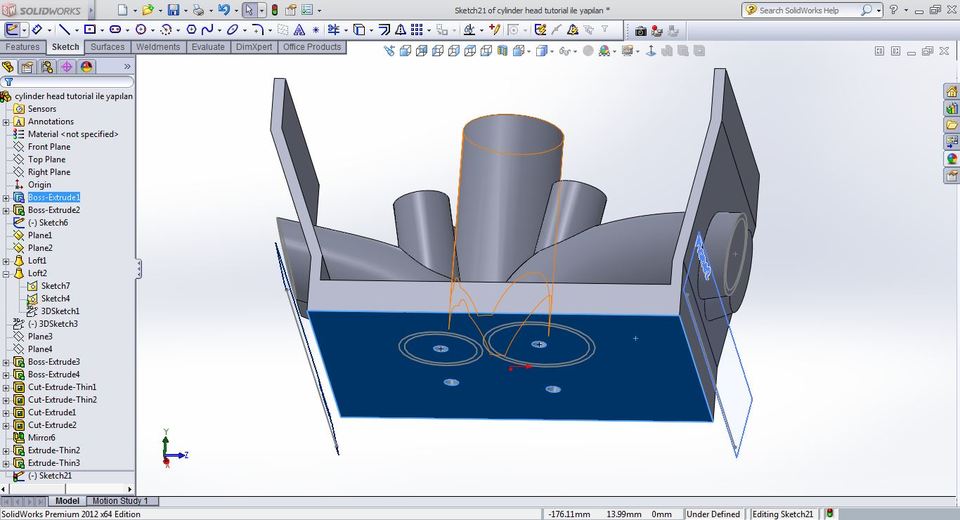

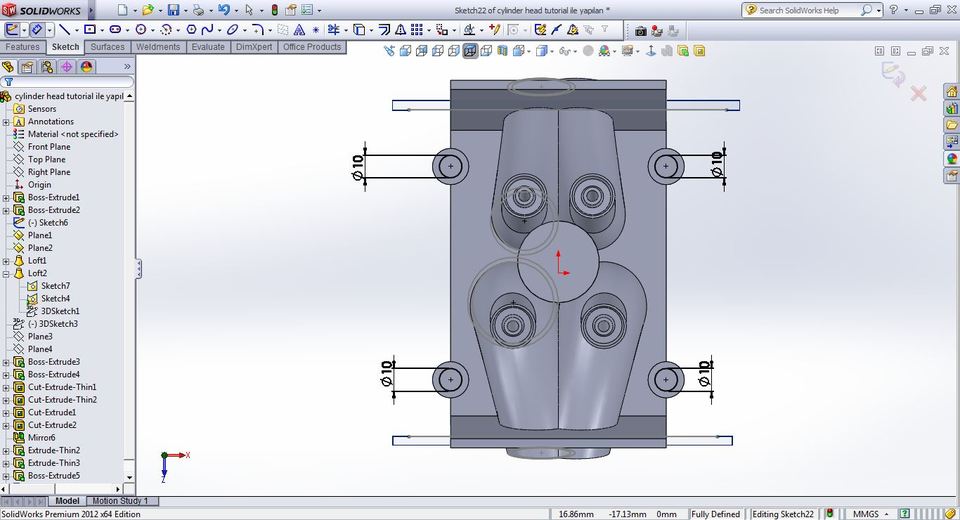

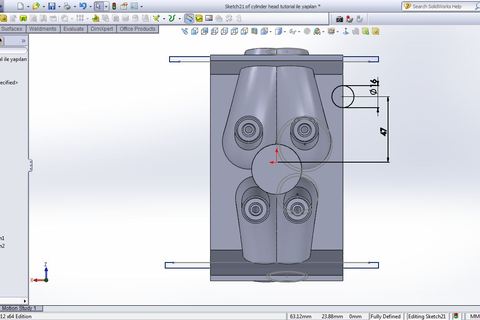

  20. Step 20

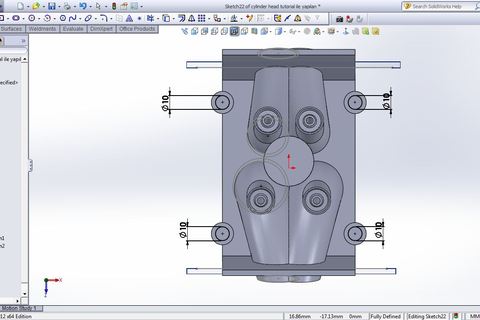

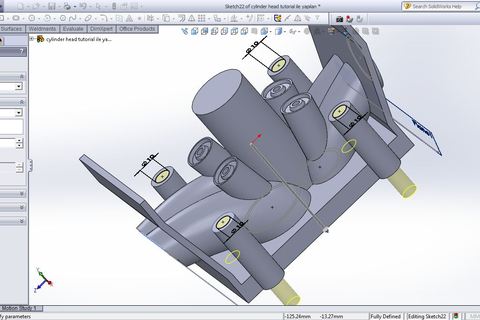

      draw four circles

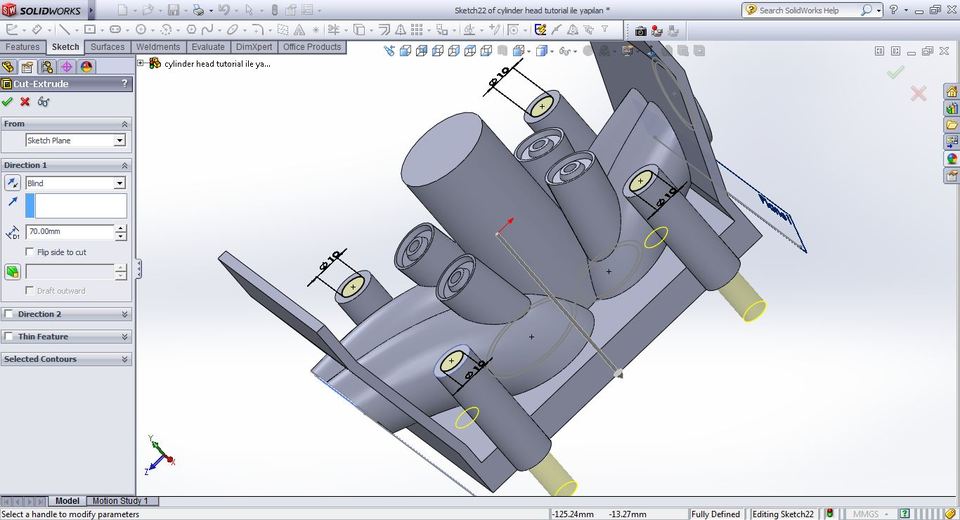

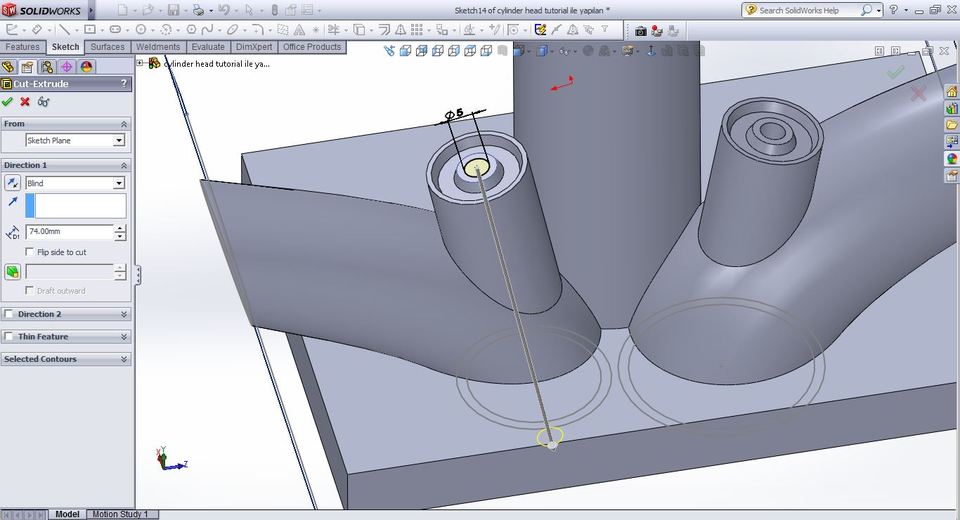

  21. Step 21

      use cut extrude command
