Tutorial: How to make engine part 31

Tutorial by Aykut Dana
Small

CYLINDER HEADS

  1. Step 1:

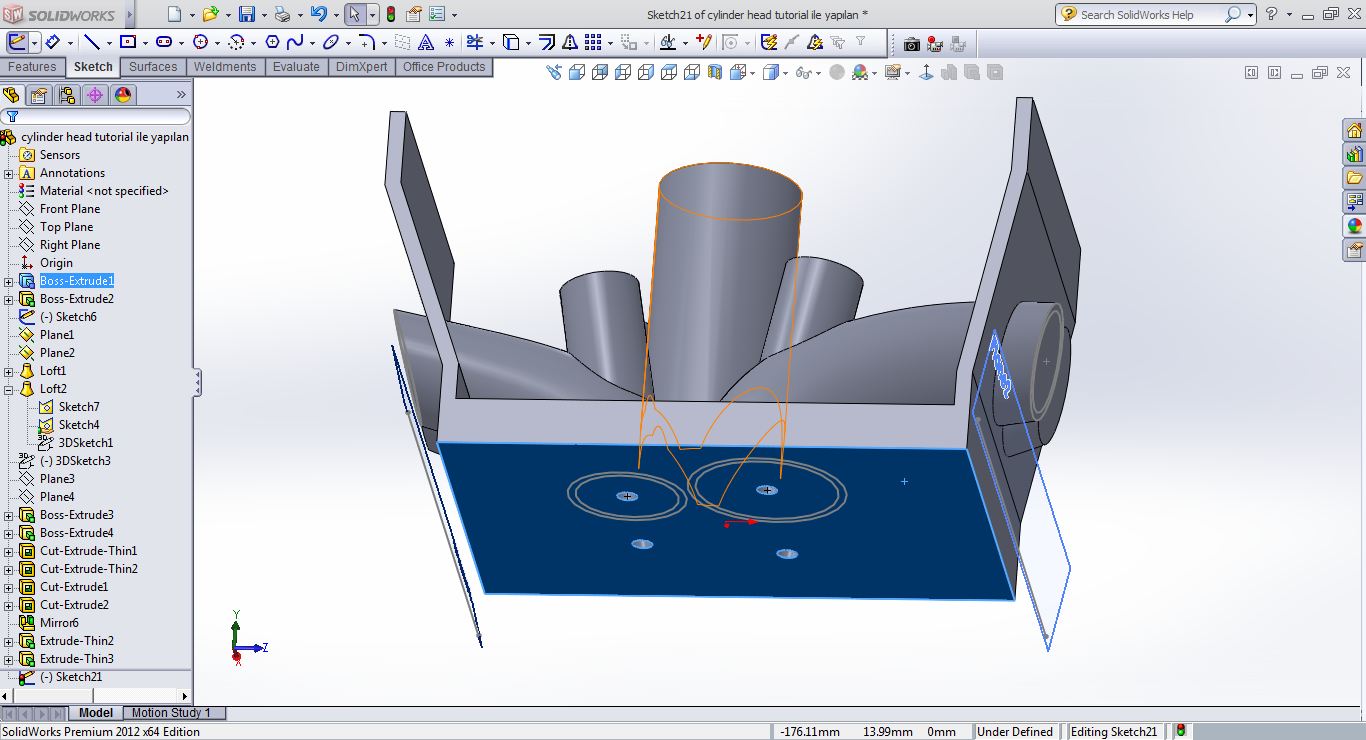

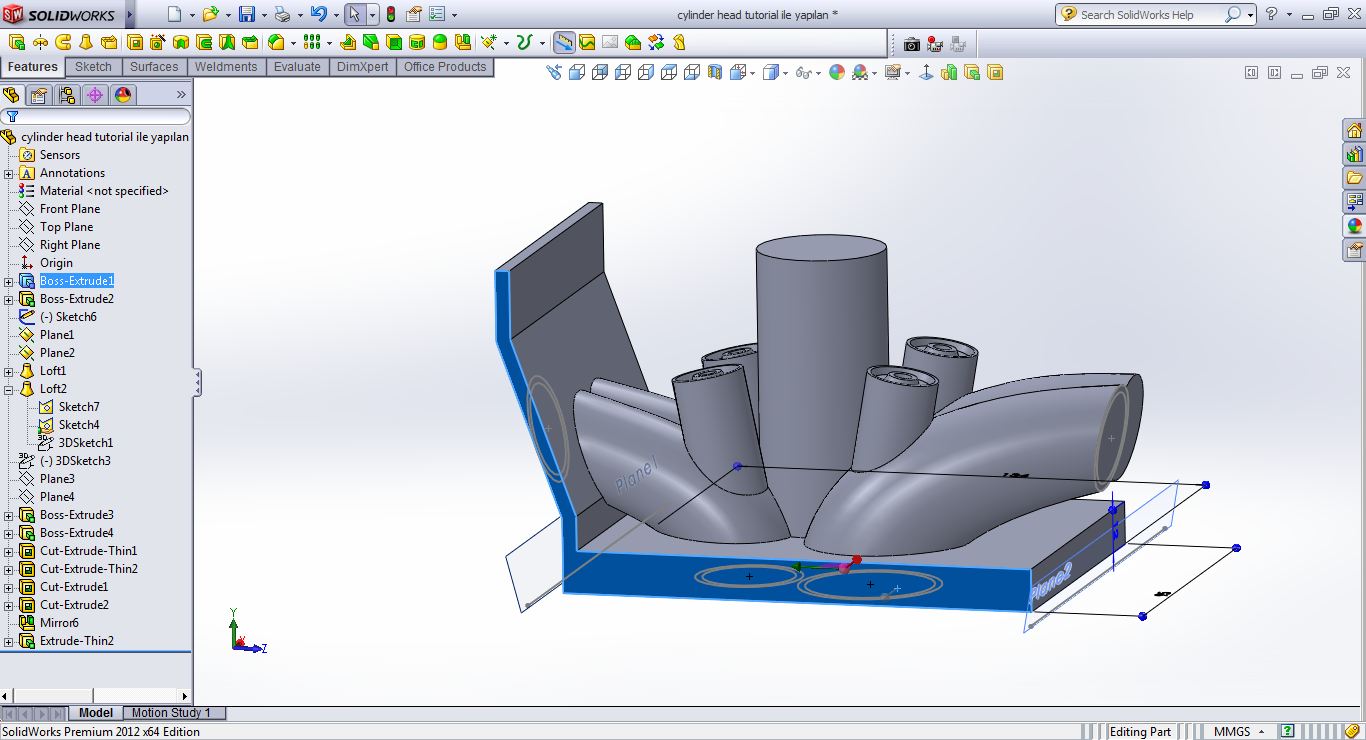

    open a sketch on this surface

  2. Step 2:

    draw a circle (2,5mm radiused)

  3. Step 3:

    use cut extrude command

  4. Step 4:

    make same things for the other side

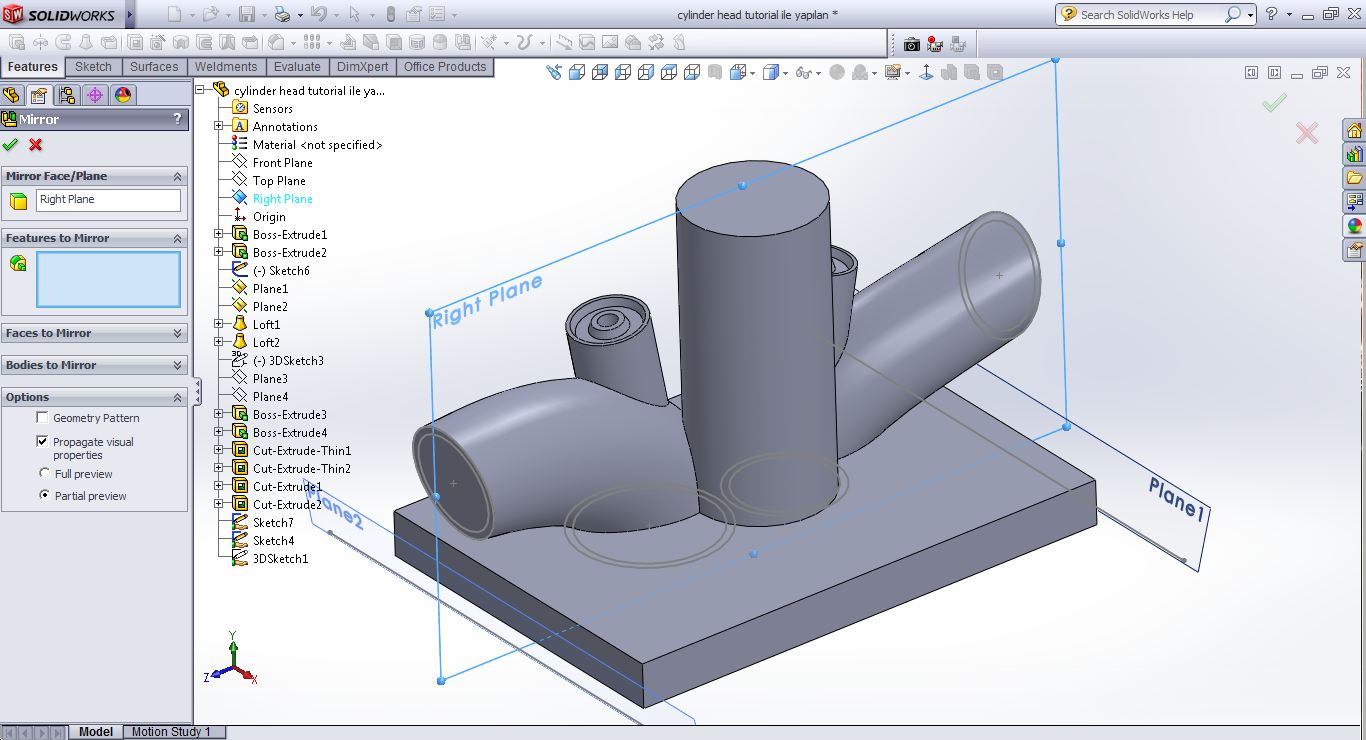

  5. Step 5:

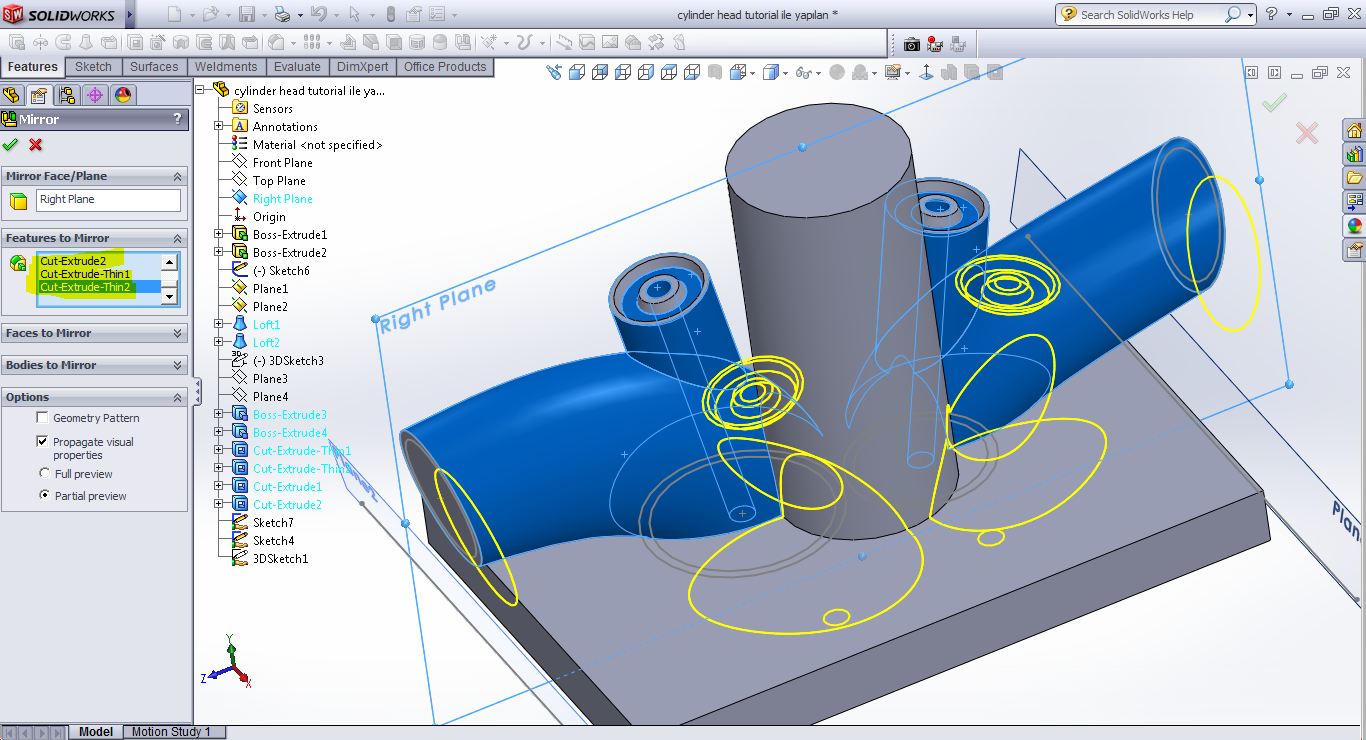

    use mirror command and select the right plane for mirror face

  6. Step 6:

    click on the shown surfaces

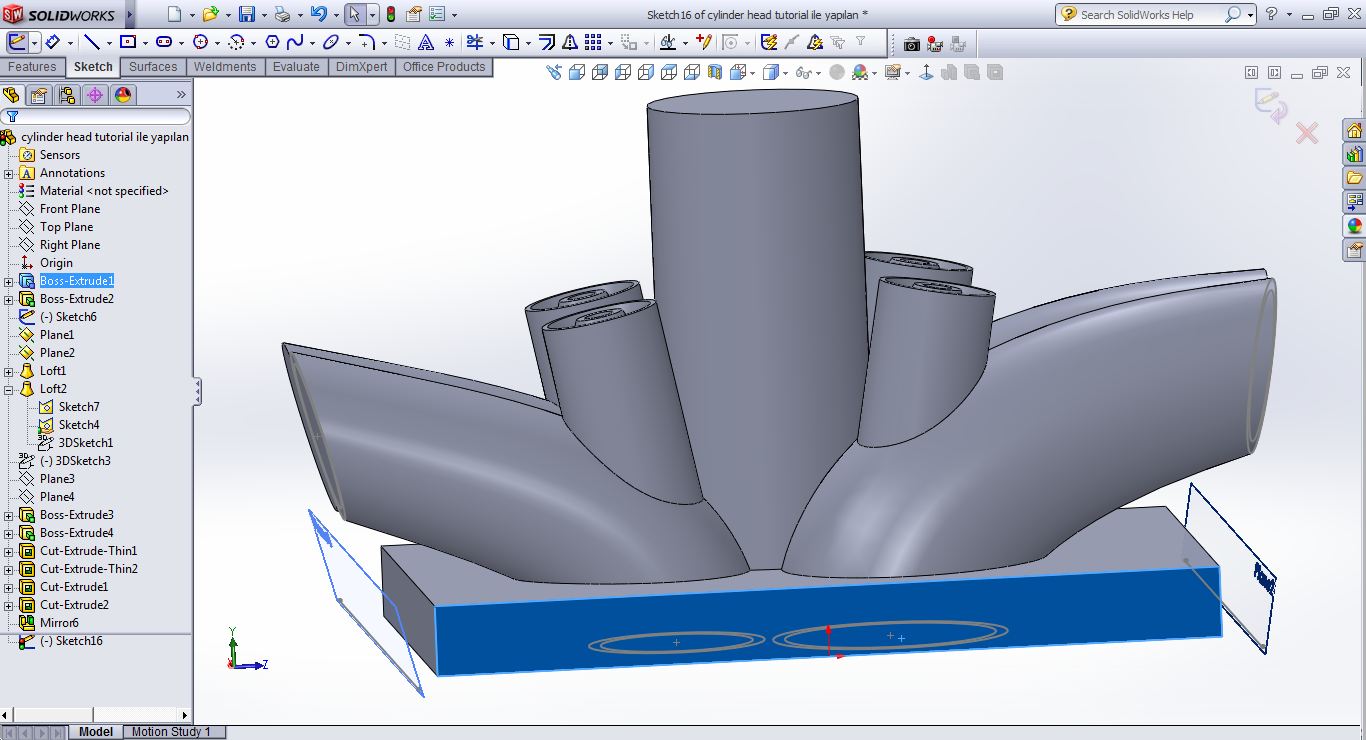

  7. Step 7:

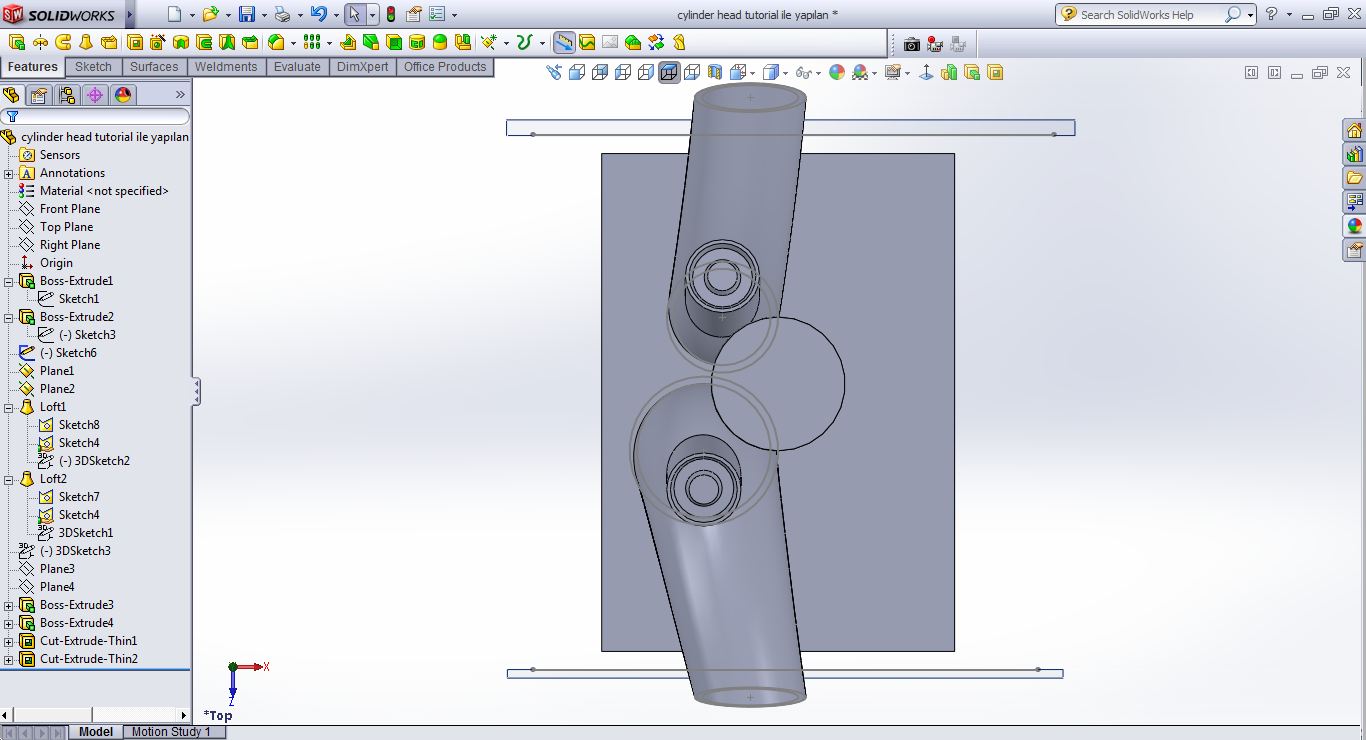

    open a sketch on the shown surface

  8. Step 8:

    draw shown sketch

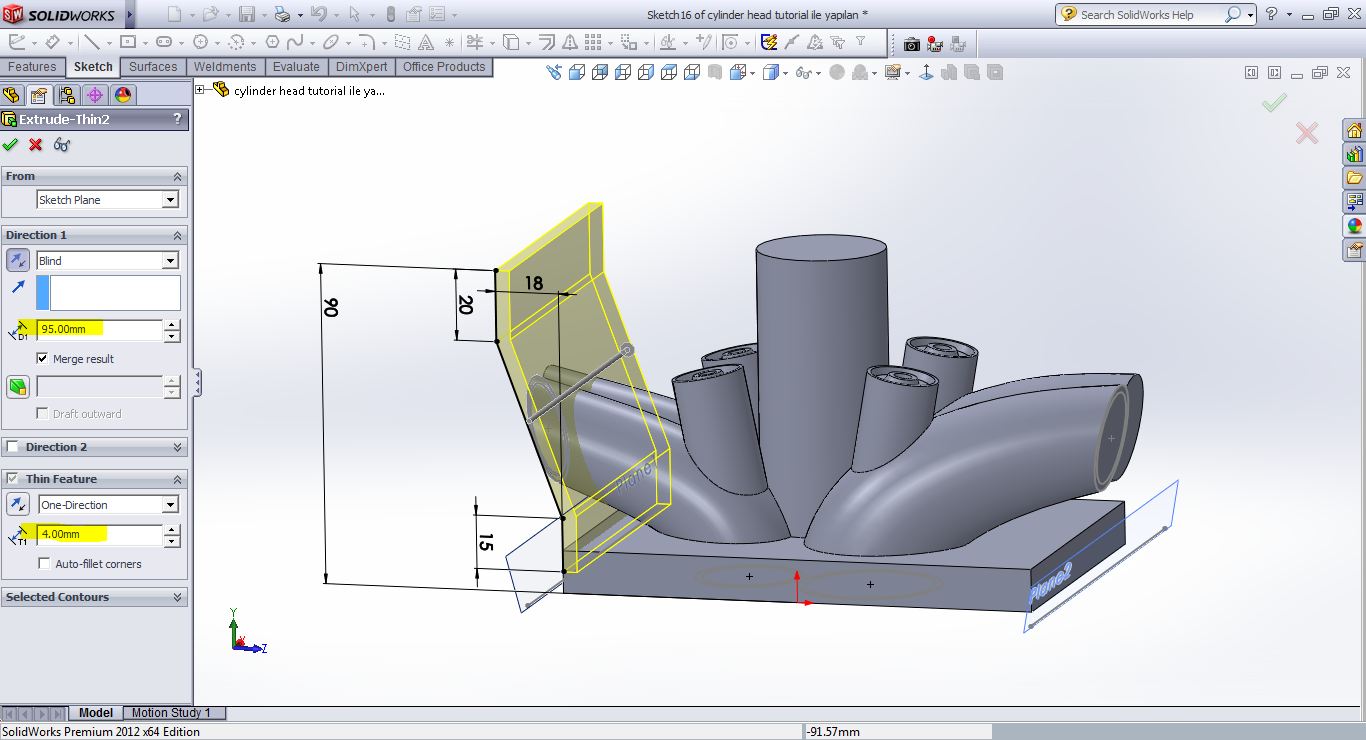

  9. Step 9:

    use extrude command like shown

  10. Step 10:

    open a sketch on the same surface

  11. Step 11:

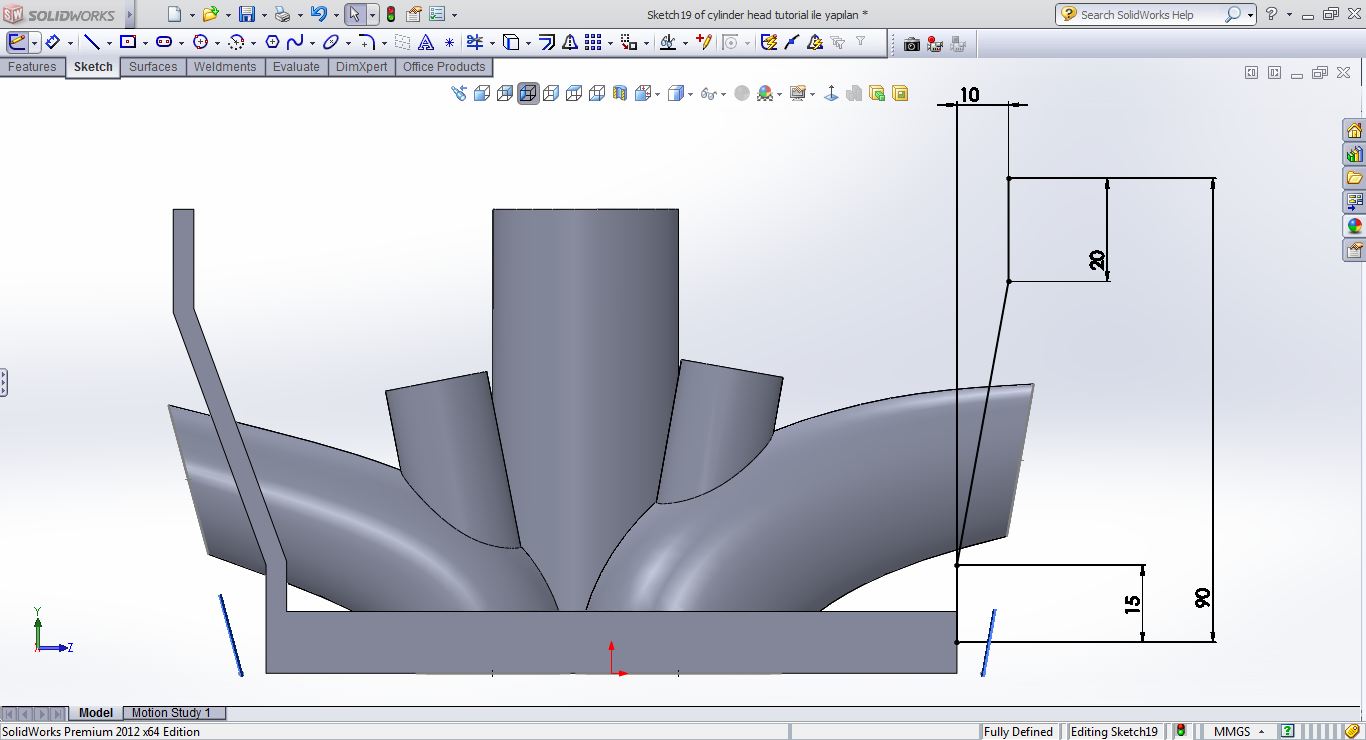

    draw shown sketch

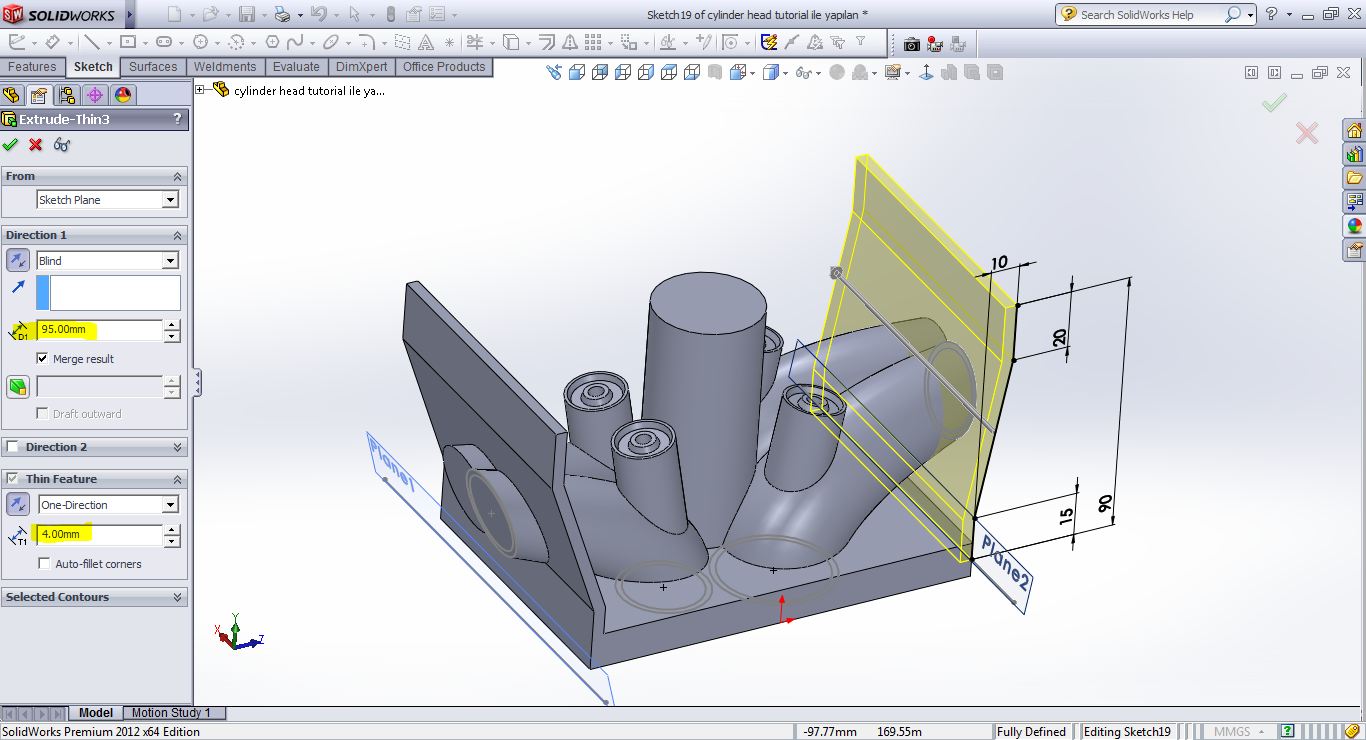

  12. Step 12:

    use extrude command again

  13. Step 13:

    open a sketch on this surface

  14. Step 14:

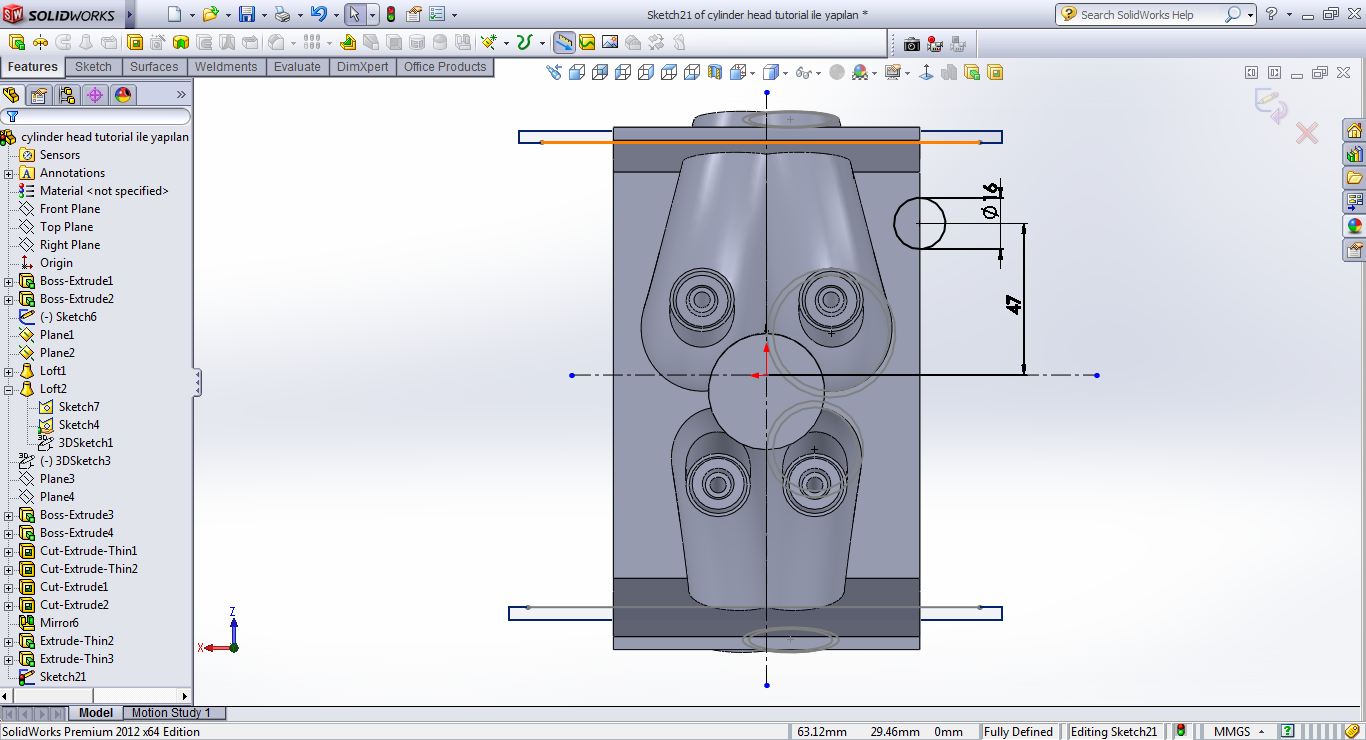

    draw a circle

  15. Step 15:

    draw two centerline for mirroring

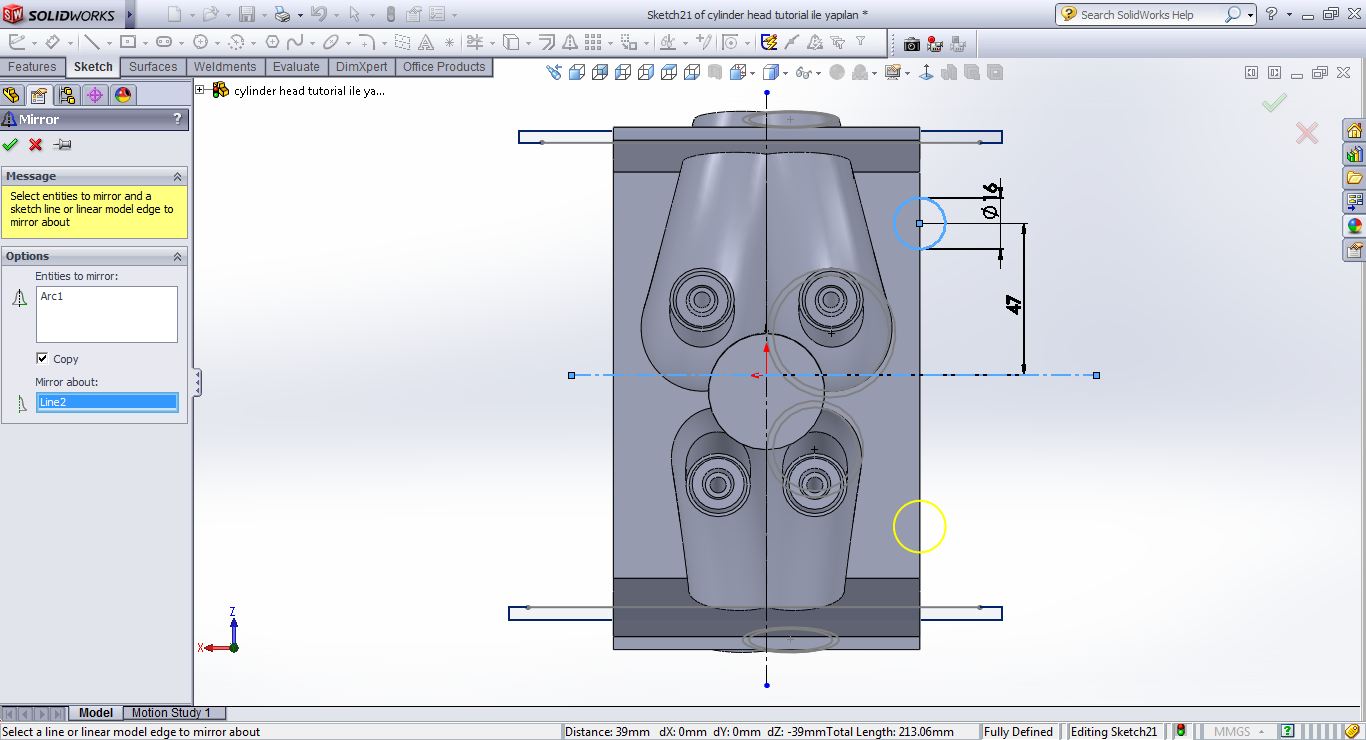

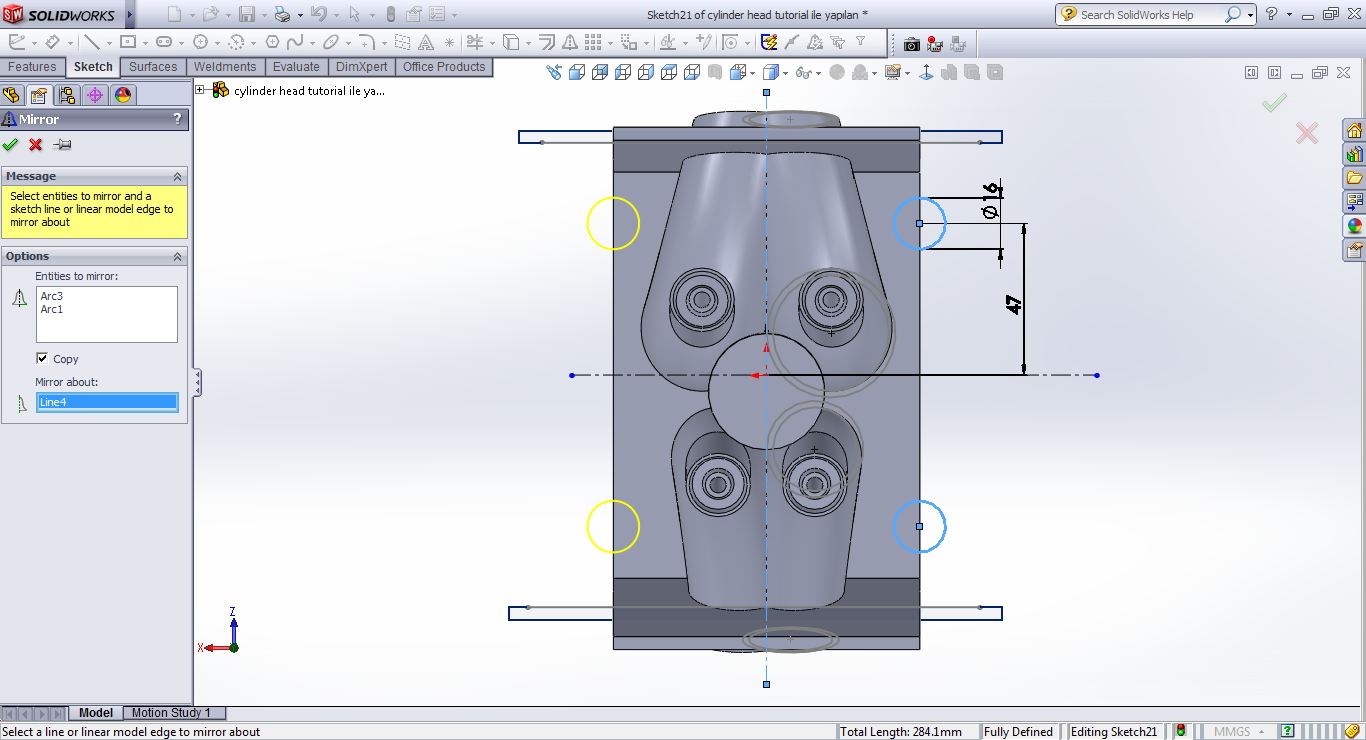

  16. Step 16:

    use mirror command

  17. Step 17:

    use mirror command again

  18. Step 18:

    extrude it by 50mm

  19. Step 19:

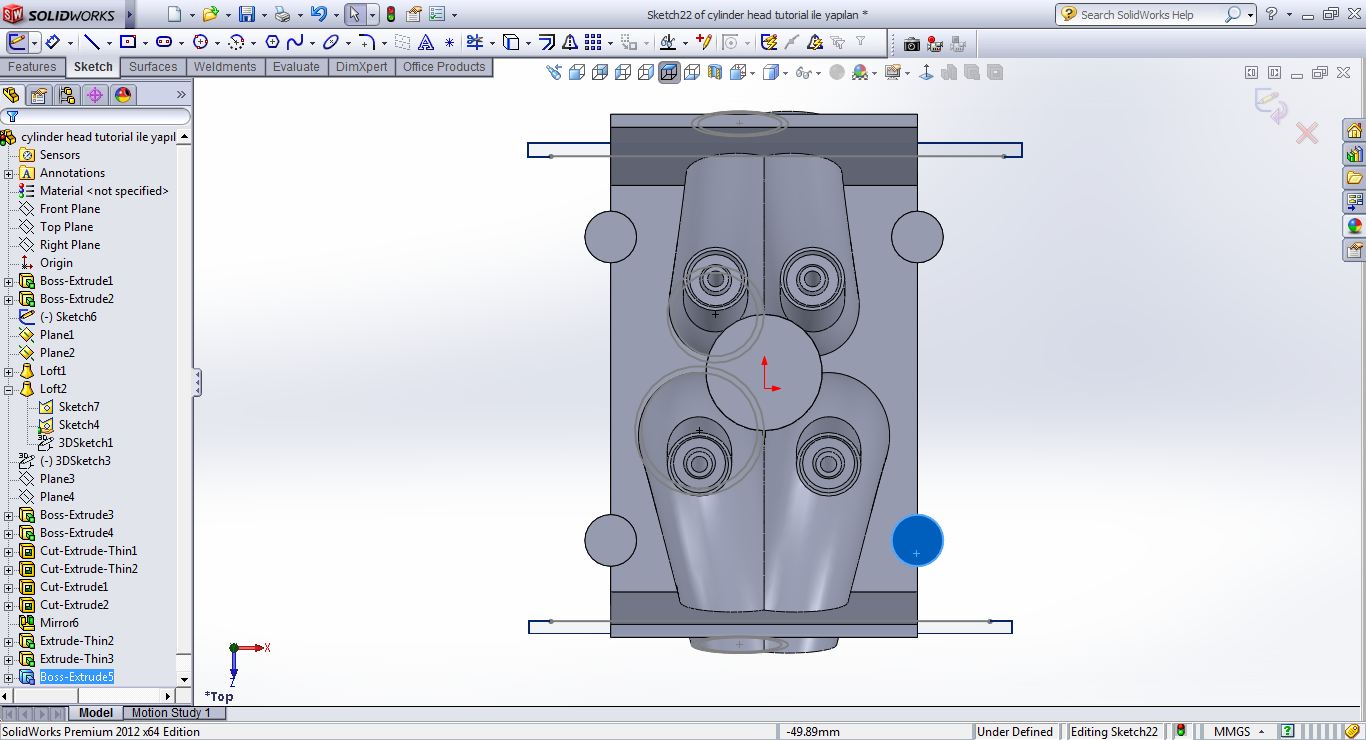

    open a sketch on the shown surface

  20. Step 20:

    draw four circles

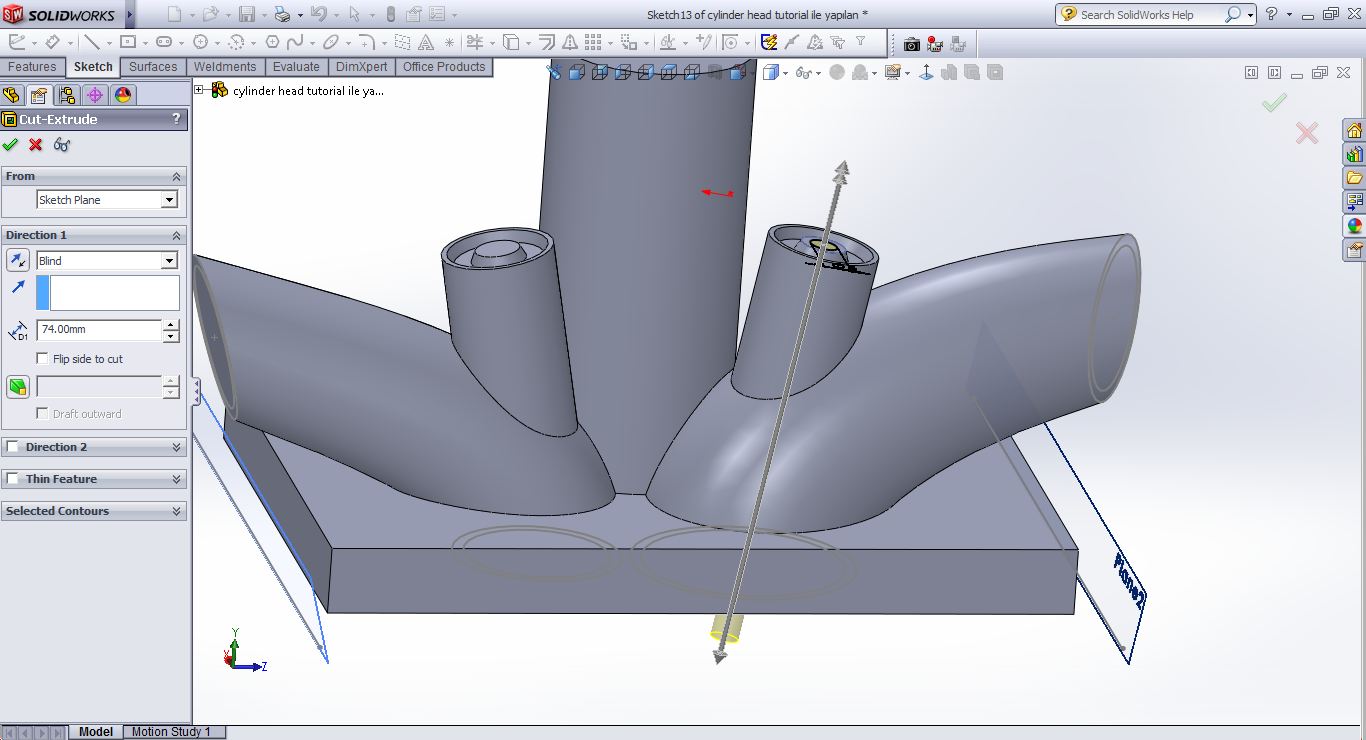

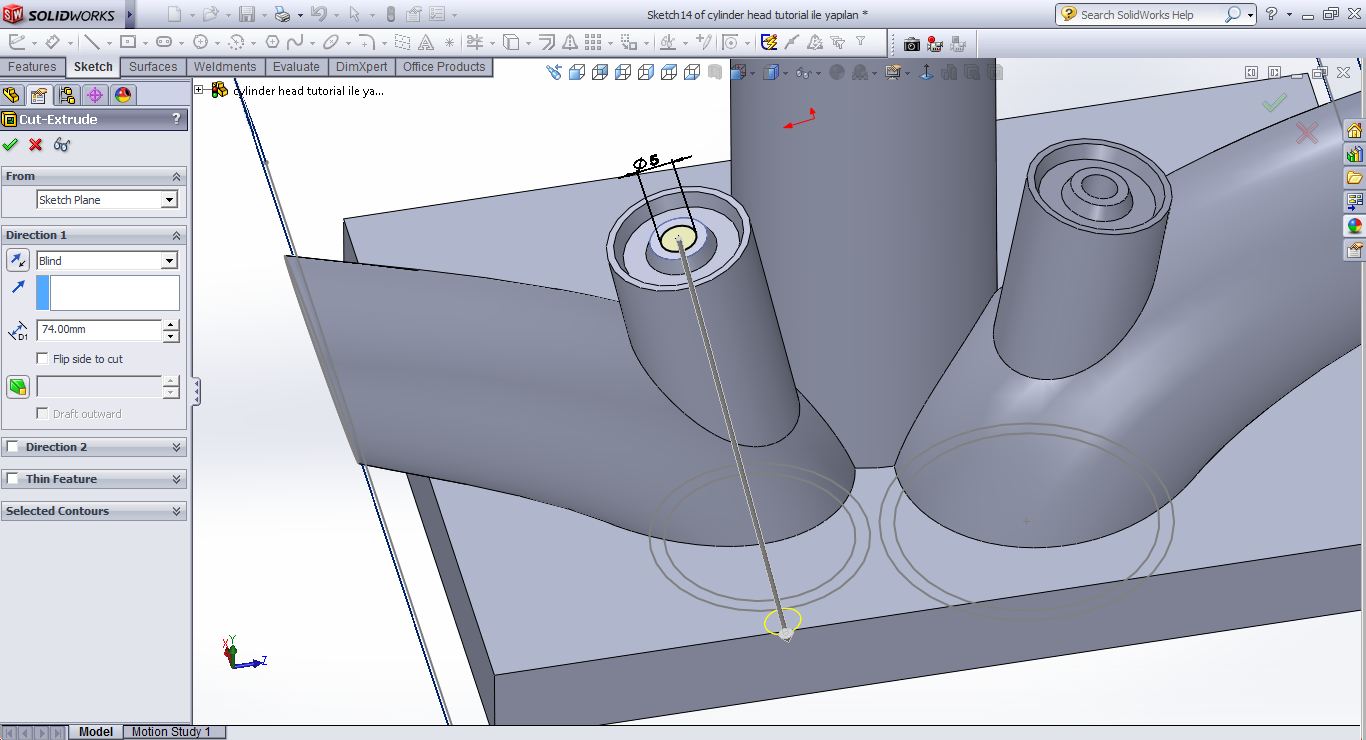

  21. Step 21:

    use cut extrude command
