Tutorial on Modeling Bolt in SolidEdge ST4?

By Sumit Balhara on 23 Apr 06:01 1 answer 2464 views 1 comment

Tutorial on Modeling M20 Bolt in SolidEdge.

1 answer

Sumit Balhara about 1 year ago
Tutorial.

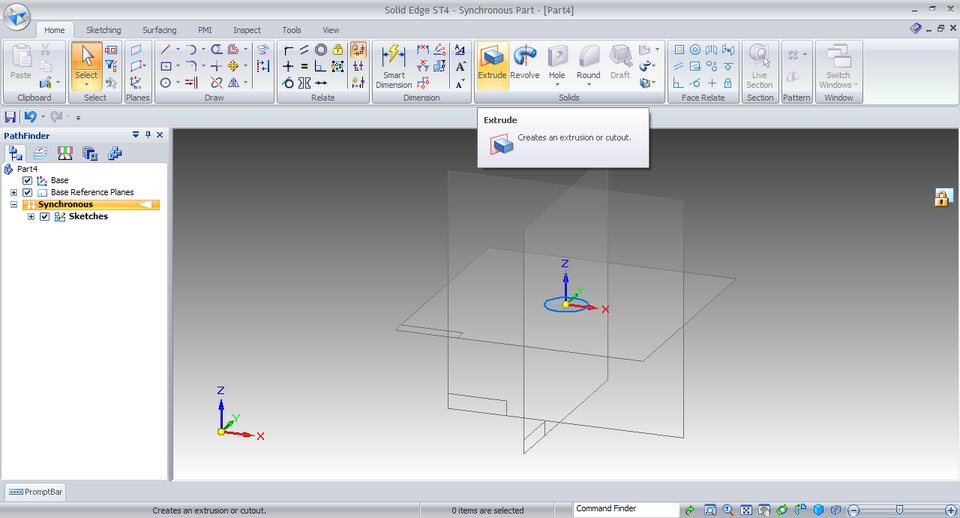

1. Step 1

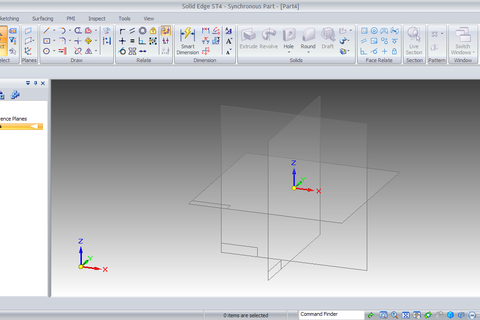

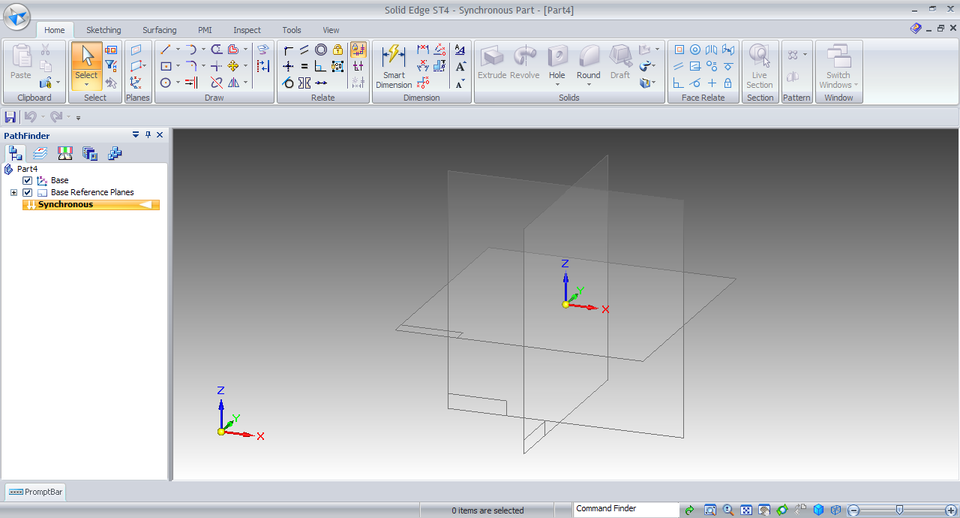

  Start SolidEdge.

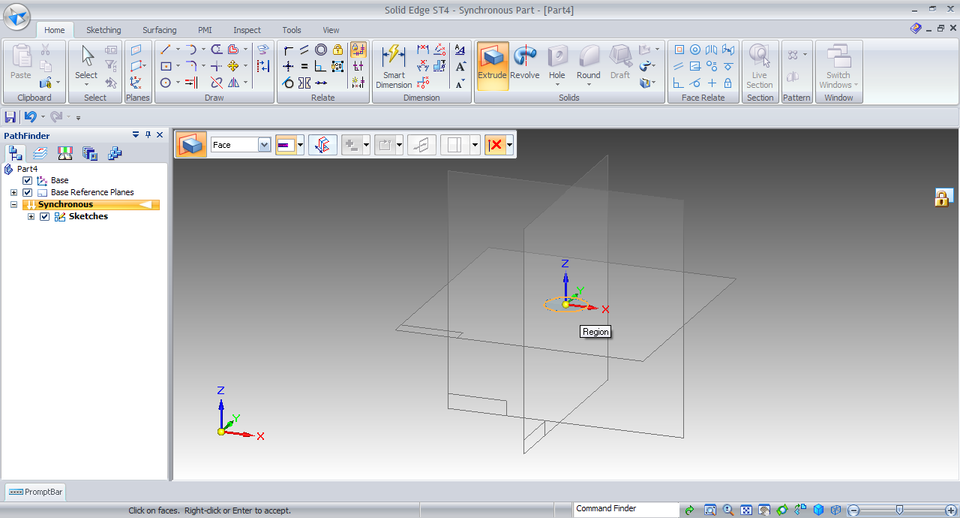

2. Step 2

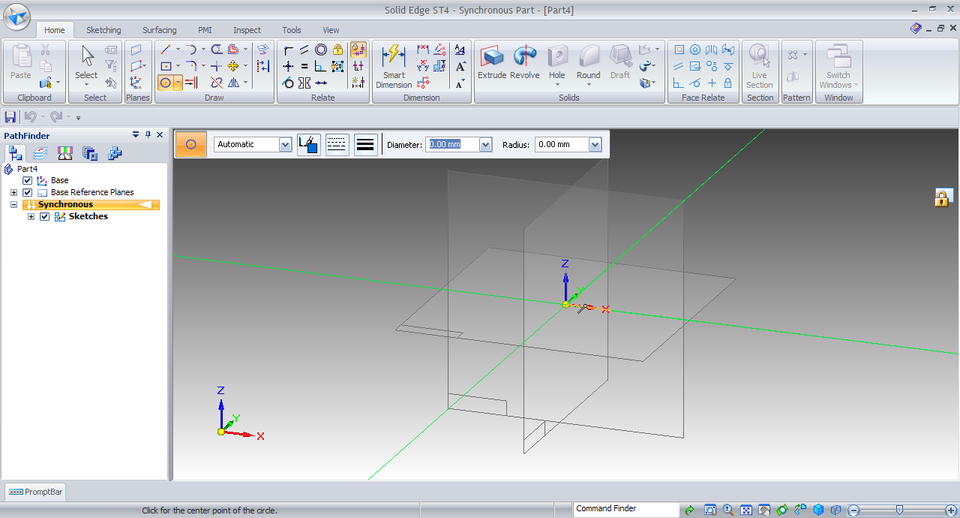

  Circle tool and then select origin.

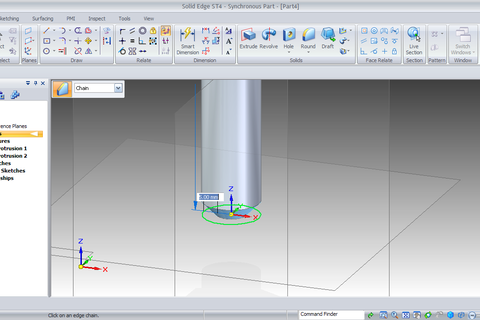

3. Step 3

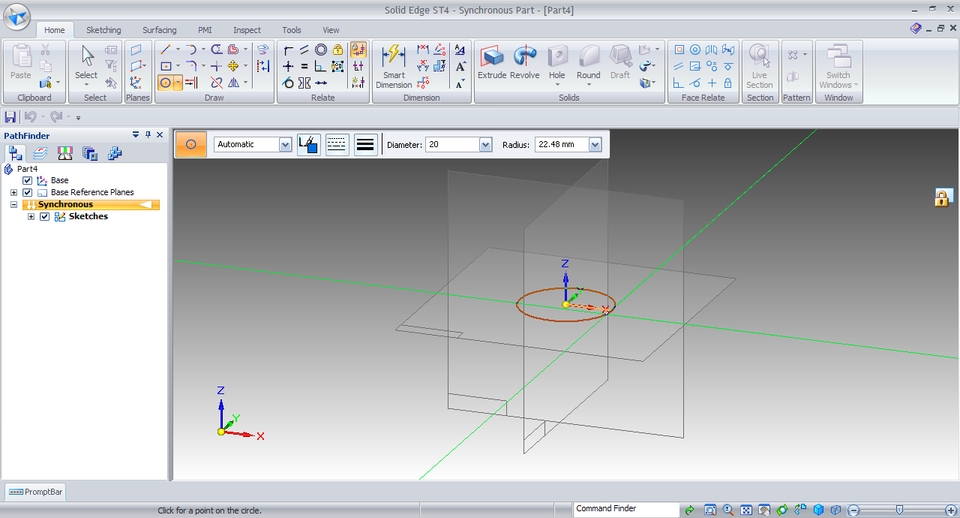

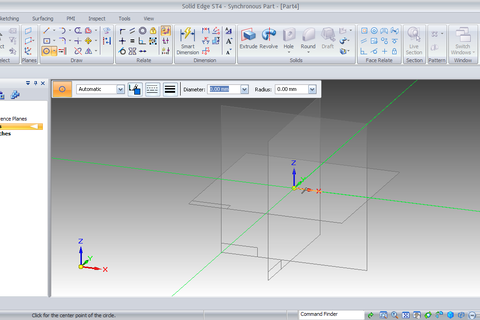

  Make a circle of 20mm diameter on top plane by locking it clicking on the lock icon.
4. Step 4

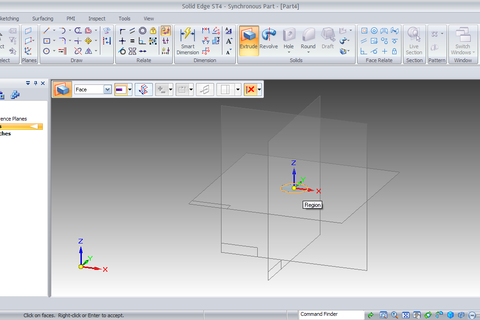

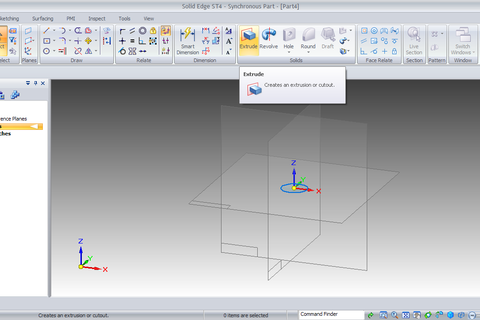

  Select Extrude.
5. Step 5

  Select the circle and then right click.

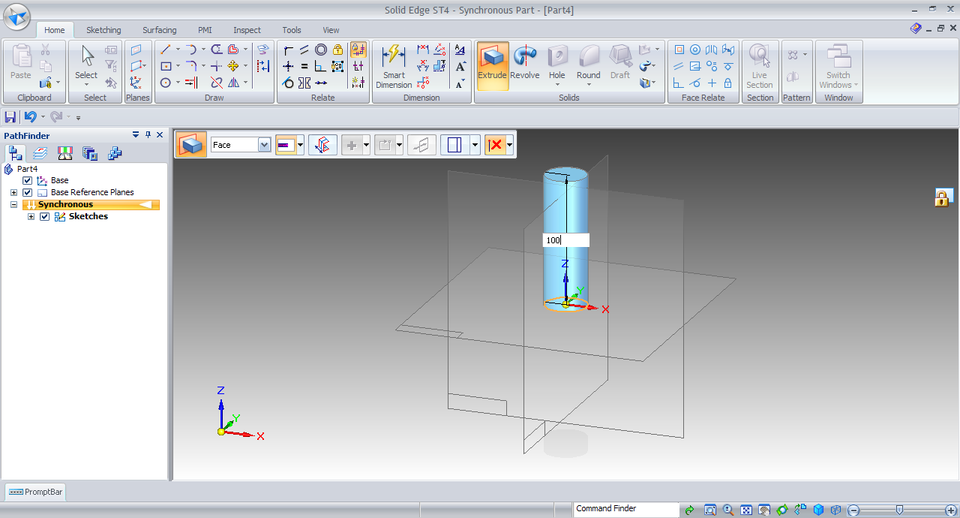

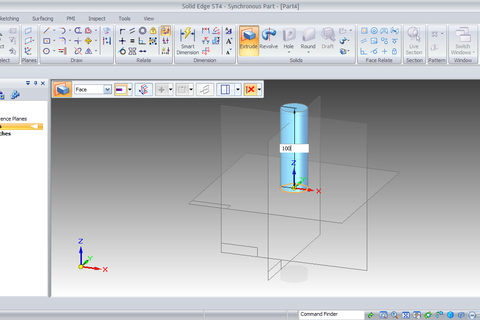

6. Step 6

  Extrude by 100.

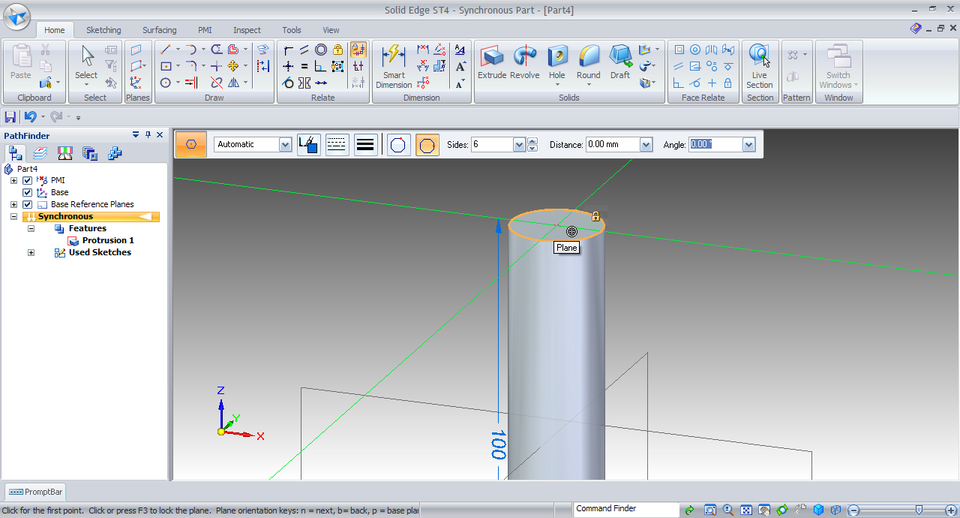

7. Step 7

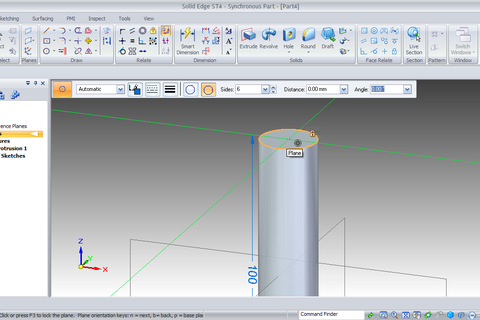

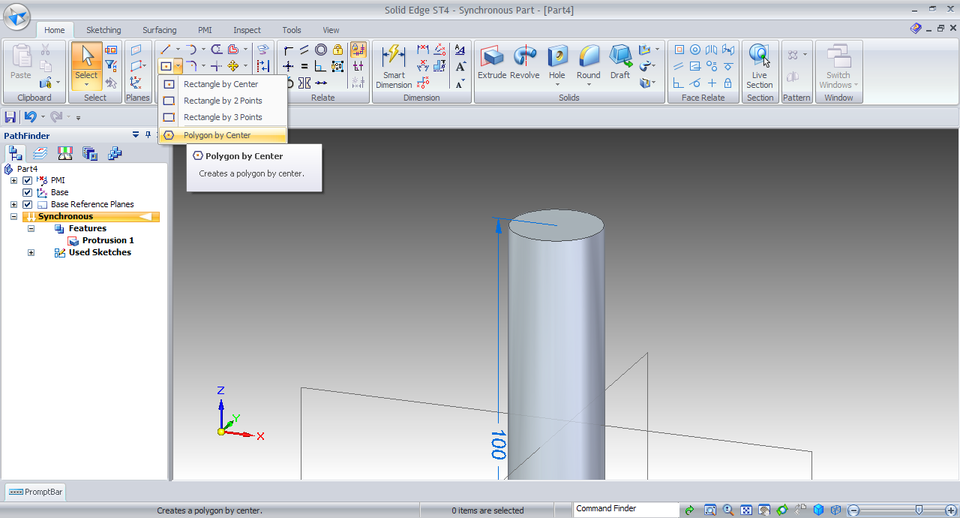

  Polygon tool.
8. Step 8

  Top face and then select the center of the edge.

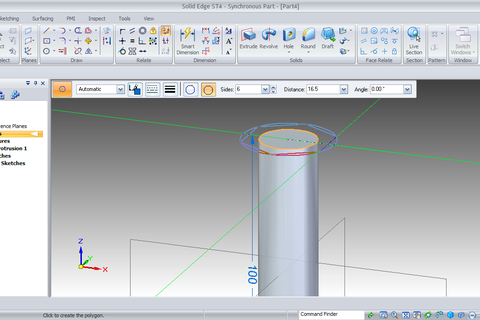

9. Step 9

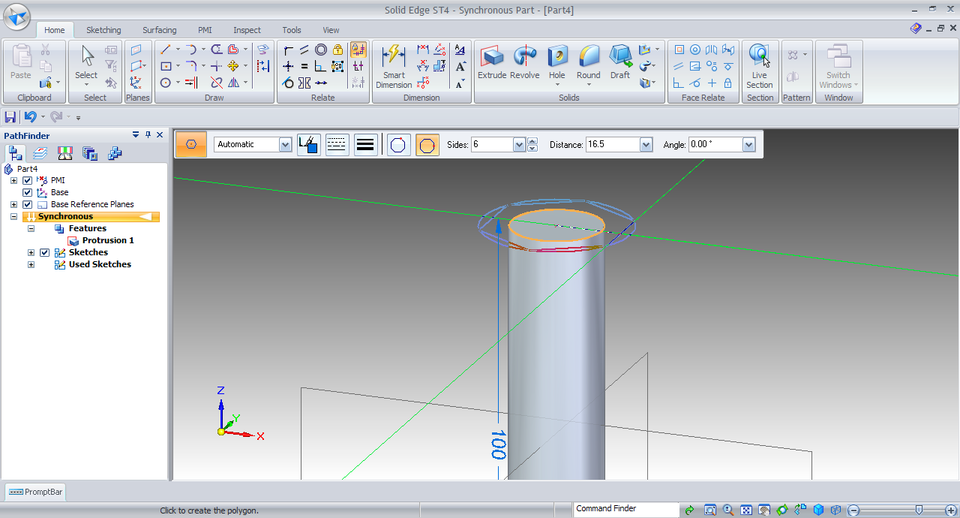

  Distance be 16.5mm and angle 0.
10. Step 10

  Select the region of the polygon.

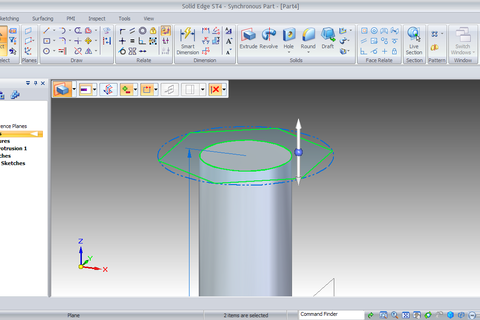

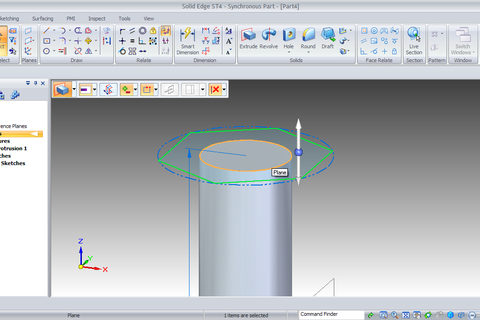

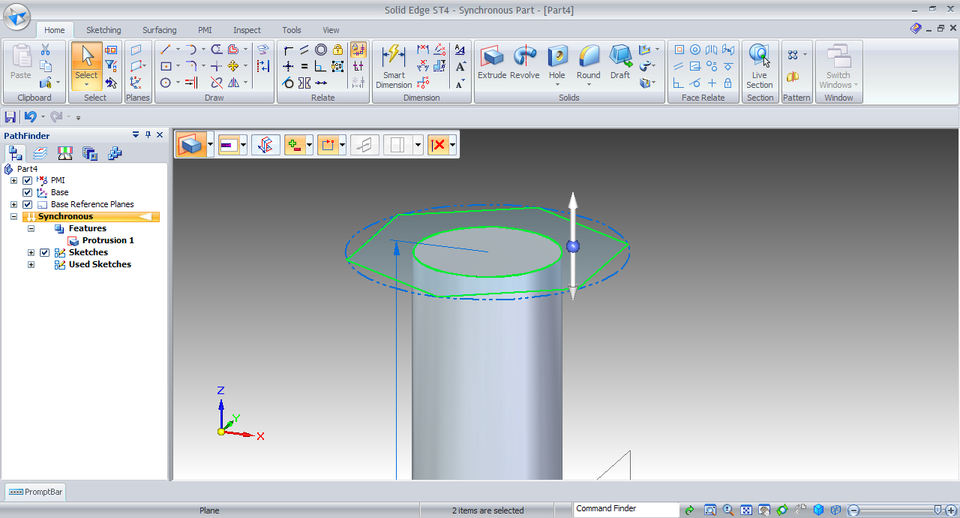

11. Step 11

  While pressing the control key on the keyboard select the region on the circular face also.

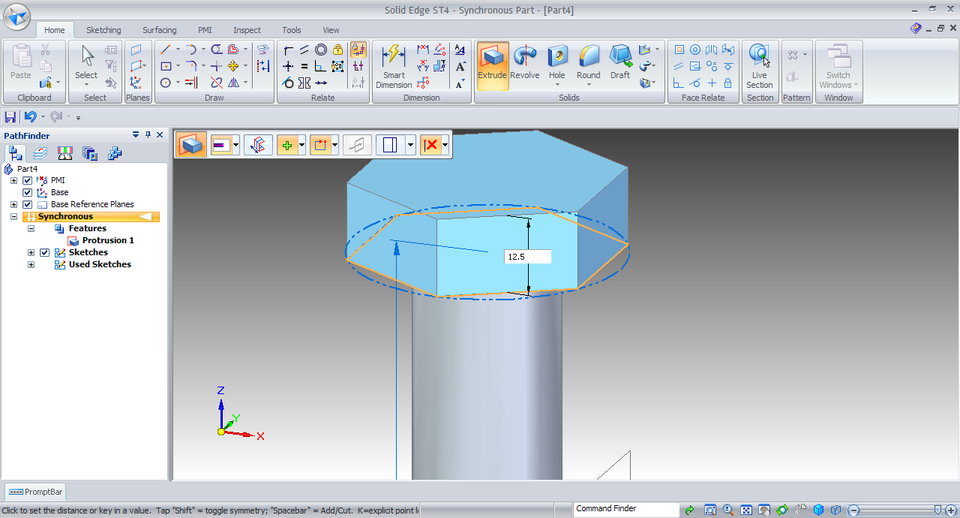

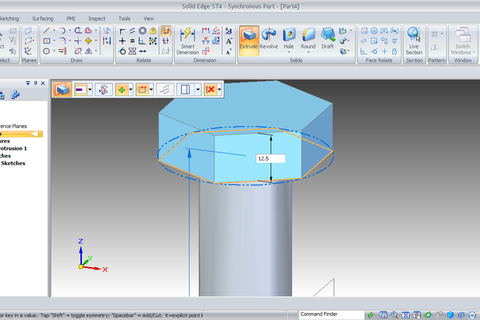

12. Step 12

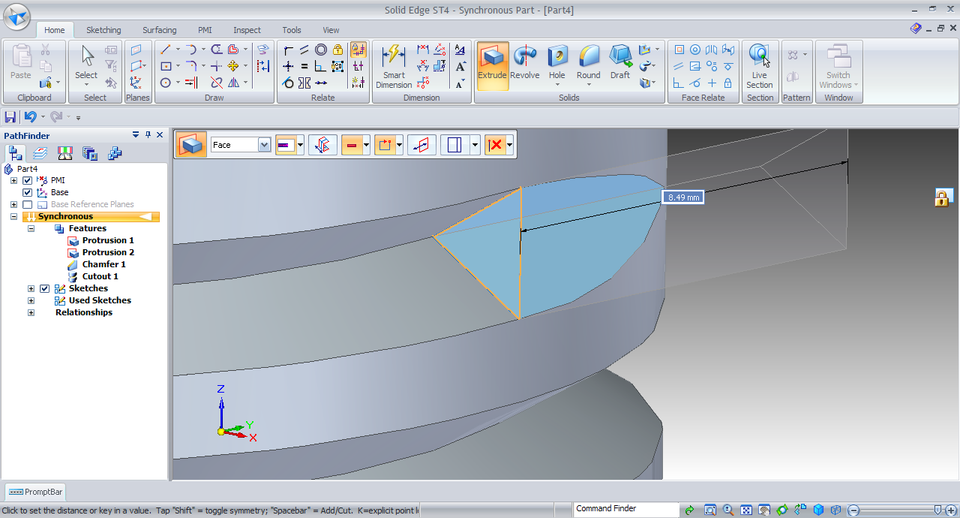

  Extrude it by 12.5mm.

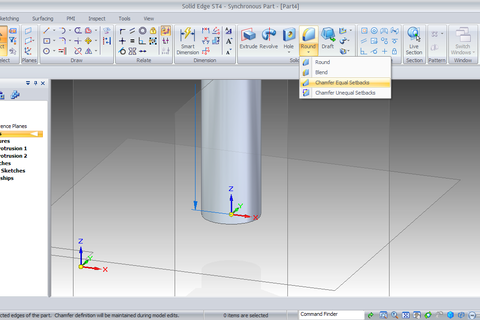

13. Step 13

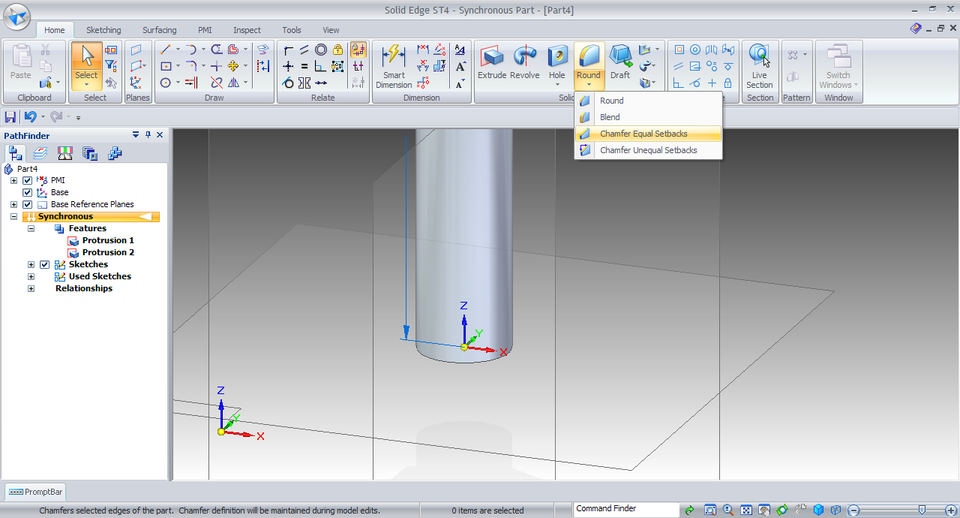

  Select chamfer equal setbacks.
14. Step 14

  Lower edge and input value 5.
15. Step 15

  Front view (Control key + F).

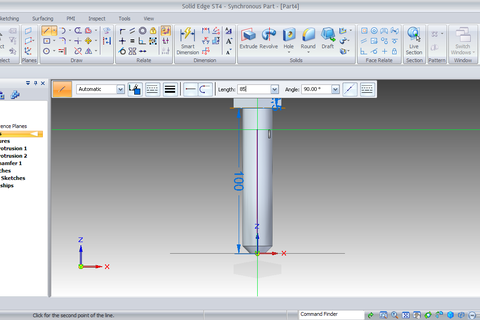

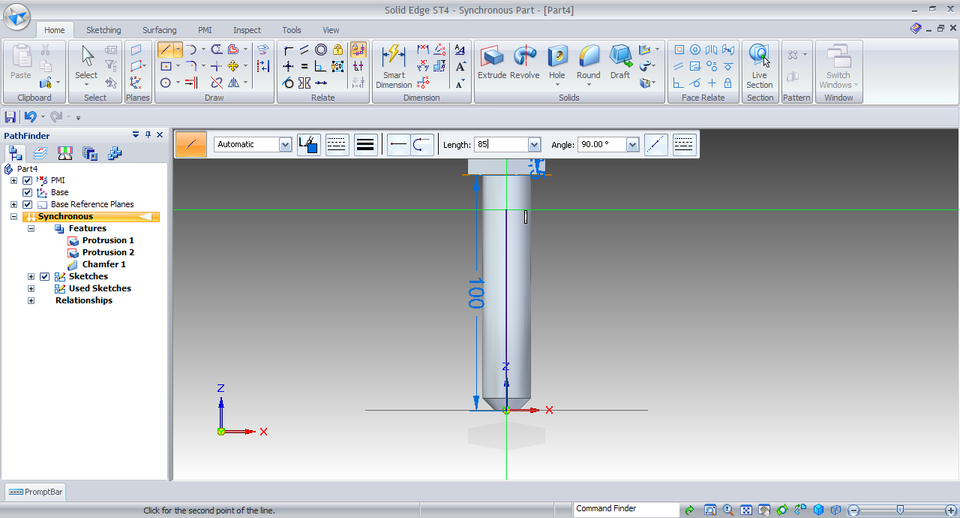

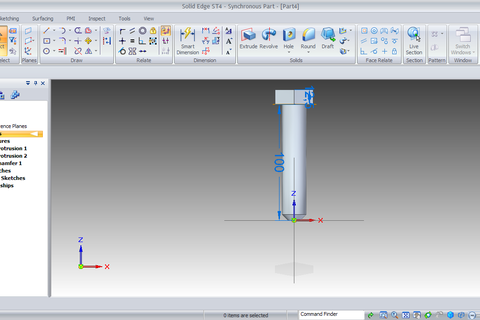

16. Step 16

  Draw a line along Z-axis of 85mm with endpoint at origin.

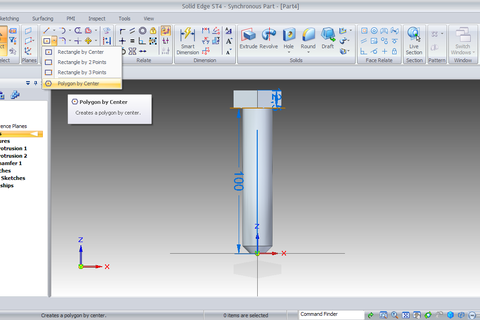

17. Step 17

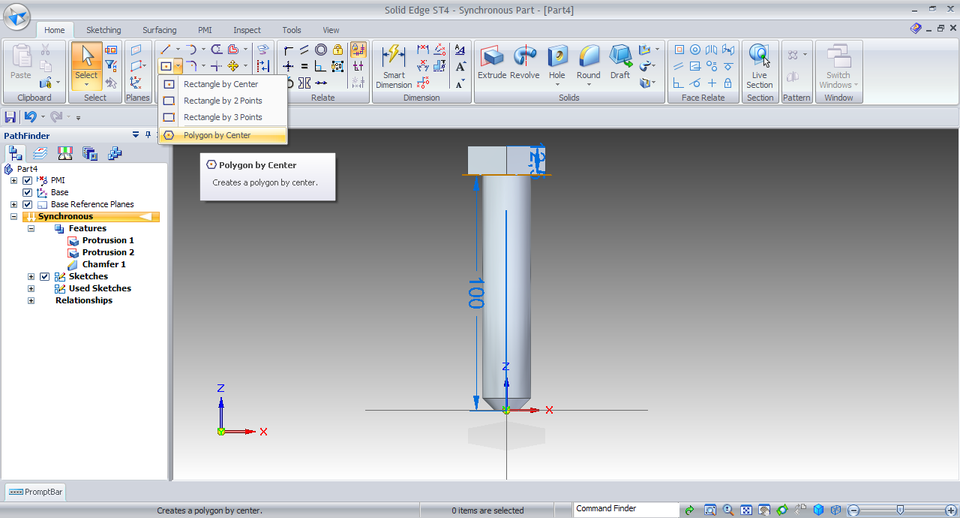

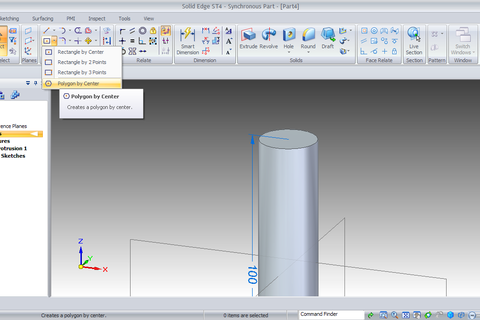

  Polygon by Center.

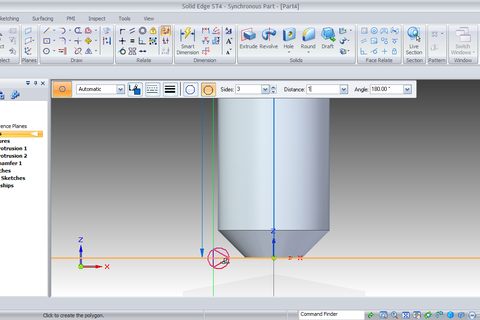

18. Step 18

  Click the intersection of these two edges.

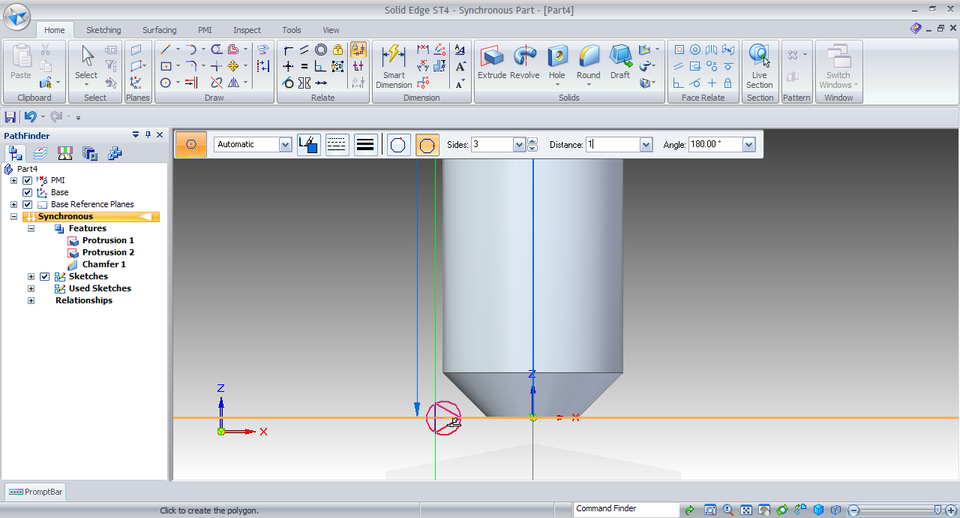

19. Step 19

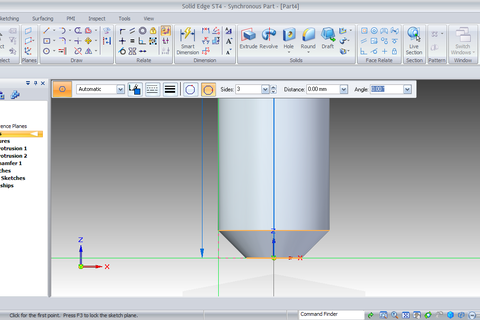

  Input Distance 1mm.

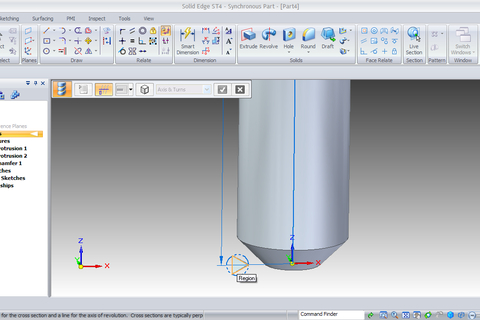

20. Step 20

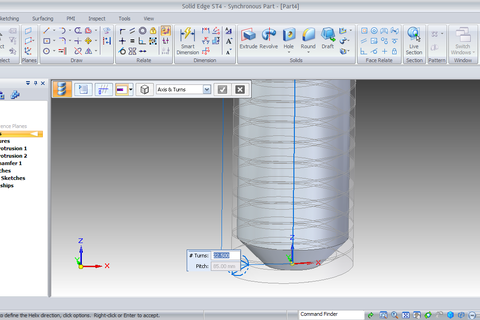

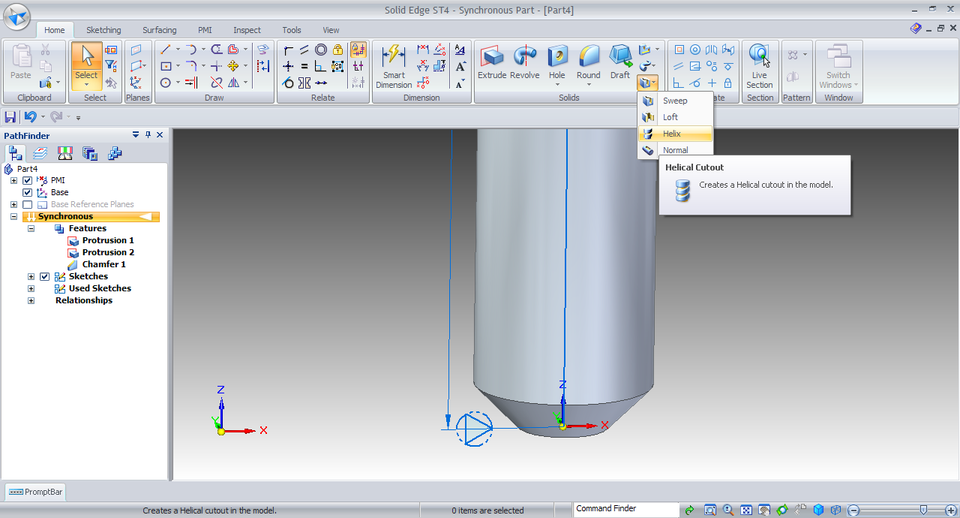

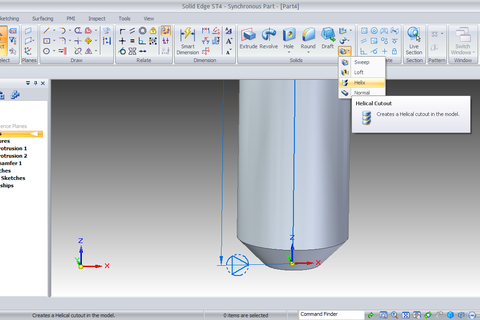

  Select helix under cut features.

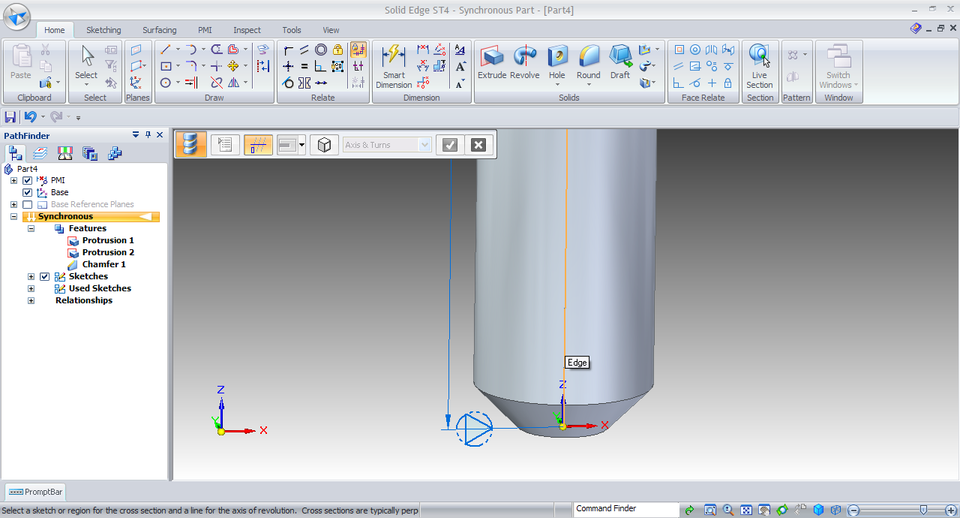

21. Step 21

  Select the line.
22. Step 22

  Select the polygon.
23. Step 23

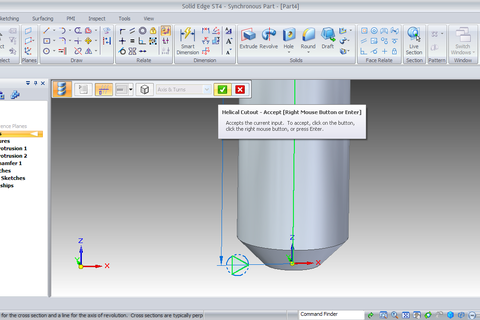

  Click Tick mark button.

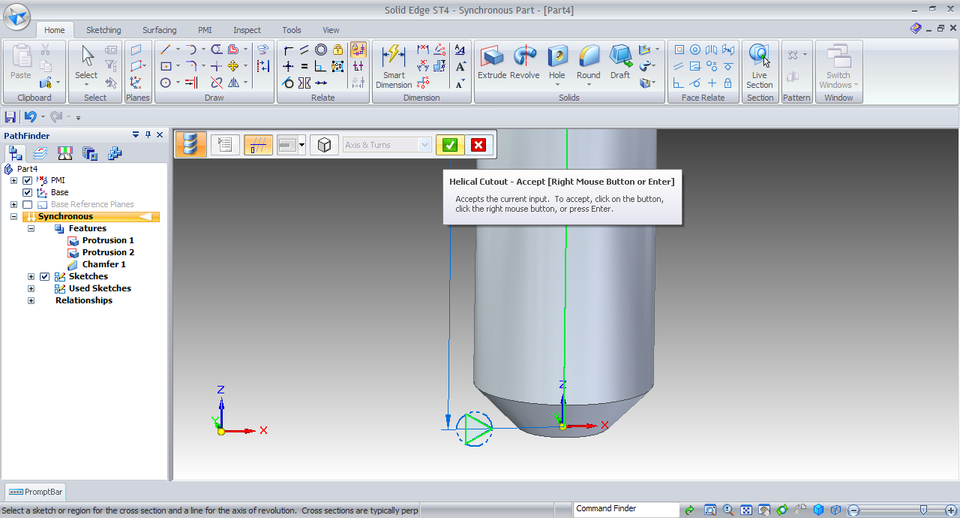

24. Step 24

  Input turns 22.5mm. Right click to accept it.

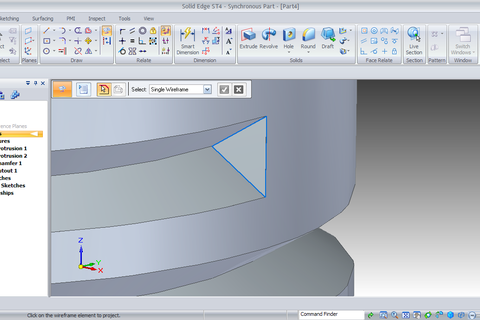

25. Step 25

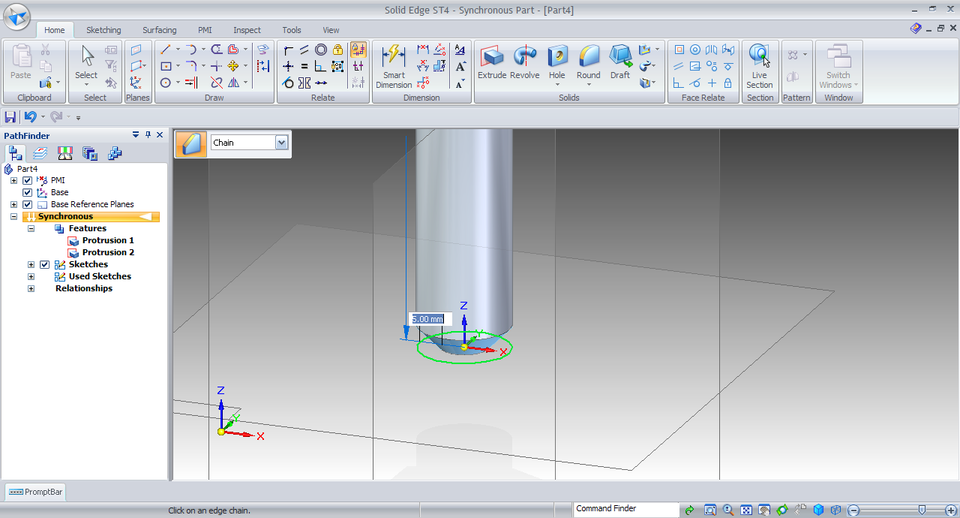

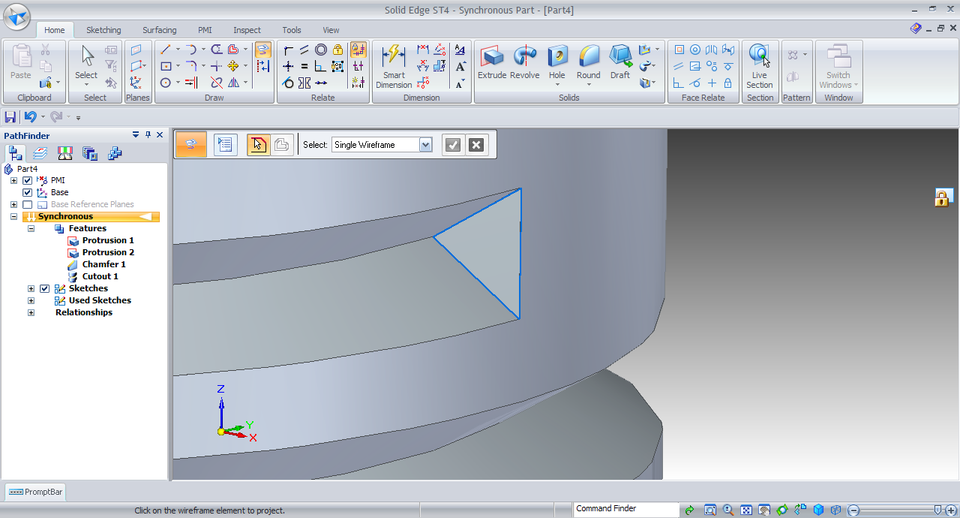

  Now go to the end face of the thread. Select the face and then project the edges.
26. Step 26

  Extrude it by remove at ~10mm.

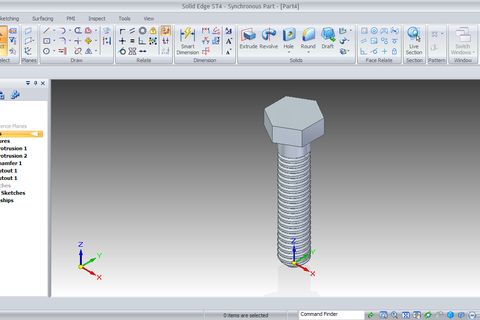

27. Step 27

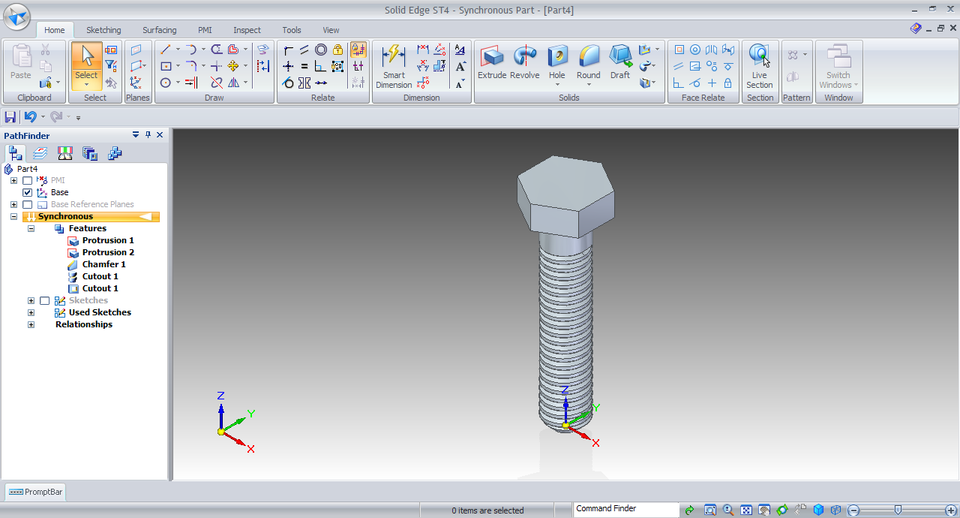

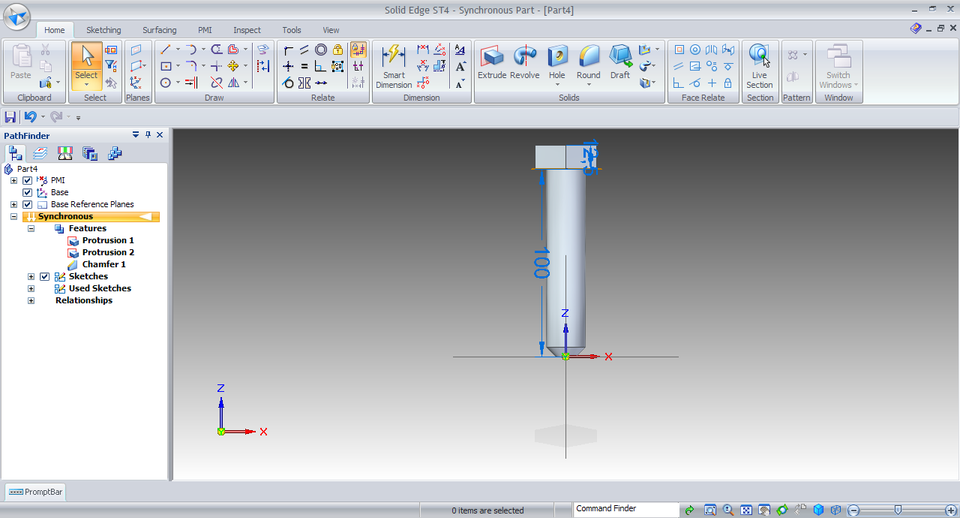

  Our bolt is ready.
1. imrankhalil92 11 months ago

  I cant find polygon tool. I am using v20 of solid edge. Need help to figure it out
