Challenge Goal:
NASA is reaching out to members of the GrabCAD community who may be familiar with or are interested in the testing of atmospheric entry vehicles.
Currently, NASA has a capability gap in the area of free-flight dynamic stability testing for reentry vehicles.
The The Stratospheric Projectile Entry Experiment on Dynamics (SPEED), a two-stage stratospheric drop test architecture, is currently under development to bridge the state-of-the-art gap that many NASA flagship missions require to reduce system risk and enable more optimized designs via margin reduction.
To do this, a two-stage vehicle will drop from a high-altitude balloon and use the first stage (an LV-Haack cone aeroshell) to accelerate the sub-scale test model to supersonic conditions. The onboard avionics will then release the test model into freestream flow at the proper altitude in Earth’s atmosphere for dynamic Mach scaling to the full-scale flight trajectory. SPEED leverages low-cost methods of manufacturing such as 3D printing and laser/water-jet cutting to enable 8 or more two-stage vehicles to be dropped in a single test, making the science-to-dollar density much higher than any current ground-test facility NASA has at its disposal.
The goal is to develop a robust ejection system that can reliably introduce the test models into supersonic flow with a tight variance on initial condition perturbation. The separation system must be capable of handling a range of initial angle-of-attacks, keep the test model secure in the first stage during take-off and descent, and eject the test model in such a way that it does not linger behind the first stage and be affected by the resulting wake.
As current ejection system designs are conceptual, complex, and untested, NASA is looking for alternative ideas that can be incorporated into the design of their next iteration of SPEED flight vehicles to increase system reliability. We are challenging the GrabCAD community to design innovative concepts for a separation mechanism that can be used to assess NASA and commercial reentry vehicle stability.
Challenge Description:
A successful outcome of this contest is a credible 3D model of a separation mechanism that is both cost-effective by utilizing easy to manufacture methods (such as 3D printing or laser/water jet cutting) and Commercial Off-The-Shelf (COTS) parts and doesn’t rely on high-energy systems like explosives.
The separation mechanism must fit inside the current Haack-cone volume of SPEED’s first stage, utilizing only the Aft section and available Nose section internal volumes:

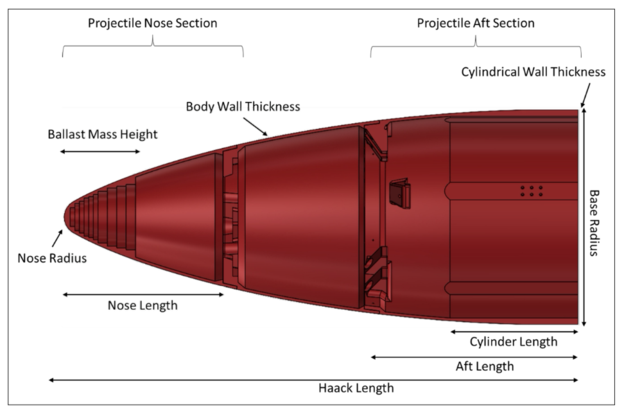

Haack Cone Parameters
• C = 1/3
• Length = 66.5cm
• Base Radius = 15cm
• Body Wall Thickness = 0.41cm
• Nose Radius = 2.5cm (spherical rounding of the cone tip)
• Ballast Mass Height (from Nose) = 10cm
• Nose Length (from Nose to bottom of Lap Joint) = 22.24cm
• Aft Length (from Lap Joint bottom to Base) = 29.84cm
Cylindrical Extrusion
A cylindrical extrusion on the base of the haack cone with the following parameters adds a “barrel” to the end of the first-stage:
• Length = 6.825cm
• Wall Thickness = 0.9cm
The mechanism must also be able to accept a wide range of aeroshell shapes in a modular fashion – allowing easy swapping of test models without having to custom fabricate and integrate a large number of parts. It can also be assumed that the test model base radii will not exceed 12.5 cm nor an axial length of 15 cm.
The designed mechanism can also be assumed as a “black box” to the avionics suite with the only interface between the two systems being a 28 AWG wire that will send a 5V pulse signal to the ejection mechanism, initiating the proposed ejection trigger. The connector type for this signal wire to the ejection mechanism can be requested as-needed to fit the design.
Contest submissions must include:
1. CAD models of the separation mechanism and any accompanying sub-systems
2. Include concepts for the mechanism arming and any necessary safety features
3. Consider feasible methods of construction and mechanisms. This may be provided in 2D drawings or as a 3D model.
Renderings of the system in operation will be used to help communicate the concept and potentially be used in proposed options for the upcoming iteration in the SPEED test architecture design.
Judging Factors:
1. Concept enables a reliable and stable initial state of the test model after release.
2. Concept manufacturing and construction is feasible
3. Quality and fidelity of the 3D models.
4. Cost and lead-time of system implementation
Requirements Needed for Submission:
1. Model File Formats shall be delivered in a nonproprietary format (STEP or IGES).
2. Renderings: Two separate viewing angles (.jpg or .png formats)
3. Any supplemental description documents shall be in PDF format.
4. If zipped, the file format should be .zip and not require any special software to unzip.
Available CAD models, data, or other references.
CAD Files for Download:
CAD Files
REQUIRED DELIVERABLES (CAD files, reports, images, etc.) CAD Files used in model.
ACCEPTED FILE FORMATS ● STEP, IGS or native Solidworks files are acceptable for CAD. o If applicable, use a CAD file naming convention that makes it easy to determine how each file fits into the larger assembly. ● Any image files should be .jpg or .png ● Any animations should be compatible with embedding in Microsoft PowerPoint and separate viewing in Windows Media Player ● Any accompanying reports should be in .pdf format (can be saved from Microsoft Word to a .pdf). ● If zipped, the file compression shall be compatible with Windows 10 and not require any special software to unzip.
PAGE LIMITS AND FILE SIZE LIMITS Total size of all files combined should not exceed 250 MB
ELIGIBILITY Solutions from countries listed as Type 1, 2, or 3 on the NASA Designated Countries List are Not eligible for monetary prizes. The list is frequently updated, and the latest version can be found here. This challenge is not open to NASA Personnel.
ENTERING THE COMPETITION The Challenge is open to everyone except employees and families of GrabCAD and the Sponsor. Multiple entries are welcome. Team entries are welcome. By entering the Challenge you: 1. Accept the official GrabCAD Challenges Terms & Conditions. 2. Agree to be bound by the decisions of the judges (Jury). 3. Warrant that you are eligible to participate. 4. Warrant that the submission is your original work. 5. Warrant, to the best of your knowledge, your work is not, and has not been in production or otherwise previously published or exhibited. 6. Warrant neither the work nor its use infringes the intellectual property rights (whether a patent, utility model, functional design right, aesthetic design right, trademark, copyright or any other intellectual property right) of any other person. 7. Warrant participation shall not constitute employment, assignment or offer of employment or assignment. 8. Are not entitled to any compensation or reimbursement for any costs. 9. Agree the Sponsor and GrabCAD have the right to promote all entries. If you think an entry may infringe on existing copyrighted materials, please email challenges@grabcad.com.
SUBMITTING AN ENTRY Only entries uploaded to GrabCAD through the "Submit entry" button on this Challenge page will be considered an entry. Only public entries are eligible. We encourage teams to use GrabCAD Print Pro (https://www.stratasys.com/en/software/grabcad-print-pro-trial/) for developing their entries. Entries are automatically given the tag "NASA_FreeFlightTestPlatform" when uploading to GrabCAD. Please do not edit or delete this tag. Only entries with valid tag will participate in the Challenge.
AWARDING THE WINNERS The sum of the Awards is the total gross amount of the reward. The awarded participant is solely liable for the payment of all taxes, duties, and other similar measures if imposed on the reward pursuant to the legislation of the country of his/her residence, domicile, citizenship, workplace, or any other criterion of similar nature. Only 1 award per person. Prizes may not be transferred or exchanged. All winners will be contacted by the GrabCAD staff to get their contact information and any other information needed to get the prize to them. Payment of cash awards is made through Checks mailed to the Winners. All team awards will be transferred to the member who entered the Challenge. Vouchers will be provided in the form of Stratasys Direct Manufacturing promo codes. We will release the finalists before the announcement of the winners to give the Community an opportunity to share their favorites in the comments, discuss concerns, and allow time for any testing or analysis by the Jury. The Jury will take the feedback into consideration when picking the winners. Winning designs will be chosen based on the Rules and Requirements schedule.
NTELLECTUAL PROPERTY CONSIDERATIONS Copyright Stipulations o All material (including the CAD model itself and all written documents) must be free of any copyright restrictions. • Use only models, photos, or images created during the project unless you have obtained the right from the copyright owner for unrestricted use – do not blindly copy images from internet websites. • Images on .gov websites are often (but not always) public data; check before assuming it is public material. • CAD-Only Rendering Requirement – All renderings and visual representations submitted for NASA challenges must be directly generated from CAD software or other approved design tools. The use of generative AI to create or enhance submissions is prohibited. This policy ensures that all entries are original works and prevents the inadvertent inclusion of copyrighted material that may be present in AI generated content. Participants are responsible for ensuring their submissions comply with this requirement to maintain the integrity of the challenge and respect intellectual property rights. Include documentation of any usage permissions The Government is seeking a full government purpose usage license for further development of the concept. There is potential that the winning concepts could be included in follow-on studies.
SCHEDULE Challenge entry begins July 14th at 3PM Easter Standard Time and ends on September 8th, 2025 at 3PM Eastern Standard Time. Any Changes after the date will be considered as disqualifications.
EVALUATION CRITERIA AND WEIGHTING FACTORS (what you will base your judgment on). See evaluation criteria in challenge guidelines.
$3,000
$1,800
$1,200
$750
$250
Ben Libben, NASA ARC
Cole Kazemba, NASA ARC
Justin Haskins, NASA ARC
This challenge supports the Entry Systems Modeling project which is funded by NASA’s Space Technology Mission Directorate.
Have an awesome idea for this competition? Want to win cool prizes? Sign-up now to upload your entries.
