CAD Illustration

Yengkong Vang Sayaovong
Yengkong Vang Sayaovong
13 Apr, 2021 06:02 AM

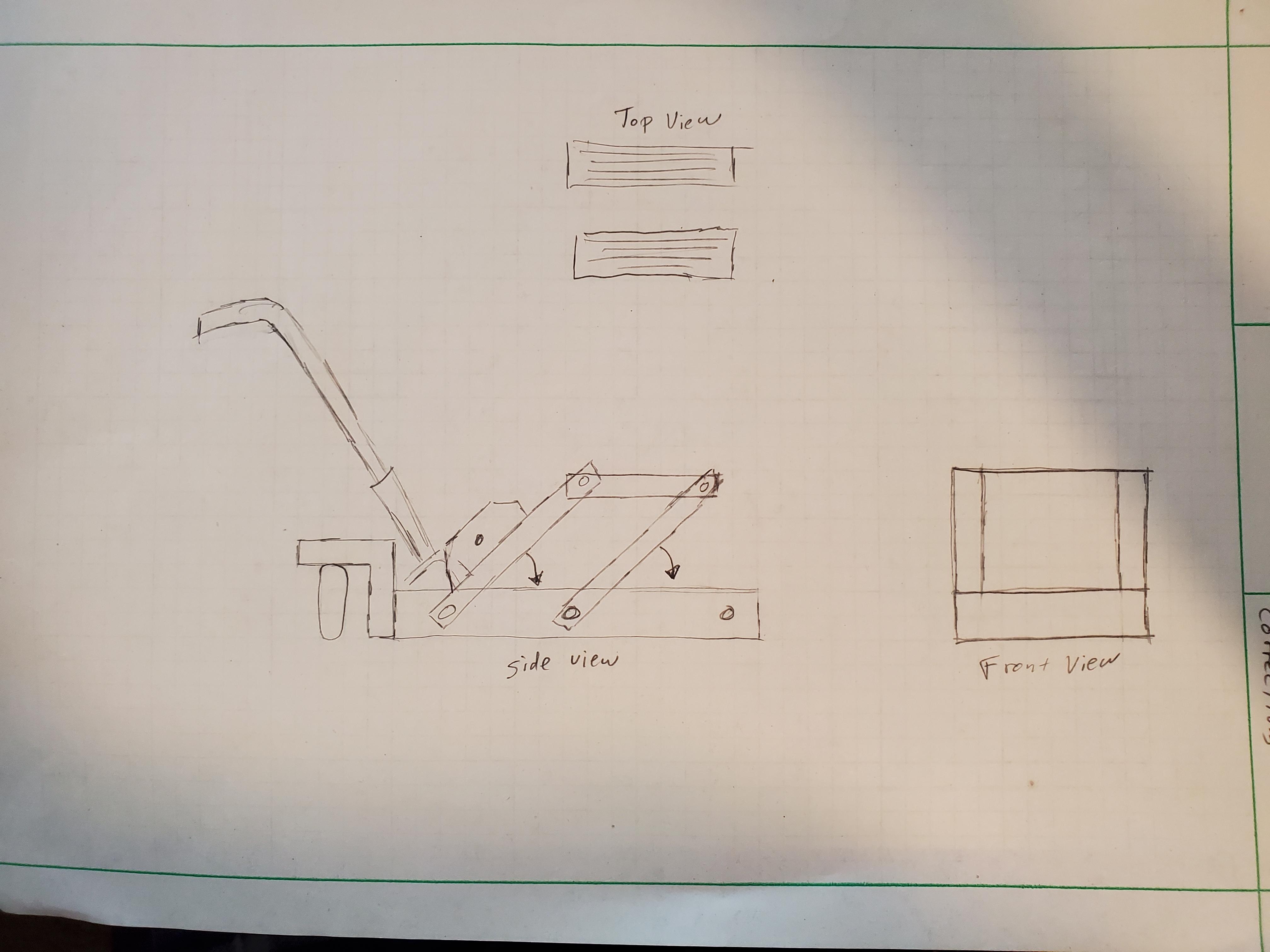

How would I edit these pictures to make it show how it moves? This is an illustration of an ATV Lift and a Lift Table.

ATV Lift.jpg ATV Lift.jpg Lift Table.jpg Lift Table.jpg

3 Answers

CadCloud
CadCloud
Answered on 13 Apr, 2021 07:28 AM

This is just one of many was but most are of a hydraulic nature.

Pneumatic /Hydraulic scissor lift mechanism in solidworks

Jack K
Jack K
Answered on 13 Apr, 2021 02:09 PM

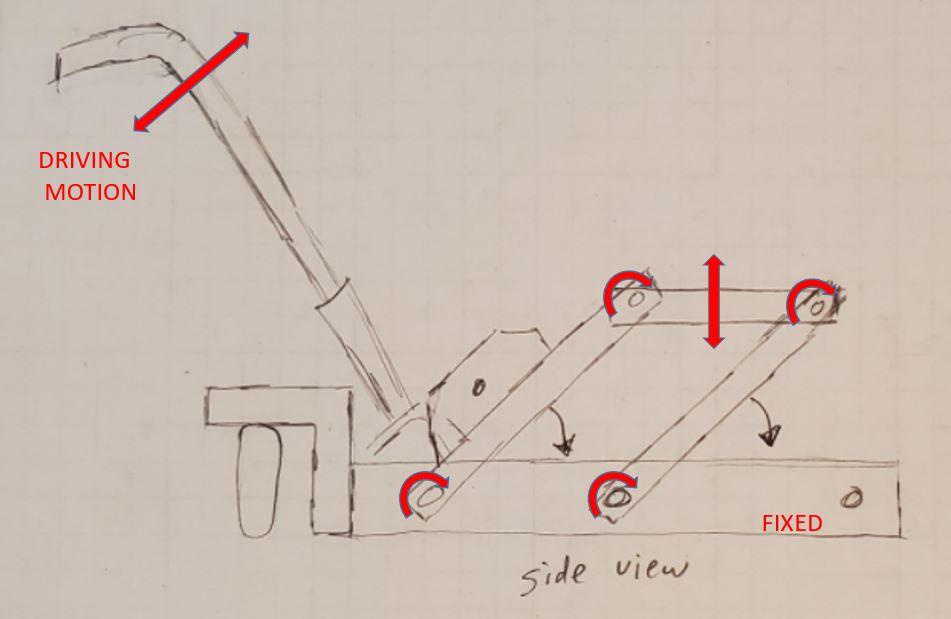

Add some arrows and maybe some labels:

lift.JPG lift.JPG
Steen Winther
Steen Winther
Answered on 14 Apr, 2021 07:15 AM

Show the extended position using full lines and the collapsed position using dashed lines...
