catia assembly design

Zakir Qureshi
Zakir Qureshi
30 Aug, 2012 07:12 AM

I WANT TO WELD THESE TWO ROD 75mm FROM FACE A
HOW CAN WE WELD THESE TWO ROD IN CATIA ASSEMBLY
MODULE KINDLY TELL ME AS SOON AS POSSIBLE
i have show in this picture

catia.jpg catia.jpg

4 Answers

Sudhir Gill
Sudhir Gill
Answered on 30 Aug, 2012 09:00 AM

I am not sure about CATIA but in SolidWorks we can use weldment for this type of operation.

Sudhir Gill
Sudhir Gill
Answered on 30 Aug, 2012 09:01 AM

http://catiatutorial.blogspot.in/2009/03/welding-design-in-catia.html

Zakir Qureshi
Zakir Qureshi
Answered on 30 Aug, 2012 11:56 AM

sudhir i want to assemble these two rod in a specific location..
how would you solve this problem in sw..
please let me know..

Sudhir Gill
Sudhir Gill
Answered on 30 Aug, 2012 01:29 PM

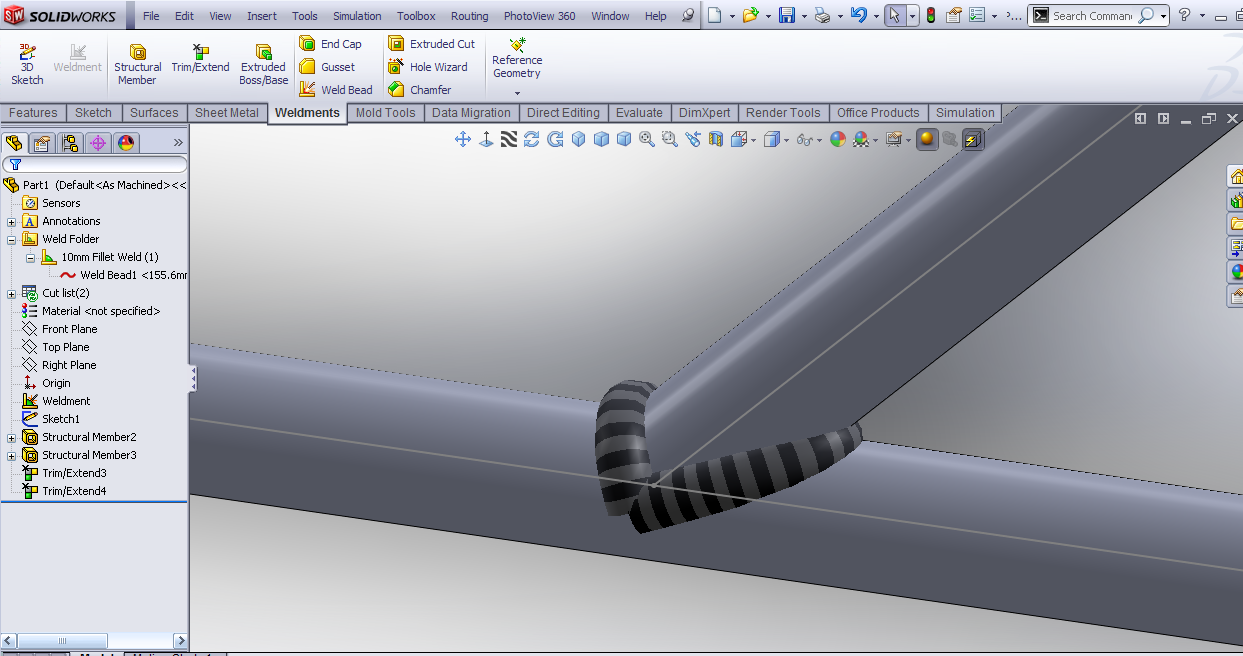

Check this

untitled.PNG untitled.PNG
