Circle to Polygon Problem

By Panagiotis on 22 Aug 15:20 2 answers 2525 views 1 comment

Hello. Here is my problem in Catia V5

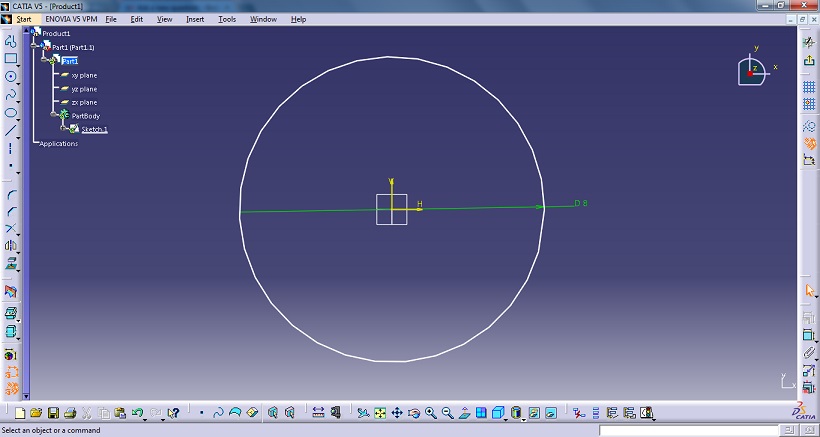

I draw a circle in a skecth with small dimensions. 4mm Radius. The circle is ok.

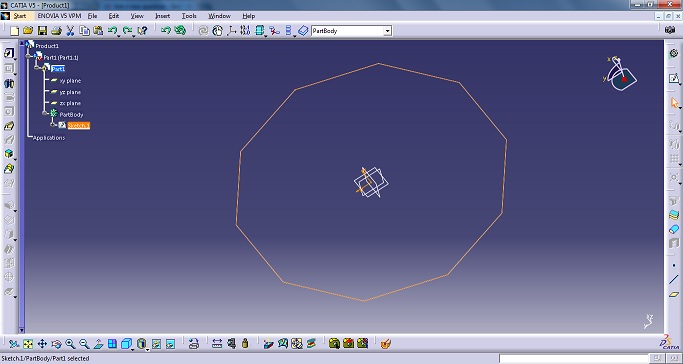

But when I go back to the main 3D part design, the circle has been converted into a polygon.
Is there any settings to change or anything else I could do?

Added images

Square Square

2 answers

  • özgür kesebir
    özgür kesebir about 4 years ago

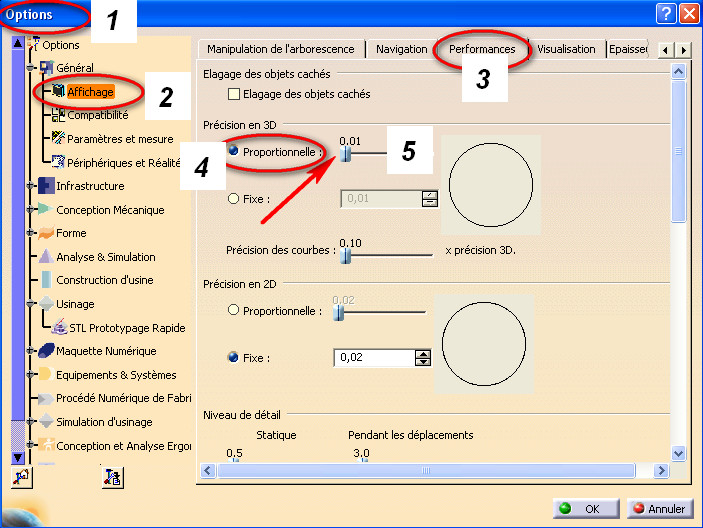

    it is visual illusion. change your performance options. you are using fixed. change it to proportional and value min (0.01).
