Creation of complicated dot pattern

By Reletobg on 29 Jun 07:03 1 answer 1131 views 6 comments

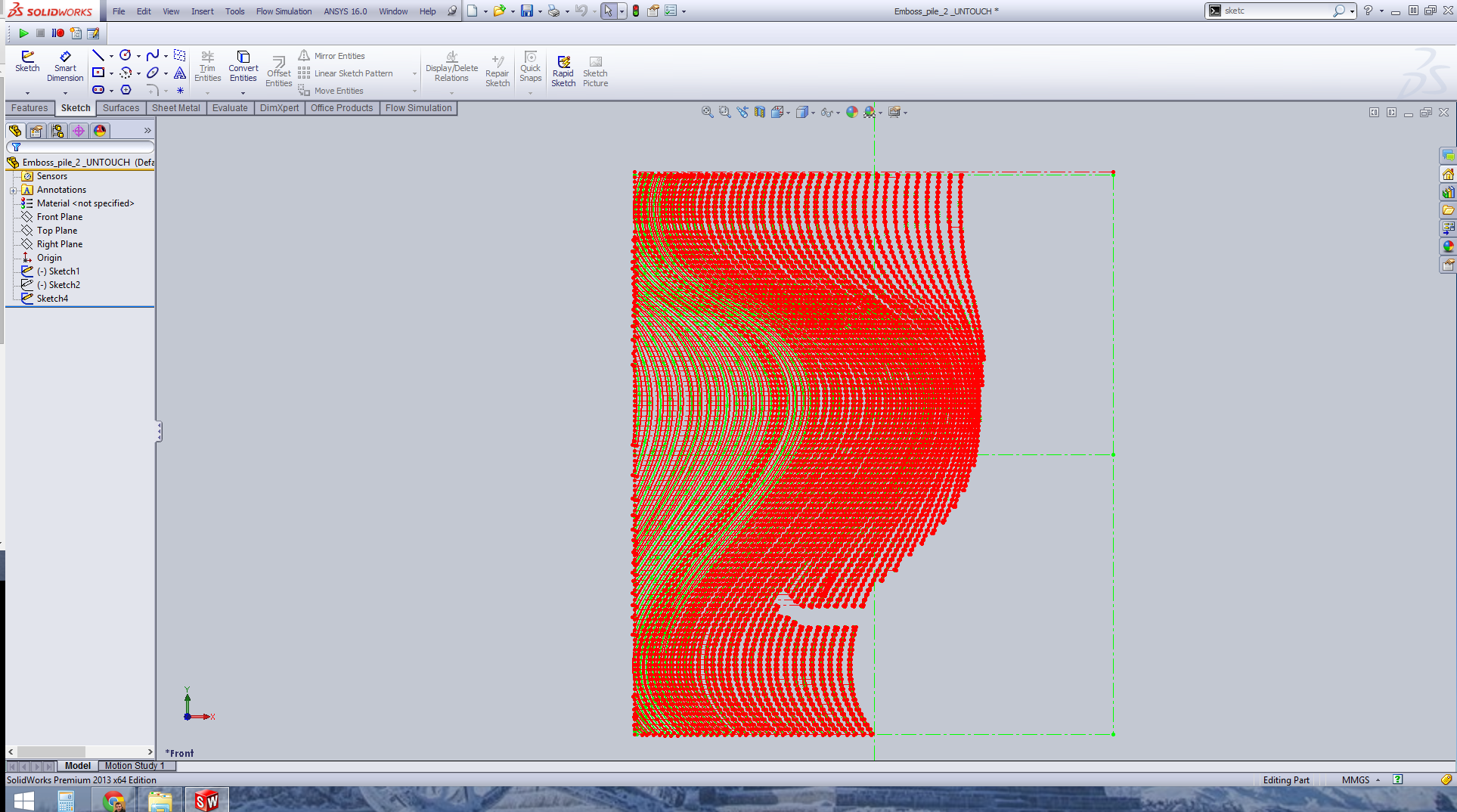

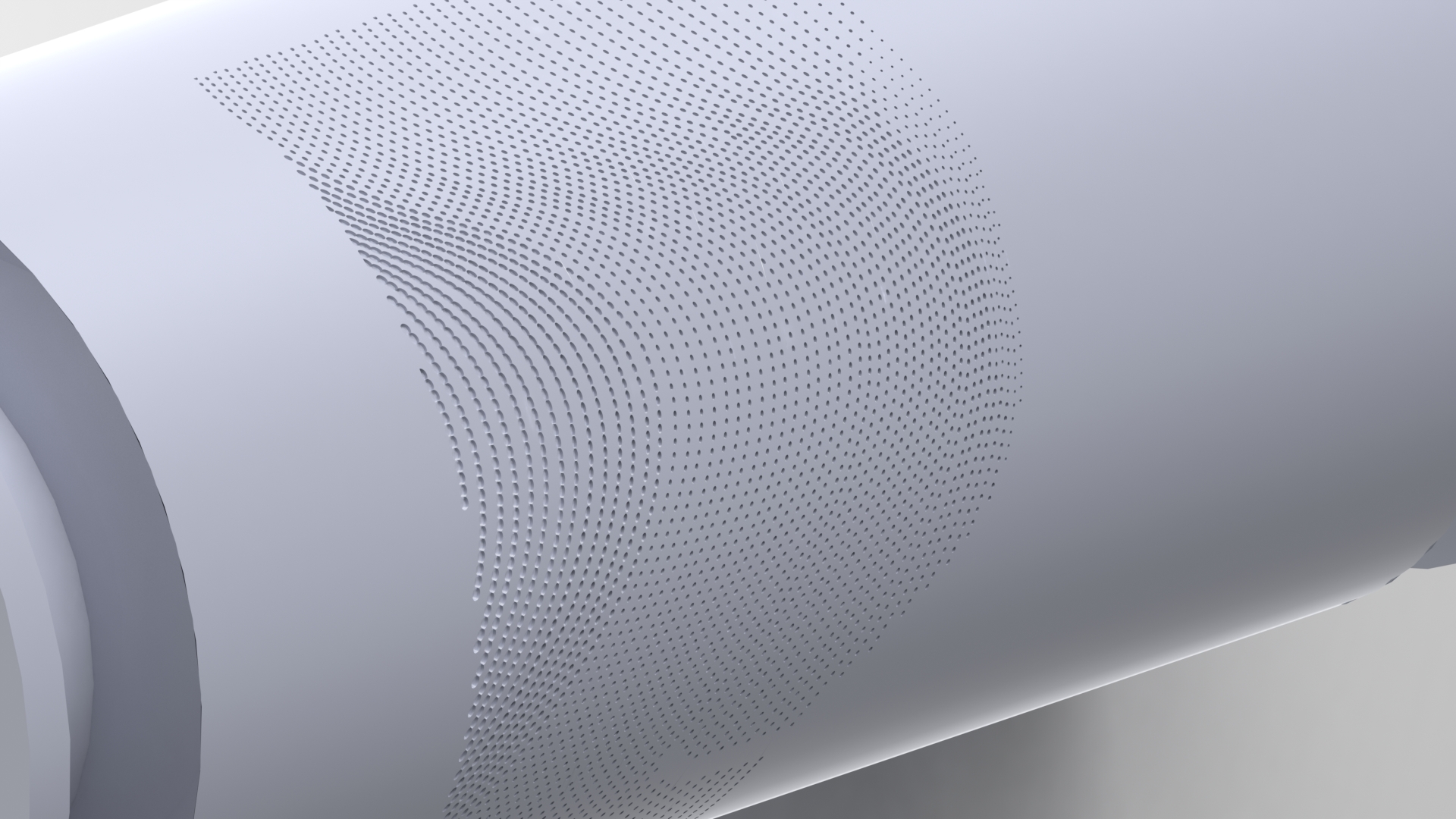

Hi! I have a job to recreate this beautiful pattern at SolidWorks 2013, but its very complicated and took me 2 days only to duplicate the curves. Now it's turn of the dots or more exactly rhombus, because it's more easy for production. So I wondering is it has some other program or method that will help me to recreate faster the pattern. My current method took me too many time and it's pain at the ass, too many lines for extrusion.

Added images

Square Square Square

1 answer

  • Madhu Sudan Chhangani
    Madhu Sudan Chhangani about 2 years ago

    If you have a reference image or a pattern then you may use Inkscape for designing such pattern. it will be good if you have and black and white image. This software converts image file to a vector file. you can download the software here, It's free
    https://inkscape.org/en/download/

    I think I may explain it better with an example-

    Answered with a tutorial: https://grabcad.com/tutorials/creation-of-complicated-dot-pattern

Add your answer to: "Creation of complicated dot pattern"
