dear all

somebody help me!

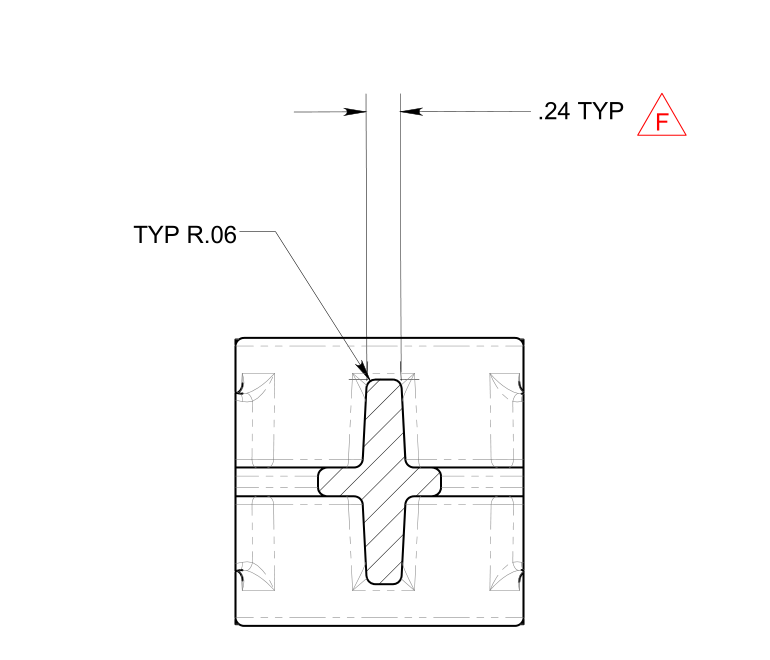

tpy in drawing.what does it mean?

Comments 0

3 Answers

TYPICAL, means there is edge of radius 0.06 on each side and and length 0.24

Comments 1


“TYPICAL” or “TYP” placed after a dimension to indicate the number of places it applied.

The term “TYPICAL” when associated with a dimension or feature, means that this dimension or feature applies to the locations that appear to be identical in size and configuration.

Comments 0

Should be obvious, looking at your examples, as they are prime examples of why the use of TYP is generally frowned upon these days...

Comments 0
