deep drawing stages

By sagith on 08 Mar 06:12 0 answers 0 comments

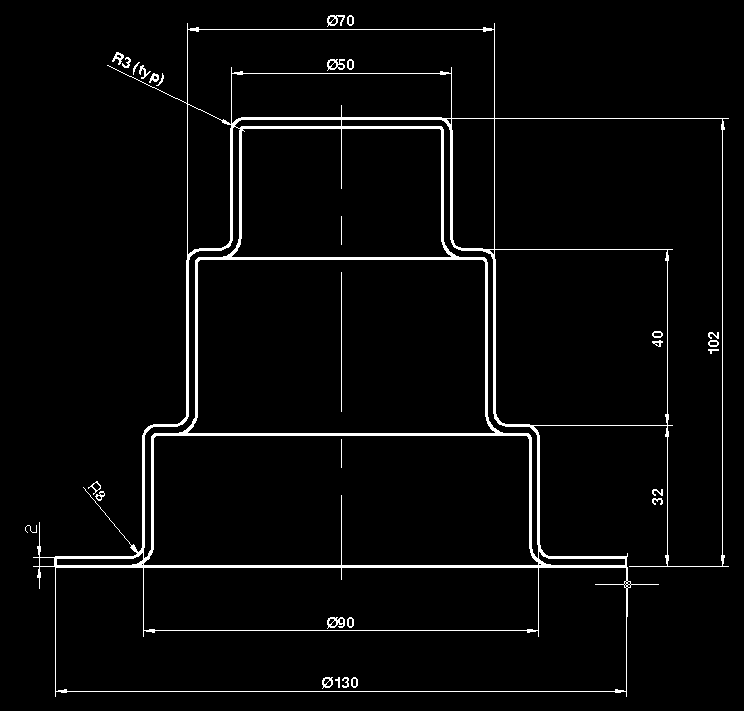

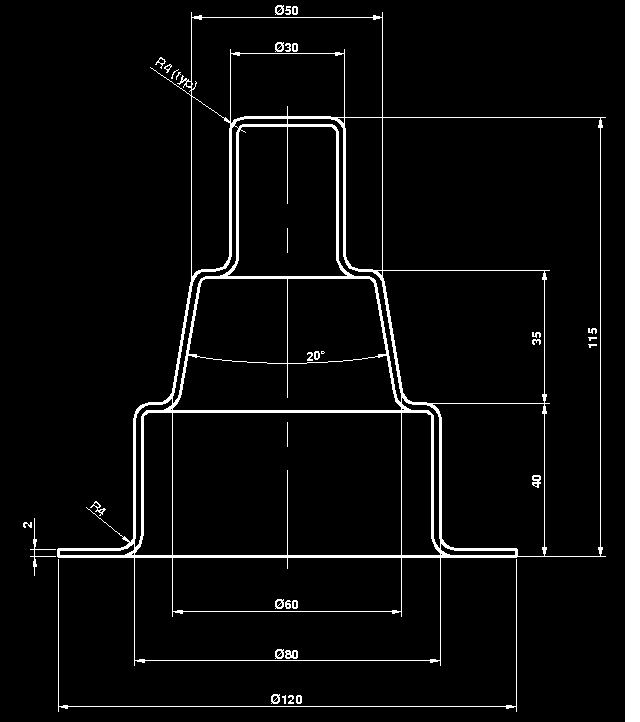

can anyone help me to find no of stages,draw diameters,radius and height o f cup for the diagram .i searched internet and most of the books.i am not able to come to a conclusion for the above stated values.please help in calculating the dimensions of the cup.please share the calculation if anyone have,it would be of great help.
material AISI 1010

Attachments

draw.dwg, 78.1 KB
Download
draw1.bmp, 1.32 MB
Download
draw2.bmp, 1.51 MB
Download

Add your answer to: "deep drawing stages"
