hello all, can anybody tell me how to define the helical shape

By malainine ballali on 05 Dec 22:20 4 answers 1 comment

or should i use a spling to define the shape

Added images

Square

4 answers

  • özgür kesebir
    özgür kesebir 11 months ago

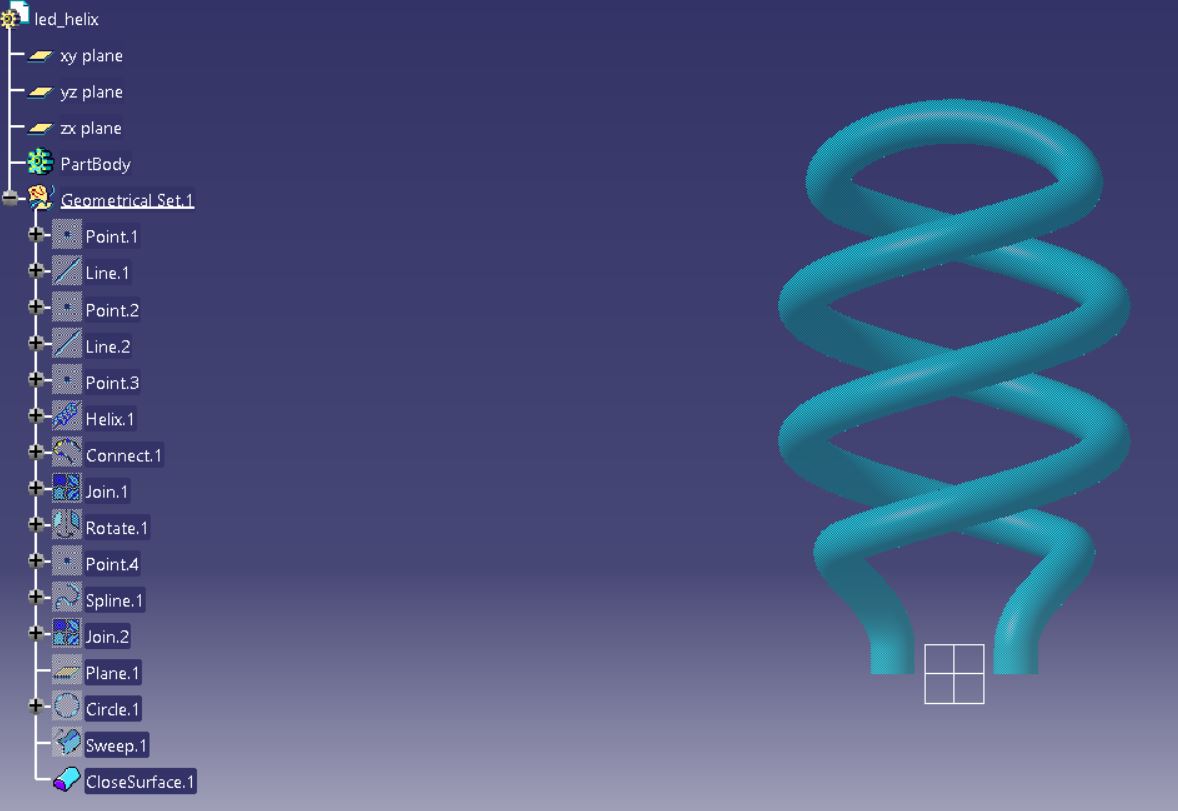

    line + helix + connect curve(between helix and line) = join.1

    rotate "join.1 180 degre" = join.2

    connect curve (between join1 and join 2 on topside) + join.1 + join.2 = join.3

    use sweep to give diameter thickness.
