How can I remove the xyz on parts within my assembly?

By T a on 30 Nov 21:52 5 answers 347 views 3 comments

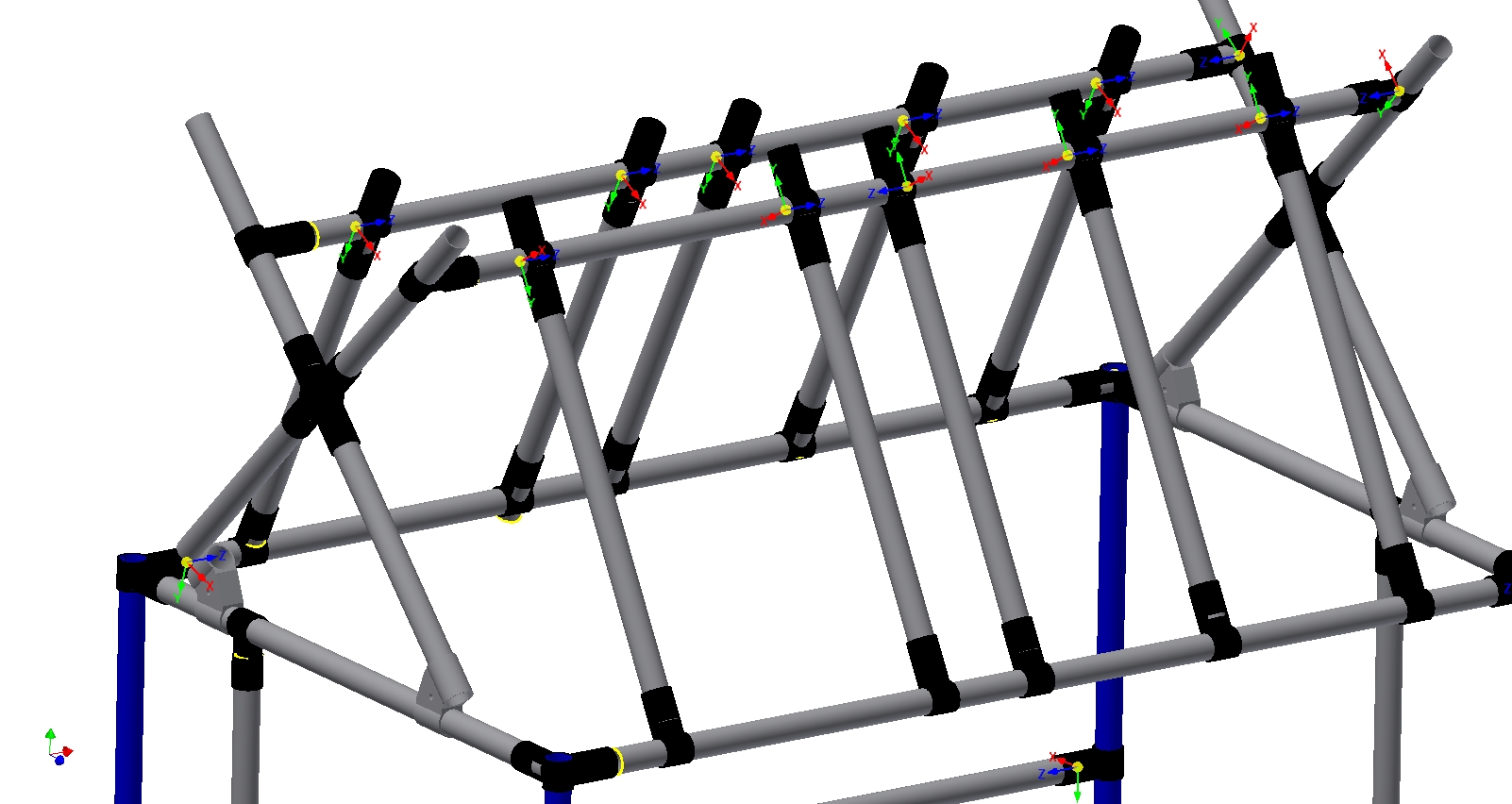

I have a certain number of parts within my assembly(see attachment) that I for the life of me cannot figure out how to remove. If anyone can help solve this I would greatly appreciate it!

Thank you,

Travis

Added images

Square

5 answers

  • T a
    T a 9 months ago

    Darn, that didn't work either. Thanks much though!

  • AnMay
    AnMay 9 months ago

    The symbols look like user coordinate systems (UCS). There are two possible solutions to hide them.
    1. Mark them in your model browser and remove the visibility with the right mouse button. This solution can be saved.
    2. Go to the "View" menu - "Object visibility" and remove the approbriate marking. This solution is only active in your session.

  • T a
    T a 9 months ago

    Unfortunately they are all still there:( I just can't figure it out. Thanks for trying though:)

  • Lauri Link
    Lauri Link 6 months ago

    Open this black part and under view menu is center of mass point button. Click on it, icon looks like BMW logo.

  • Jonathan DeRoner
    Jonathan DeRoner 9 months ago

    Which version of inventor is that? I've never seen it do that before.
