How do you deform a part in spaceclaim? perhaps using scaling?

By 539Designs on 08 Dec 15:32 1 answer 1551 views 3 comments

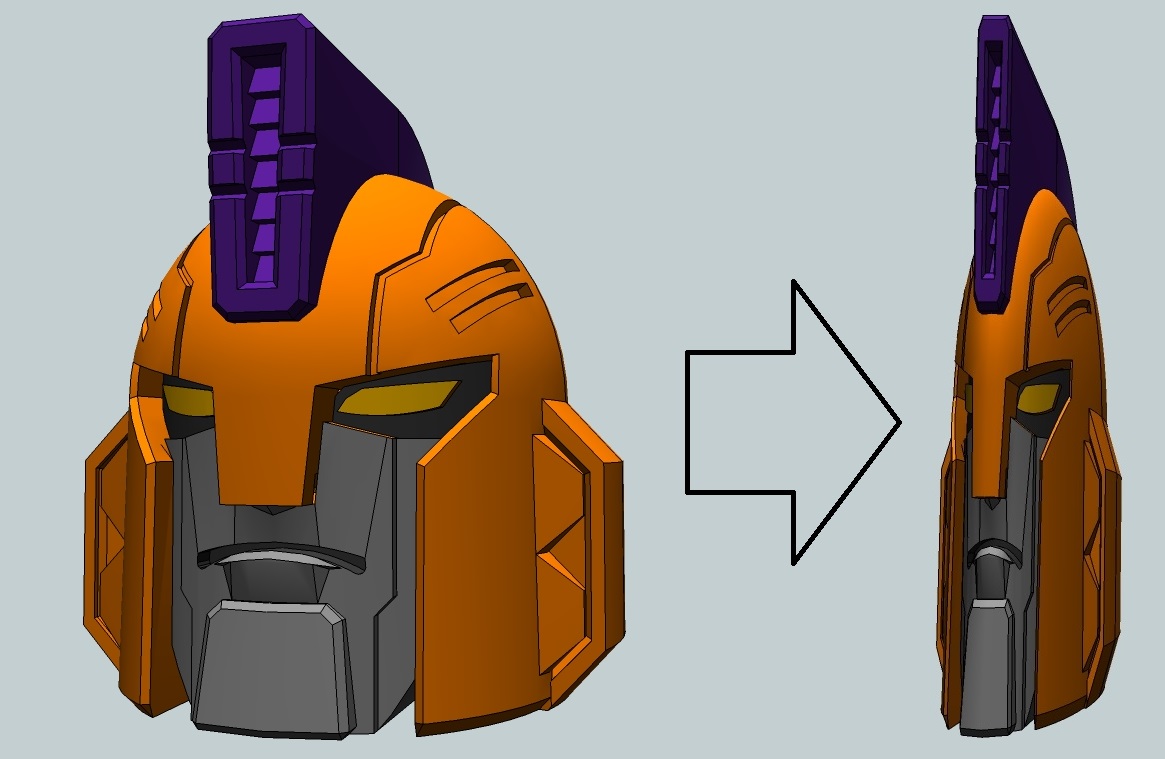

So I think this is called "cage" scale or something along those lines. basically I have a 3d head that I want to flatten into a relief for a coin. so by selecting it i want to scale in only one direction. say along the blue axis for example. It's simple in something like sketchup but I don't want to convert it into a mesh. Any ideas? thanks.

Added images

Square

1 answer

  • 1f160a8b
    1f160a8b about 2 years ago

    OK, in Spaceclaim I find the operation tricky. Being also a user of SketchUp, I agree this could be simpler.
    You need to select your solid, then go to "Pull", and select the tool option "scaling" (a cube with the 6 arrows)
    Then you ALT + click on the axis where you want the scaling to occur and you pull as you would for any other normal operation.

    Hope it helps
