how to create angular 17.29 pad in catia
2 Answers

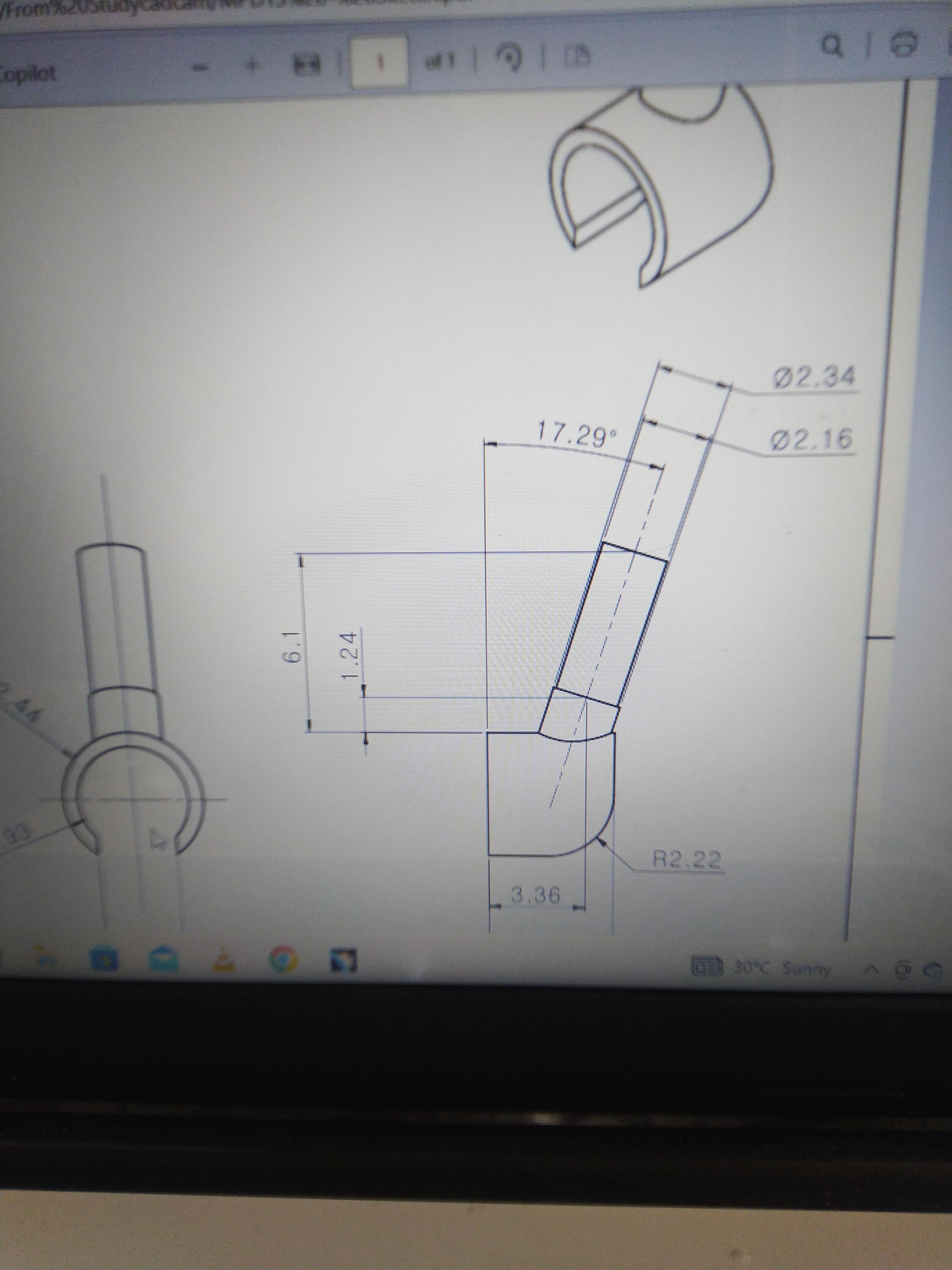

After you make the bottom R44 piece, make a sketch in the vertical, center plane. There you can draw the 17.29° centerline based on the 3.36 and 1.24 dimensions.
use the sweep option, draw a circle with desired radius and draw the path perpendicular to cirlce in which the angle should be
