How to create drawing views if it shows error-"NO 3D ELEMENT IS AVAILABLE TO PROJECT"

By Vivek Kallappa on 28 Jun 16:02 1 answer 0 comments

I'm using CATIA V5R20, the .CATPRODUCT file is not opening (may be that file is created in higher version), so I used .3dxml file.

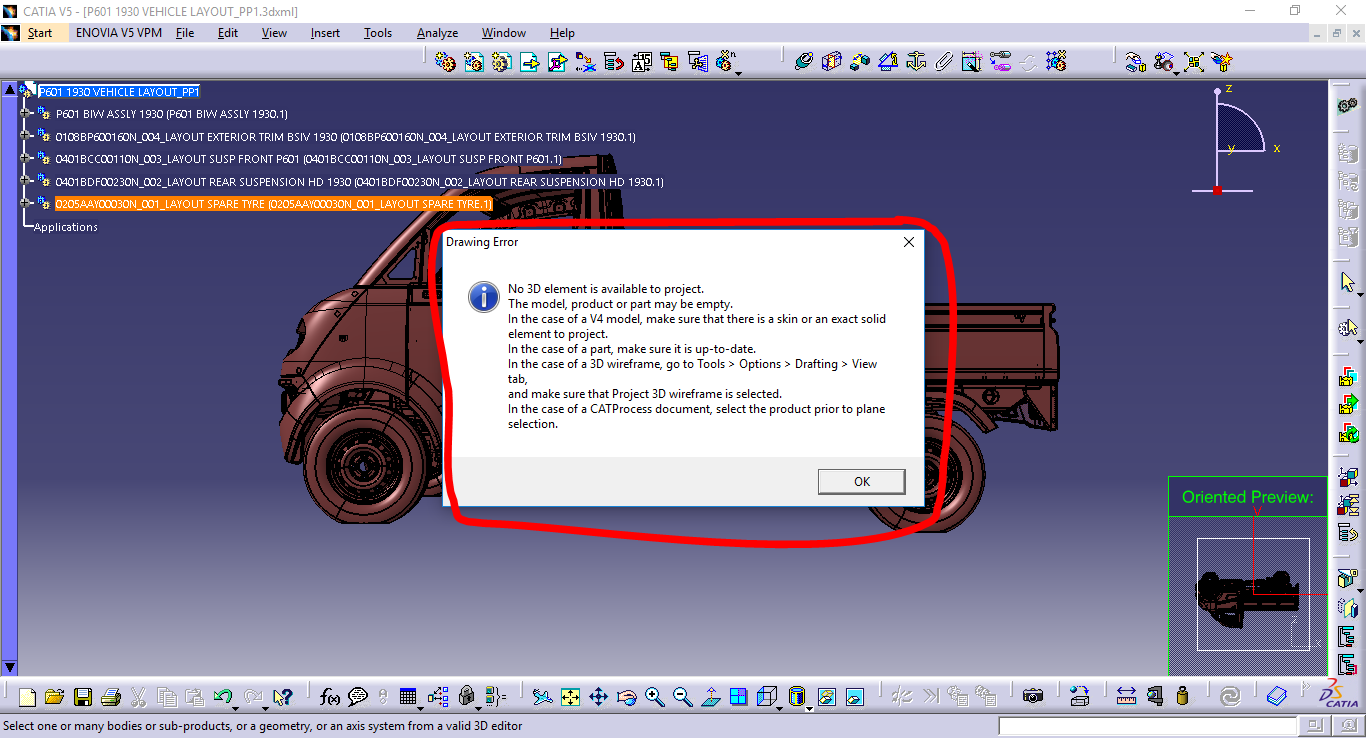

While creating drawing views its showing error(as shown in the photo). I converted the 3dxml file to step and iges, none of them are opening in CATIA and also in Solidworks. Can anyone knows how to fix this error??

Added images

Square

1 answer

Add your answer to: "How to create drawing views if it shows error-"NO 3D ELEMENT IS AVAILABLE TO PROJECT""
