How to draw this part with inventor?!

Eslam Sabry
Eslam Sabry
13 Dec, 2017 06:43 PM

Hey there ,

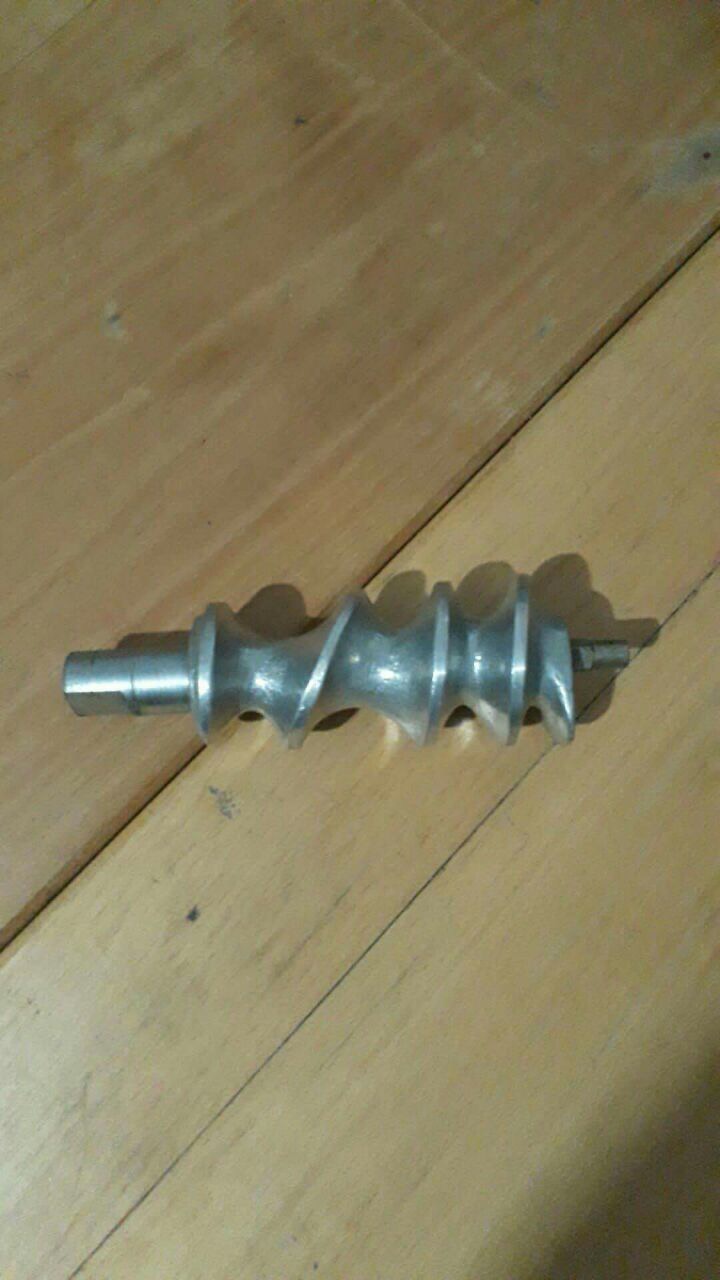

I want to know the accurate way to draw this part in biscuit making machine shown as an attached file
ANY IDEAS !!

23ED7047-6BBC-4DD2-9EDD-1B3BA8D45368.jpeg 23ED7047-6BBC-4DD2-9EDD-1B3BA8D45368.jpeg 23ED7047-6BBC-4DD2-9EDD-1B3BA8D45368.jpeg 23ED7047-6BBC-4DD2-9EDD-1B3BA8D45368.jpeg

4 Answers

mohamed chamali
mohamed chamali
Answered on 13 Dec, 2017 10:47 PM

use equation curve with the cylindrical coordinate to create a helical curve with variable pitch

VR07
VR07
Answered on 15 Dec, 2017 08:09 PM

Another technique is Project Curve to Surface/Wrap to surface

archimedes_screw.ipt
CadCloud
CadCloud
Answered on 16 Dec, 2017 04:02 AM

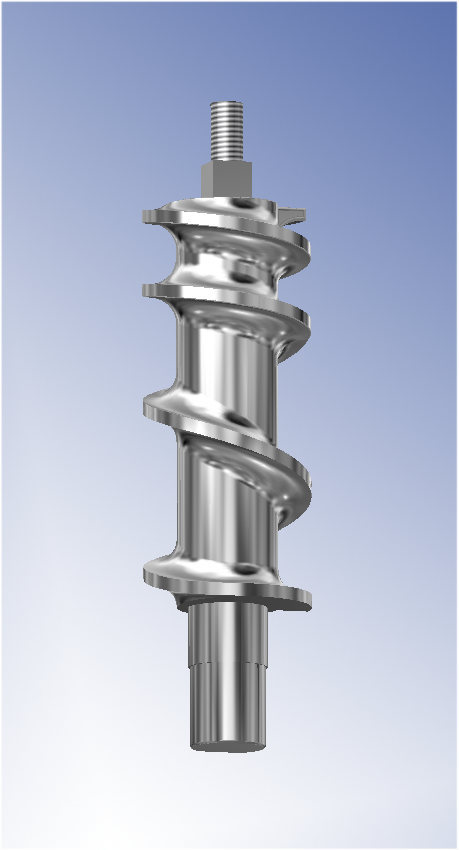

The only way I know is to do a 3D scan of the object as these parts are old Guss parts.
I have however tried to reproduce the part so that the functionality is the same I dont have any measurements so that its guess work.
Hope this helps

Image1.png Image1.png Part1.stp
mohamed chamali
mohamed chamali
Answered on 14 Dec, 2017 03:08 PM

Attached File

vis à pas variable.ipt
