How to import a CATIA part file in ANSYS 13.0?

I am facing difficulty in importing a CATIA solid part file from in ANSYS . Moreover CATIA file *.par cannot be converted to parasolid format which ANSYS can accept.

Answer

Comments 0

8 Answers

1.Create model in catia

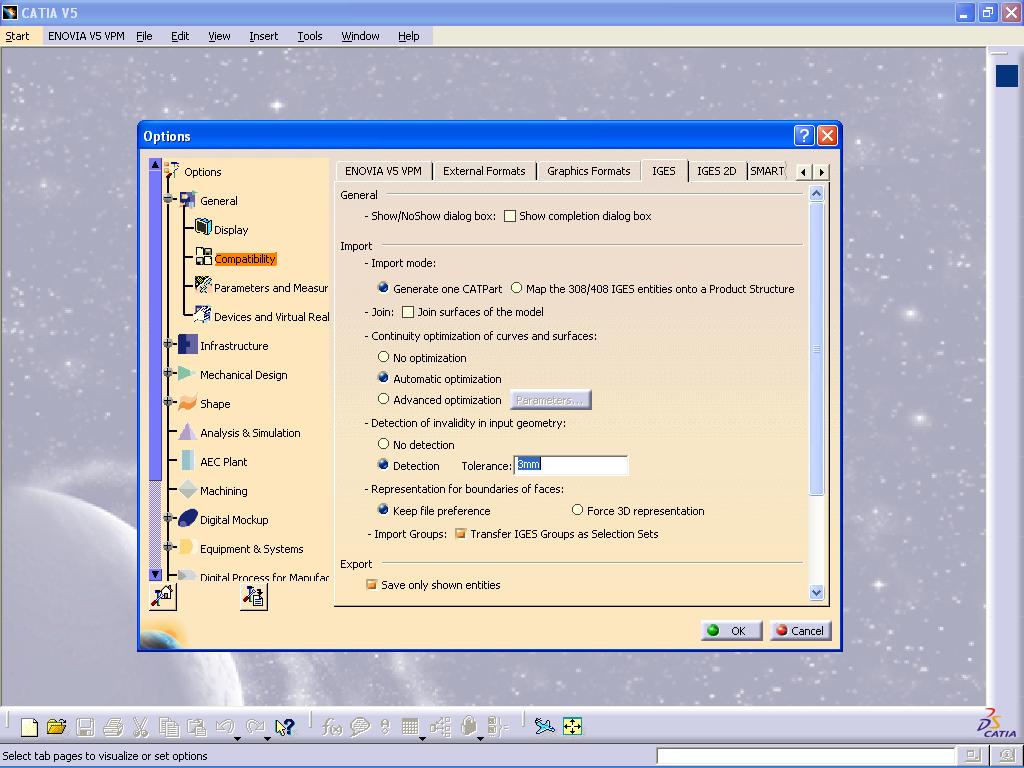

2.Tools-->Options-->General-->Compatibility-->IGES-->Representation Mode-->Activate Sold-Shell instead of Surface or B-Spline
3.Save as .igs
4.Bang on Boy

Regards

Sathya


Comments 0

Try to exported as a IGS, had worked for me


Comments 0

better do it through solidworks ..............as solidworks has wide range of database.....it accepts catpart...and u can export it to ansys


Comments 0

Save file as IGFS and import in Ansys.....


Comments 0

IGS format can only be used for suface models ..wat about solid part.?


Comments 2

save catia file in IGS format and open that file in Pro-e save again in IGS format and select as solid then import in to ANSYS


Comments 0

Good afternoon,

If ANSYS is installed on the same computer with Catia, than the import is through 1 click. If not, I recomand to export first as parasolid your model, and second as iges.

Keep in touch.
Best regards.
