how to make a multi section solid on this sketches

By SATYAM KUSHWAHA on 30 Jun 08:41 5 answers 4990 views 8 comments

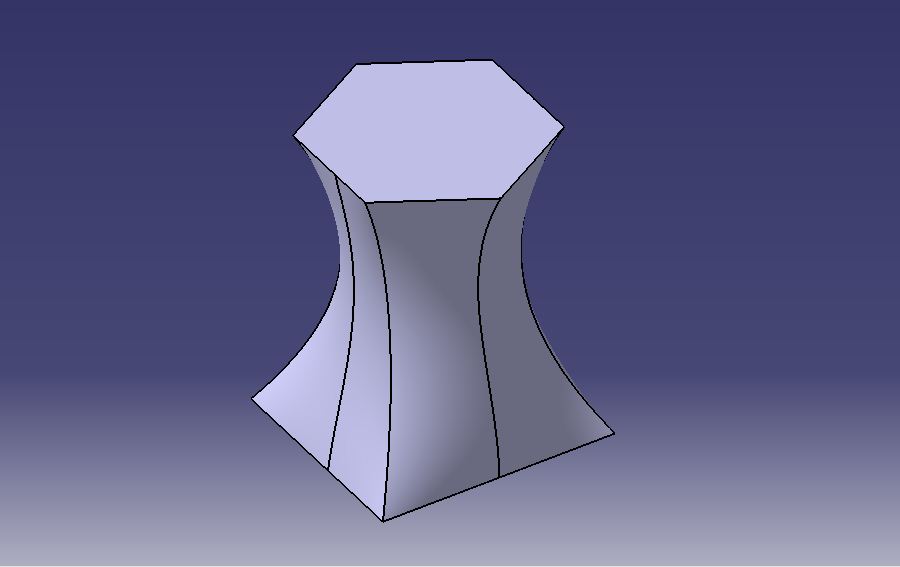

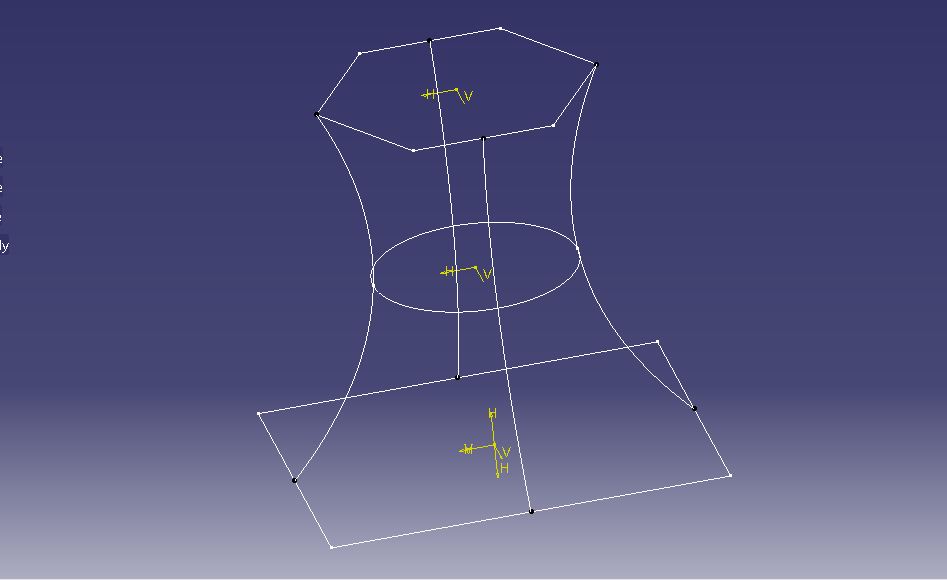

when i am making a multi section on a rectangle and circle it accepts but while making a multi section on a hexagon and a circle it shows some error .......the question is to make a multi section solid on a hexagon on the top after a circle in the middle and a rectangle at the bottom i am applying guide curves but then also it is showing some errror..............just see the attached catpart file after applying four guide curves error is coming i have attached the pic

Added images

Square Square

Attachments

multi section.CATPart, 71.1 KB
Download

5 answers

  • vinoth
    vinoth about 3 years ago

    check it here .. its in part design.

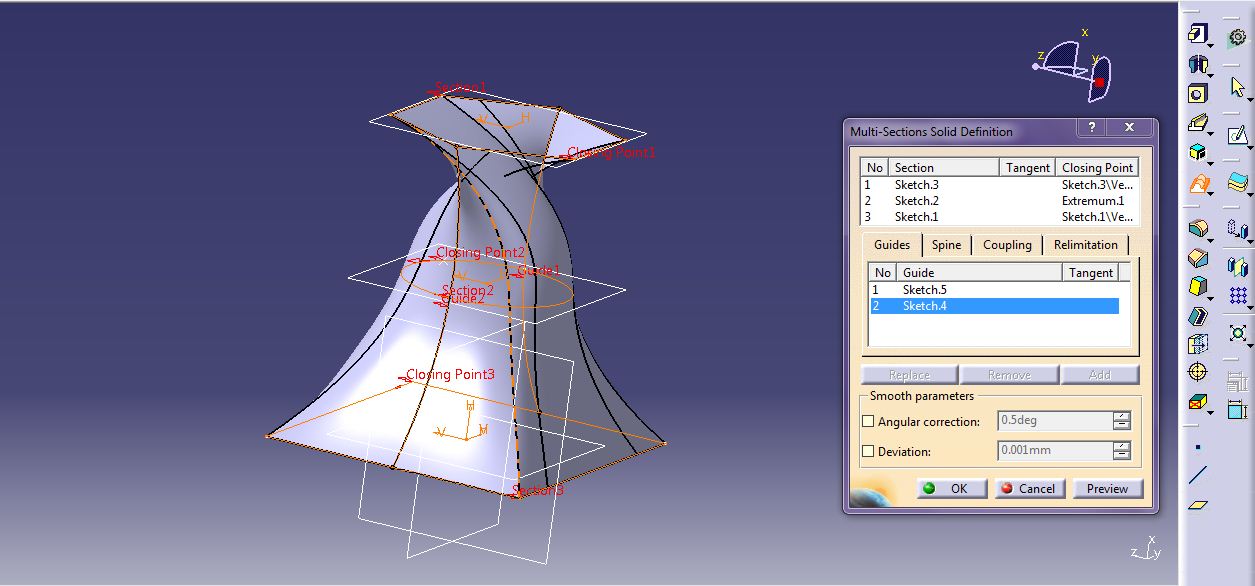

    Closing point should in same direction and same line point... please check my model specifically closing point.

    Attachments

    multi section.CATPart, 516 KB
    Download
  • SATYAM KUSHWAHA
    SATYAM KUSHWAHA about 3 years ago

    yes sir u whre right the closing point of the secctions where not in the same line
    just see my model pic

  • Austin R.
    Austin R. about 3 years ago

    Hi,

    Here is step of how to make a multi section solid on this sketches follow here:

    This task shows how to create a multi-sections solid.
    You can generate it by sweeping one or more planar section curves along a computed or user-defined spine. The feature can be made to respect one or more guide curves. The resulting feature is a closed volume.

    Open the Multi-sections.CATPart document.

    1.Click Multi-sections Solid .
    The Multi-sections Solid Definition dialog box appears.

    2.Select the three section curves as shown:
    They are highlighted in the geometry area.

    3.The Multi-sections Solid capability assumes that the section curves to be used do not intersect.

    4.Click Preview to get an idea of the feature to be created.
    You can note that by default, tangency discontinuity points are coupled:

    5.In the Smooth parameters section, you can check the following options:

    >Angular Correction:
    >Deviation:

    If you are using both Angular Correction and Deviation parameters, it is not guaranteed that the spine plane be kept within the given tolerance area. The spine may first be approximated within this deviation tolerance, then each moving plane may rotate within the angular correction tolerance.

    6.For the purpose of our scenario, you are going to use guide curves. Click the Guide field and select the four joins. The curves to be used must be joined.
    They are highlighted in the geometry area.

    It is possible to edit the multi-sections solid reference elements by first selecting a curve in the dialog box list then choosing a button to either:
    >Remove the selected curve
    >Replace the selected curve by another curve.
    >Add another curve.

    By default, the application computes a spine, but if you wish to impose a curve as the spine to be used, you just need to click the Spine tab then the Spine field and select the spine of your choice in the geometry.

    7.Click OK to create the volume.
    The feature (identified as Multi-sections Solid.xxx) is added to the specification tree.

  • vinoth
    vinoth about 3 years ago

    hi... please go through the attached file.

    Regards
    Vinoth

    Attachments

    multi section.CATPart, 467 KB
    Download
  • necmiyildiz5
    necmiyildiz5 about 3 years ago

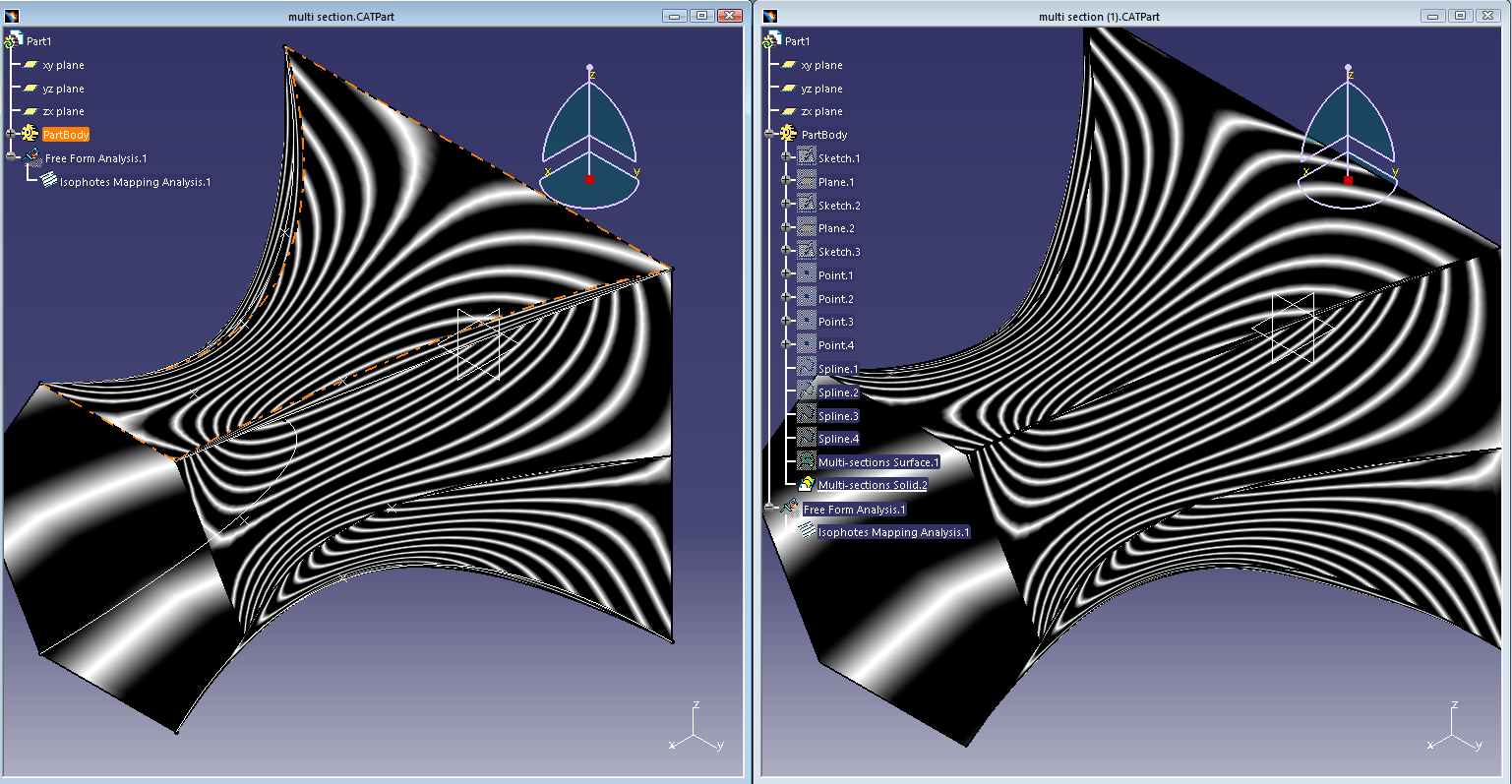

    Hello SATYAM,If use coupling, could get better surface quality.

    Attachments

    multi section.CATPart, 300 KB
    Download
