How to make a step bending / partially bend in solidworks?

Azrael
Azrael
4 Jul, 2012 08:02 AM

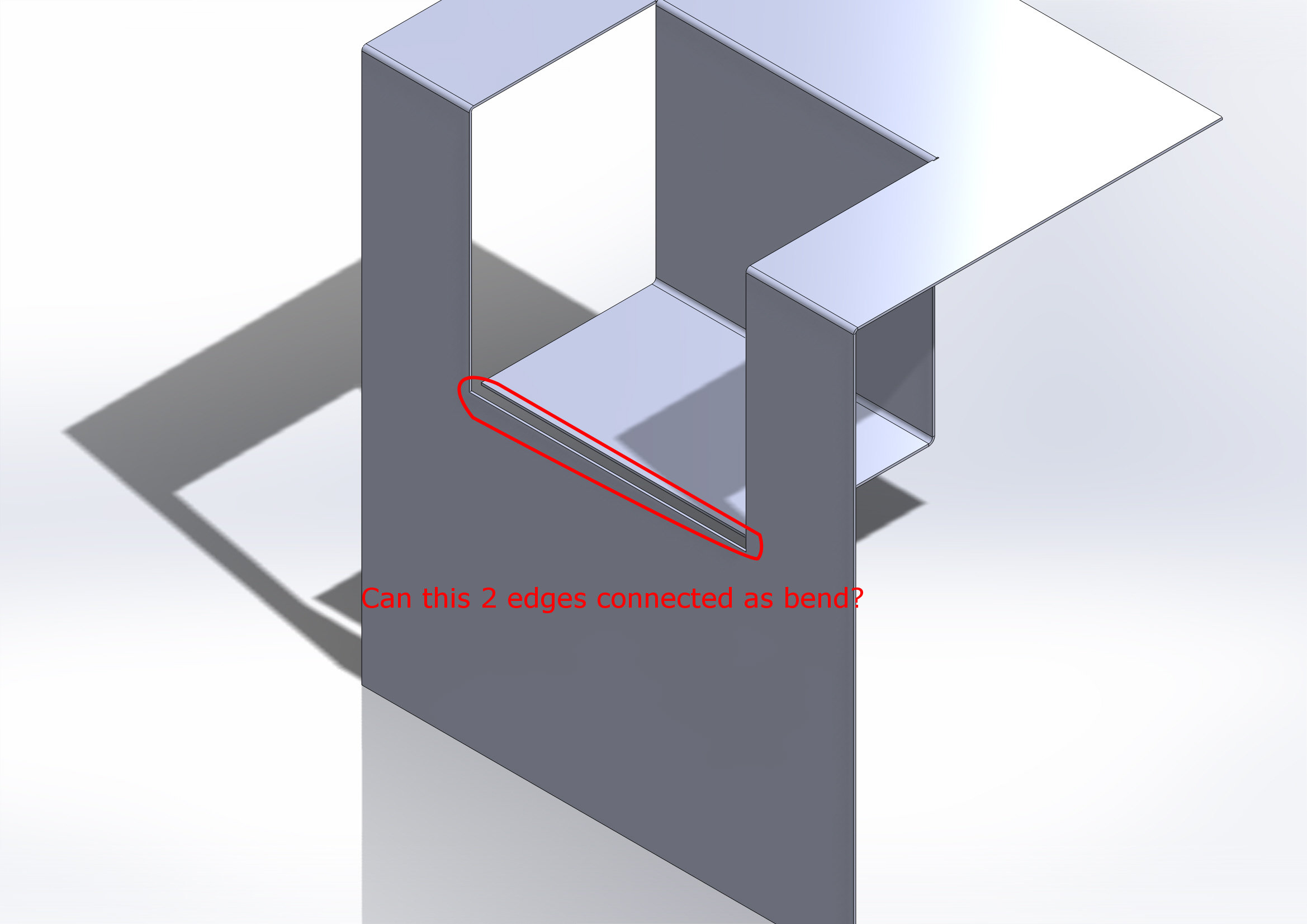

I'm now trying to make packing box in Solidworks using Sheet Metal feature. But I found that it does not allow me to do a step or partially bend edge. Do anyone know how to make it in Solidworks?

Part1.JPG Part1.JPG L-BRKT_W_ID_BENDS.JPG L-BRKT_W_ID_BENDS.JPG

2 Answers

Dick Lowe
Dick Lowe
Answered on 4 Jul, 2012 11:09 PM

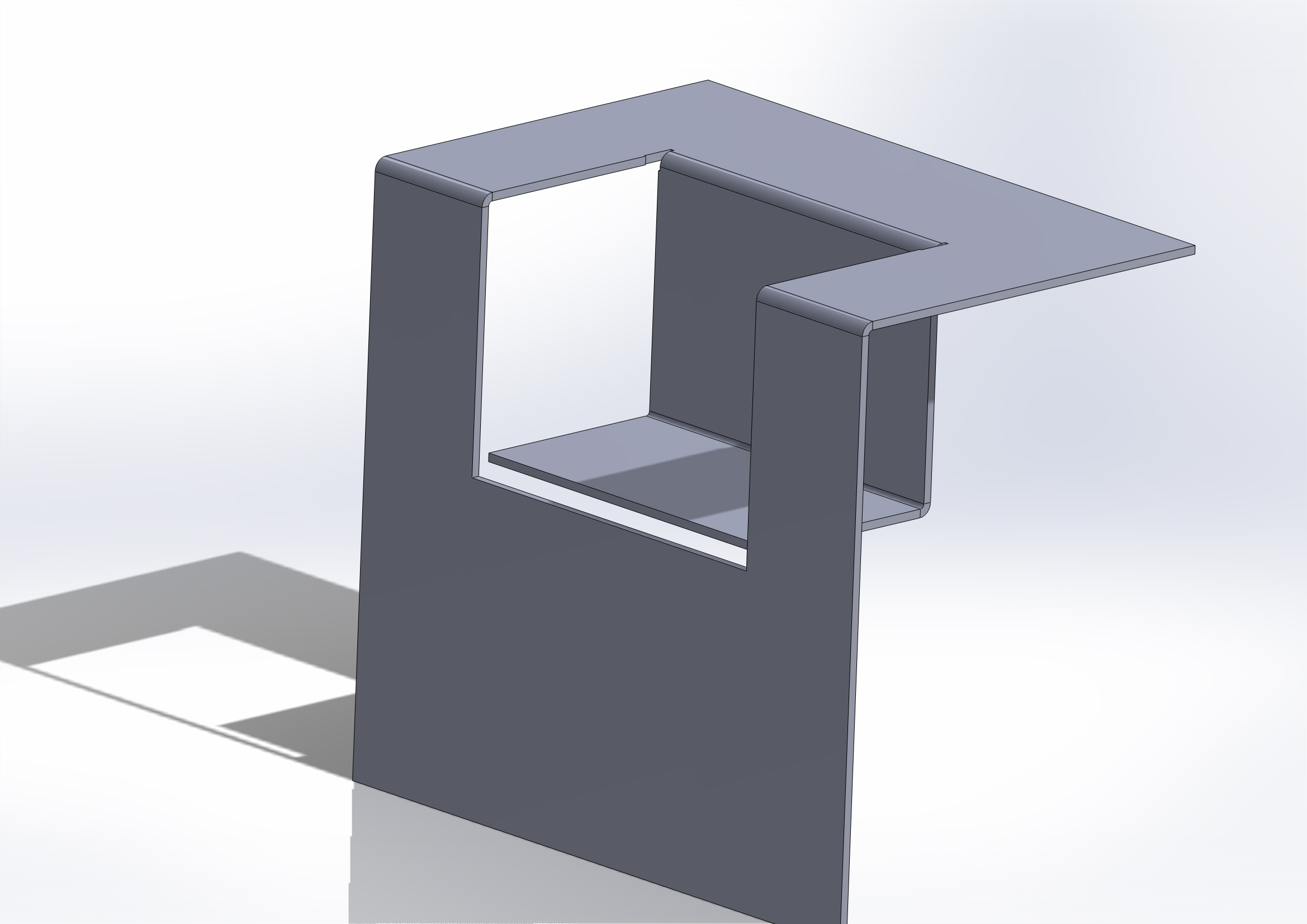

Hope this helps...

How to make a step bending / partially bend in solidworks? Q:A

Tomica Vukovic
Tomica Vukovic
Answered on 7 Jul, 2012 03:48 PM

See my models here in library "Sheetmetal plate bending example" and "Bucket" example.
