How to model fan conver in Inventor?

Hi,

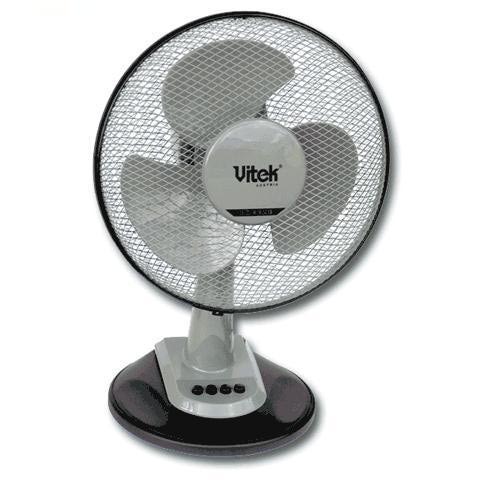

I have a problem with fan cover. I just do not know how to do it.
Ofcourse, I can do it wire by wire, but i want more faster way.

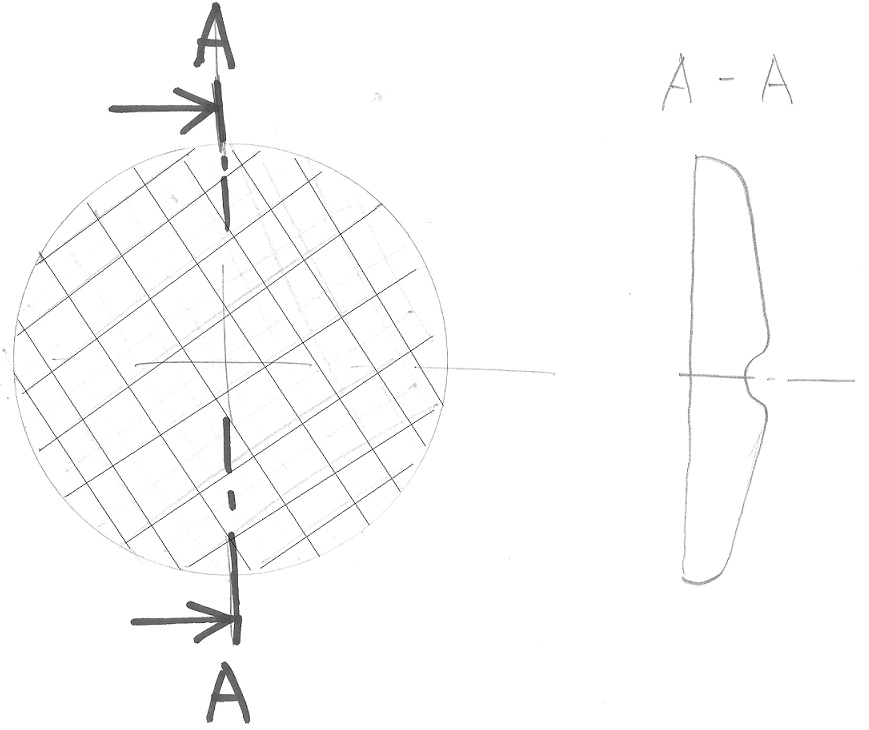

Task
http://s11.postimage.org/xbv6khy03/Untitled.jpg

I did it.
Fan cover

Answer

Comments 0

3 Answers

Have a look at http://grabcad.com/library/fan-grill--1

This is a generated by drawing a surface onto which a number of 3D curves are projected. A circular profile is then swept along each curve.

Its rough and ready but gives a possible solution


Comments 0

There is a easy way and a hard way to do everything, I think you are just over thinking how to make this model....

Make one wire part and then just revolve it.
:P
