How to model rectangular helix

amin shafa
amin shafa
16 Mar, 2017 08:10 AM

Hi guys i wanted to model rectangular helix pipe with helical thread inside it i wanted to know is it possible to do it in catia and what command and procedure i need to flow

Thanks

1 Answer

Jack K
Jack K
Answered on 16 Mar, 2017 04:36 PM

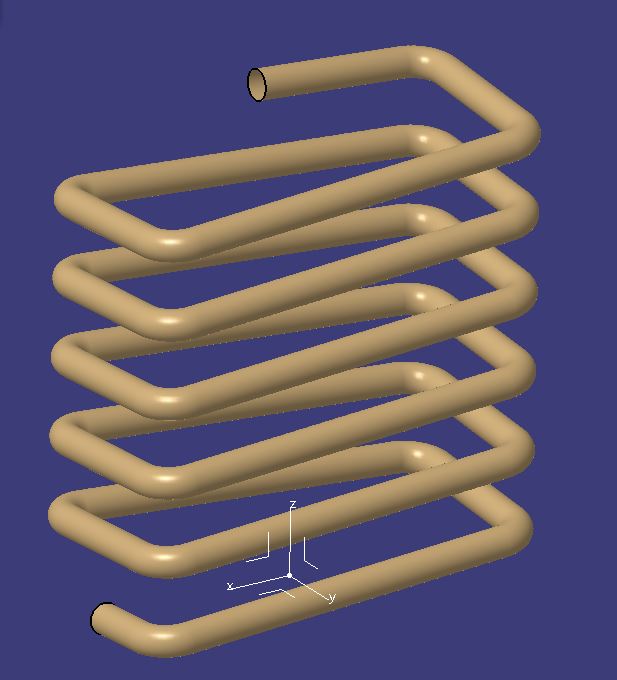

something like this? but what do you mean by "helical thread inside?"

rect helix.JPG rect helix.JPG
