How to model this...?

By Cesar Morales on 25 Aug 18:06 3 answers 2 comments

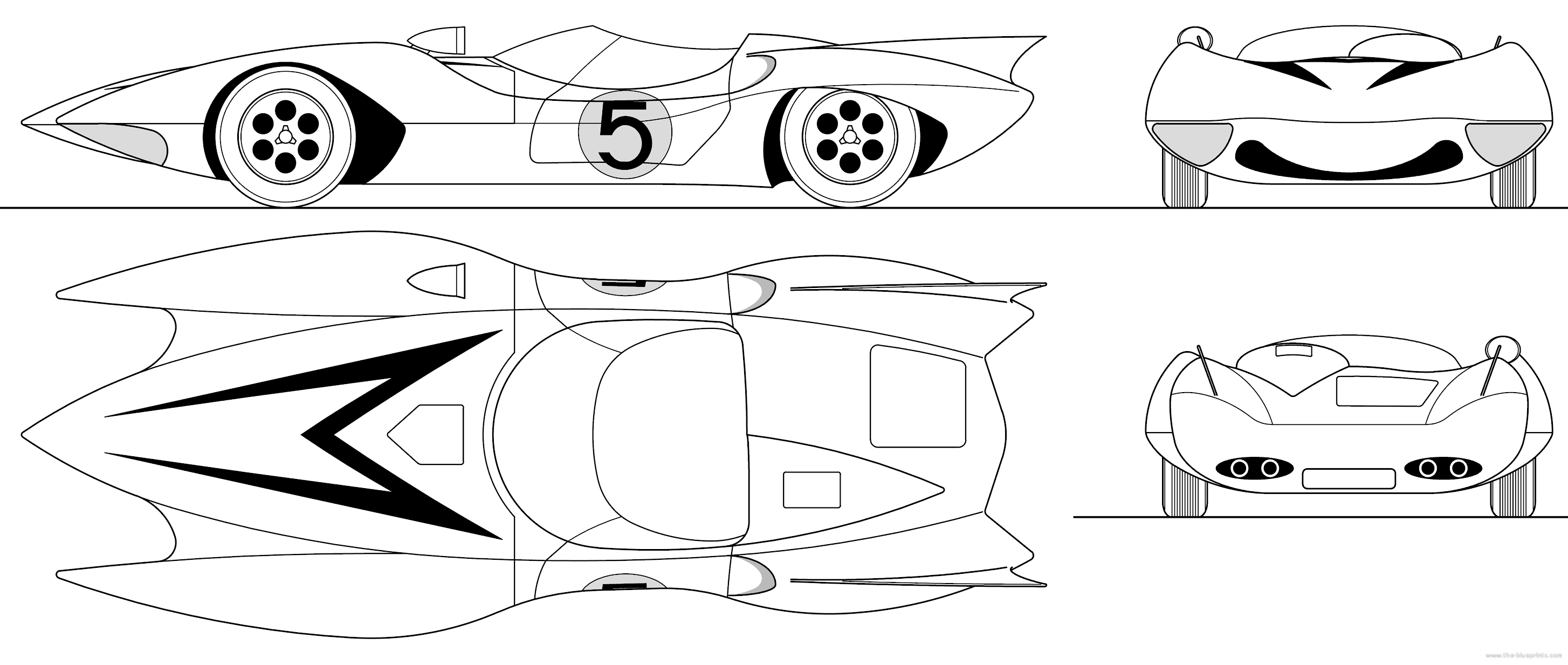

Hey guys, i have this concept for a new luminaire but i can´t model it at SolidWorks, could someone help me to do it? My idea is based in the MAX5, specially in the hood, so thisl should be model with the shell tool.

Cheers!

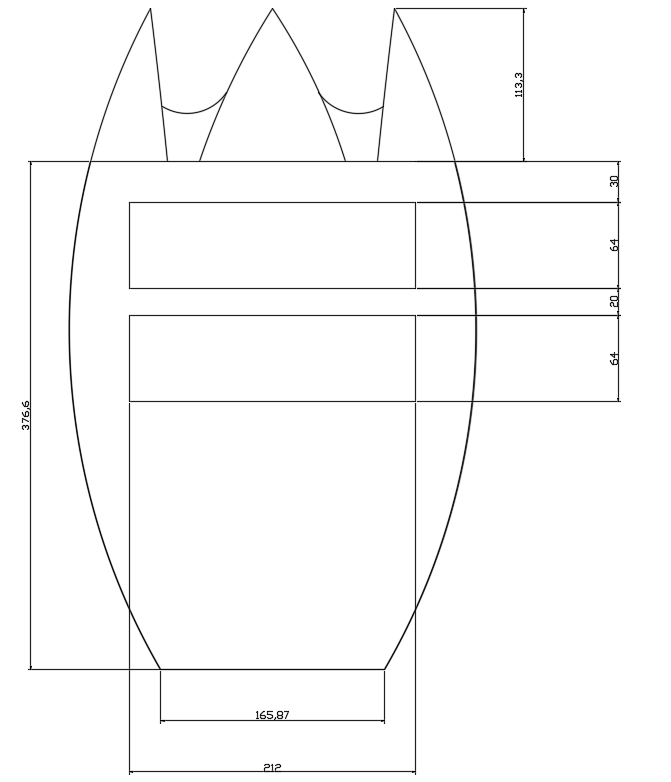

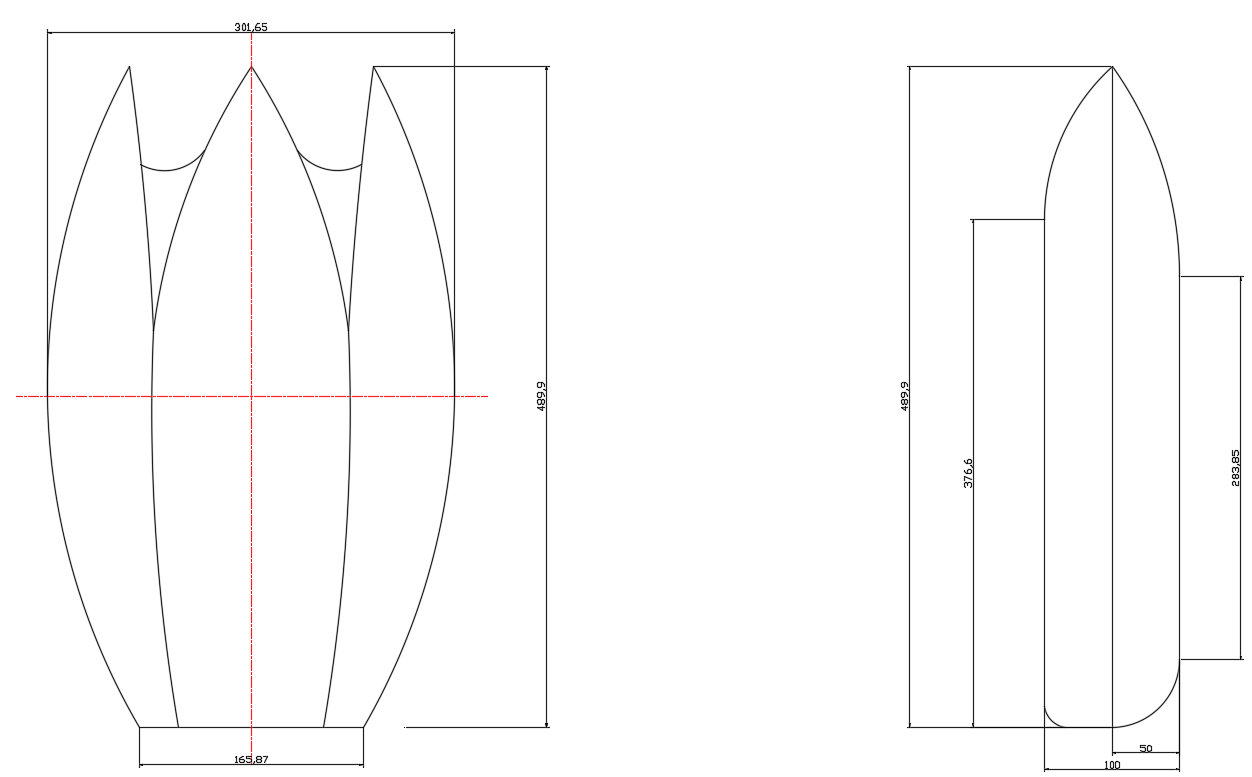

Added images

Square Square Square

3 answers

  • Jonathan DeRoner
    Jonathan DeRoner about 1 year ago

    Do you know if solidworks allows you to import images into a sketch? I do it all the time in Inventor and the scale the images in the sketch mode and then "trace" the outlines of the object in each view. This helps to at least get the shape of the figure started.
