How to model union between parts in solidworks simulation?

By Agustin Benitez on 25 Jul 21:50 1 answer 4 comments

I have an assembly, and the parts that form it are supposed to be welded. In the past I have used rigid unions and the results came out fine. In this case, the parts are not sticking together.

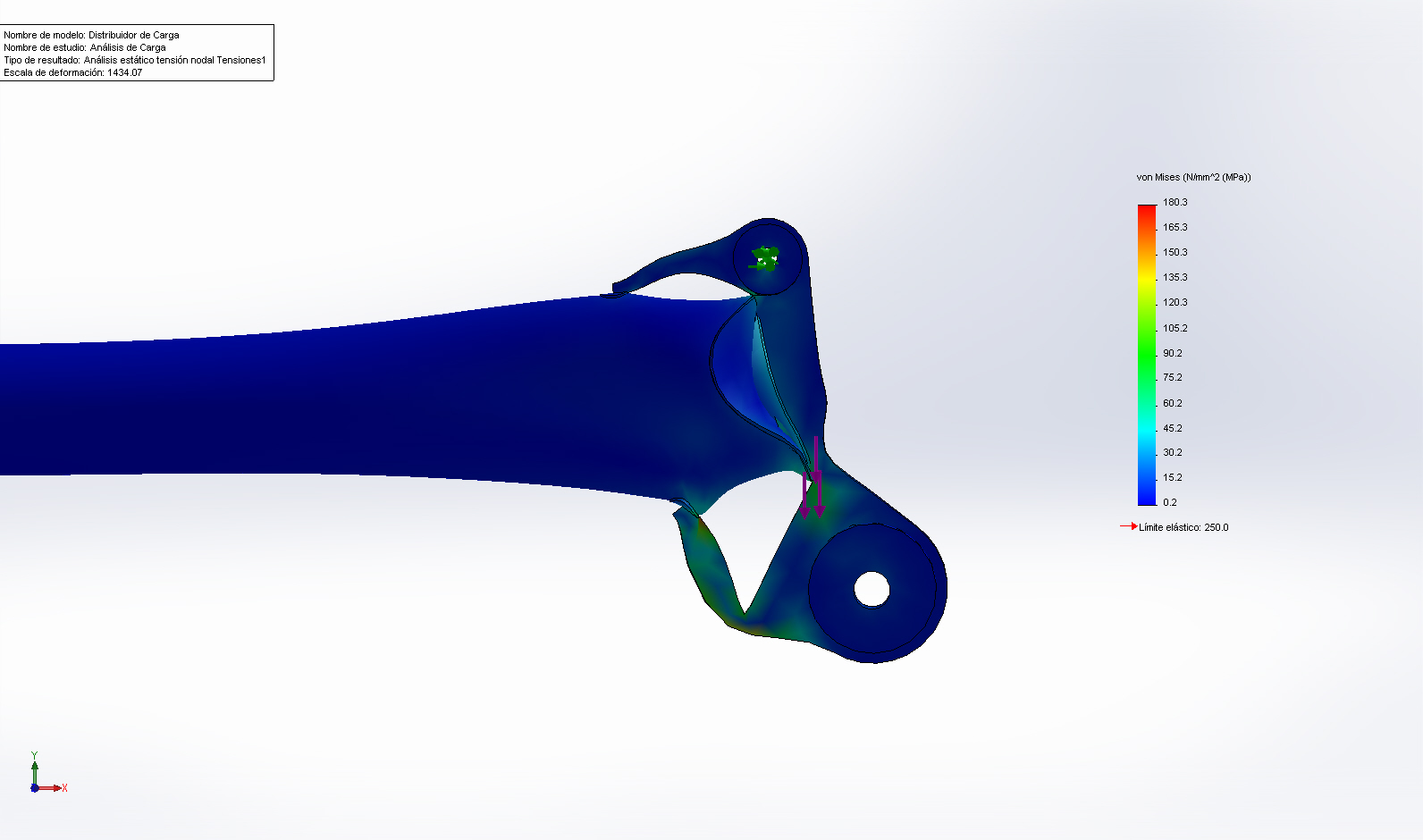

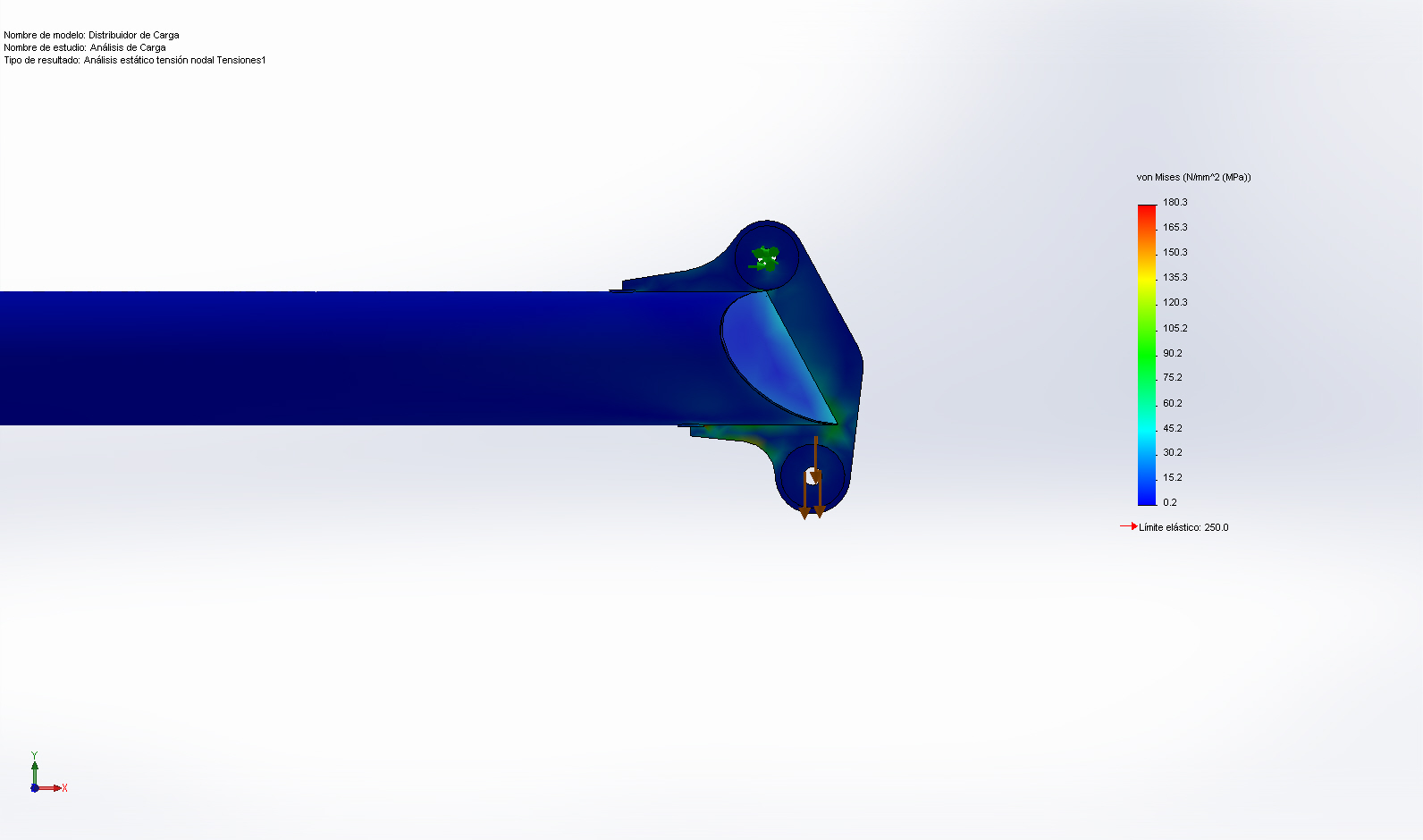

I'm uploading the model and a couple of screenshots.
Any help will be appreciated.

Added images

Square Square

Attachments

Distribuidor de Carga.SLDASM, 357 KB
Download
Cuerpo.SLDPRT, 242 KB
Download
Disco.SLDPRT, 172 KB
Download
Placa de Ojales.SLDPRT, 280 KB
Download
SimetríaPlaca de Ojales.SLDPRT, 102 KB
Download
SimetríaSimetríaTapa.SLDPRT, 77.5 KB
Download
SimetríaTapa.SLDPRT, 77 KB
Download
Tapa.SLDPRT, 174 KB
Download

1 answer

  • Hein Miessner
    Hein Miessner about 3 years ago

    You can define an edge weld in solidworks simulation. Right click on connections in the design tree when in solidworks simulation and select edge weld. Define your edge weld here and solidworks will model it in simulation as joint parts.
