How to remove space between prefix r and value in drafting (CATIA)

Lê Văn Ngà
Lê Văn Ngà
27 Sep, 2023 02:51 AM

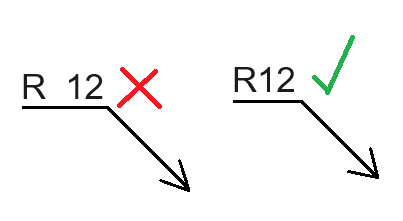

I want to remove space between prefix R (fillet) and value in drafting (CATIA). Is there any way? Thanks

23927.png 23927.png

1 Answer

Jack K
Jack K
Answered on 27 Sep, 2023 07:16 PM

Assuming that is a Radius Dimension and not a Text With Leader, you have to edit the drafting standard (ISO ?) to change the distance between the R and the value. And you need to have Admin privileges' to do that.
