How to trace a picture or image in catia and converting it into surface or solid

By BDNS Murthy on 02 Jul 08:26 6 answers 50371 views 21 comments

Look down for the tutorial

6 answers

  • BDNS Murthy
    BDNS Murthy about 4 years ago

    IF ANY DOUBTS FEEL FREE TO ASK ME. DOUBTS ARE WELCOMED

    Answered with a tutorial: https://grabcad.com/tutorials/how-to-trace-a-picture-or-image-in-catia-and-converting-it-into-surface-or-solid

  • laxman
    laxman almost 4 years ago

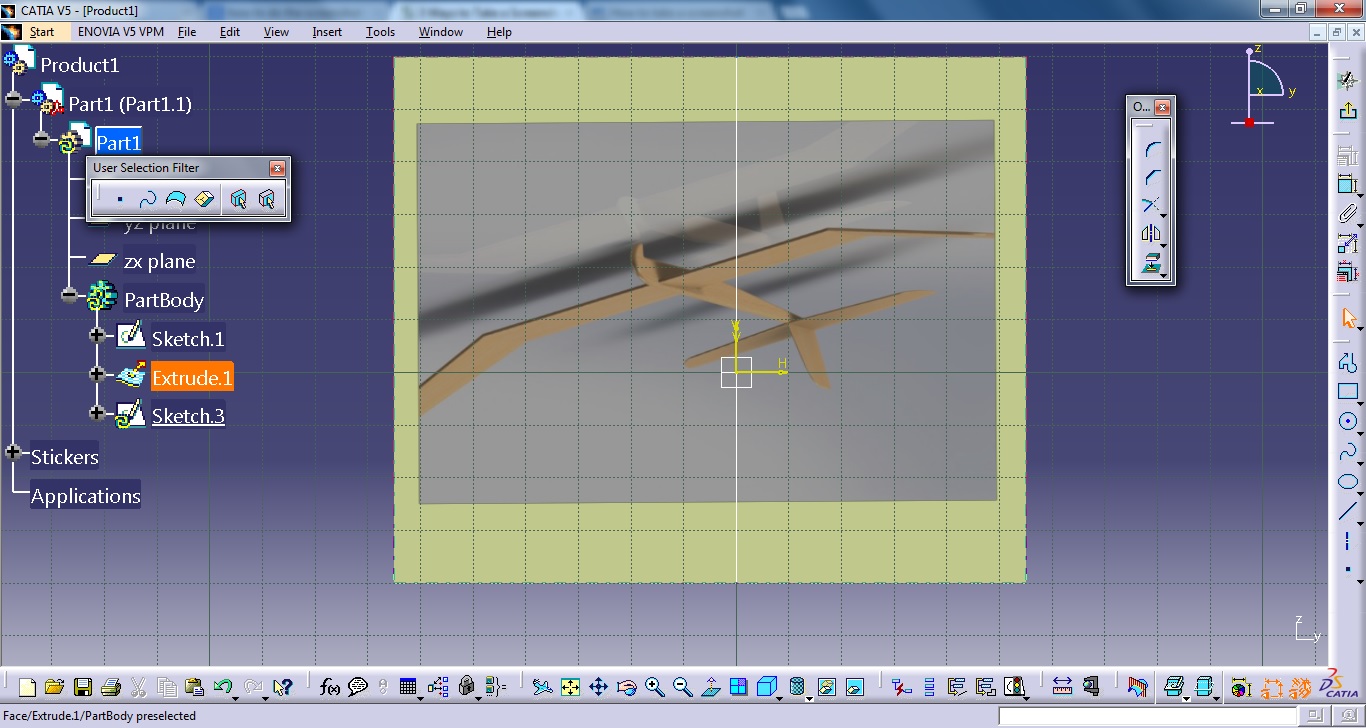

    this is what happening in my case

  • Caddy
    Caddy almost 4 years ago

    There is a nice and easy software on the market for just this purpose.
    It is not infallible but can solve most of your Pdf to 2D convertions.

    Aide Pdf to DXF Converter

  • praveen
    praveen about 4 years ago

    but... in catia v6 how to do same work plz tell me

  • Nolan Bridges
    Nolan Bridges over 2 years ago

    Install Inkscape, it's freeware and easy to create DXF files. Open the image up in Inkscape, then select it in Inkscape. Then, go to Path -> trace bitmap, then select edge smoothing or something like that. Click ok then go close the window. Drag the original image away and then delete it. The remaining image should be an outline. Save the final product as a DXF file and then open it up in your CAD program.
