How to unfold a belt based on offset surface

Question by lololamoto

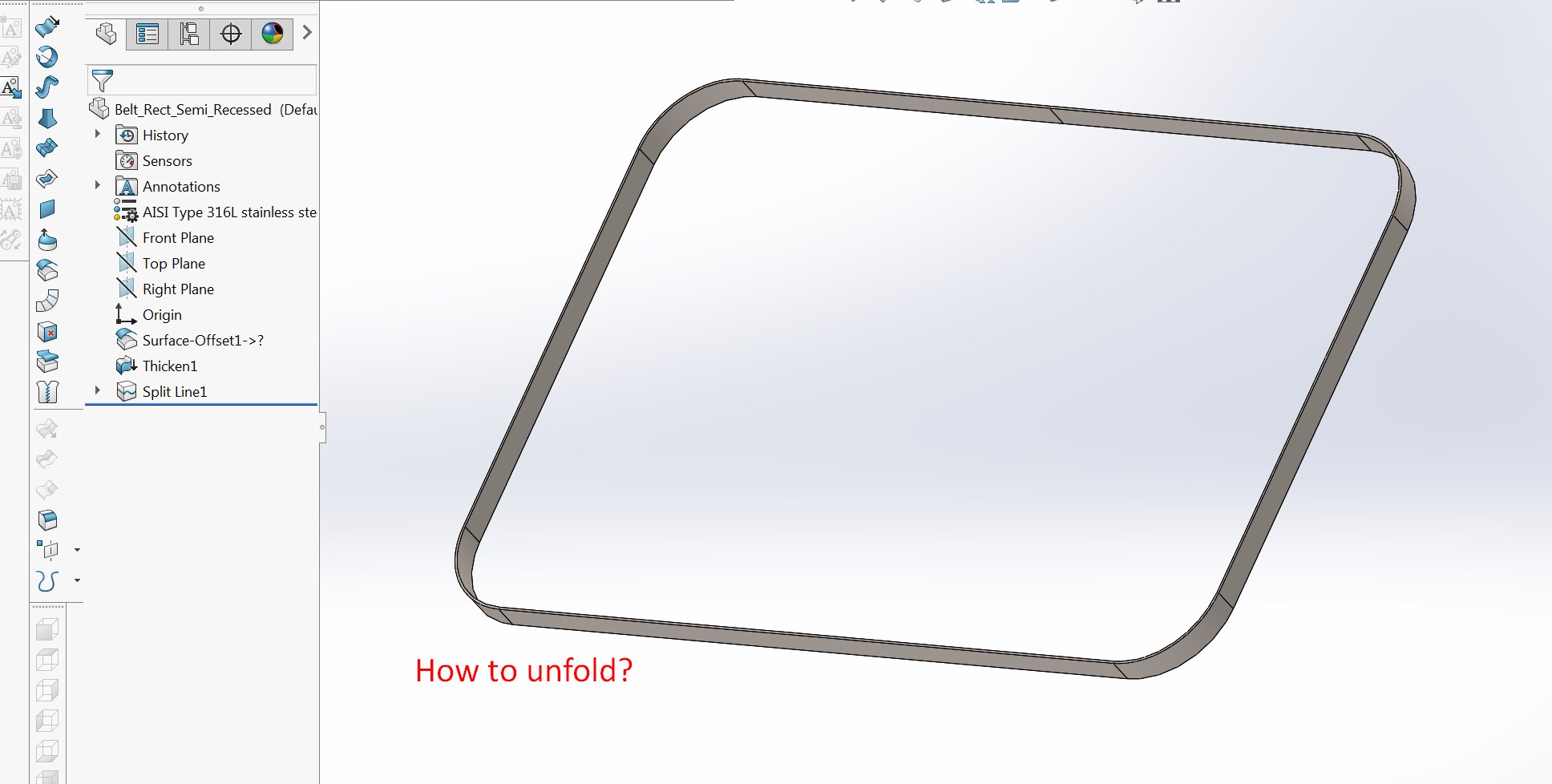

Hello, I need to make a cut out drawing for laser cut for a part that have been done using an offset surface.
Can someone explain me how to achieve it.
One is rectangular, another one is circle.
I tried with Flex but never get it right.
Thanks

Answer

Comments 0

4 Answers

Asafe Nobre
Answered on 4 Dec, 2017 05:17 PM

I don't know how exactly to do it in Solid but in Inventor you have to make a cut (just like i think you did in the top middle of your profile) and proceed a command to unfold it, make sure the thickness of your part matches the rule thickness set.


Comments 0
Mashi
Answered on 4 Dec, 2017 05:28 PM
lololamoto
Answered on 4 Dec, 2017 07:25 PM

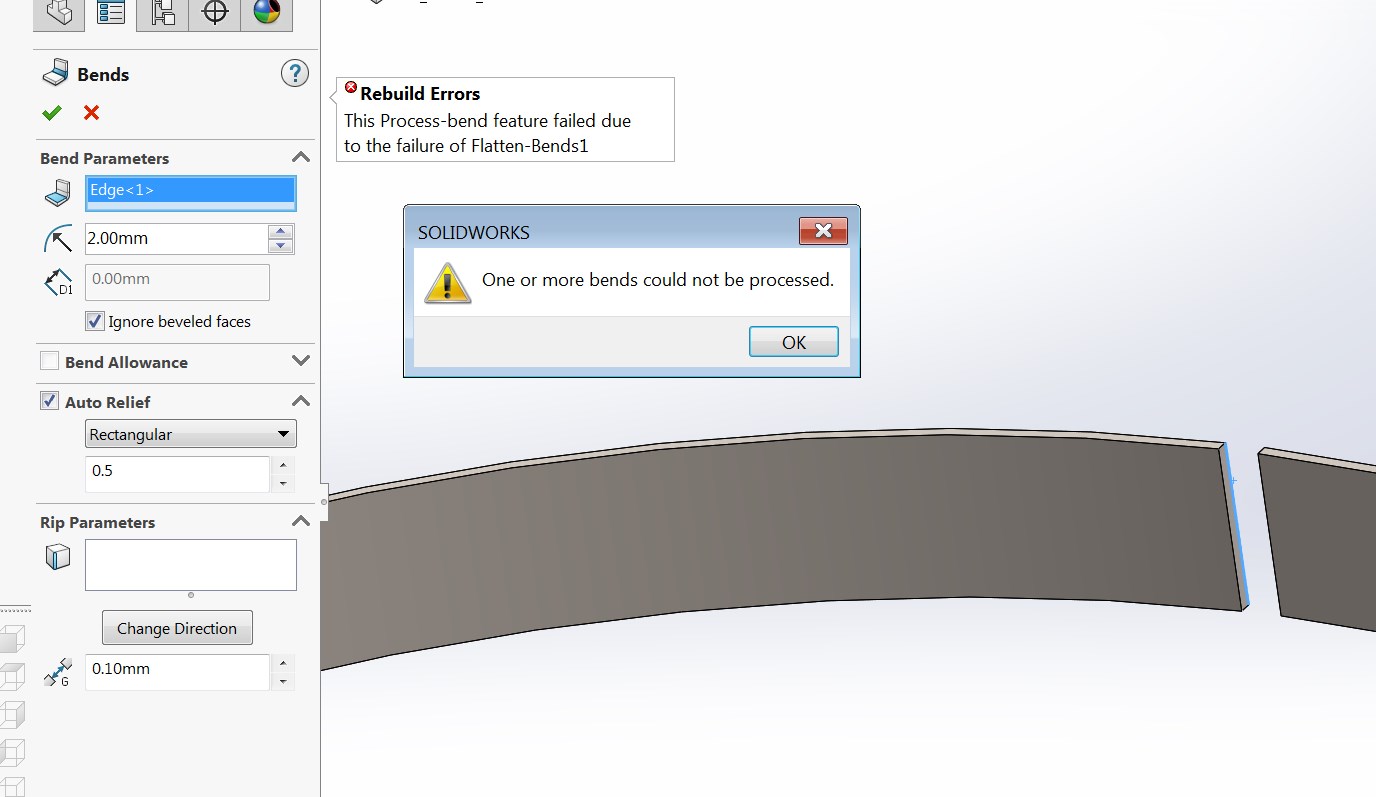

This is the type of message I got while using insert Bends.


Comments 0
MALLIAS
Answered on 8 Dec, 2017 08:09 PM

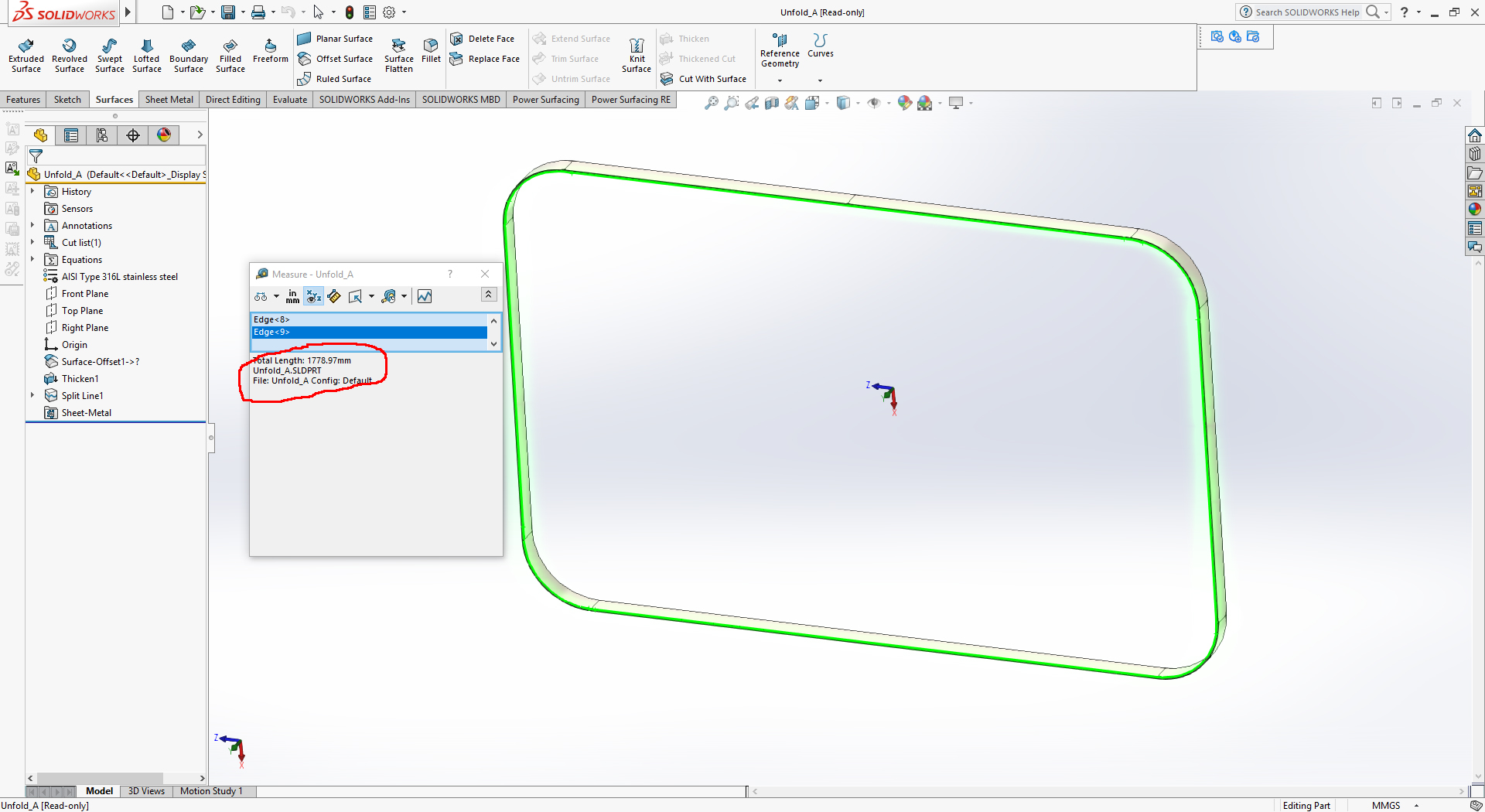

Why are you trying to flatten such an easy piece of geometry? It is just a simple rectangle when flattened....You just need to measure the lenght of the inner loop (tools/evaluate/measure) and draw a simple rectangle as flat surface for cut .
