Making Hole Without warnings

Darkhan Otegen
Darkhan Otegen
9 Aug, 2020 10:57 AM

I want to make a hole as in the video to my model. However I can't make it due to warnings. I don't know how to avoid them. Moreover, other rib-liked extruded boss must be merged with this hole as before. Can you help me, please

SOLIDWORKS Student Edition - Academic Use Only - _S2-2.SLDPRT __ 2020-08-09 16-41-21.mp4 S2-2.SLDPRT

2 Answers

Carlos Soler
Carlos Soler
Answered on 9 Aug, 2020 03:43 PM

Darkhan Otegen:
I can`t open the file that you uploaded, because I am an older version of Solidworks. If you like I can upload a tutorial with the usuals checks for sketches

Jim Cerul
Jim Cerul
Answered on 10 Aug, 2020 04:18 AM

opens fine...no errors...

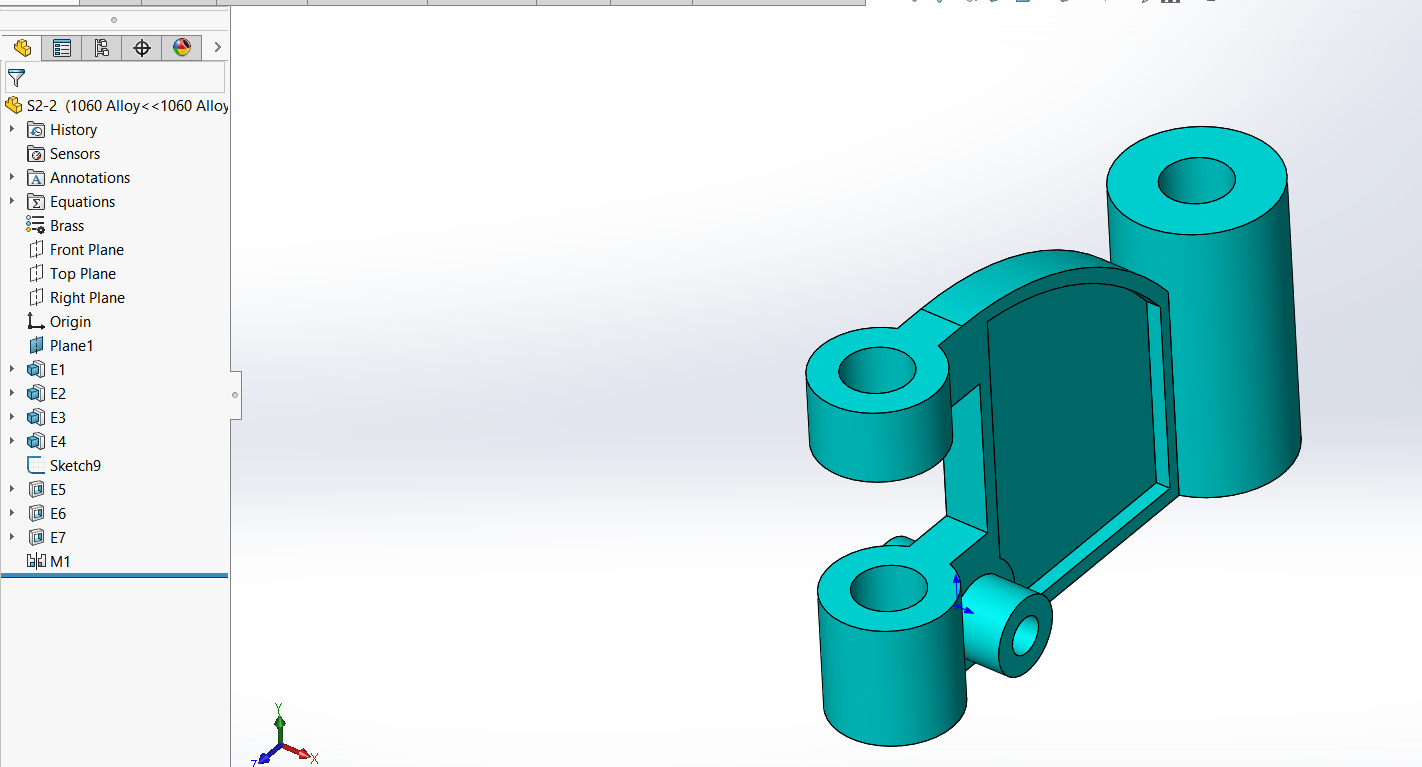

Annotation 2020-08-10 001557.png Annotation 2020-08-10 001557.png
