Need help in modeling and Constraints with ANSYS APDL.

By Chakkarabani Selvam on 31 Jul 18:51 0 answers 1127 views 0 comments

Hello!

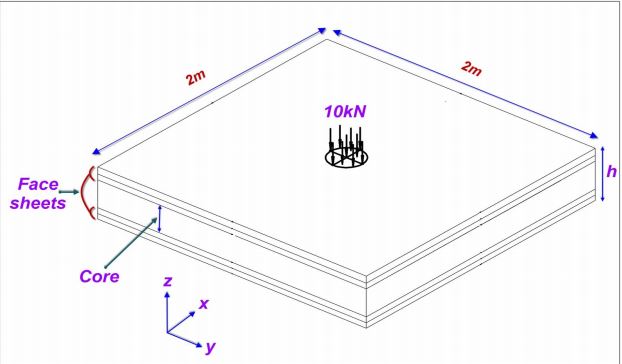

I am trying to design the attached model and analyse in ANSYS APDL. Though the model is simple, I have problem in modeling and constraints.

I have already designed it and not working for constraints. Looking for an easy way to design and constraint the attached model.

Added images

Square
