Problem in ordinate dimensions in solidworks

By farzad on 19 May 09:36 1 answer 652 views 7 comments

Hi All

On some drawing in solidworks, that are made in previous versions, I am facing a problem. When I create ordinate dimensioning in drawing, when the number of points that I have to put the dimension increases, solidworks suddently goes stupid, and on every point I click, it shows it's ordinate dimension at one single point, imaging I am dimensioning along x axis, and there is a circle at x=10 mm. When I arrive to a point at x= 50 , and I click on it, I see the 50 , but on the axis of that damn circle, and x=10mm !!! And so on for every other point. I restarted solidworks but it did not resolve.

1 answer

  • farzad
    farzad over 1 year ago

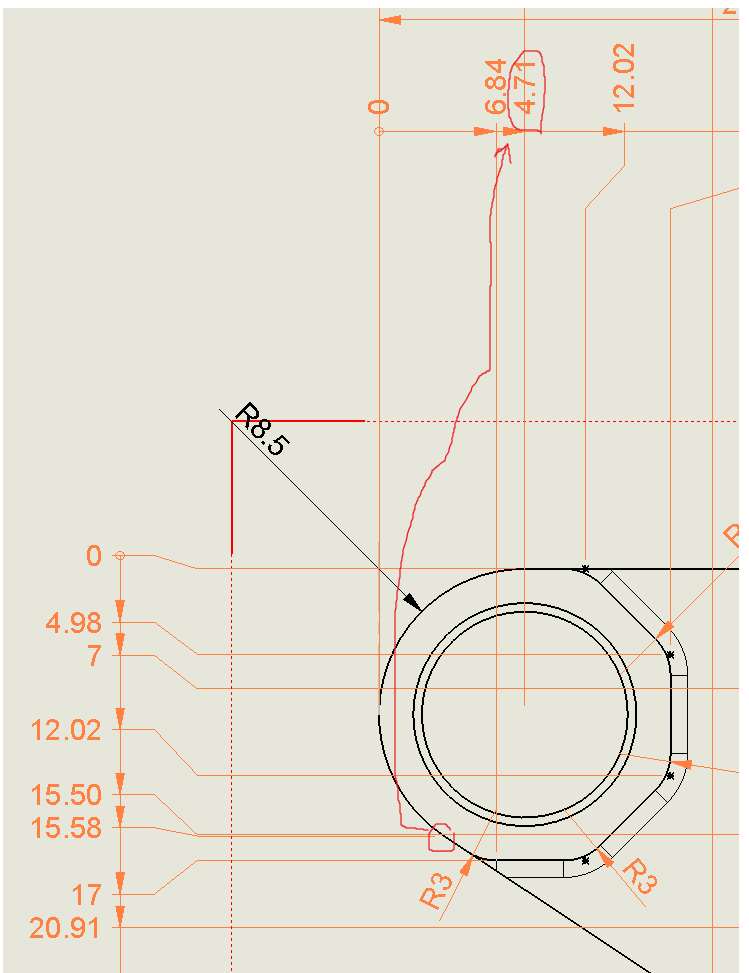

    here is the screen shot
