Request: Azimuth thruster

S.P. Somford
S.P. Somford
16 Jan, 2018 01:42 PM

Hello,

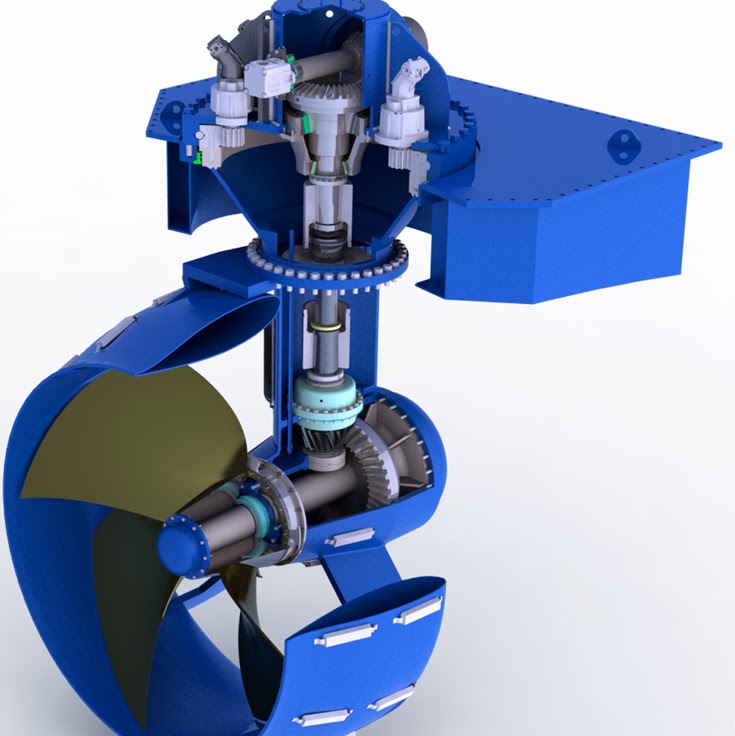

For a project I need a detailed azimuth thruster as attached in the picture. I need to be able to show the parts (seals etc.) that are being used in such a thruster.
Can someone help me?

azimuth thruster.jpg azimuth thruster.jpg

5 Answers

Adrian E. Ramirez I.
Adrian E. Ramirez I.
Answered on 16 Jan, 2018 05:10 PM

your project its very goob for my. Congrats...

DHANASEKAR VINAYAGAMOORTHY
DHANASEKAR VINAYAGAMOORTHY
Answered on 17 Jan, 2018 04:10 PM

Brunvoll retractable azimuth thruster
this is available in grabcad

DHANASEKAR VINAYAGAMOORTHY
DHANASEKAR VINAYAGAMOORTHY
Answered on 17 Jan, 2018 04:11 PM

And also look into this link as well for dimensions

https://www.rolls-royce.com/~/media/Files/R/Rolls-Royce/documents/customers/marine/propulsors.pdf

Anthony Desrochers
Anthony Desrochers
Answered on 8 Mar, 2019 07:22 PM

I hope this model it's what you search
Thruster azimuth

MF
MF
Answered on 16 Jan, 2018 04:51 PM

There is one in the library, but I do not believe it is as detailed as you need it to be:
Azimuth thruster
