Rib angle in SolidWorks

By Rahul Kapoor on 11 Jun 03:29 5 answers 1693 views 4 comments

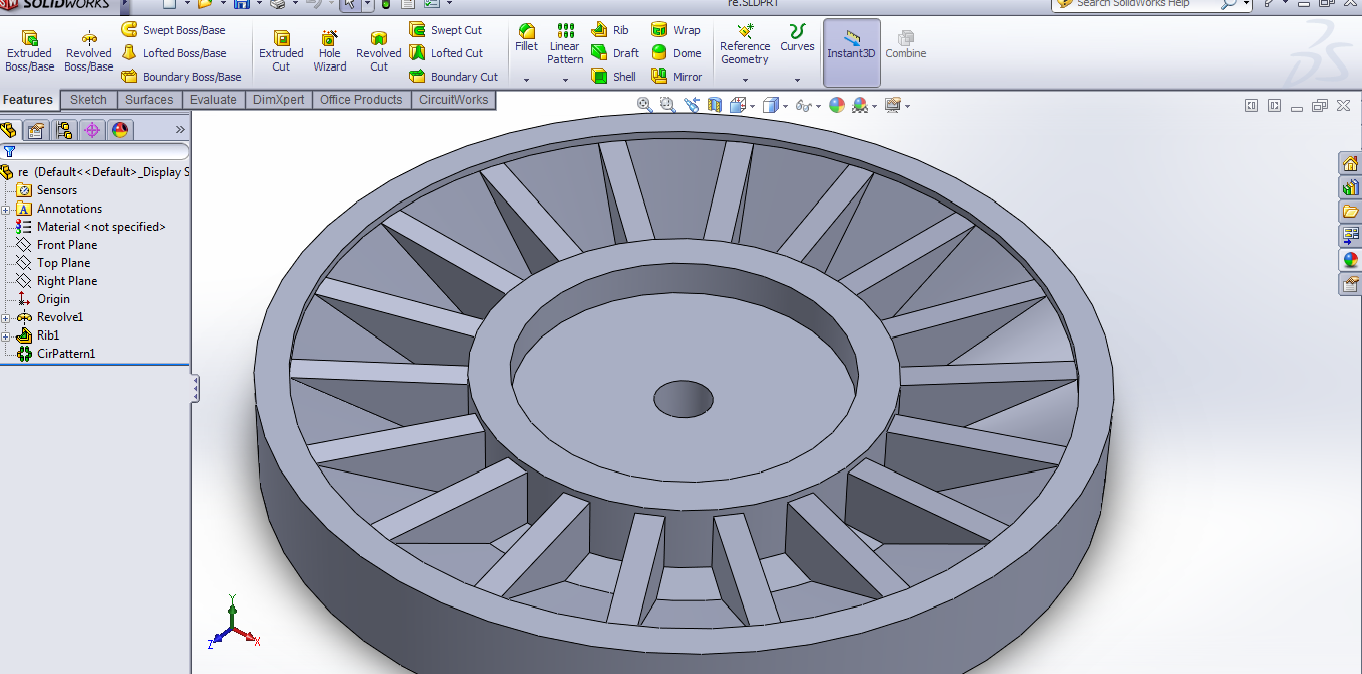

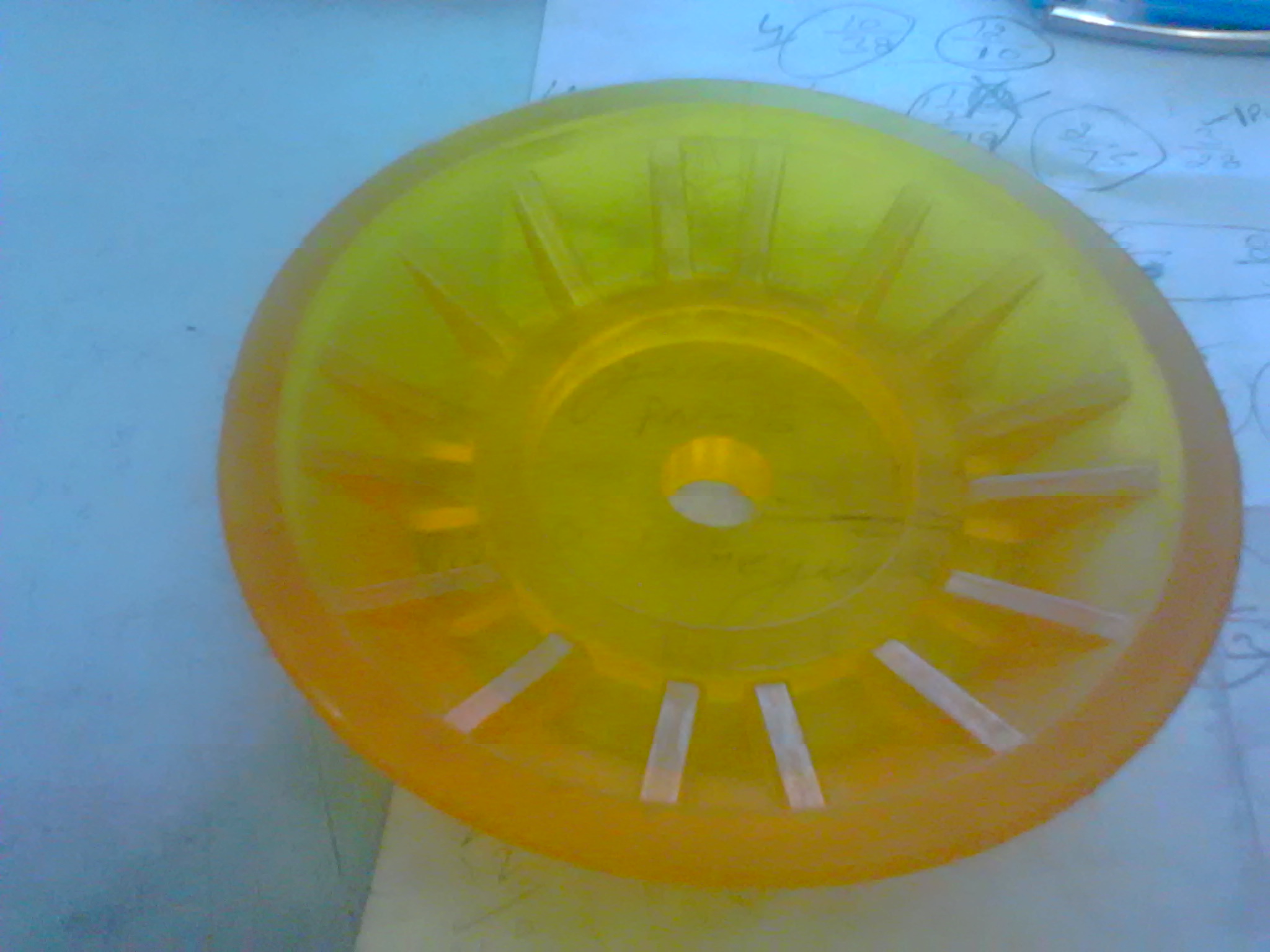

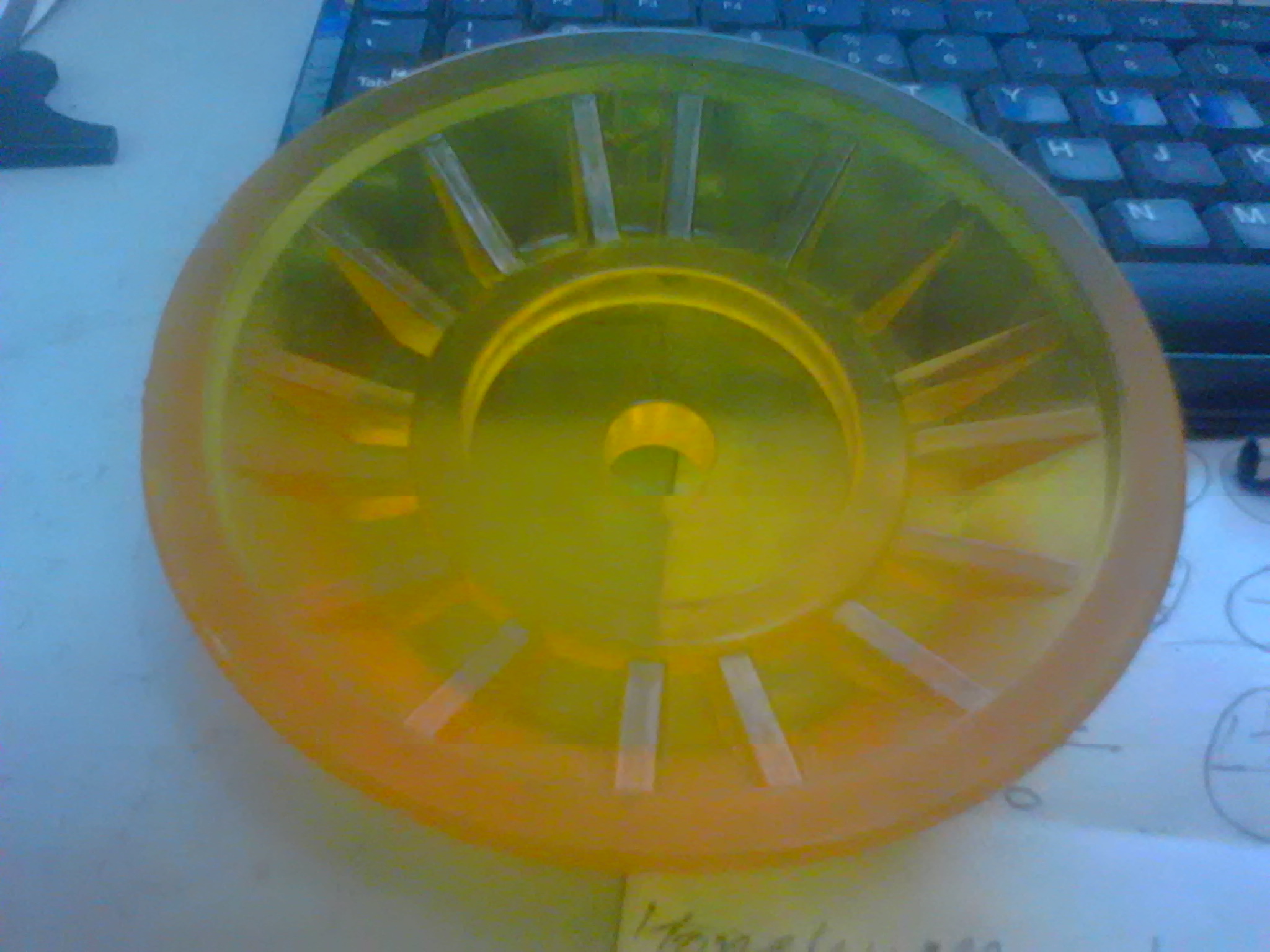

How to make the ribs on the angle as given in the pic. I have to make the ribs on the part attached below.

Added images

Square Square

Attachments

Part1.SLDPRT, 204 KB
Download
Part1.IGS, 205 KB
Download

5 answers

  • Patrick
    Patrick about 3 years ago

    Hi !
    You can sketch a line on the top plan of your part from inner cylinder to the next wall, then use rib tool to create one rib, adjust thickness, draft if required, repeat rib function to obtain the others. While hoping this willhelp.

  • Patrick
    Patrick about 3 years ago

    Hi RAHUL,

    I have tried to estimate angle values of the two series of ribs. Contrstruction is the same way as before. Rollback feature manager and arrange angle values and other parameters to your convenience. Regards.

    Attachments

    Ribbed Part2.SLDPRT, 471 KB
    Download
  • Patrick
    Patrick about 3 years ago

    Here is ribbed part in SW2014

    Attachments

    Ribbed Part1.SLDPRT, 380 KB
    Download
