Solid bodies vs. Surfaces! Help me, please!

Viktor
Viktor
22 Apr, 2013 12:43 PM

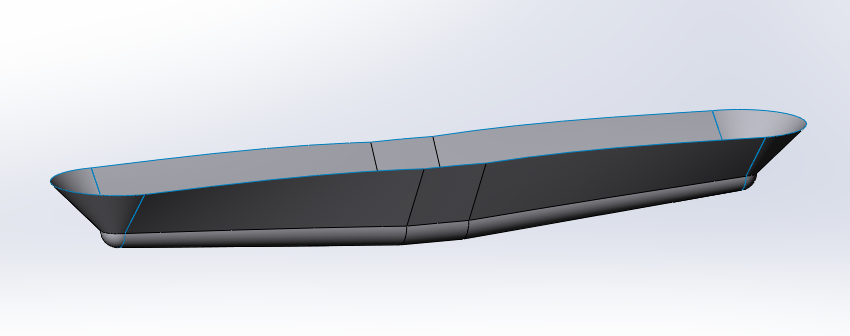

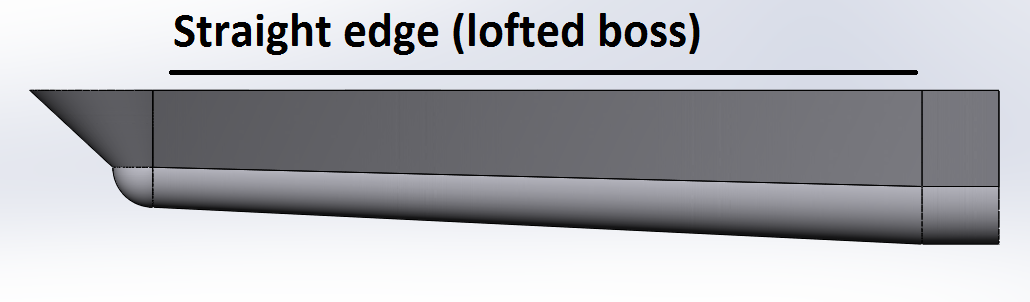

Hi, everyone! Please, tell me how can i do next. When i create this part with Lofted boss
all edges are correct. But i need to create this part with surface method (lofted surface), and when i do it some edges are curve (must be straight). And i don't understand how can i do it.

3.png 3.png 1.png 1.png 2.png 2.png

1 Answer

Stephen Nyberg
Stephen Nyberg
Answered on 5 Feb, 2015 08:26 PM

you could take your correct solid body and convert the faces to surfaces and then delete your solid.
