Surface vs Solid body! Please, help me!

Viktor
Viktor
22 Apr, 2013 12:44 PM

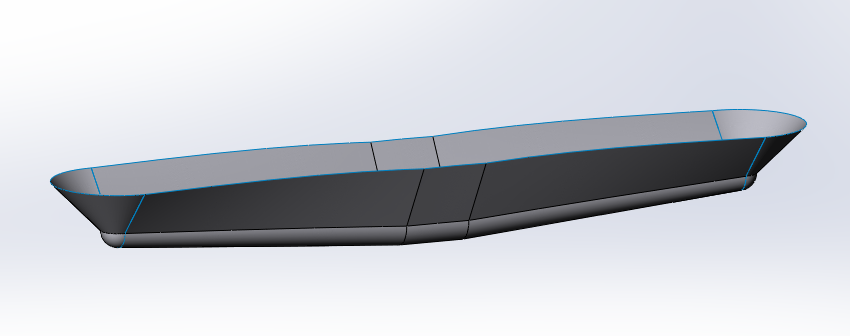

Hi, everyone! Please, tell me how can i do next. When i create this part with Lofted boss

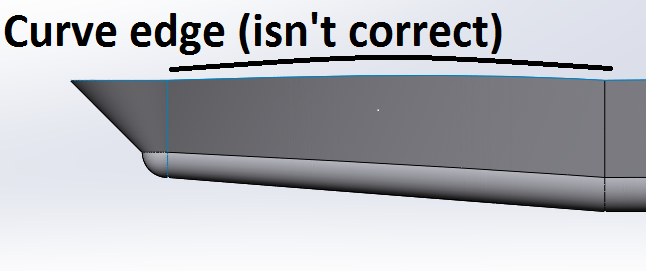

all edges are correct. But i need to create this part with surface method (lofted surface), and when i do it some edges are curve (must be straight). And i don't understand how can i do it.

1.png 1.png 2.png 2.png 3.png 3.png

1 Answer

Rohit Mitra
Rohit Mitra
Answered on 22 Apr, 2013 06:18 PM

Create a flat surface where you want the edge to be straight, and use trim surface to remove out the excess.

-Rohit
