Solidworks: How to split a sketch into equal segment
Hello,
Anybody got an idea how to split a sketch into equal lenght ? I mean not only one line , but several line at once to avoid to call the "segment" feature 1000 time for 1000 line.
Thanks
3 Answers
Make a single small line and linear pattern it??

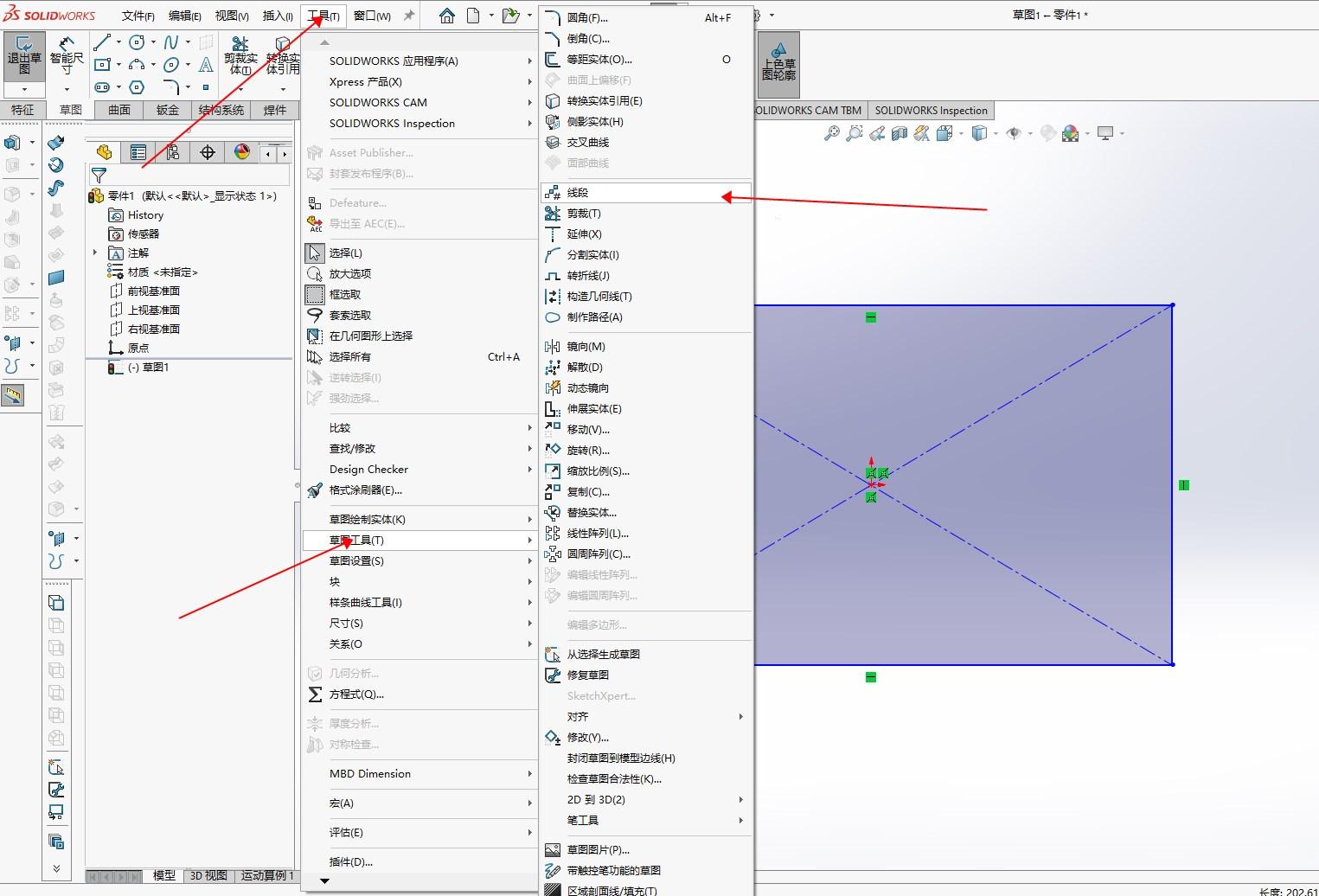

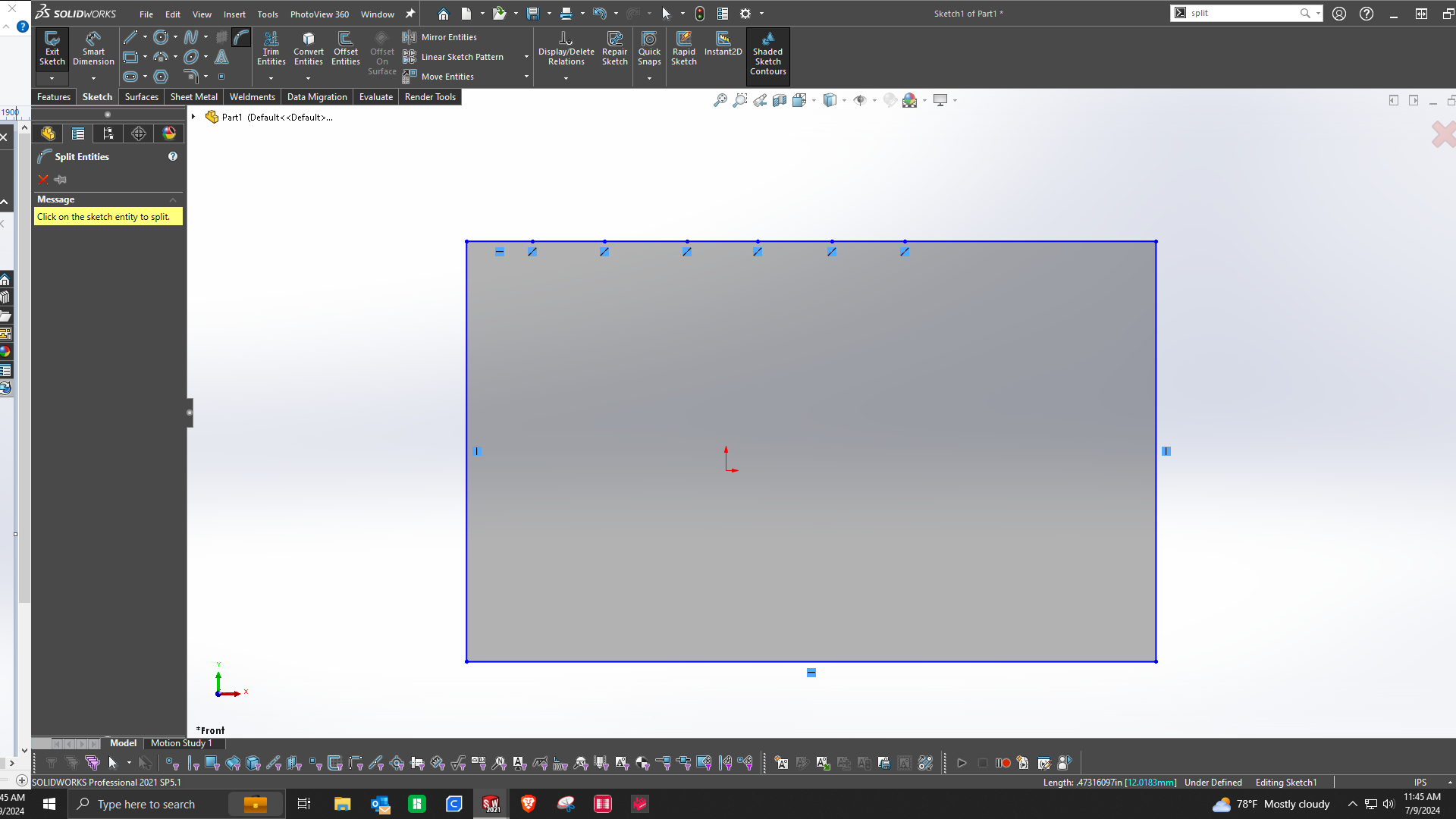

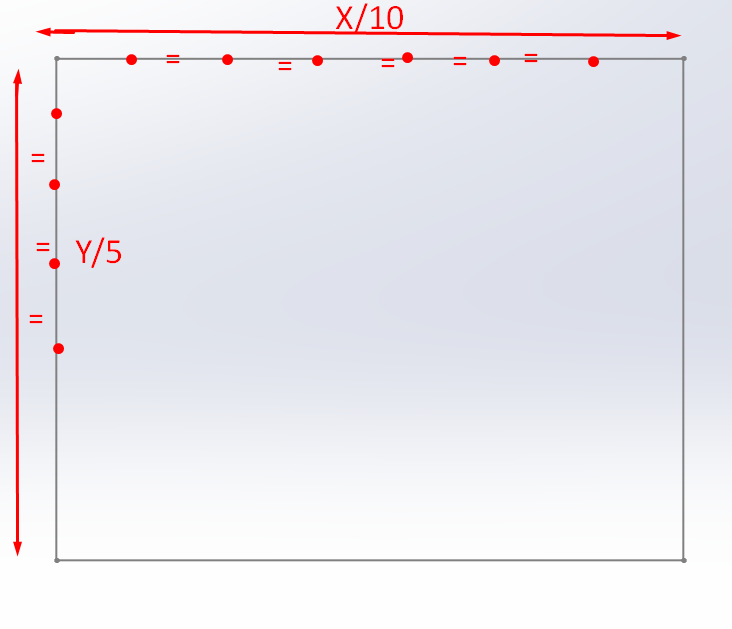

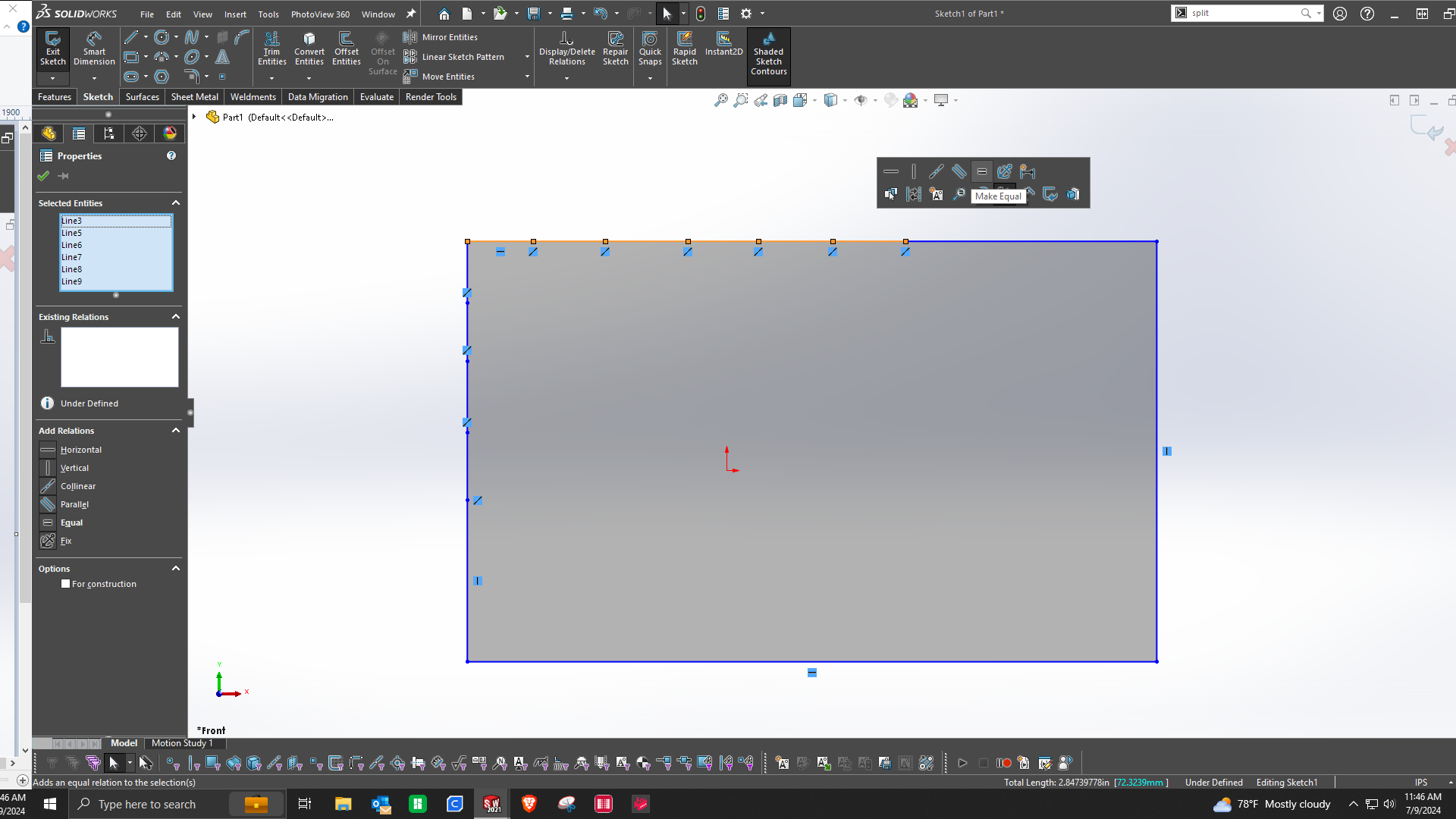

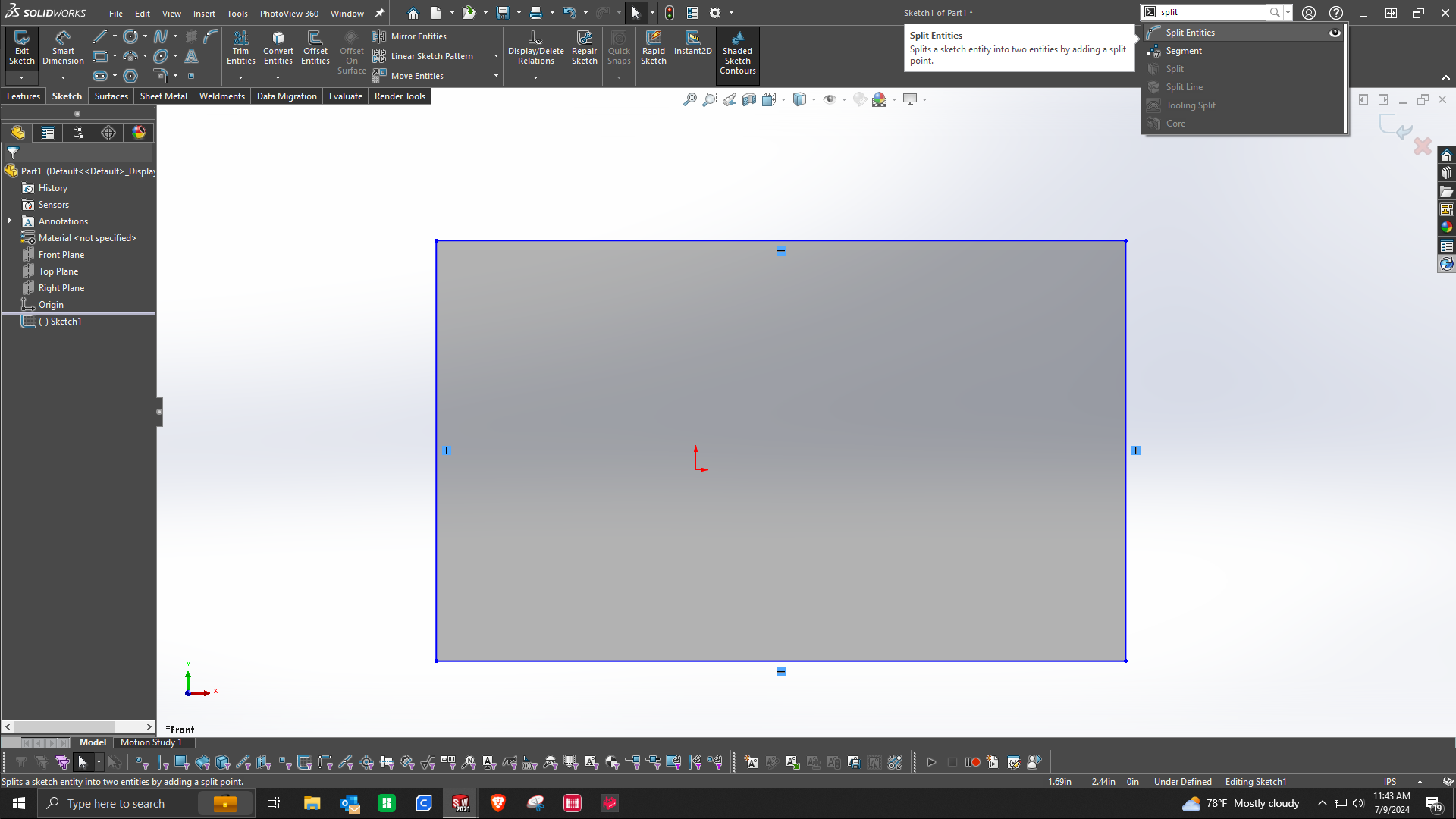

Search "Split Entities" in the top right of SolidWorks. Click and drag the icon into your sketch toolbar. Drop as many points onto your line as you please. Ctrl+Click all of the segments you need, then make equal.

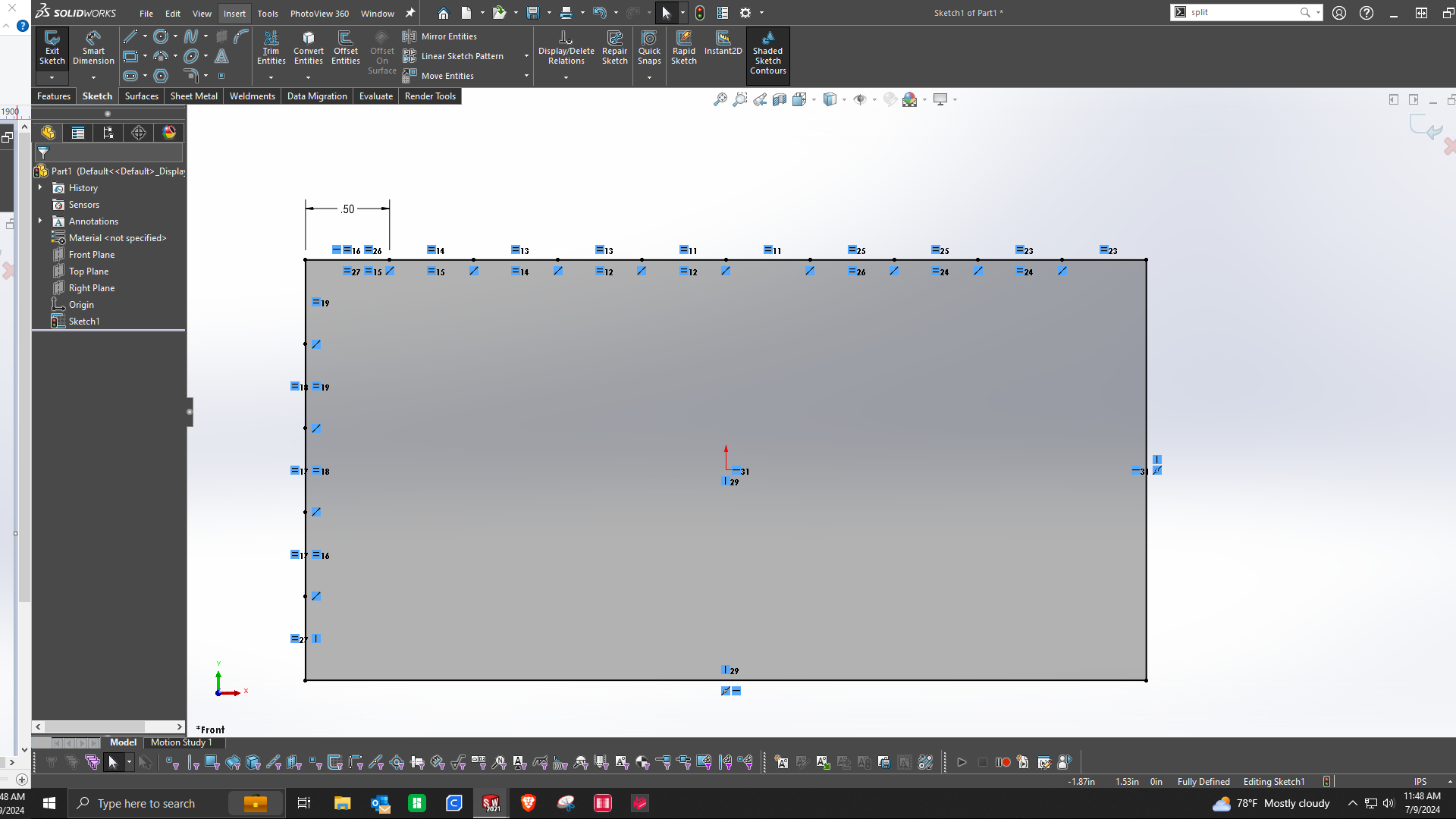

For sketches where segments are too numerous to ctrl+click, dragging a box to encompass them all will allow you to make equal on the left. See Split Entities 03-1.
