how to use the split line feature on this complex sketch?

By Voinea on 04 Nov 06:52 1 answer 321 views 2 comments

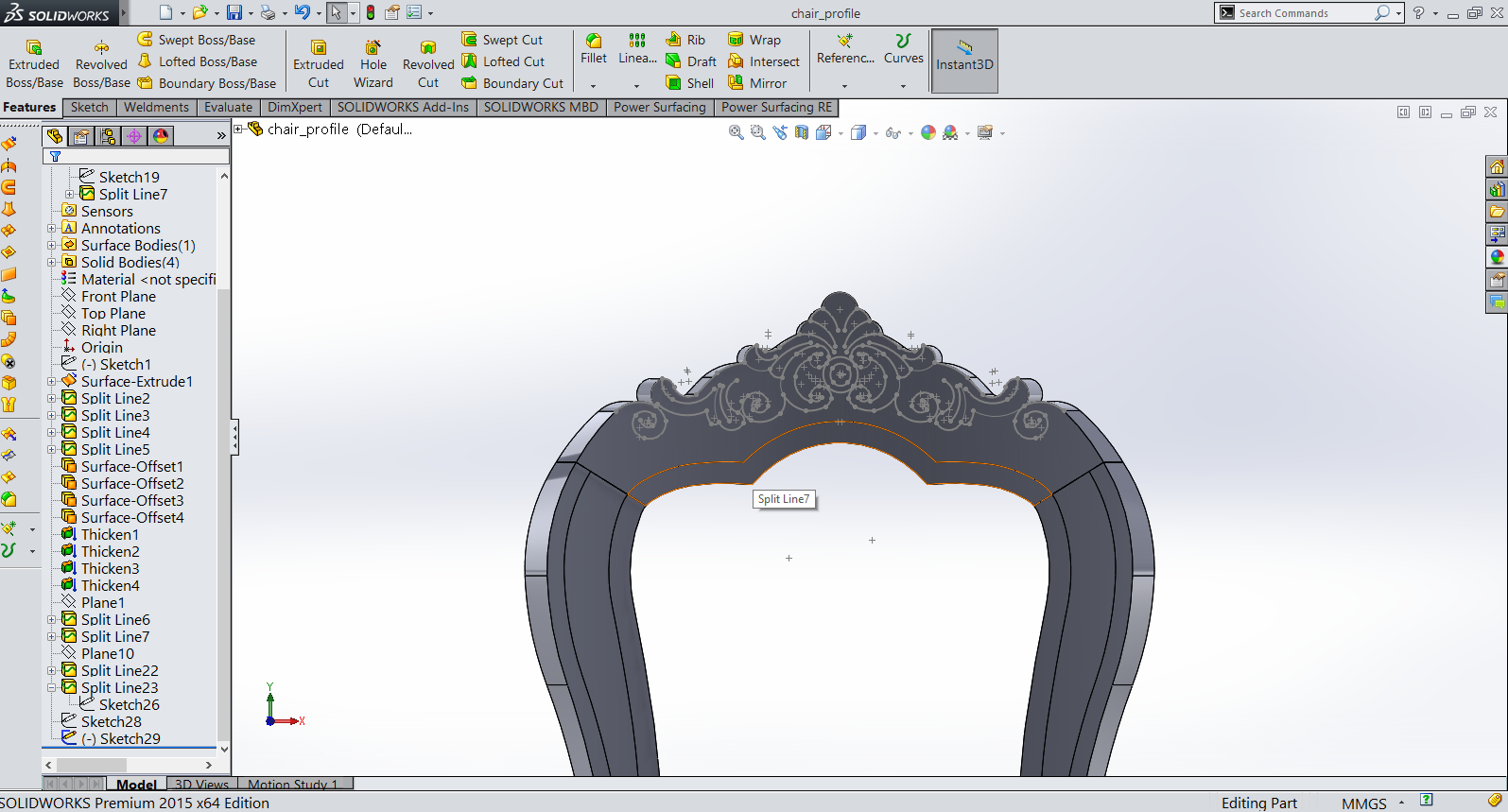

Hello, i have the profile of this chair and i am trying to apply the split line feature or the project curve feature on it, based on 2d drawing imported from autocad. But i have a problem on how to aproch this feature in this situation, can someone help, please? thank you

Added images

Square

Attachments

chair_profile.SLDPRT, 807 KB
Download

1 answer

  • MALLIAS
    MALLIAS almost 2 years ago

    I guess you cannot use this sketch because it cannot split a surface all at once. You should try doing it in smaller steps using parts of the original sketch each time. If I have time tomorrow I will try it for you.
    Good luck

    Ps. Inspire you should not delete your answer. I always benefit from your answers and learn things I do not know.

Add your answer to: "how to use the split line feature on this complex sketch?"
